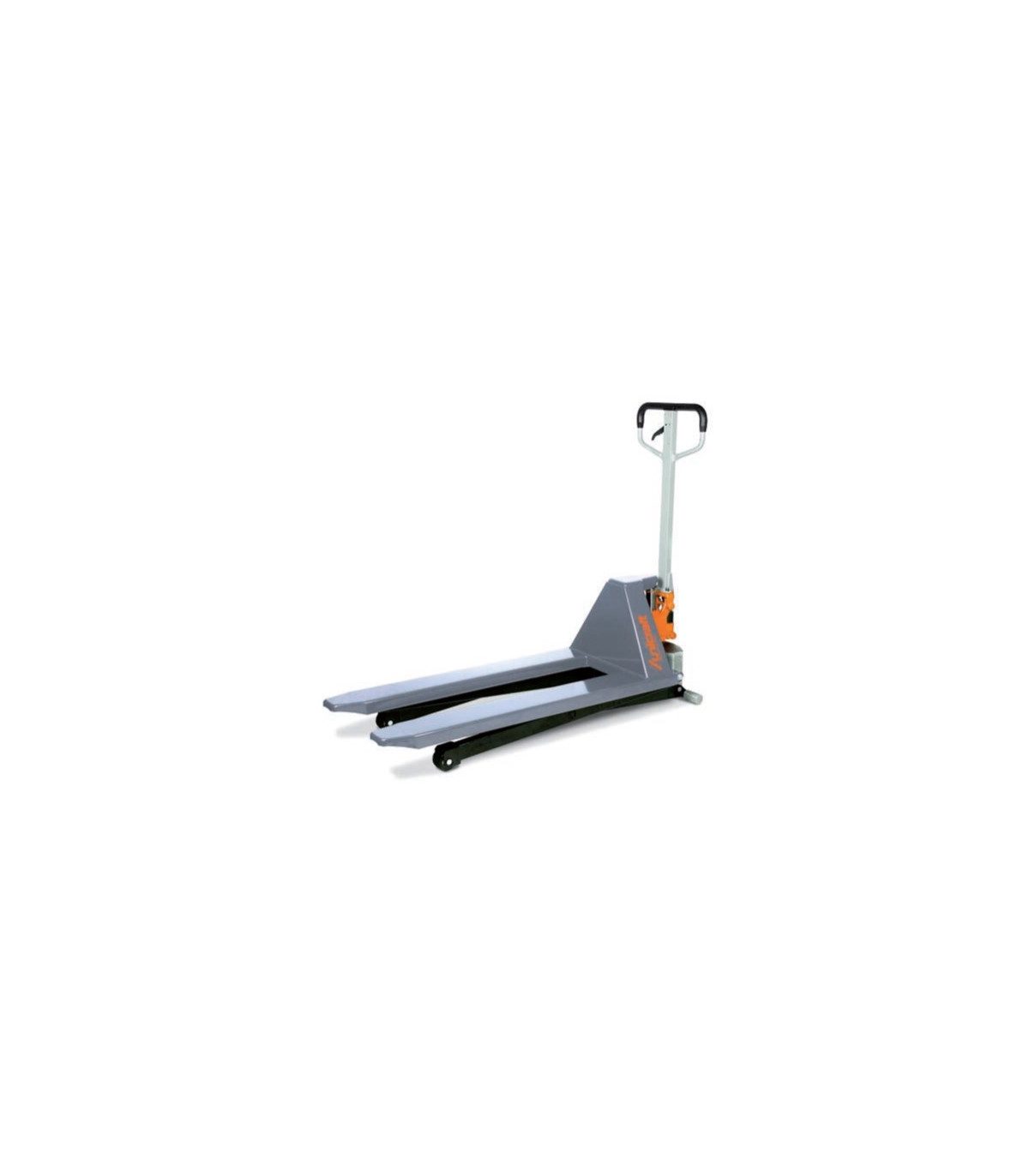

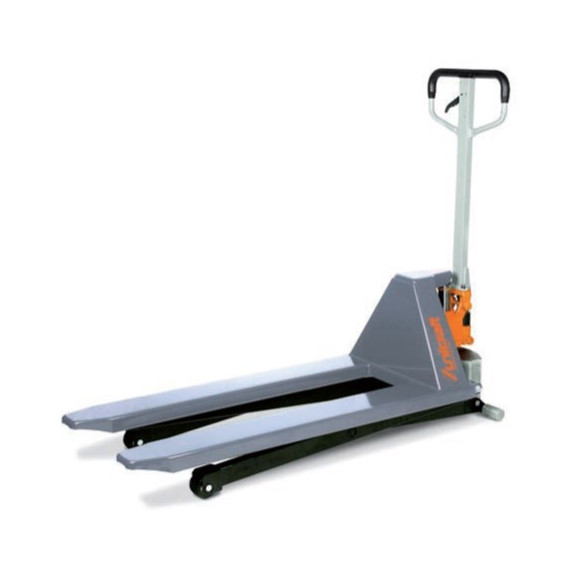

Pallet truck and scissor lift table PHH 1001 with a capacity of 1 ton UNICRAFT.

Transpaleta and scissor lift table PHH 1001 with a capacity of 1 T UNICRAFT. The transpaleta and scissor lift table PHH 1001 from UNICRAFT is a robust and fully hydraulic device, capable of lifting and lowering loads of up to 1 ton. Equipped with a smooth operating pump, its descent speed is adjustable via a sensitive valve.

Its design includes a telescopic cylinder with three stages of elevation, allowing for quick reach to the maximum height. With a torsion-resistant frame and an ergonomic pull bar, it offers easy handling even with heavy loads. Its aluminum wheels and solid rubber tires ensure agility and durability, making it ideal for industry, warehouses, commerce, and factories.

FEATURES

• Robust lifting and lowering device that is fully hydraulic
• Smooth operating hydraulic pump with hard chrome piston and pressure relief valve
• Continuously adjustable descent speed via a sensitive release valve
• Quick reach to the maximum fork height through mechanical rapid lifting
• Lifting via telescopic cylinder with three different stages of elevation
• Frame and fork constructed with a stable and torsion-resistant casing.
• Very agile thanks to the 210-degree steering angle.
• Ergonomic pull bar with additional plastic coating
• Easy handling even of heavy loads by switching from pumped position to neutral position
• Operates extra legally thanks to its aluminum wheels.
• With solid rubber tires and polyurethane wheels.
• Precision ball bearings that require no maintenance on all wheels and swivel wheels

TECHNICAL SPECIFICATIONS

Load capacity 1 ton

Load width 540 millimeters

Fork width 160 millimeters

Fork length 1150 millimeters

Lifting range 85 – 800 millimeters

VPE 1

Dimensions and weights

Steering wheel diameter 180 millimeters

Steering wheel width 50 millimeters

Fork wheel diameter 74 millimeters

Fork wheel width 50 millimeters

Approximate length 1515 millimeters

Approximate width/depth 540 millimeters

Approximate height 1225 millimeters

Approximate weight 122 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The transpaleta and scissor lift table PHH 1001 with a capacity of 1 T UNICRAFT is suitable for:

• Industry
• Warehouses
• Commerce
• Mechanical workshops
• Factories

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
