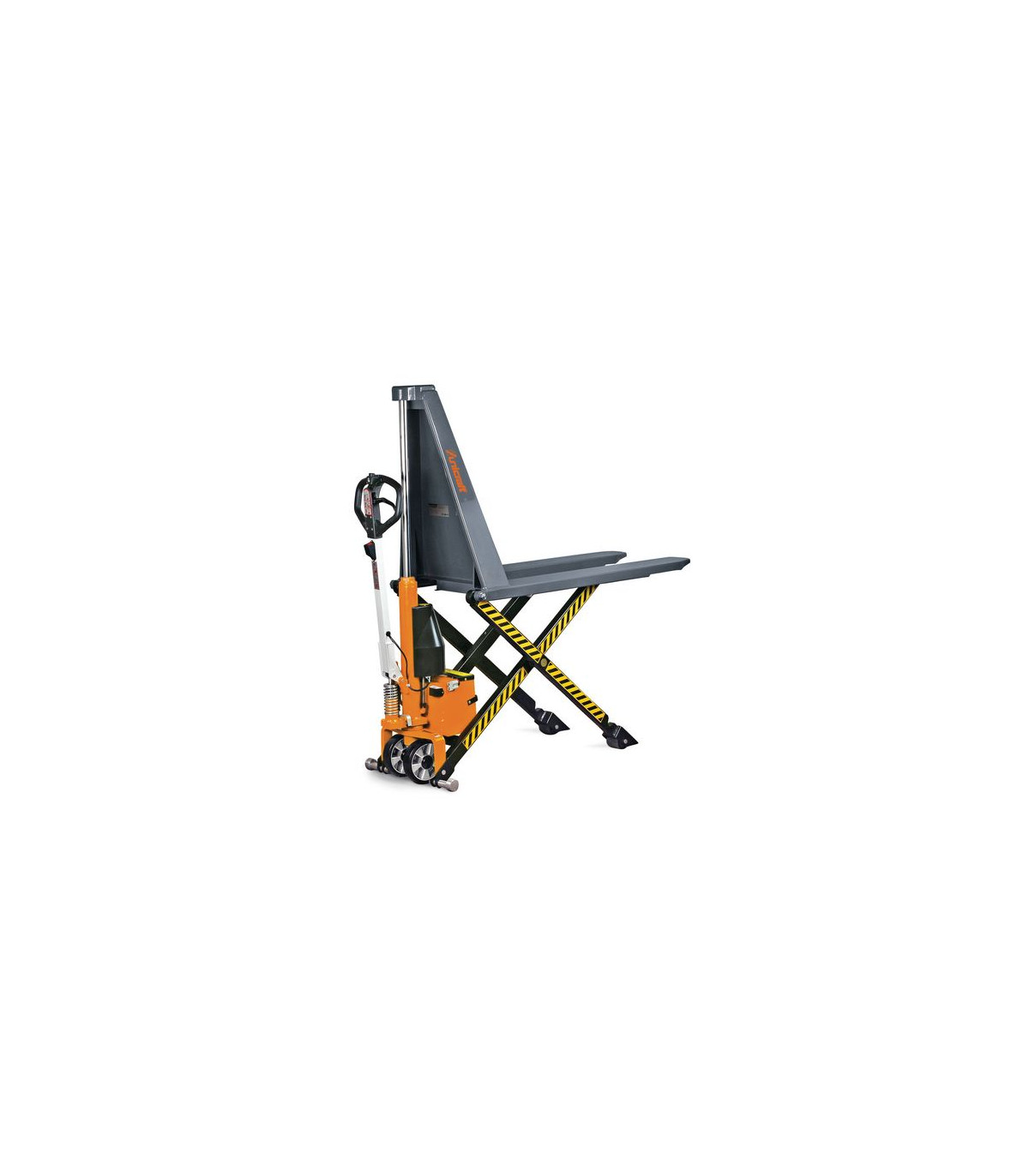

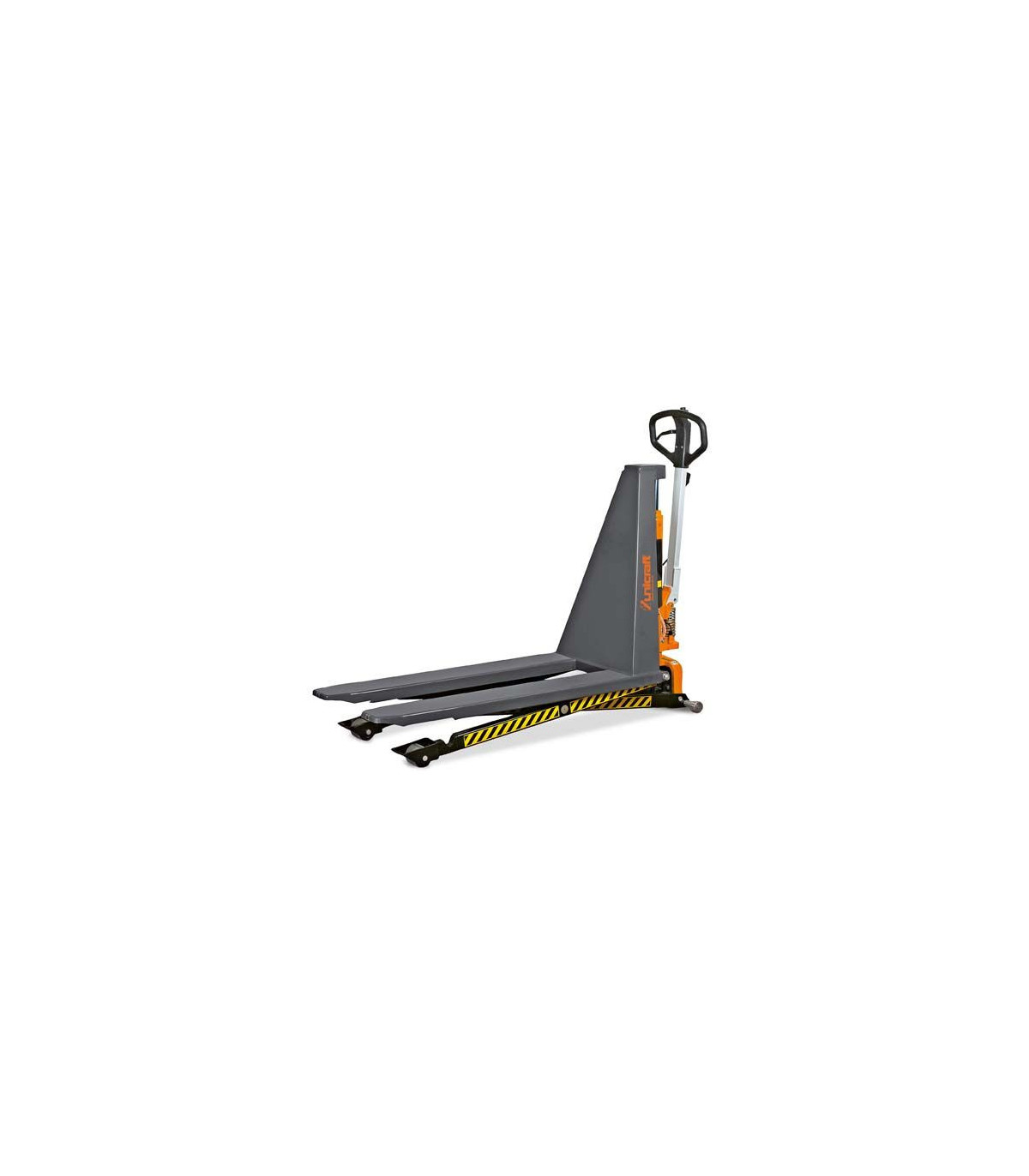

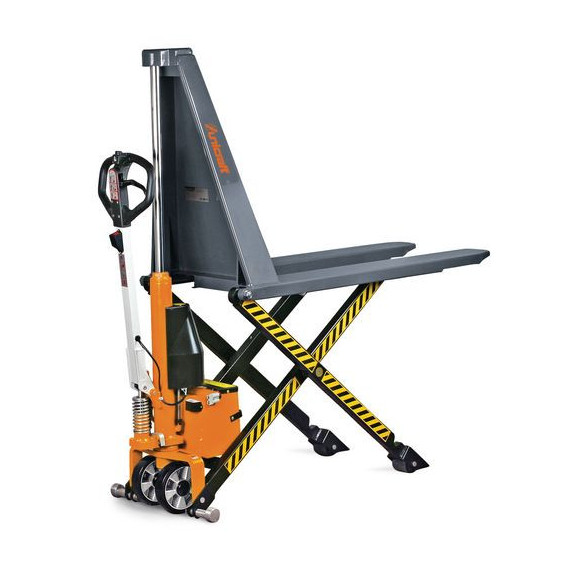

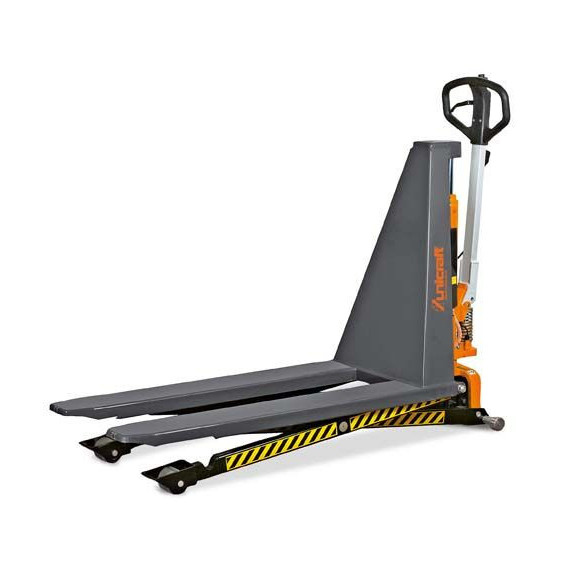

Pallet truck and scissor lift table PHH 1003 E of 1 T UNICRAFT

Transpaleta and lifting table with scissors PHH 1003 E of 1 T UNICRAFT. The transpaleta and lifting table with scissors PHH 1003 E from UNICRAFT is a robust electro-hydraulic device that allows raising and lowering loads of up to 1 ton. With a chrome-plated piston hydraulic pump and pressure relief valve, it can be used as an electric or manual forklift, ideal for loading batteries.

Its descent is smooth and adjustable via a sensitive valve. The stable and torsion-resistant construction ensures durability, while its ergonomic pull bar improves handling. Equipped with aluminum wheels and solid rubber rollers, it offers a smooth ride. The maintenance-free battery provides five hours of autonomy, charging easily at 230 V outlets.

FEATURES

• Robust electro-hydraulic lifting and lowering device
• Hydraulic pump with hard chrome-plated piston and pressure relief valve
• Can be used as both an electric and manual scissors forklift, for example, during battery charging.
• Manual descent, continuously adjustable and smooth speed via sensitive release valve
• Frame and fork constructed with stable and torsion-resistant casing.
• Ergonomic pull bar with additional plastic coating

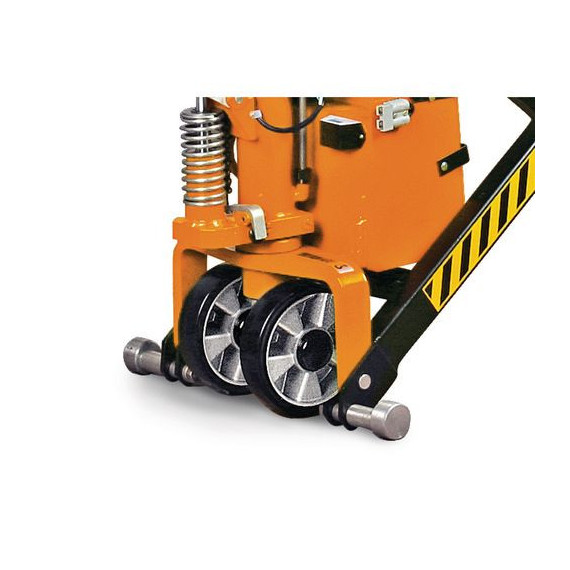

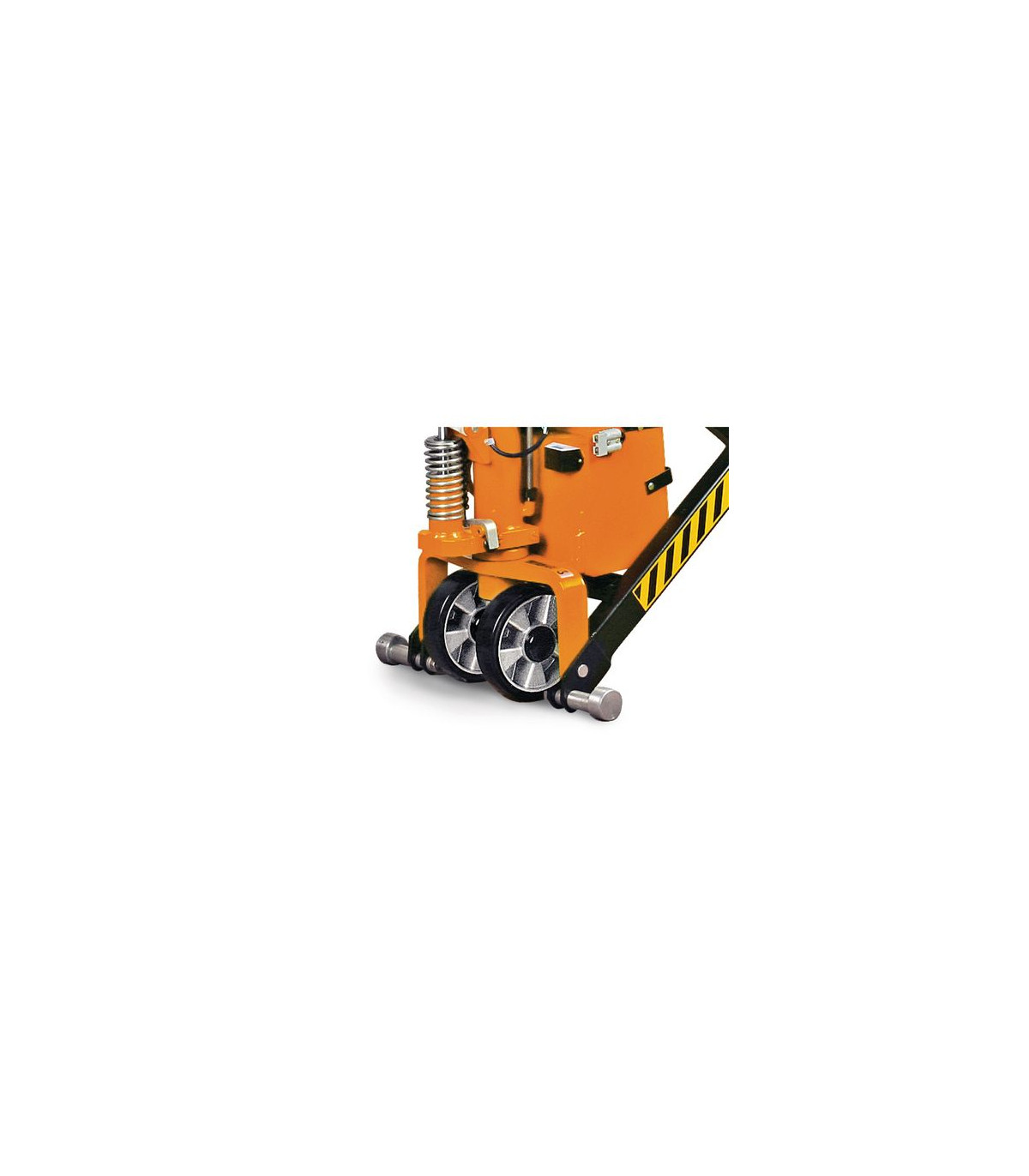

• Additional travel with aluminum wheels and fork rollers with solid rubber tread coated with polyurethane
• Maintenance-free precision ball bearings on all wheels and swivel wheels
• Standard with maintenance-free battery with five hours of autonomy (12 V/60 Ah)
• Battery charging is possible through any 230 V outlet.

Room Services

• axis

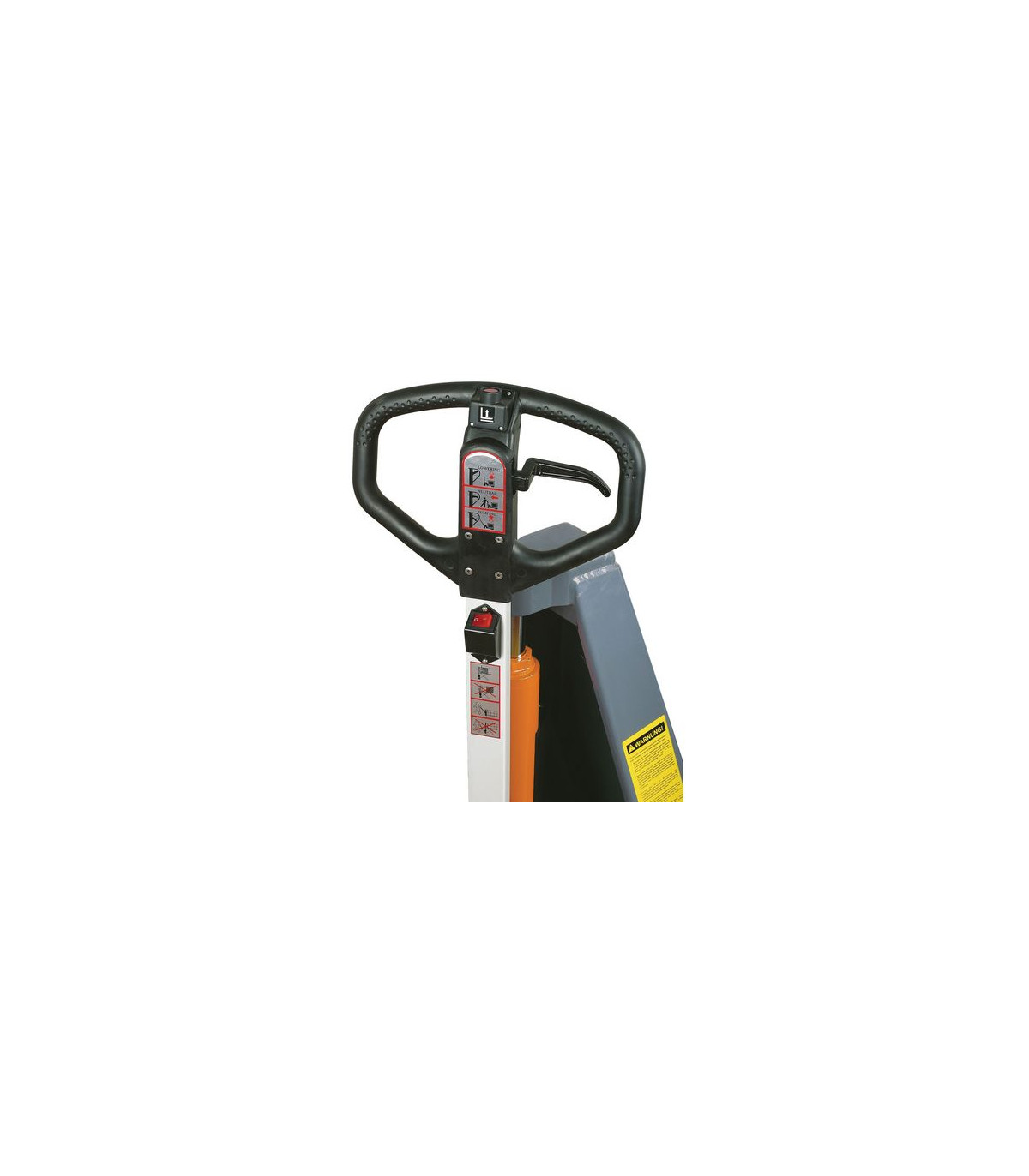

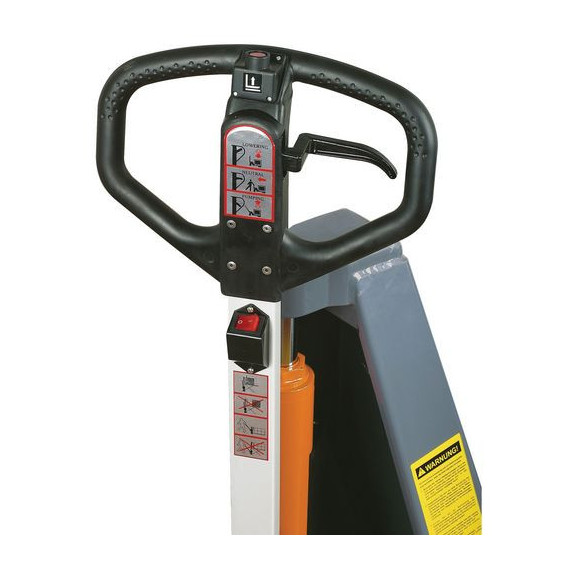

• The ergonomic pull bar can be operated with one hand and is additionally coated with plastic for optimal comfort.

Robust electro-hydraulic lifting and lowering device

• The descent speed is automatically reduced for heavy loads to prevent damage.
• With LED indicator for battery charge level

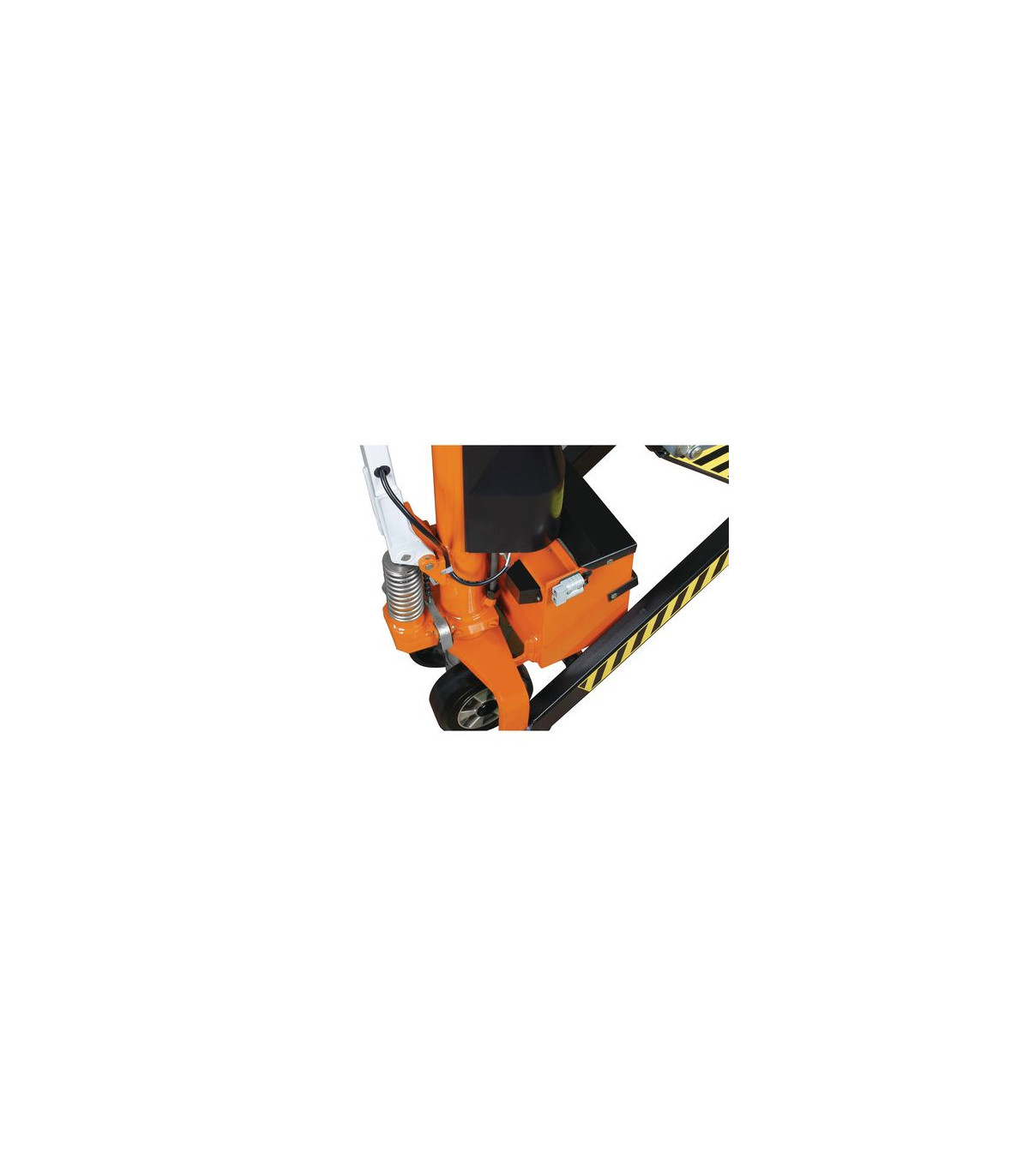

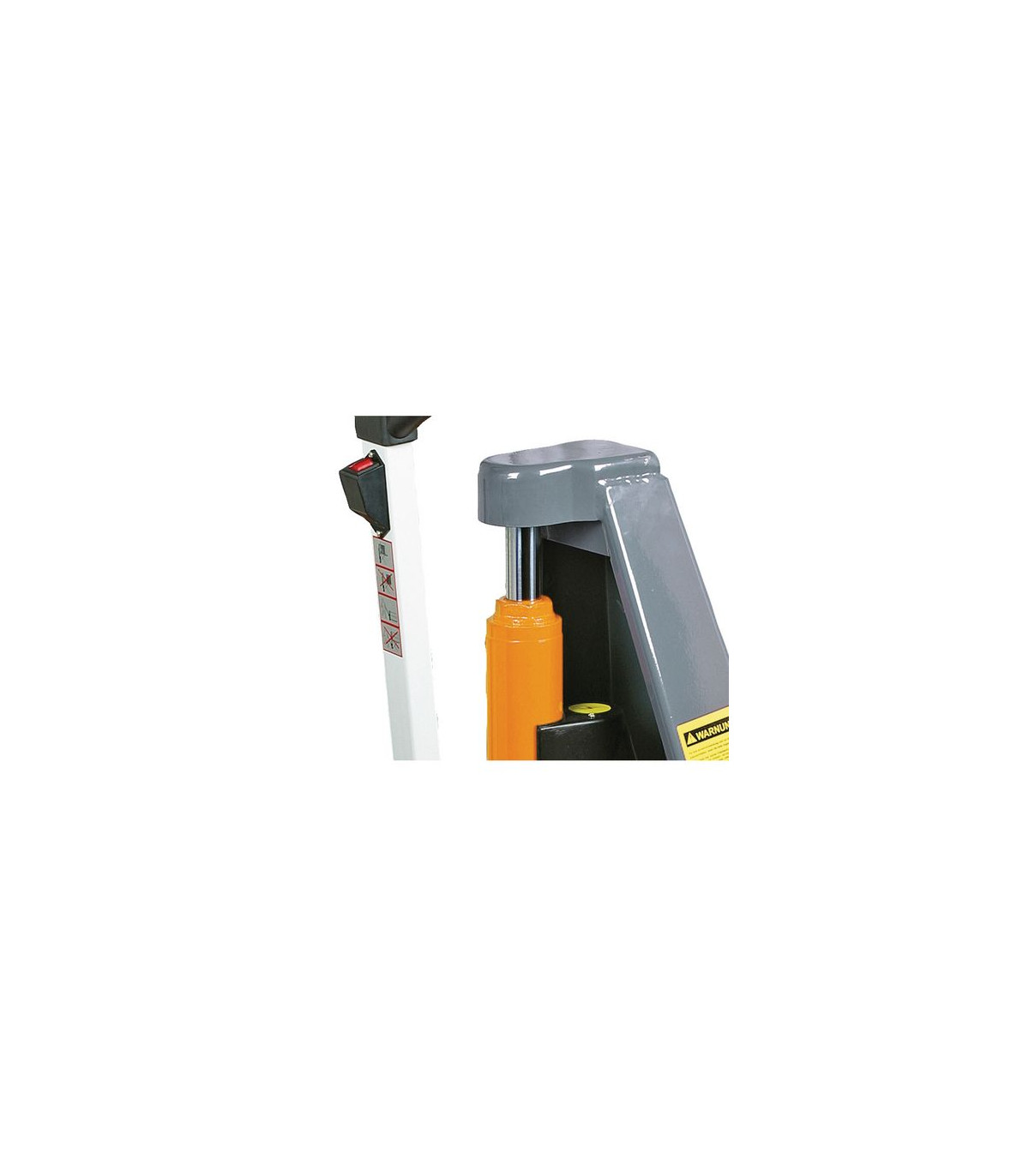

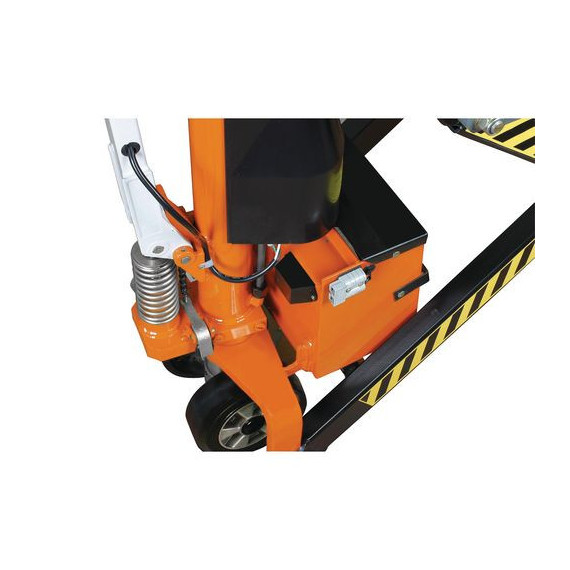

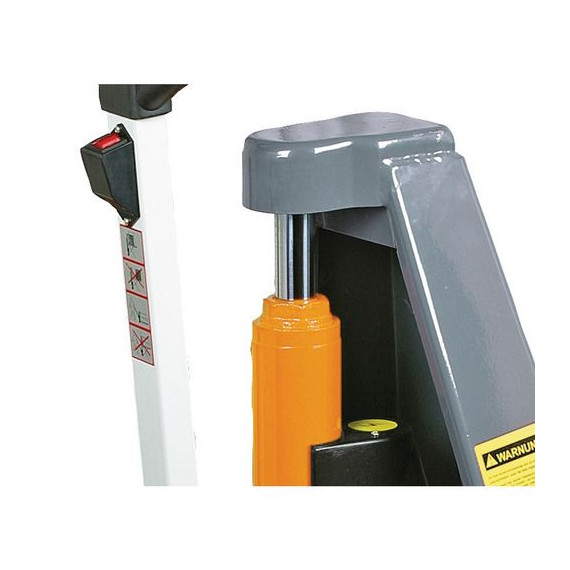

Hydraulic Pump

• High-quality hydraulic pump with hard chrome-plated piston and relief valve.

Support Feet for a Secure Position

• When inflated, the transpaleta rests at a certain height on the standard support feet.
• This ensures a secure base and prevents unintentional movement.

TECHNICAL SPECIFICATIONS

Load capacity 1 ton

Load width 540 millimeters

Fork width 160 millimeters

Fork length 1170 millimeters

Lifting range 85 – 800 millimeters

Turning radius 1564 millimeters

VPE 1

Dimensions and Weights

Steering roller diameter 180 millimeters

Steering roller width 55 millimeters

Fork roller diameter 75 millimeters

Fork roller width 50 millimeters

Approximate length 1715 millimeters

Approximate width/depth 540 millimeters

Approximate height 1254 millimeters

Approximate weight 152 kilos

Electrical Data

Lifting motor output 0.8 kW

Battery voltage 12 volts

Battery capacity 60Ah

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

Battery 12V

FOR WHAT TYPE OF WORK IS IT SUITABLE

The transpaleta and lifting table with scissors PHH 1003 E of 1 T UNICRAFT is suitable for:

• Industry
• Warehouses
• Commerce
• Mechanical workshops
• Factories

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
