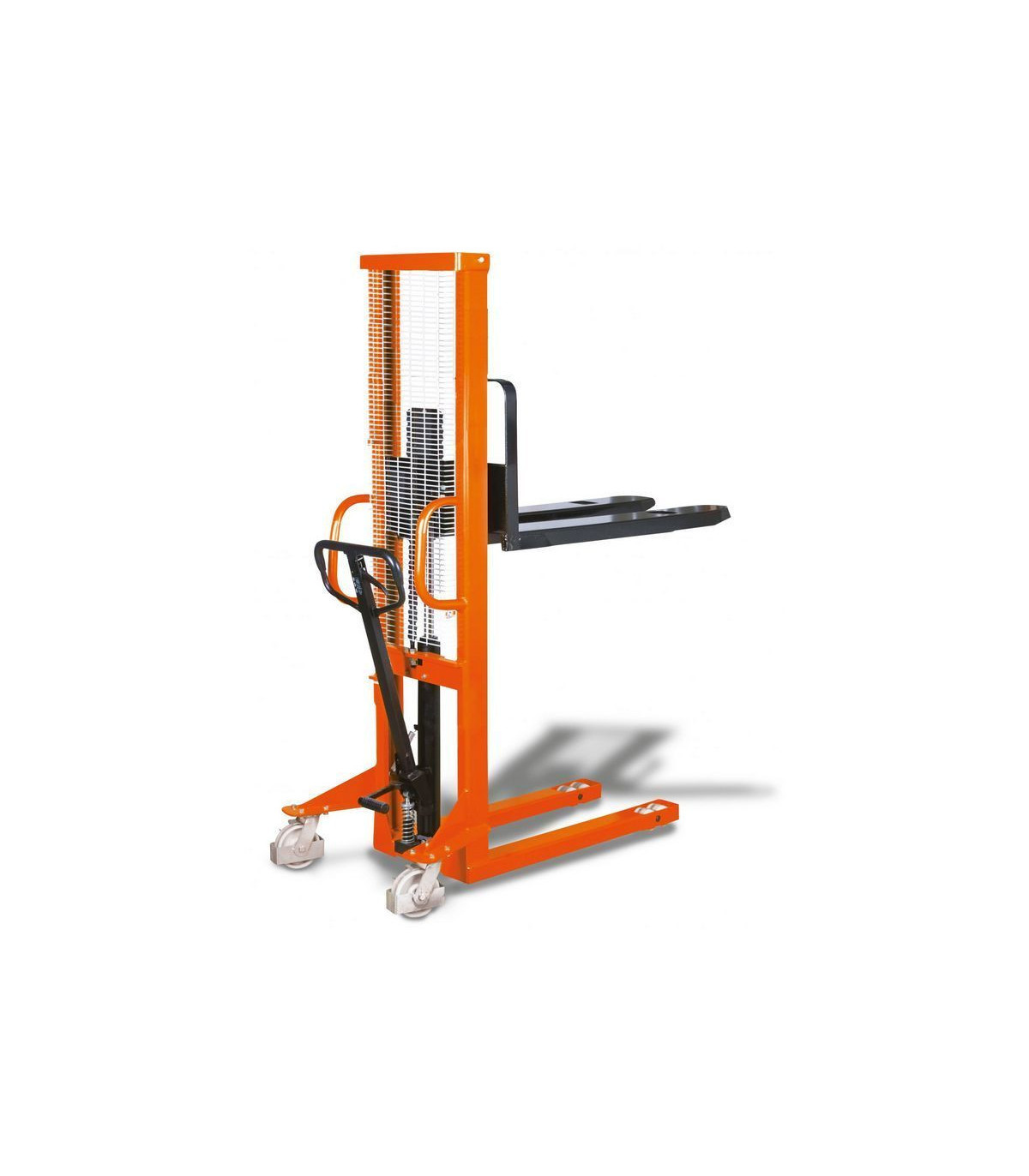

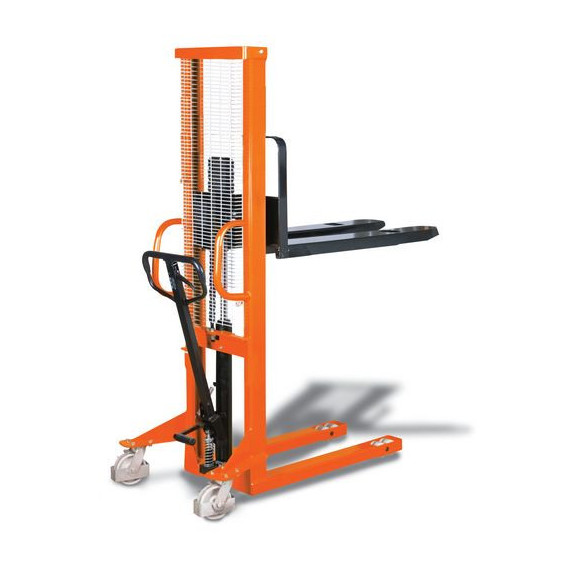

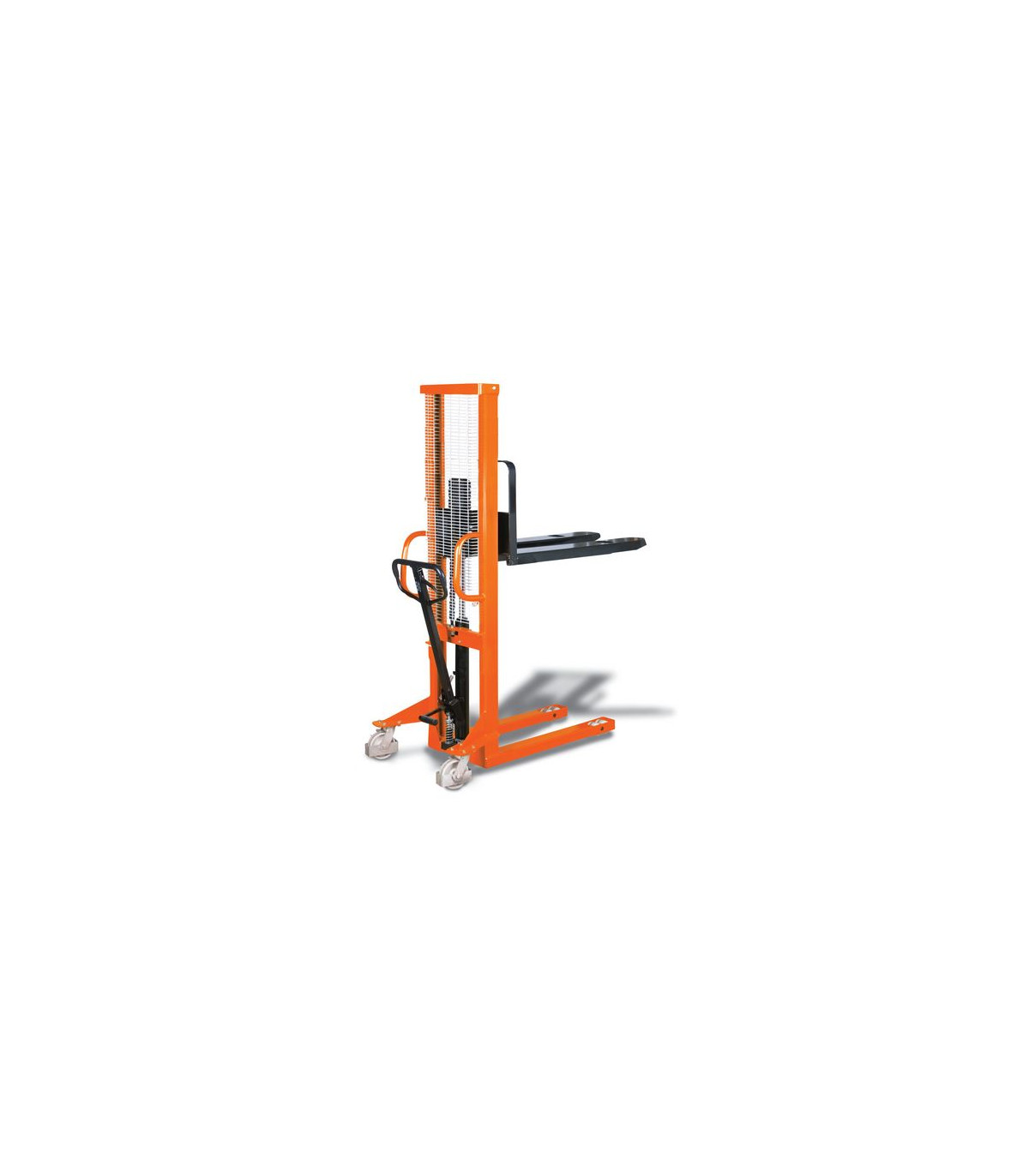

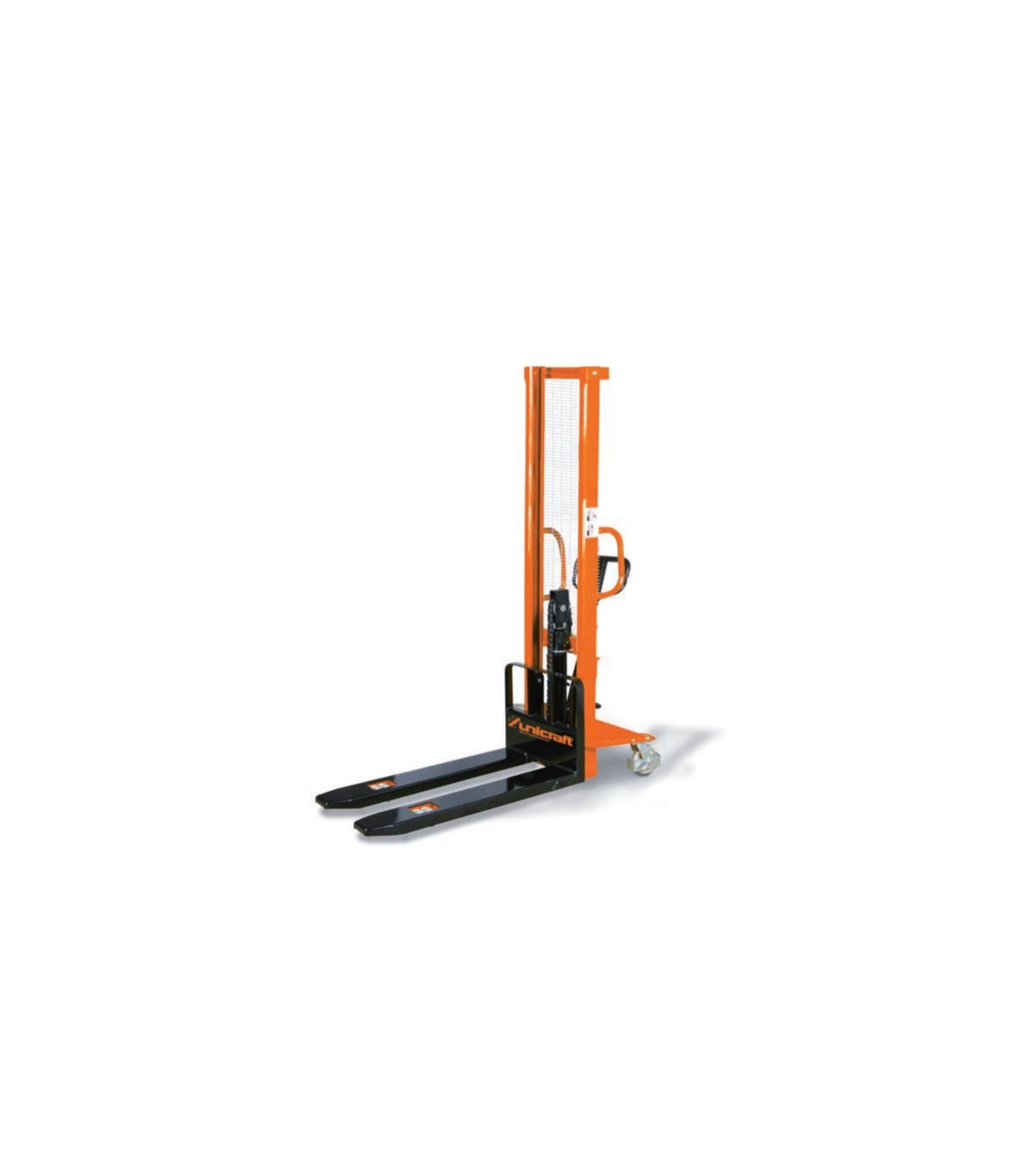

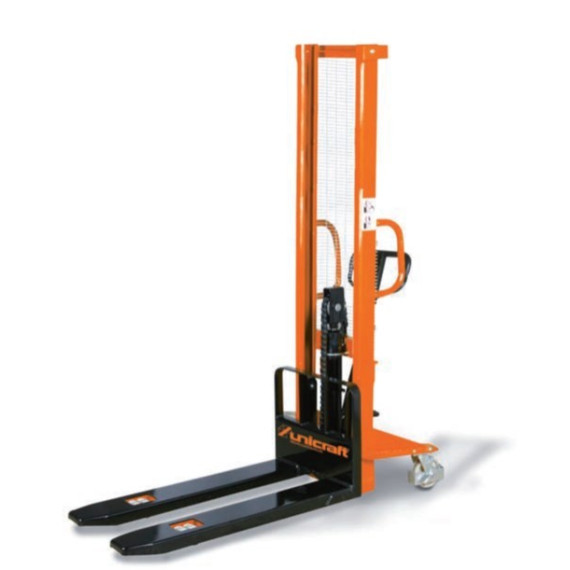

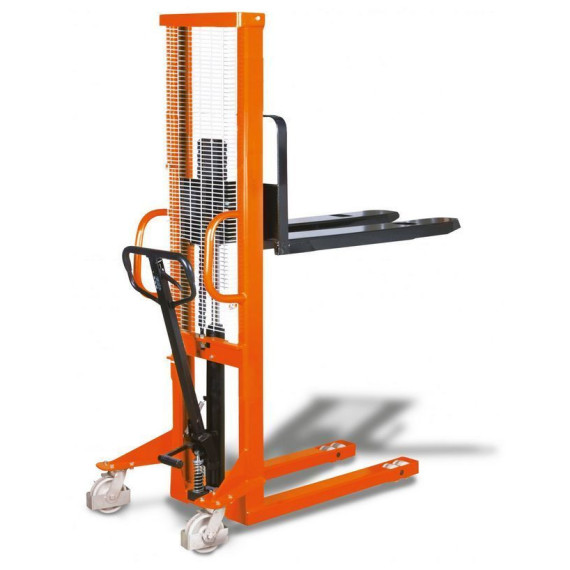

GHHW stacker for loading and unloading goods up to 1 ton UNICRAFT

GHHW stacker for loading and unloading goods up to 1 ton UNICRAFT. The UNICRAFT GHHW stacker, with a load capacity of 1 ton, facilitates the handling and transportation of goods in warehouses and workshops. Its compact design allows for high stacking and short-distance transport, making it ideal for flammable substances due to its spark-free operation and absence of electromagnetic fields.

Constructed with robust steel profiles and high-quality welded seams, it offers a fixed fork width of 170 mm for stable lifting. Its manual hydraulic pump allows for easy lifting using foot and hand levers, while the low-wear wheels ensure smooth handling.

FEATURES

• Facilitates handling and transportation in the warehouse and workshop.
• Can be used for high stacking and short-distance transport.
• Spark-free due to static load and no electromagnetic fields, making it suitable for flammable or explosive substances.
• Robust construction with high-quality welded steel profiles.

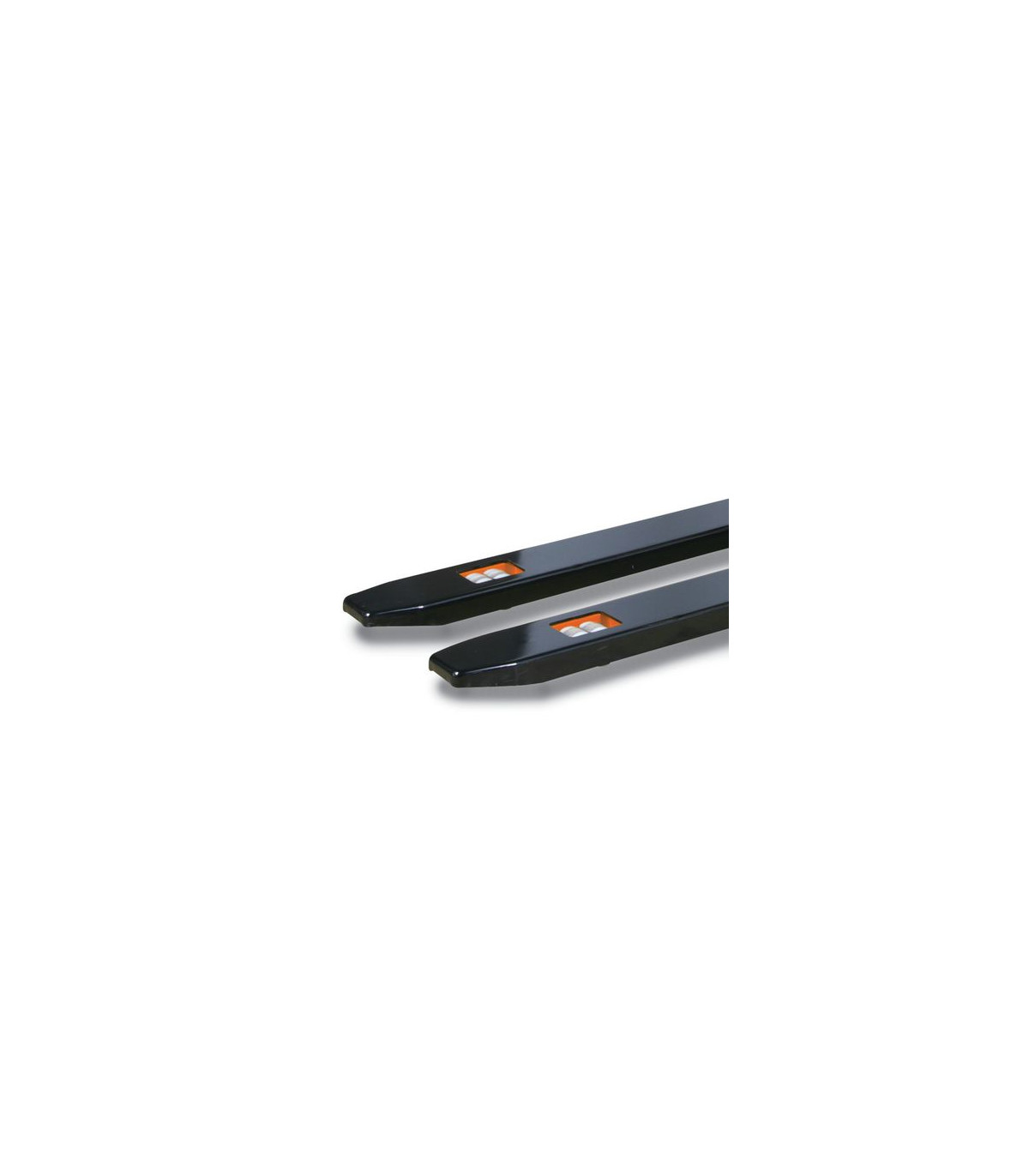

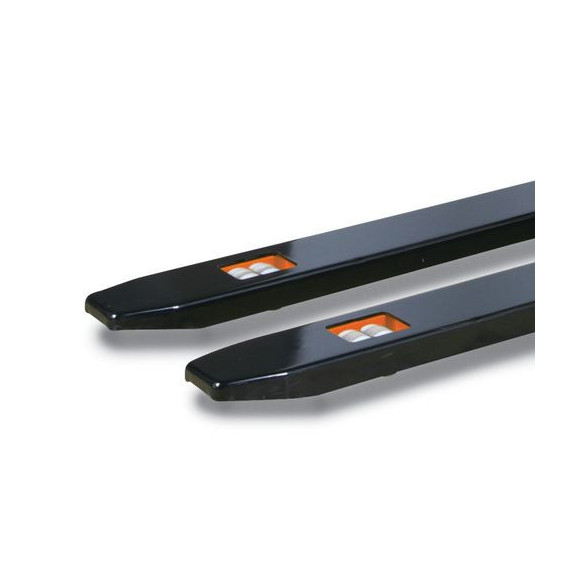

• Fixed fork width for stable load lifting.

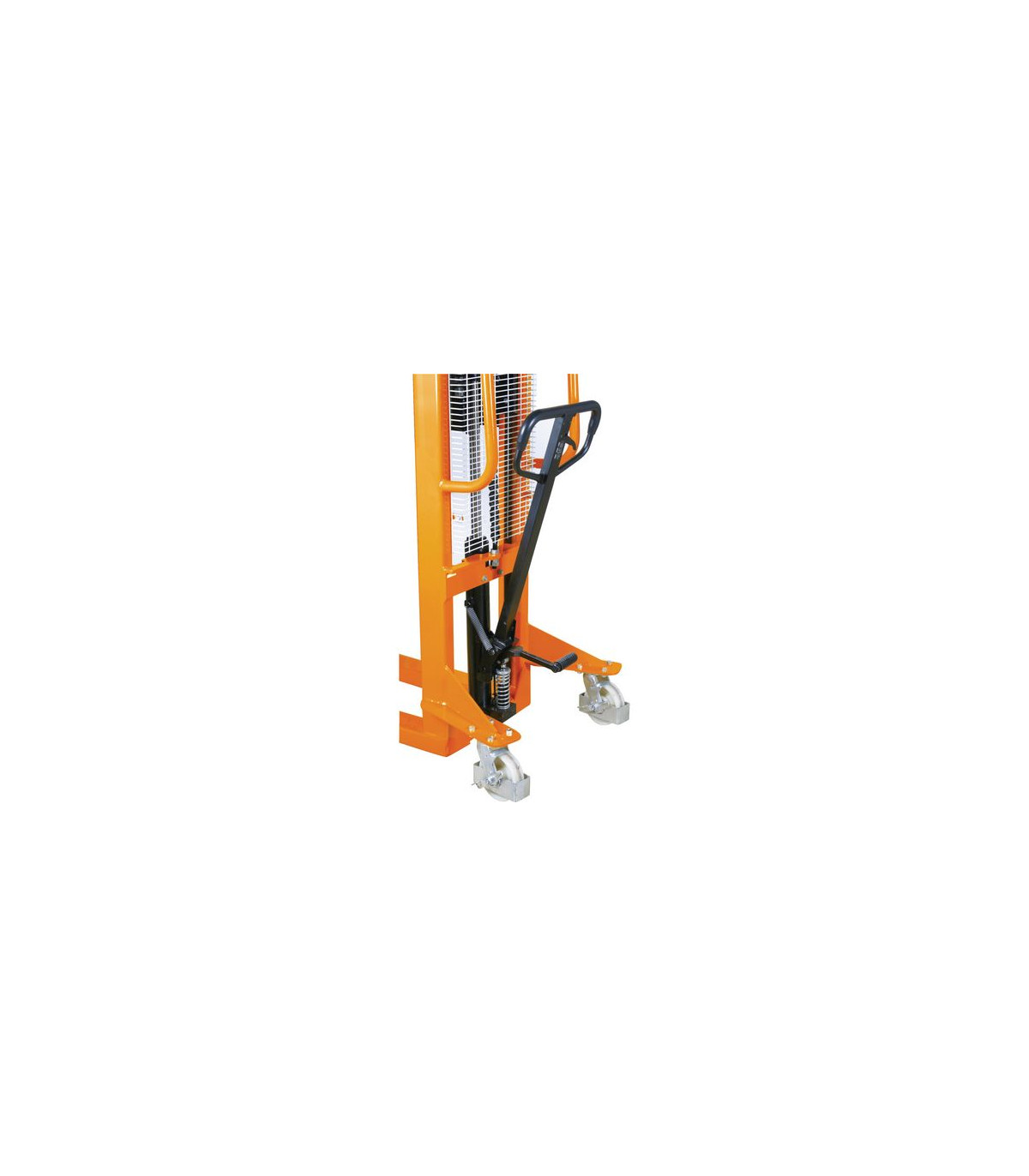

• Solid construction lifting device with manually operated hydraulic pump.

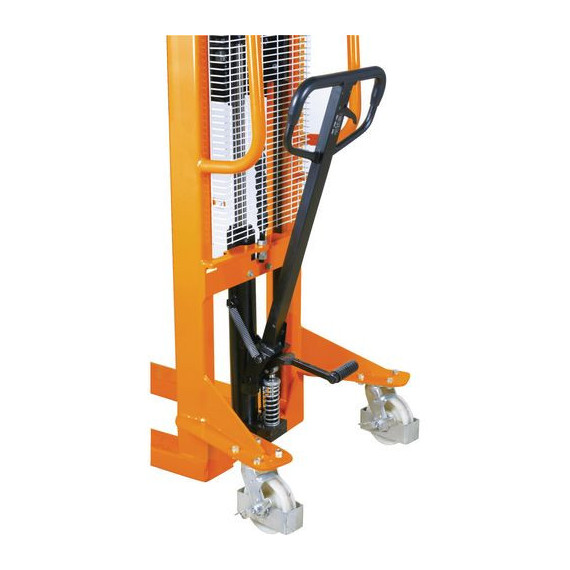

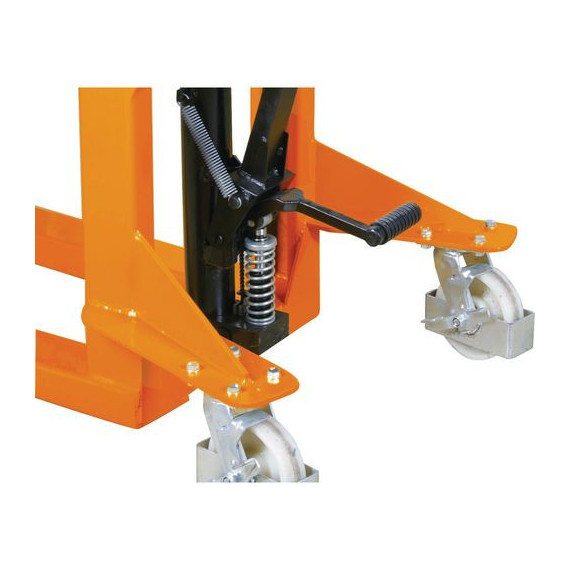

• The lifting function is especially easy and effortless to operate thanks to the foot and hand levers.
• Fits well in all door openings and fully occupied warehouses due to its compact design.

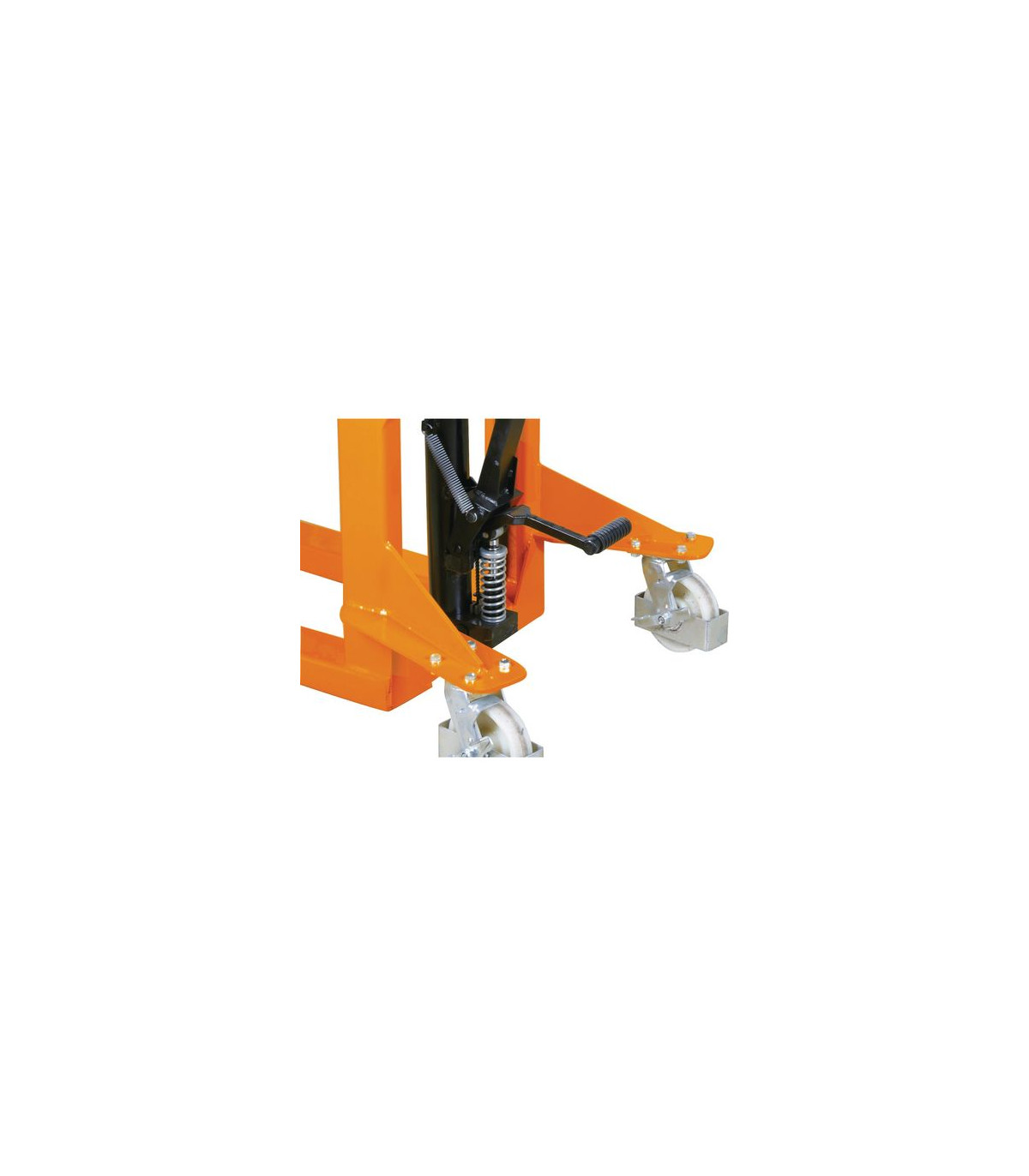

• Equipped with low-wear wheels and rear swivel nylon wheels with ball bearings for smooth handling.
• Equipped with durable precision mechanics.

TECHNICAL SPECIFICATIONS

Load capacity 1 ton

Load width 550 millimeters

Fork width 170 millimeters

Fork length 1150 millimeters

Lifting range 90 – 1600 millimeters

Turning radius 1380 millimeters

VPE 1

Dimensions and weights

Steering wheel diameter 147 millimeters

Steering wheel width 40 millimeters

Fork wheel diameter 83 millimeters

Fork wheel width 60 millimeters

Approximate length 1705 millimeters

Approximate width/depth 755 millimeters

Approximate height 1980 millimeters

Approximate weight 230 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

EQUIPMENT

Fork roller design Tandem

FOR WHAT TYPE OF WORK IT IS SUITABLE

The GHHW stacker for loading and unloading goods up to 1 ton UNICRAFT is suitable for:

• Warehouses
• Factories
• Workshops
• Industry

CERTIFICATION

Stürmer Group Quality Management System certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
