Torch consumables kit 804108
English GBPlasma cutting inverter 70 TELWIN
Brand:

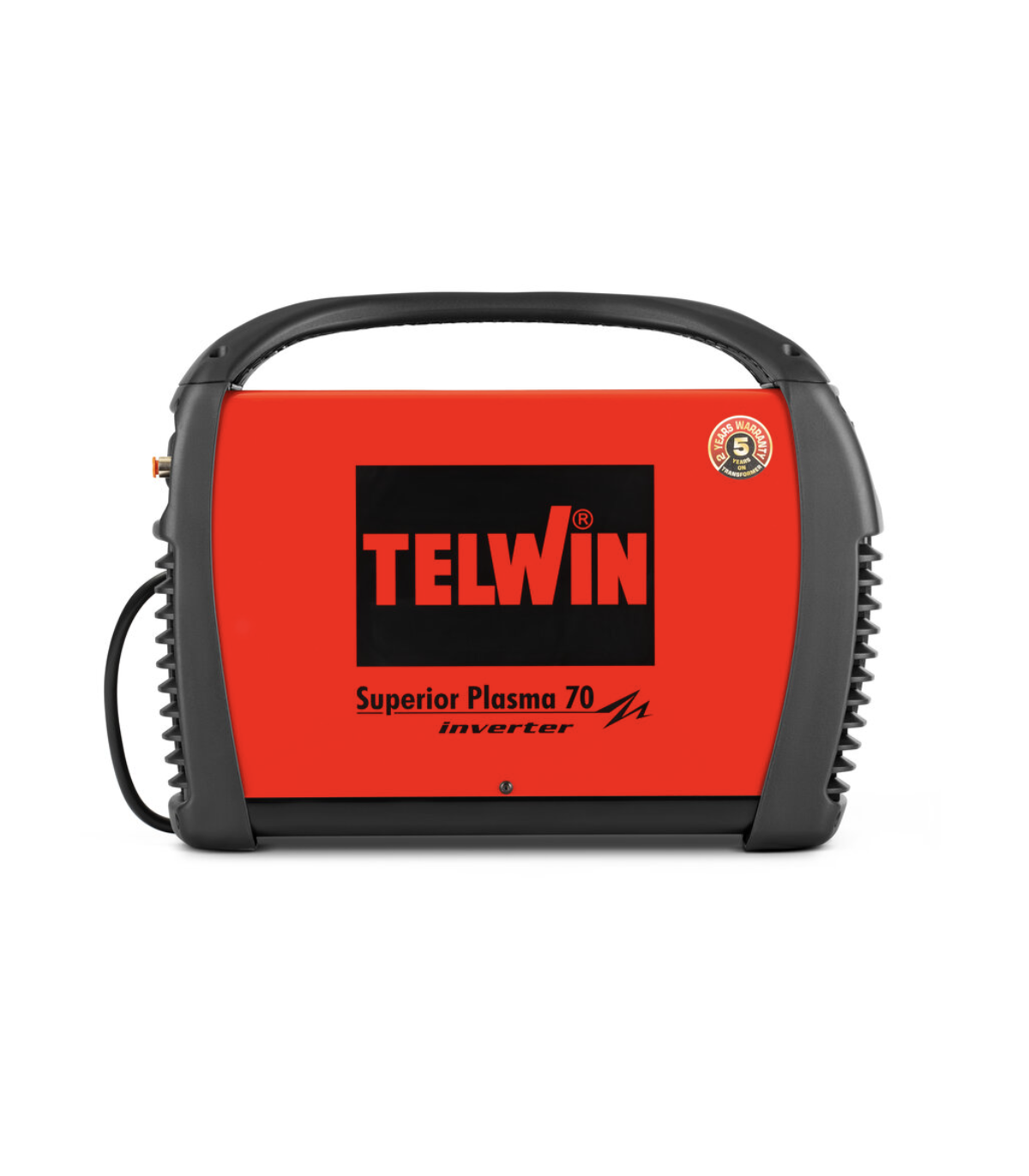

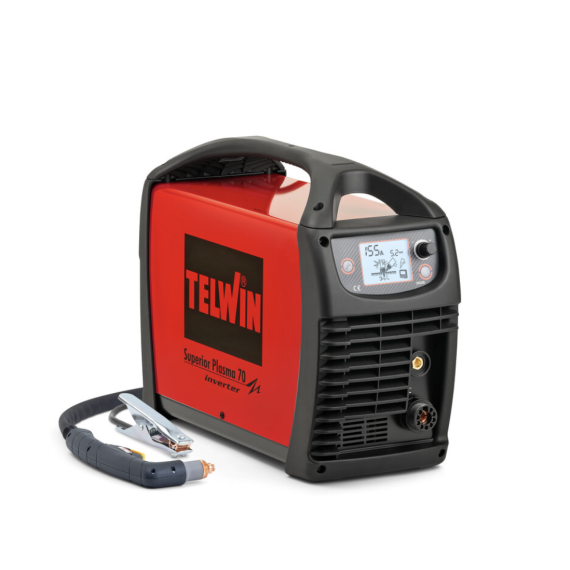

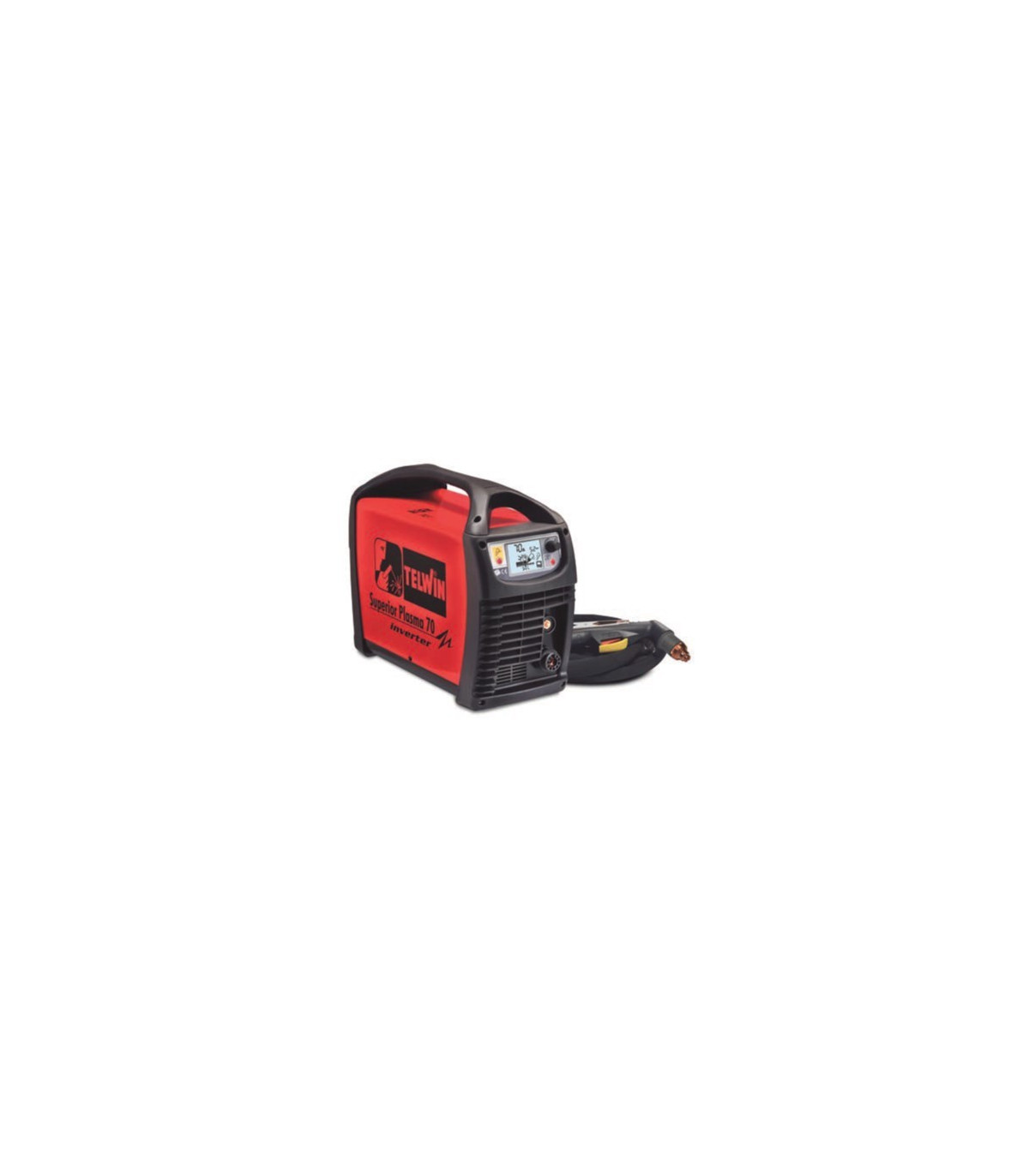

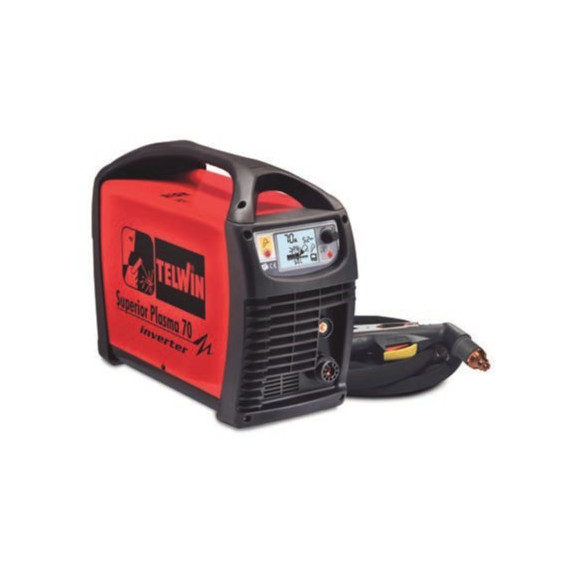

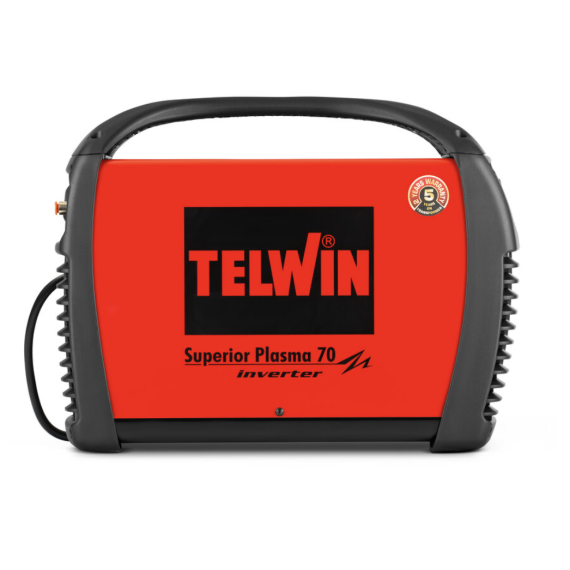

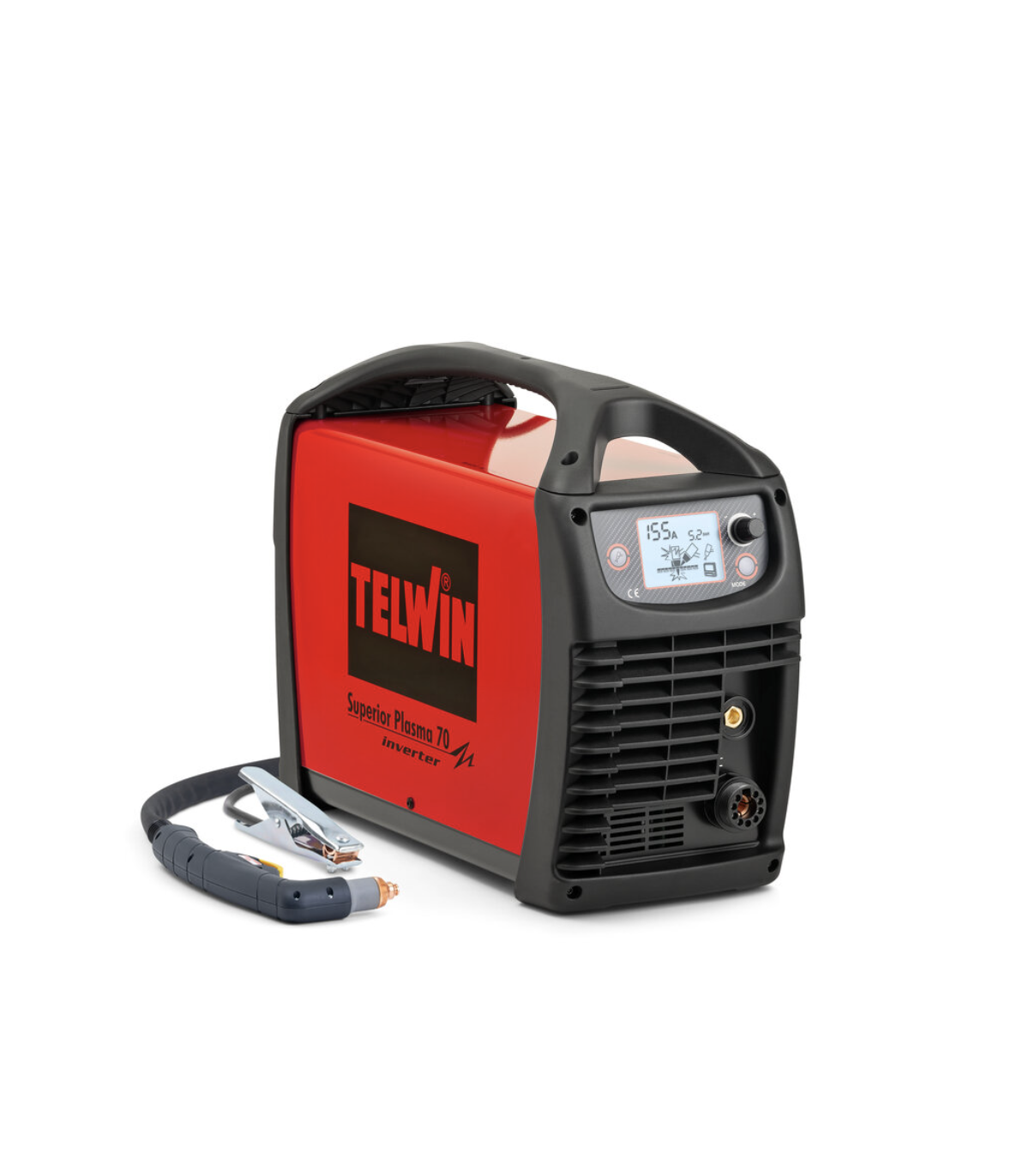

70 TELWIN plasma cutting inverter
The TELWIN 70A plasma cutting inverter allows for quick cutting of conductive materials such as steel, aluminum, and copper. Equipped with a PV torch and advanced functions, it offers high precision and stability. With an interface for automated systems and an LCD display, it ensures efficient and safe cutting.
€5,017.88
€5,017.88
(TAX incl.)
€4,147.01 (no TAX)
€4,147.01 (no TAX)
Reference:
816170
SECURE PAYMENT WITH
SHIPMENTS
from 3,99€ + VAT. Free from €150 +VAT
EXCHANGES AND RETURNS
Free up to 14 days after purchase, excluding personalized and made-to-order products
EXCHANGES AND RETURNS
WE HELP YOU
+34 876 43 01 24
info@sekureco.eu
You may also like
70 TELWIN plasma cutting inverter. Inverter plasma cutting systems with compressed air, featuring high-frequency (HF) pilot arc ignition (model 90 HF). They allow for quick and deformation-free cutting of all conductive materials such as steel, stainless steel, galvanized steel, aluminum, copper, brass, etc. EQUIPPED WITH TORCH.
FEATURES
- 70A compressed air plasma cutting inverter system, with pilot arc contact ignition. Integrated connection interface with automated cutting systems. 3-phase power supply of 230/400V. With PV torch.
- Max cutting thickness: 30 mm. Advanced functions: grid cutting, 4T cutting, and torching of all conductive materials.
- Possibility of interfacing with automated cutting systems. Specific connector for configuring different control signals for the cutting process. Compatible with remote control.
- High stability of cutting current.

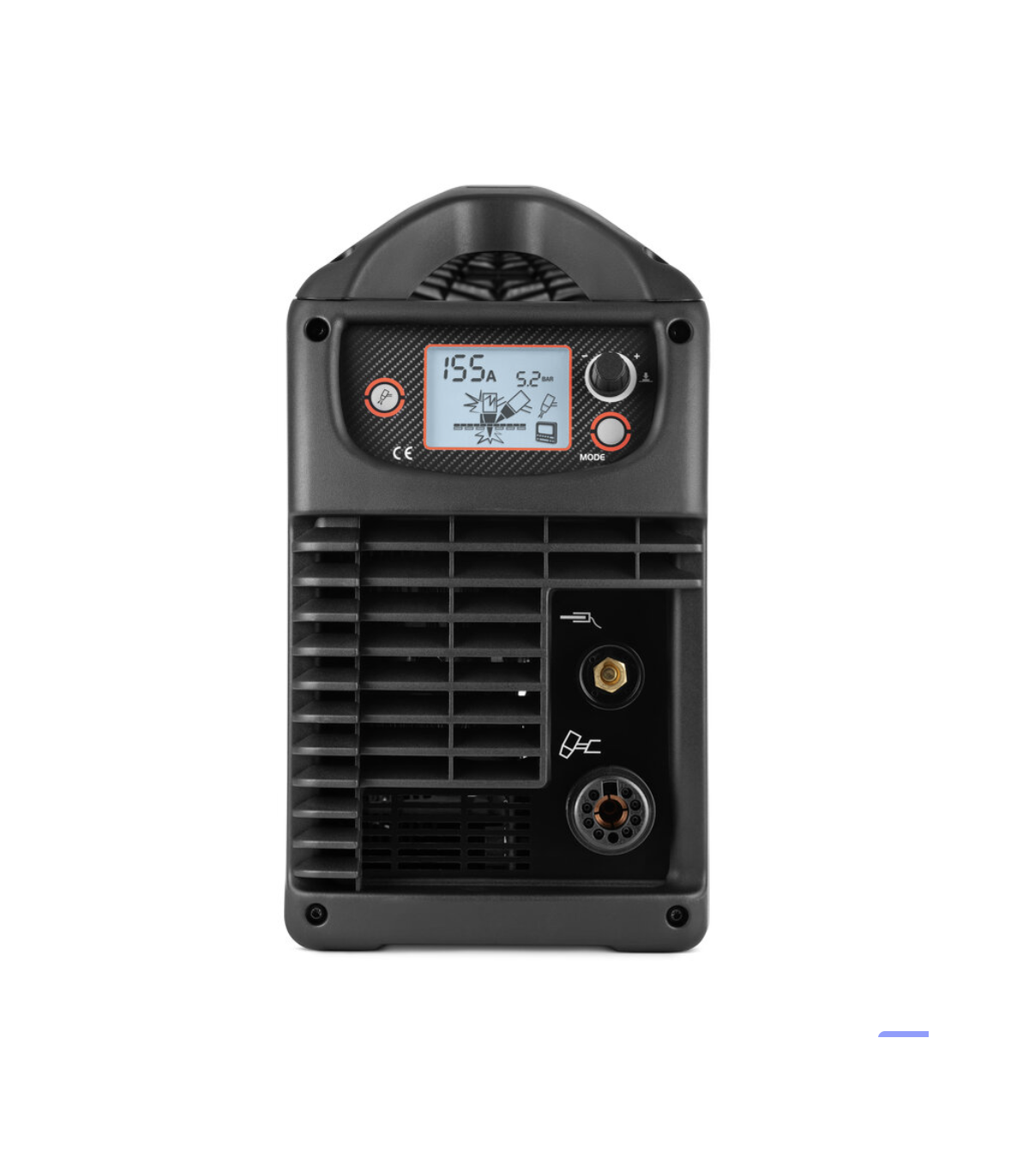

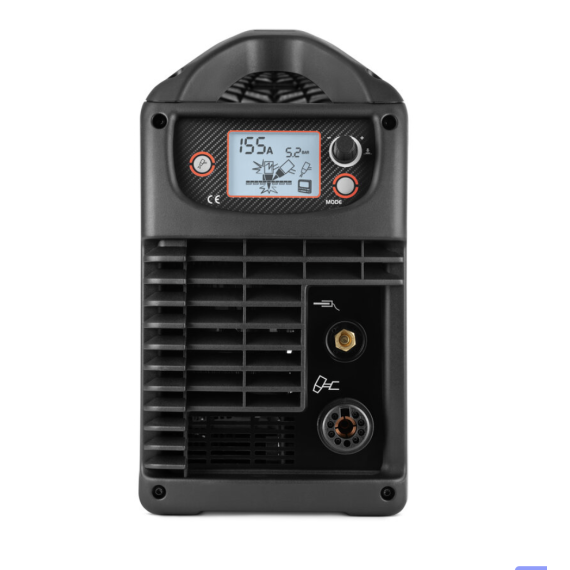

- Easy-to-read and adjust LCD display.
- Thermostatic protection, voltage rise and fall, current rise, torch circuit, phase loss, air loss.
TECHNICAL DATA
CODE 816170
NETWORK FREQUENCY 50 / 60 Hz
MAX CURRENT 50 @ 35% / 70 @ 30% A
MAX ABSORBED CURRENT 16 / 13 A
EFFICIENCY 90 %
MAX CUTTING THICKNESS 20 / 30 mm
COMPRESSED AIR PRESSURE 4 - 5 bar
DIMENSIONS 47 x 19 x 35.5 cm
THREE-PHASE NETWORK VOLTAGE 230 / 400 V
REGULATION RANGE 20 - 50 / 20 - 70 A
MAX OPEN-CIRCUIT VOLTAGE 310 / 325 V
MAX ABSORBED POWER 5.5 / 8.5 kW
POWER FACTOR 0.9
COMPRESSED AIR FLOW 200 l/min
PROTECTION DEGREE IP23
WEIGHT 15.8 kg
NORMS
THREE-PHASE NETWORK VOLTAGE 230 / 400 V
CE: The product complies with the standards and regulations of the Eurasian Economic Union (EAEU)
EAC: The product meets the safety, health, and environmental protection requirements of the European Union (EU)
FOR WHAT TYPE OF WORK IS IT SUITABLE
The 70 TELWIN plasma cutting inverter is suitable for:
- Cutting conductive materials such as steel, stainless steel, aluminum, copper, and brass.
- Metallurgy
- Construction
- Industrial maintenance
- Manufacturing of metal structures
