Manual press for workshops DDP 20 OPTIMUM

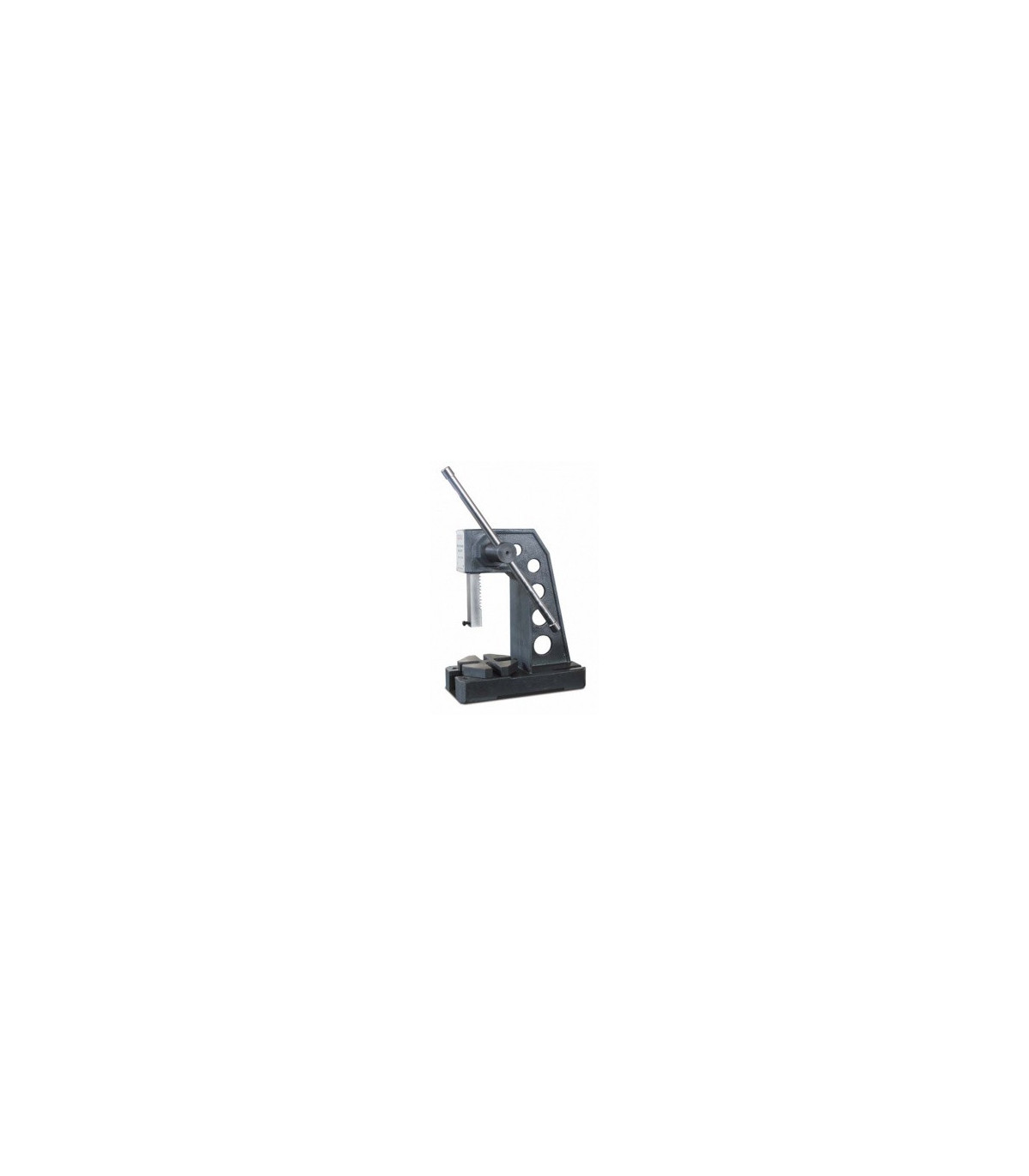

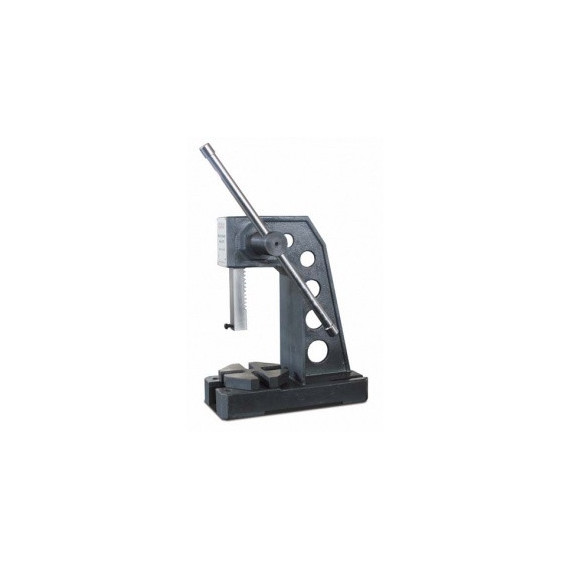

Manual press for workshops DDP 20 OPTIMUM. The DDP 20 OPTIMUM manual press is perfect for mechanical and repair workshops. Its stable construction of gray cast iron allows for the precise insertion and extraction of bearings, pins, and bushings. With an adjustable rod and a four-position base plate, it easily mounts on a workbench. It offers an effective force of up to 12555 N and has compact dimensions, making it an essential tool for demanding jobs.

FEATURES

• For mechanical workshops and repair shops
• For pressing in and extracting bearings, pins, bushings, spindles, and dowels.
• Stable construction
• Body made of high-quality gray cast iron.
• Variable adjustable lever rod
• Four-position base plate
• For mounting on a workbench

TECHNICAL SPECIFICATIONS

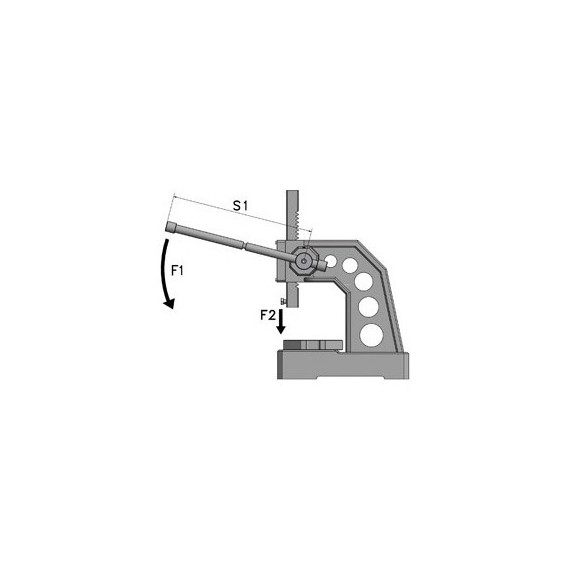

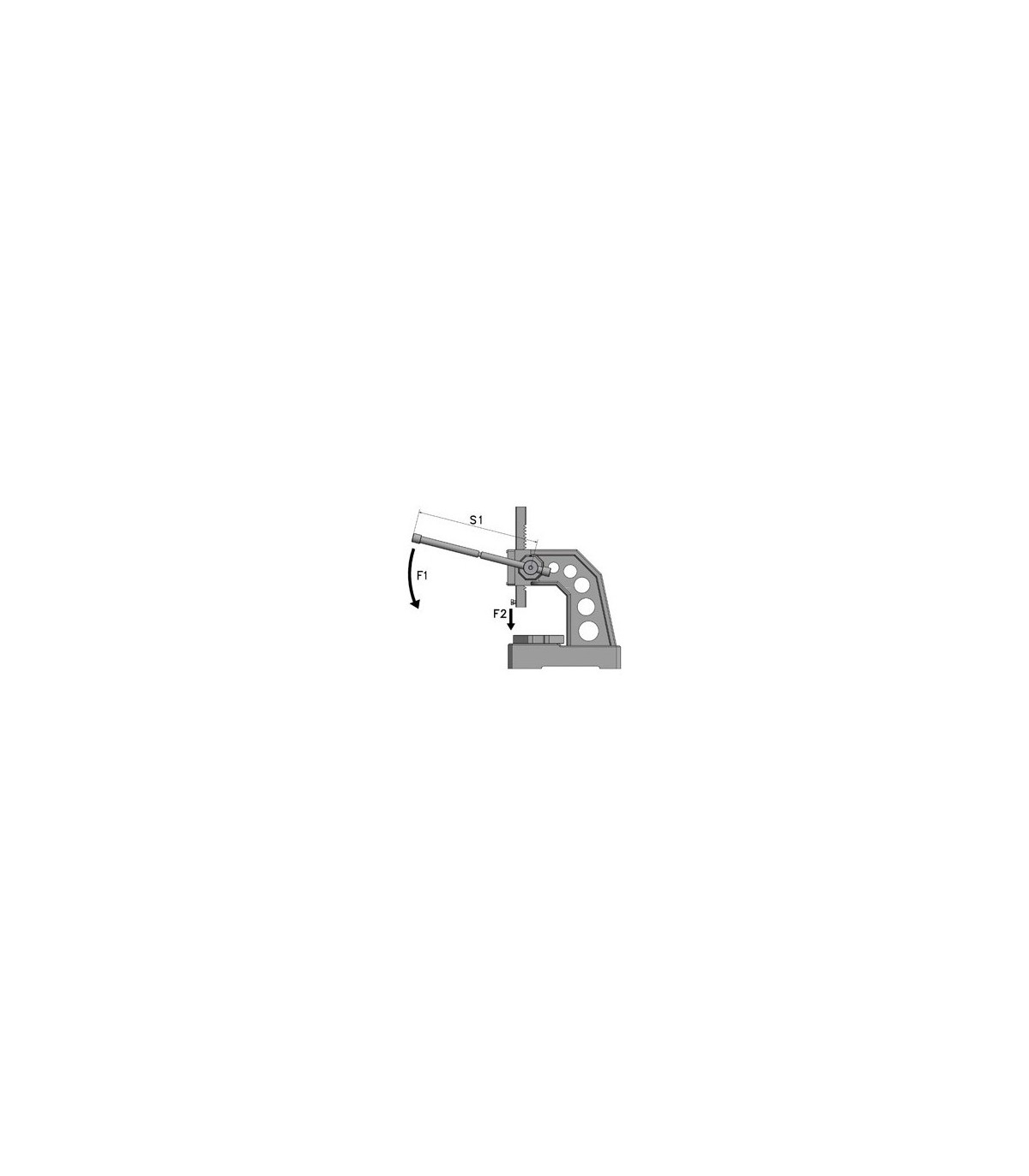

• Effective force with manual force 40 kg 8364 N
• Effective force with manual force 60 kg 12555 N
• Length of the lever for the indicated effective force 450 millimeters
• VPE 1

Dimensions and weights

• Maximum installation height 195 millimeters
• Reach 120 millimeters
• Piston height 345 millimeters
• Piston width 32 millimeters
• Piston length 32 millimeters
• Approx. length 430 millimeters
• Approx. width/depth 235 millimeters
• Approx. height 680 millimeters
• Approx. weight 33 kilograms

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

4-position plate

WHAT TYPE OF WORK IS IT SUITABLE FOR

The DDP 20 OPTIMUM manual press is suitable for:

• Mechanical workshops
• Repair work
• For pressing in and extracting bearings, pins, bushings, spindles, and dowels.
