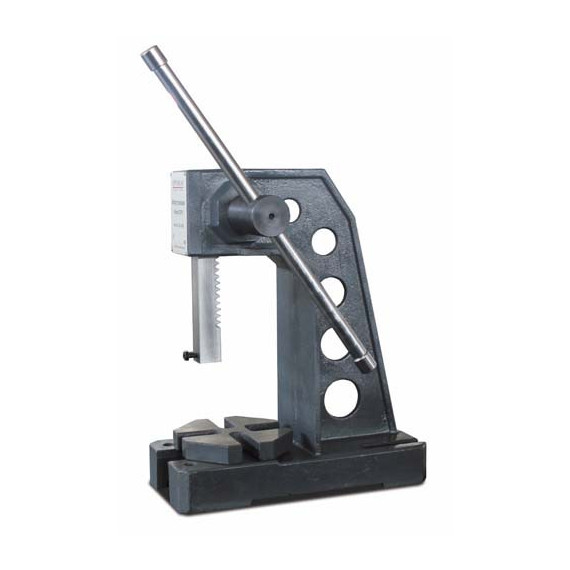

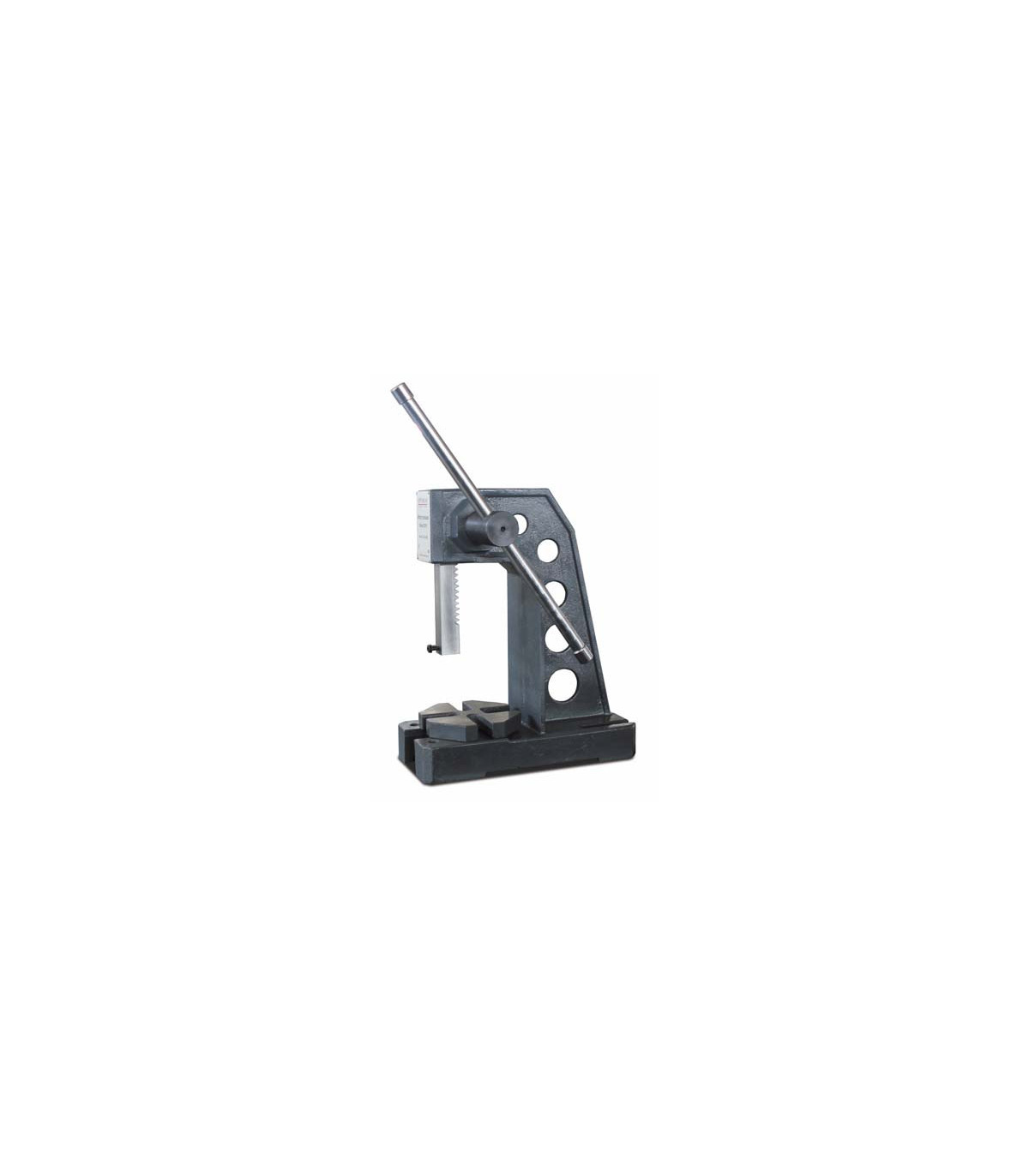

High-precision manual press DDP 10 OPTIMUM

High-precision manual press DDP 10 OPTIMUM. The DDP 10 OPTIMUM manual press is ideal for mechanical and repair workshops. With its stable construction and gray cast iron body, it allows for the insertion and extraction of bearings, pins, and more, ensuring high precision. Its adjustable rod and four-position base plate facilitate its use on workbenches. With an effective force of up to 11220 N and compact dimensions, it is an essential tool for demanding jobs.

FEATURES

• For mechanical workshops and repair shops
• For pressing in and extracting bearings, pins, bushings, spindles, and dowels.
• Stable construction
• Body made of high-quality gray cast iron.
• Variable adjustable lever rod
• Four-position base plate
• For mounting on a workbench

TECHNICAL SPECIFICATIONS

• Effective force with manual force 40 kg 7480 N
• Effective force with manual force 60 kg 11220 N
• Length of the lever for the indicated effective force 340 millimeters
• VPE 1

Dimensions and weights

• Diameter of the tool holder hole 10 millimeters
• Maximum installation height 123 millimeters
• Reach 95 millimeters
• Piston height 240 millimeters
• Piston width 25 millimeters
• Piston length 25 millimeters
• Approx. length 270 millimeters
• Approx. width/depth 180 millimeters
• Approx. height 410 millimeters
• Approx. weight. 14 kilograms

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

4-position plate

FOR WHAT TYPE OF WORK IS IT SUITABLE

The high-precision manual press DDP 10 OPTIMUM is suitable for:

• Mechanical workshops
• Repair work
• For pressing in and extracting bearings, pins, bushings, spindles, and dowels.
