High-precision manual press DDP 30 OPTIMUM

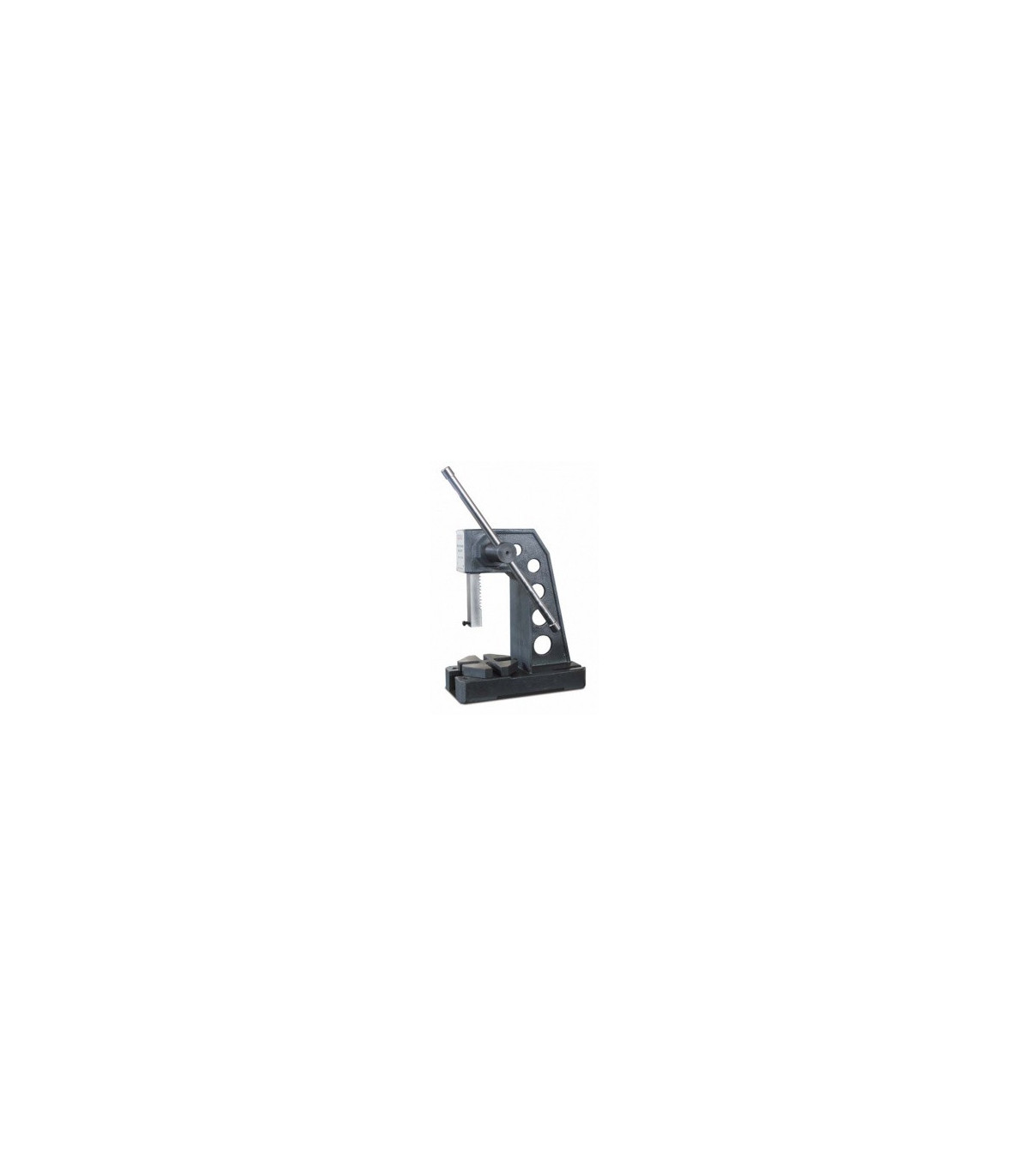

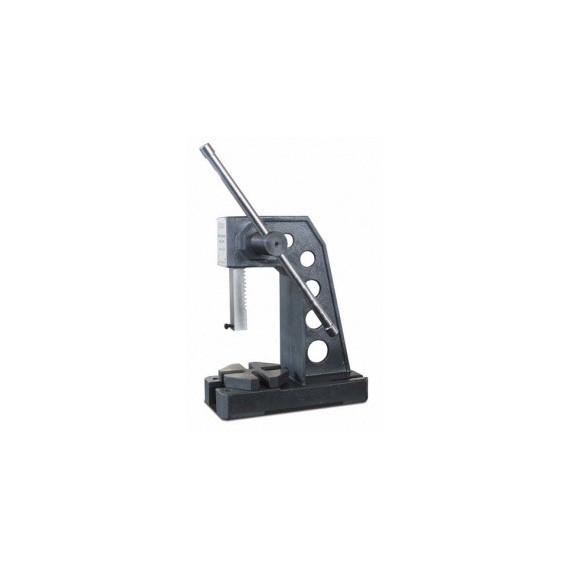

High-precision manual press DDP 30 OPTIMUM. The DDP 30 OPTIMUM manual press is ideal for mechanical and repair workshops. Its stable construction in gray cast iron allows for the precise insertion and extraction of bearings, pins, and bushings. With an adjustable lever rod and a four-position base plate, it easily adapts to different tasks on a workbench. It offers an effective force of up to 11566 N, and its compact dimensions make it an essential tool for demanding tasks.

FEATURES

• For mechanical workshops and repair shops
• For press-fitting and extracting bearings, pins, bushings, spindles, and dowels.
• Stable construction
• Body made of high-quality gray cast iron.
• Variable adjustable lever rod
• Four-position base plate
• For mounting on a workbench

TECHNICAL SPECIFICATIONS

• Effective force with manual force 40 kg 7705 N
• Effective force with manual force 60 kg 11566 N
• Length of the lever for the indicated effective force 600 millimeters
• VPE 1

Dimensions and weights

• Maximum installation height 310 millimeters
• Reach 150 millimeters
• Piston height 455 millimeters
• Piston width 38 millimeters
• Piston length 38 millimeters
• Approx. length 455 millimeters
• Approx. width/depth 260 millimeters
• Approx. height 850 millimeters
• Approx. weight 55 kilograms

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

4-position plate

FOR WHAT TYPE OF WORK IS IT SUITABLE

The high-precision manual press DDP 30 OPTIMUM is suitable for:

• Mechanical workshops
• Repair work
• For press-fitting and extracting bearings, pins, bushings, spindles, and dowels.
