Cold water pressure washer HDR-K 54-16 for maximum temperature of 60°C CLEANCRAFT

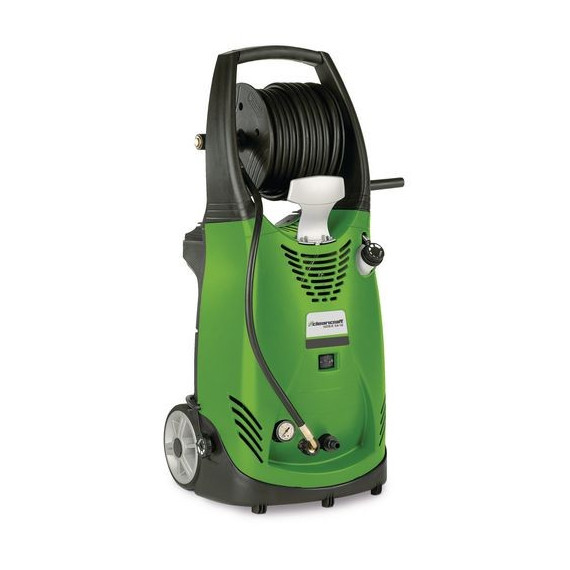

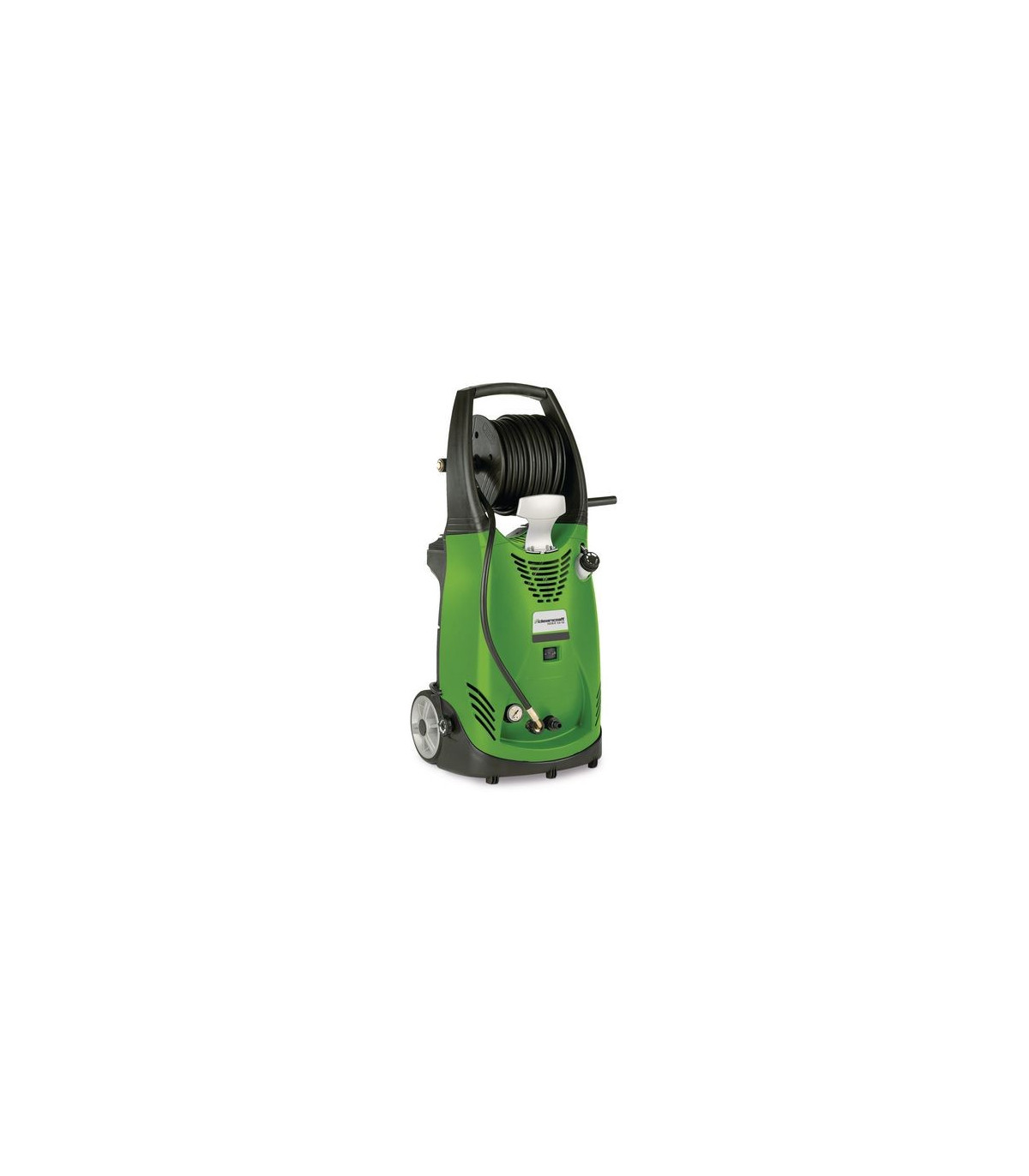

Cold water pressure washer HDR-K 54-16 for max temperature of 60°C CLEANCRAFT. The cold water pressure washer HDR-K 54-16 CLEANCRAFT, with a capacity for 60°C, is mobile and features two wheels and a handle. Its integrated detergent tank and multifunction nozzle facilitate cleaning. With a pressure gauge to visualize the pressure and a robust pump, it is ideal for outdoors, vehicles, and more.

FEATURES

• Mobile model with two wheels and handle.
• Integrated detergent tank with easy detergent dosing, activation of foam application via multifunction nozzle
• Adjustable working pressure to adapt to the respective cleaning task, pressure visualization through a pressure gauge
• Total Stop - Pump control: Start and stop the pump motor without delay through a pressure switch by opening and closing the gun
• Long service life thanks to the three-piston axial pump with oscillating plate and brass head, stainless steel piston
• Automatic safety valve for pressure relief in the pump head.
• Easy-to-control and maintain water filter to protect the pump from debris in the water.
• Induction motor protection against overload via motor protection switch
• High-quality threaded connections
• Practical holders for manual spray gun, jet tube, high-pressure hose, and power cable
• Possibility of horizontal storage
• Quality made in Europe
• Operation with water tank or similar is possible: the HDR-K is self-priming up to 0.5 m depth.
• Very robust 3-piston axial pump with brass head and stainless steel piston.
• High-quality threaded connections

TECHNICAL SPECIFICATIONS

Dimensions and weights

Approximate length: 390 millimeters

Approximate width/depth: 380 millimeters

Approximate height: 900 millimeters

Approximate weight: 35 kilograms

Electrical data

Input power: 3.1 kW

Connection cable length: 5 meters

Supply voltage: 230 V

Network frequency: 50 Hz

Noise emission

Sound pressure level: 80 dB(A)

Pump

Working pressure: 140 bars

Maximum pump pressure: 160 bars

Maximum flow rate: 540 l/h

Operating position: upright

Water connection

Maximum inlet water temperature: 60 °C

VPE: 1

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

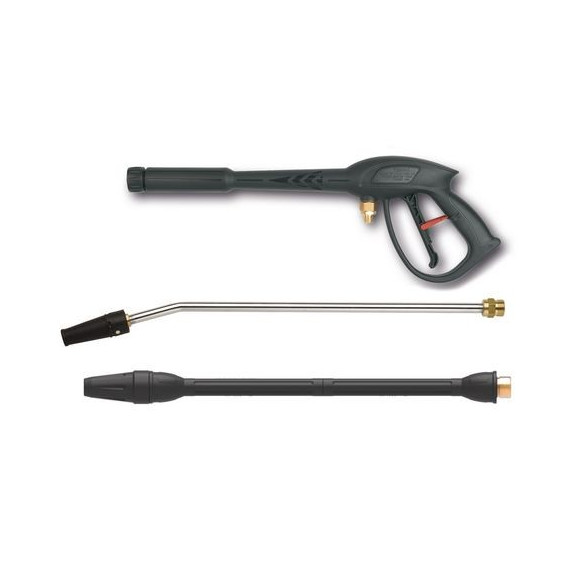

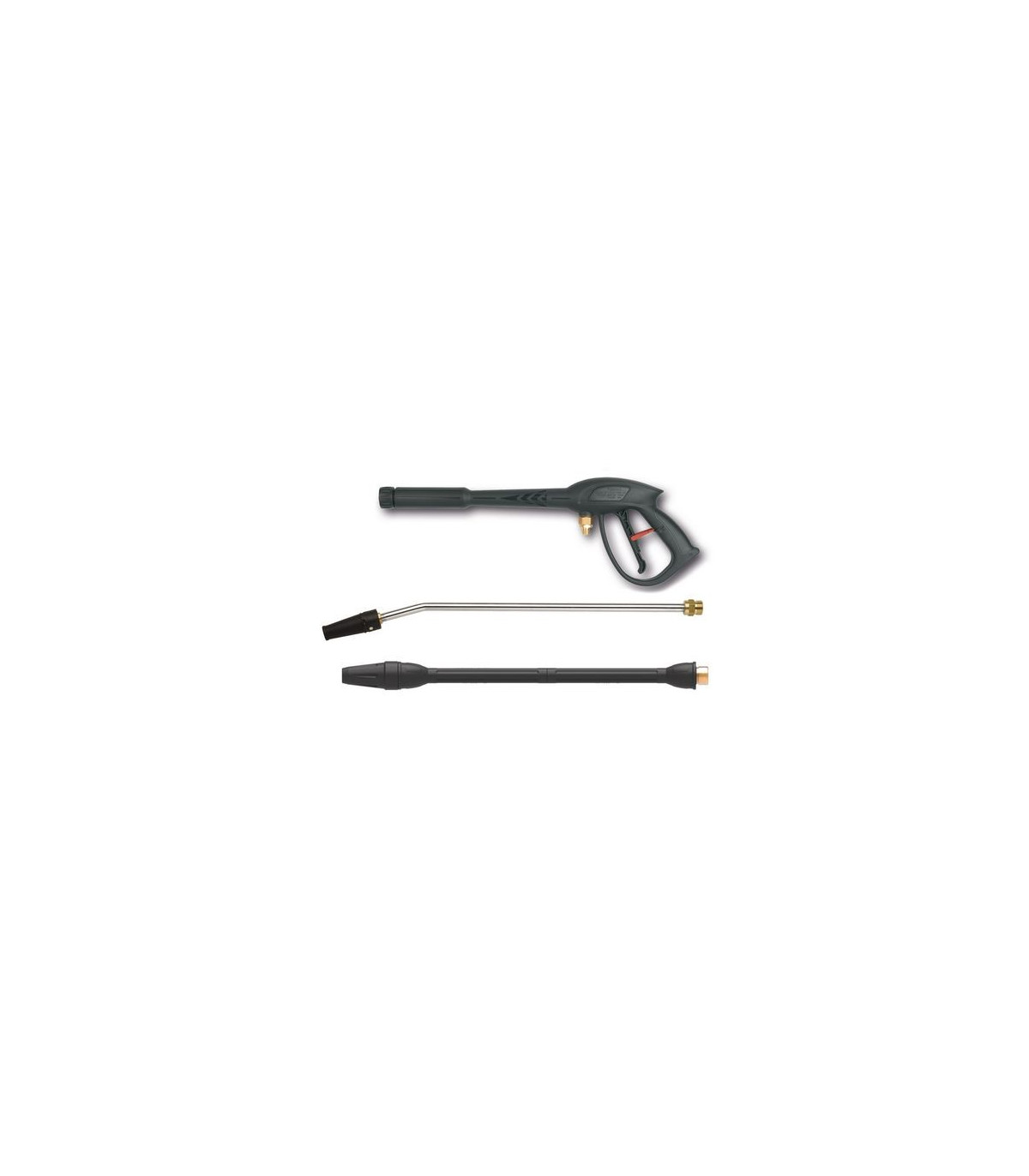

• Trigger gun
• Projection tube with multifunction nozzle for spot projection and fan projection with stepped angle adjustment
• Nozzle cleaning needle
• Water connection set with filter
• Integrated detergent tank
• Integrated hose reel with handle
• 10 m high-pressure hose

EQUIPMENT

Piston: stainless steel

Pump control: Total stop

Self-priming pump: ✔

Cleaning agent tank: 2 liters

Regulation of cleaning agents: ✔

High-pressure hose pressure bearing: Steel reinforcement

Length of high-pressure hose: 10 meters

Water filter: ✔

Regulated working pressure: ✔

Pressure gauge for working pressure: ✔

Integrated hose reel: ✔

Pump outlet hose connection: Thread connection M22x1.5

Hose connection for manual spray gun: Thread connection M22x1.5

Wheels: 180 millimeters

FOR WHAT TYPE OF WORK IS IT SUITABLE

The cold water pressure washer HDR-K 54-16 for max temperature of 60°C CLEANCRAFT is suitable for:

• Outdoors
• Vehicles
• Terraces
• Facades
• Garden
• Cleaning tools and work equipment
