Rescue ladder on tape length of 6 m with EVA LAD 2 safety system KRATOS SAFETY

The EVA LAD 2 rescue ladder from KRATOS SAFETY is an essential tool to ensure safety in height rescue operations. With a length of 6 meters and an integrated securing system, this ladder allows for the quick and safe evacuation of individuals in dangerous situations. Its compact and lightweight design, along with its integrated carrying bag, makes transportation and storage easy. The reinforced aluminum rungs and the integrated safety line provide greater security and stability during the rescue.

FEATURES

• Rungs with rigid aluminum reinforcement, diameter 11 mm.

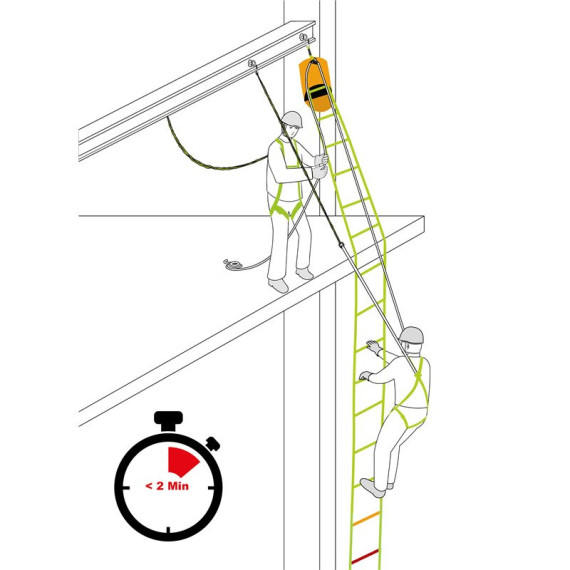

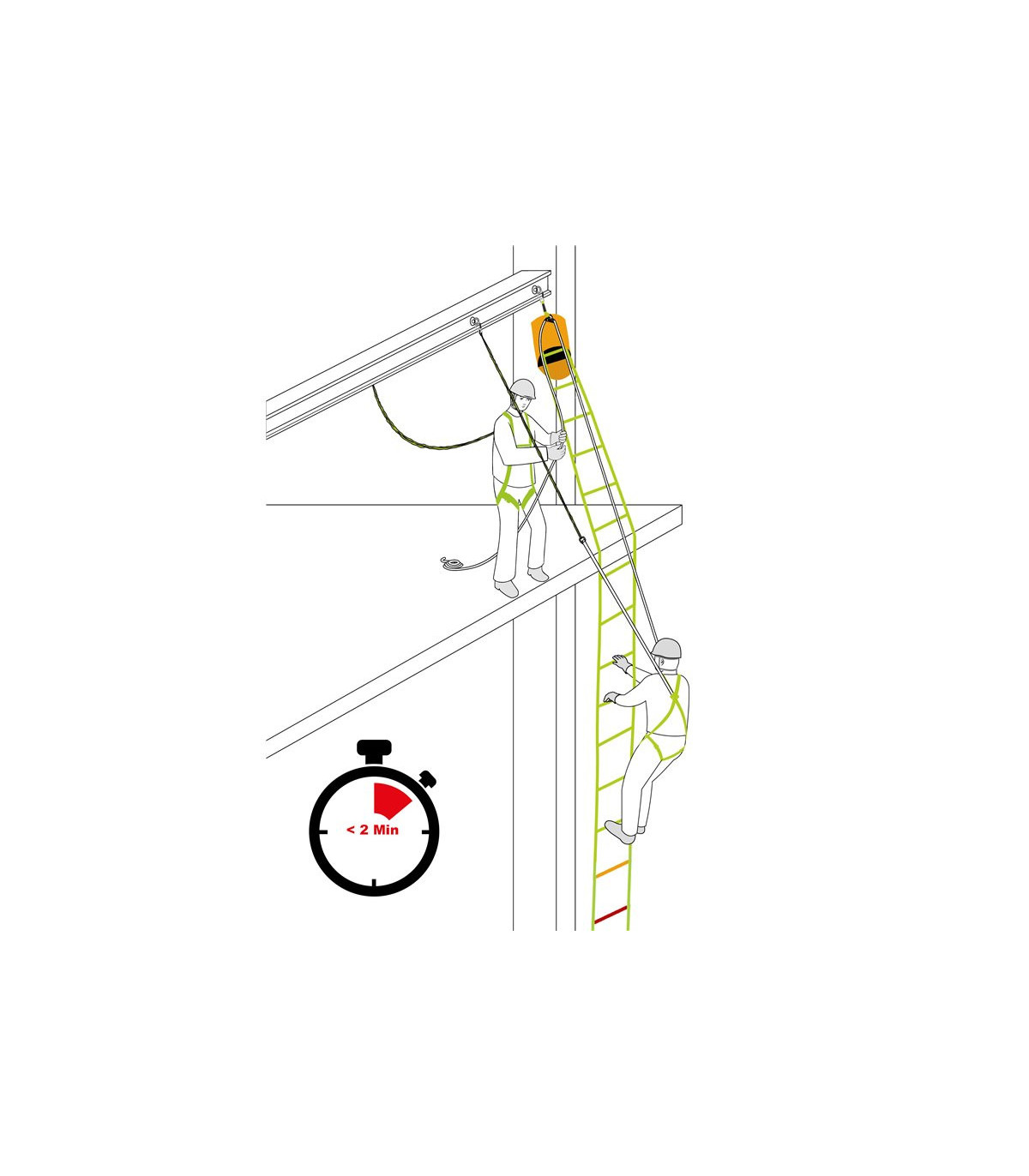

• Attached to a structure / an anchoring point via a connector linked to the high textile buckle, and unrolled to the level of the victim, allowing the latter to reach a safe place (by ascent or descent) while being secured by a third person in case of a second fall.
• Integrated securing system, consisting of a sliding fall arrester and a braided rope diameter 10 mm, length 7 m.

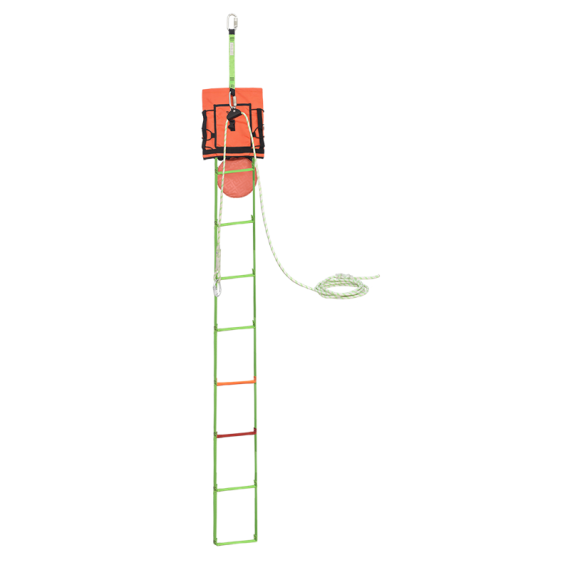

• Sixth rung from the bottom in red, seventh rung from the bottom in orange for better visual identification of the bottom of the ladder.

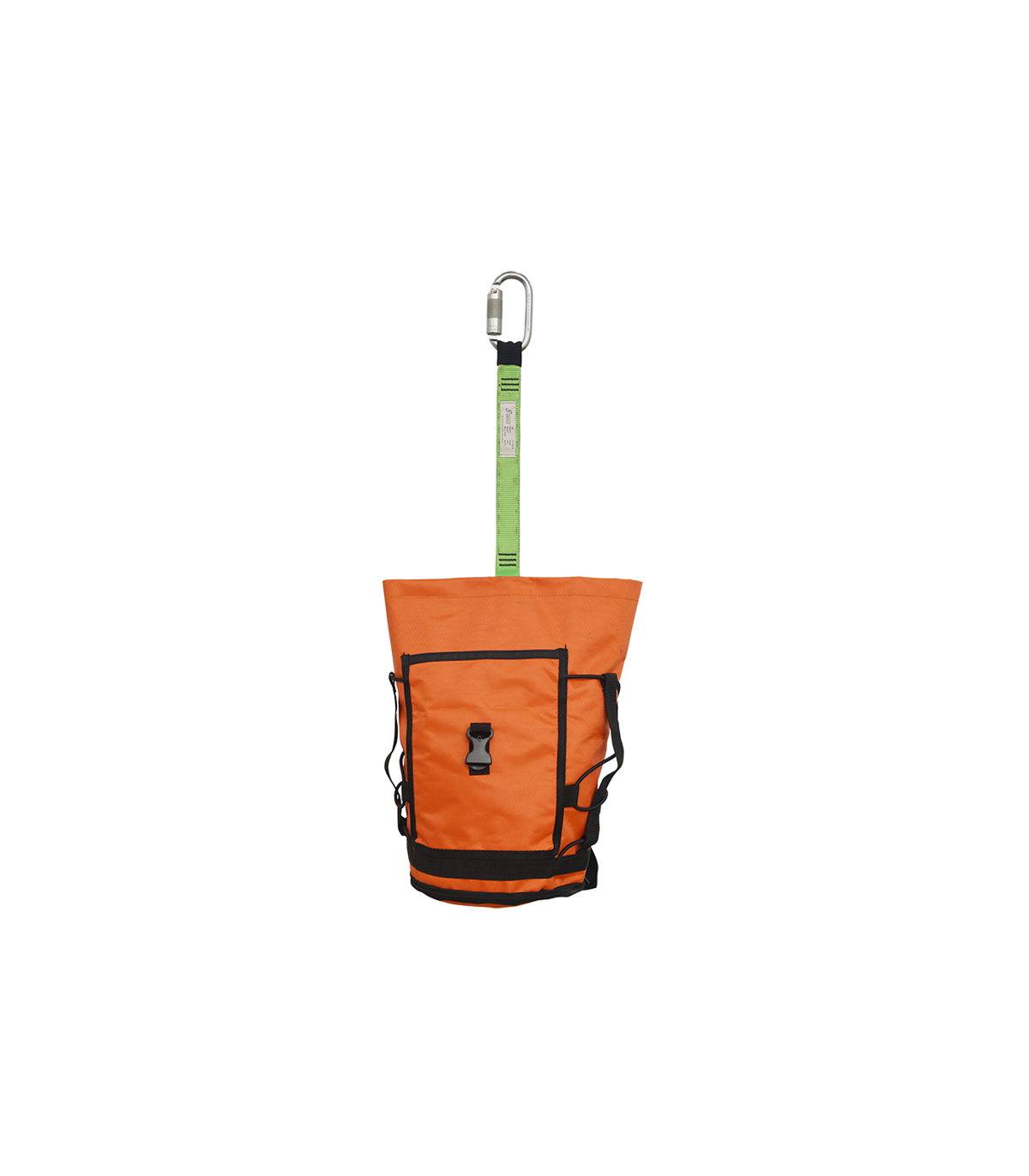

• Compact, portable, and lightweight, supplied with its integrated carrying bag.
• Easy to install, quick deployment.
• Delivered with 3 steel carabiners (ref. FA 50 224 18).
• Compliance: PPE-R/11.115.
• Material: Strap: polyester; Rung reinforcements: aluminum; Rope: polyamide; Carabiners: steel.
• Length: Ladder: 6m; Rope of the securing system: 7 m.
• Weight: 3.88 kg.

APPLICATIONS

Designed for the rescue and evacuation of any user of fall protection equipment who has not lost consciousness after a fall from height.

TECHNICAL DATA

• HS: 76169990

VIDEO

THE FUNDAMENTAL PRINCIPLES OF RESCUE AND EVACUATION

When working at height, an accident may occur that requires the intervention of a rescue team to evacuate the victim.

In such cases, the rescue team personnel must intervene in an emergency situation, and THE GOLDEN RULE in these cases is TO AVOID WORSENING THE ACCIDENT.

Therefore, before any intervention, they should ask themselves the following:

• Is there residual risk after the accident (electrical risk, presence of gas...)?
• Do I have the capacity to intervene (from a physical, psychological, technical perspective...)?
• Do I master the rescue plan (calling emergency services...) and the operational mode of evacuation?
• Have I received SPECIFIC training in rescue operations that I should apply? (OBLIGATION of directive 89/655/EEC article 7 and annex II paragraph 4.4.f [directive 2001/45/EC]).

The rescue personnel can then intervene according to the previously defined rescue plan, and their priorities will be:

• To secure the victim,
• To remove the victim from the inert suspension situation as soon as possible,
• To wait for help to arrive in the best possible conditions.

Each situation is unique and requires the appropriate material. When establishing an evacuation plan that defines the human and material resources to be used, it is necessary to distinguish between the following situations:

• evacuation in confined space,
• self-evacuation in a fixed position,
• evacuation on the ground (multiple situations, one or more victims),
• evacuation on a mechanical lift.
