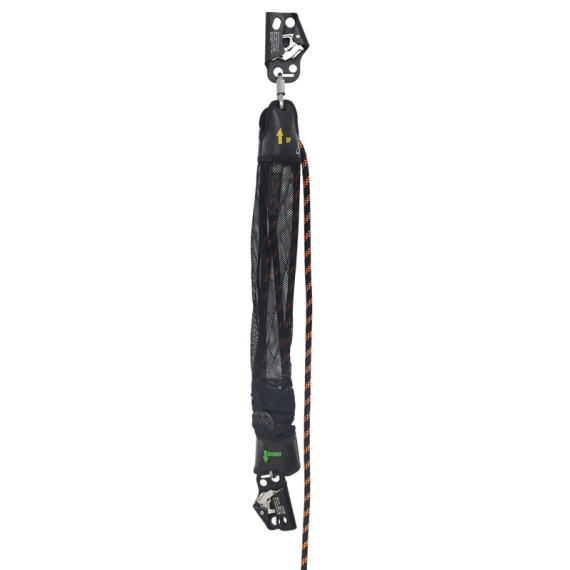

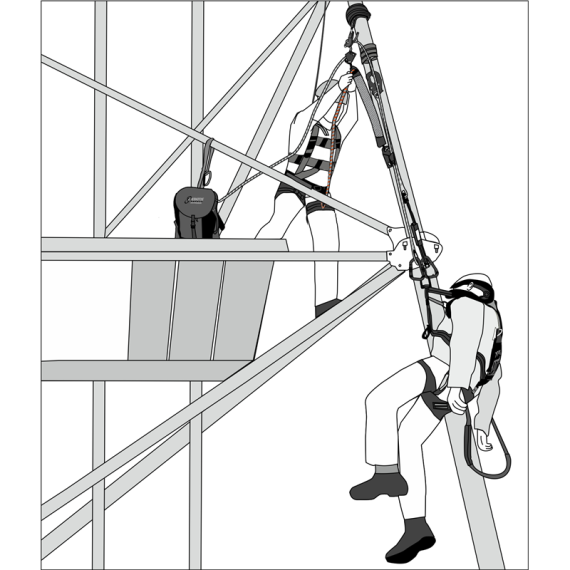

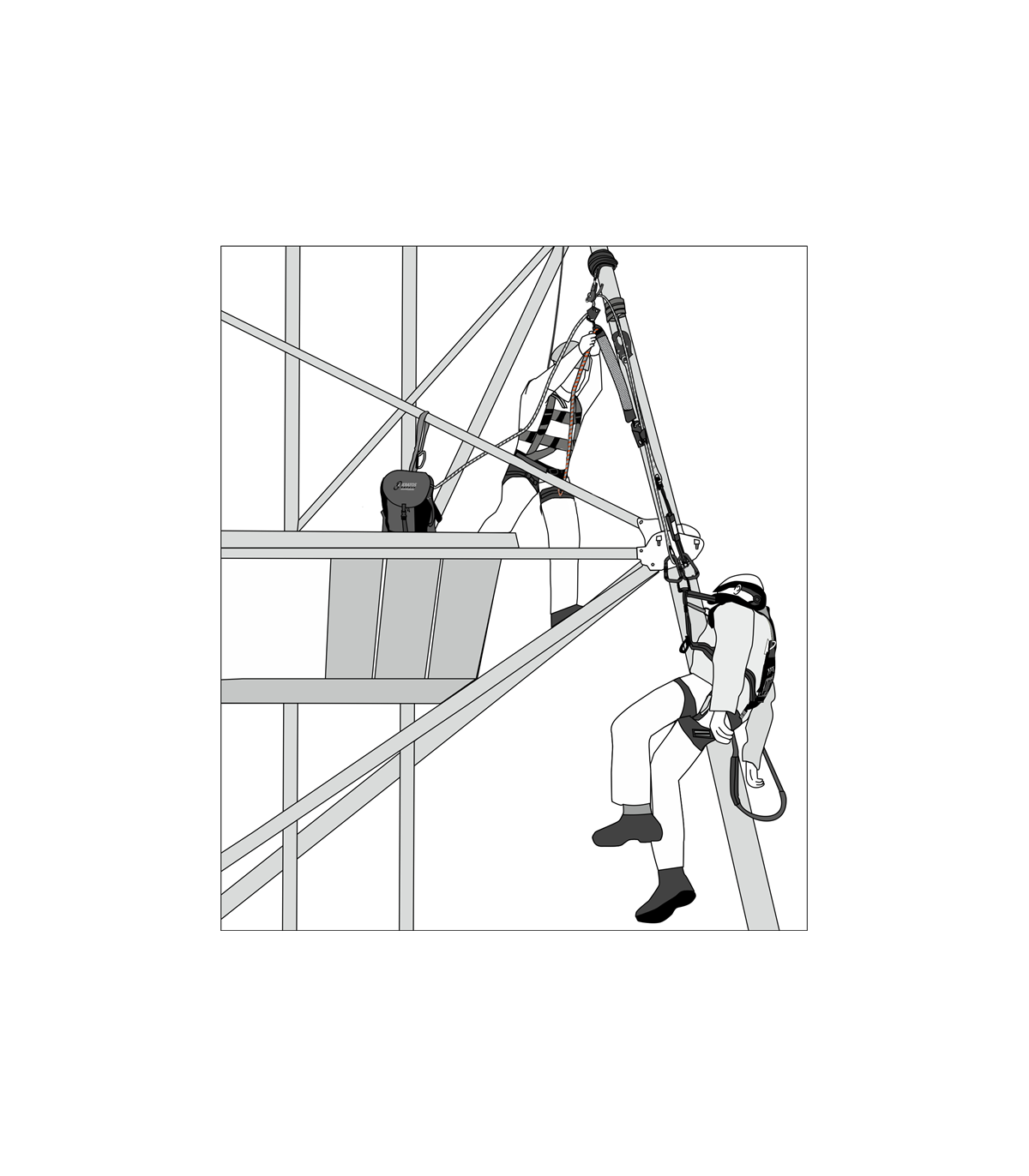

The EASYLIFT system from KRATOS SAFETY is an innovative and effective solution for performing rescues and evacuations at height. Its intuitive and pre-assembled design allows for rapid implementation in emergency situations. Thanks to its two ventral blockers and 5 meters of braided rope, the EASYLIFT facilitates the safe and controlled extraction of a victim, minimizing the risk of additional injuries.

FEATURES

• Allows for the quick release of a victim from a height fall.
• The effort required by the user is divided by 5 thanks to the 5:1 ratio.
• Material: Steel, aluminum, polyamide.
• Weight: 1.48 kg.

System composed of:

- 1 oval quick link (FA 50 400 10),

- 1 Delta quick link (FA 50 401 10),

- 2 double pulleys with movable flanges, double hook, stainless steel sheaves mounted on ball bearings (FA 70 008 02),

- 2 ventral blockers (FA 70 015 00),

- 5 m of braided rope dia. 10.5 mm (FA 70 010 99(05)),

- all protected by a net that prevents the system from getting tangled.

APPLICATIONS

Pre-assembled system, quick and easy to use.

TECHNICAL DATA

• HS: 84835080
