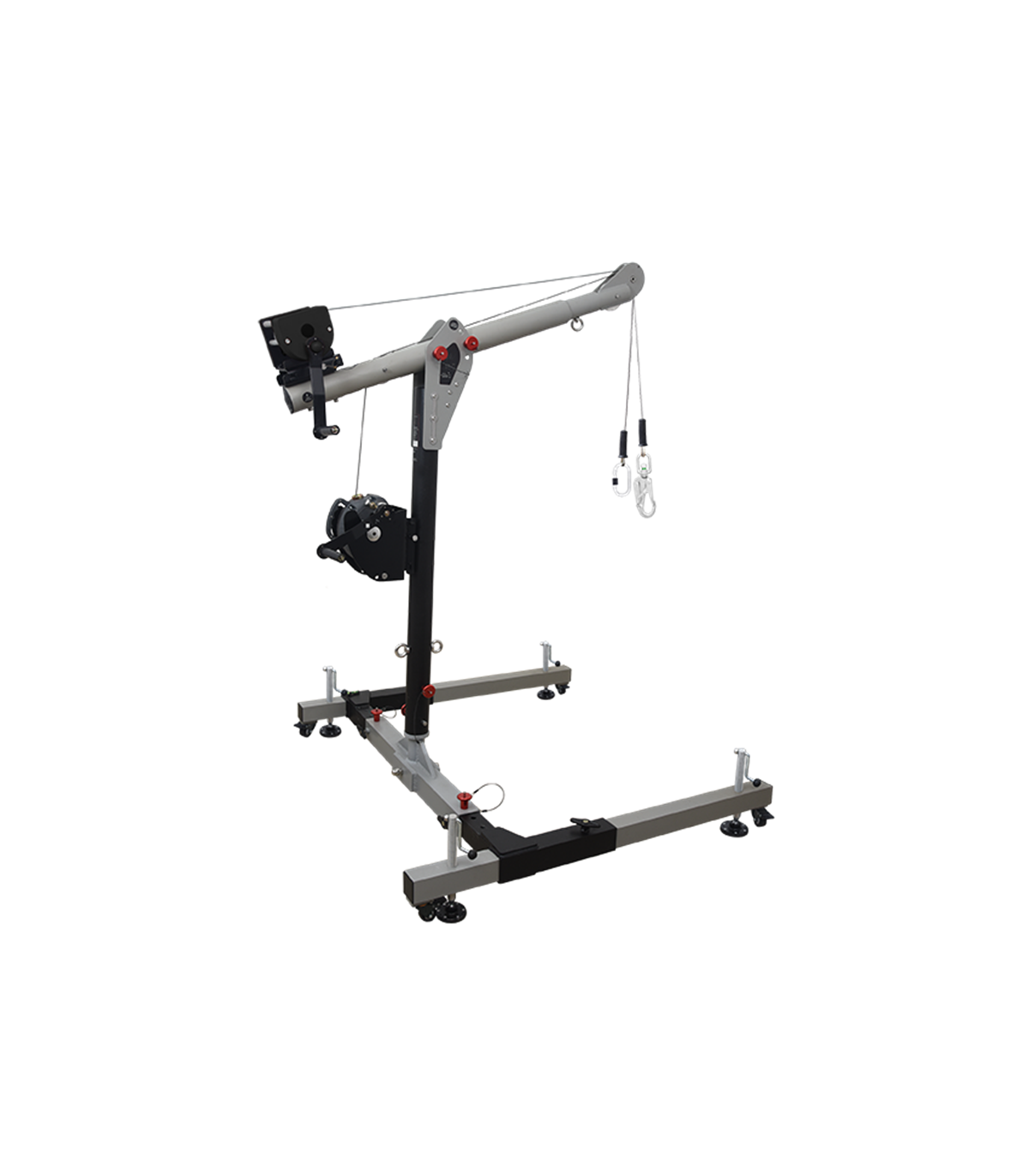

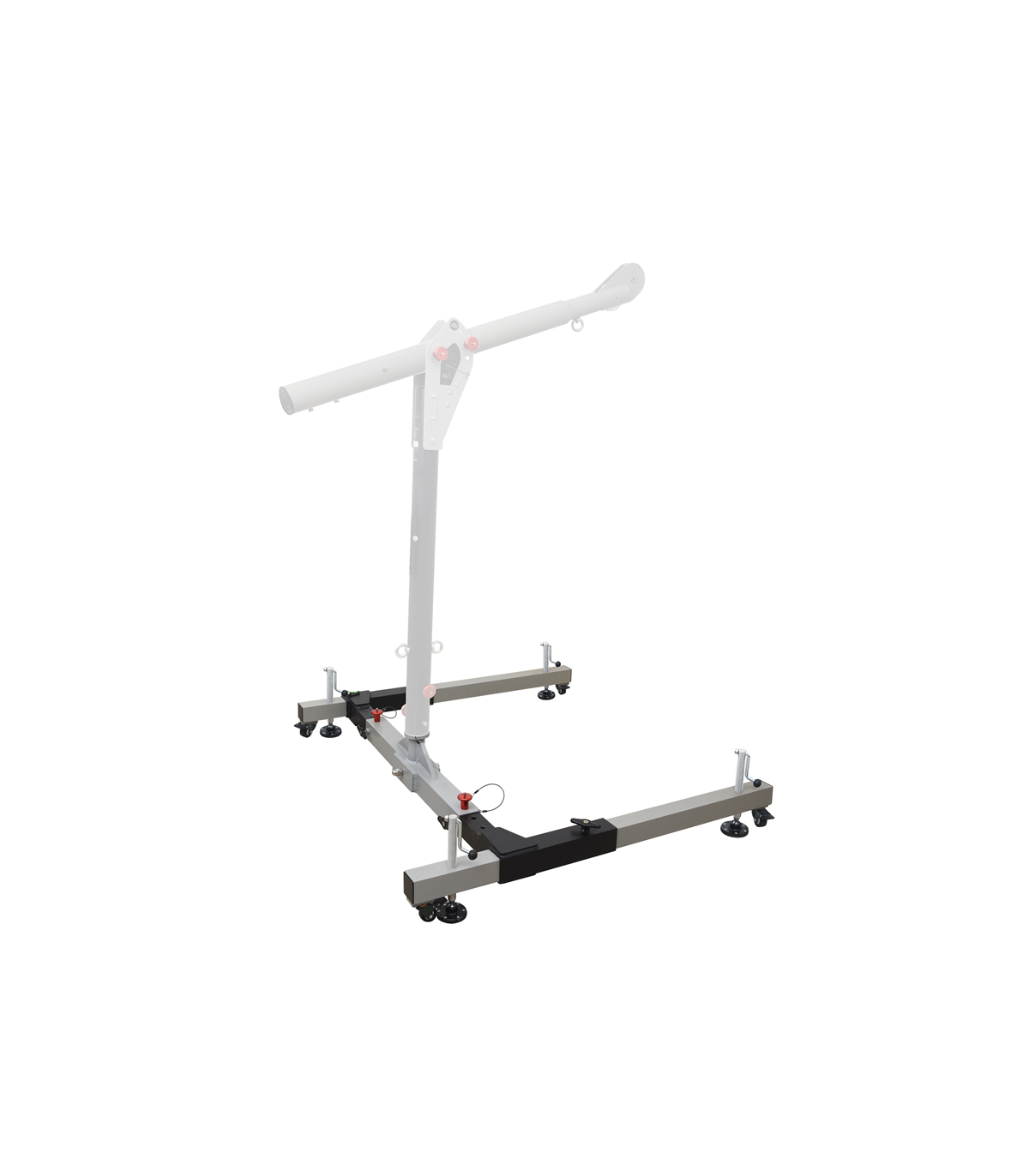

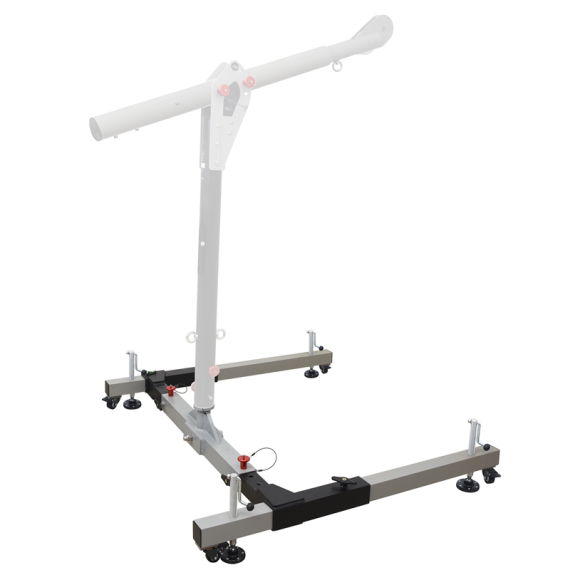

Base in H for EasySafeWay 1 mobile crane KRATOS SAFETY

The H base for the EasySafeWay 1 mobile crane from KRATOS SAFETY is the foundation upon which a safe and efficient working-at-height system is built. Designed with an H-shaped structure, this base provides exceptional stability, even on uneven surfaces. Its height-adjustable legs allow for perfect leveling of the equipment, ensuring safe and precise operation. Additionally, the base features reinforced anchor points that support heavy loads, providing peace of mind to workers.

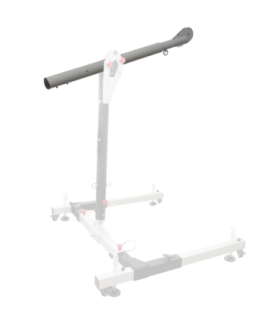

It must be installed in combination with FA 60 105 03 (crane column for EasySafeWay 1 - height 1370 mm) or FA 60 105 04 (crane column for EasySafeWay 1 - height 915 mm), and FA 60 105 05 (EasySafeWay 1 crane arm) to obtain a complete EasySafeWay 1 mobile crane.

FEATURES

• Minimum opening of the H base: Ø 1100 mm.
• Maximum opening of the H base: Ø 1510 mm.
• Material: Aluminum.
• Weight: 35 kg.

APPLICATIONS

Construction: For lifting heavy materials and installing structures at construction sites.

Manufacturing: In factories where large or heavy parts are handled during the production process.

Logistics and transportation: For loading and unloading containers and heavy goods at ports or distribution centers.

Mining: In mineral extraction, where mobile cranes are required to move heavy equipment and materials.

Energy: In the installation and maintenance of structures in wind farms, power plants, and other energy facilities.

Petrochemical: For handling equipment and materials in refineries and petrochemical plants.

USAGE

There is no good fall protection system without a good anchor point. Regardless of the type of intervention that needs to be carried out, whether it is temporary or regular, it is essential to choose the anchor point carefully and ensure that the receiving structure (building, metal structure, post) is strong enough.

HOW TO CHOOSE

The anchor point is undoubtedly the most delicate element of a fall protection system that must be chosen to ensure optimal safety. When selecting the anchor point, it is necessary first to determine where to install the anchor point. To do this, the following aspects must be considered: static resistance of the anchor point: > 10 kN installation height: high enough in relation to the first potential obstacle in case of a fall (see fall factor diagram) situation: vertically above the workstation to avoid risks associated with the pendulum effect (see pendulum effect diagram)
