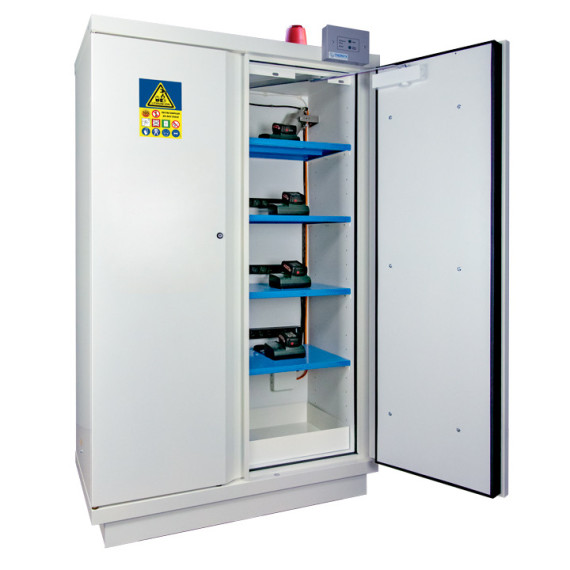

High fireproof safety cabinet for 90 minutes, 2 doors, for lithium-ion batteries, with 4 shelves E35LI + 1 x VIG290.

Fire cabinet with 2 doors, 90 minutes height for lithium batteries, pre-equipped with 4 E35LI shelves + 1 x VIG290 (visual and audible alarm, control box, automatic smoke detector, EX200LI extinguisher, and cable pass-through at the top [ref. PINTOLI])

Supply time of approximately 4 to 6 weeks.

FEATURES

To ensure the safety of people and property, we have created a secure storage solution for lithium-ion batteries. In fact, lithium-ion batteries have the particularity of presenting many risks, the most well-known and frequent being thermal runaway, which can be caused by an increase in ambient temperature, a shock, or a mounting problem with the cabinet.

The consequence is that the battery can dangerously ignite and cause a fire.

Based on our experience and knowledge of fireproof cabinets according to the European standard EN14470-1 for 105 minutes, we offer several models of different sizes that can meet a wide variety of storage needs. These cabinets can be equipped, as needed, with perforated shelves (with high load capacity - 100 kg per level) and containment sumps at the bottom of the cabinet to prevent possible damage from electrolyte leaks from the battery. There is also the possibility of recharging the stored batteries through the rack outlets.

The exceptional fire resistance of our cabinets (105 minutes under European testing) guarantees maximum safety. However, it is possible to further secure the storage by adding optional solutions such as:

• The internal safety extinguisher in the special lithium-ion battery cabinet (ref. EX100LI or EX200LI)

• Or the safety set that includes the extinguisher, a sound and visual alarm, the smoke detector, the control box, and a cable pass-through at the top of the cabinet PINTOLI ref. (VIG190 or VIG290).

BENEFITS

COMPLIANCE

• Proven fire resistance of 105 minutes, according to the ISO 834 curve as per EN 14470-1 standard

• Standardized warning labels according to ISO 3864 and ISO 7010, as well as European directive 92/58/EEC.

CONSTRUCTION

• Steel construction with triple wall and double thermal insulation.

• Exterior walls in 12/10 steel and RAL 9010 white epoxy paint.

• Thermal insulation panels that limit thermal bridges

• Interior panels made of melamine.

EQUIPMENT

• Thermally expanding door seals.

• Doors with automatic closure.

• Key lock.

• Ventilation holes with Ø 100 mm ventilation outlet for possible connection.

• Ventilation ducts with hot-melt system to isolate the contents of the cabinet in case of fire.

• Grounding point for grounding connection.

OPTIONAL ACCESSORIES

• Perforated shelves with a load capacity of 100 kg (ref. E34LI and E35LI)

• Removable containment sump at the bottom (ref. B148 and B235)

• Automatic extinguisher at 79°C via special lithium bulb (ref. EX100LI or EX200LI)

• Rack with 9 electrical outlets for battery recharging (ref. PRISELI)

• Drilling at the bottom for cable passage with fire-resistant cable glands (Ref. PEXTBALI)

• Safety and alarm set that includes visual and audible alarm, control box, automatic smoke detector, extinguisher, and cable pass-through (Ref. VIG190 or VIG290).

VENTILATION

All cabinet models have ventilation holes, allowing them to connect to a ventilation system. Forced ventilation is highly recommended to avoid internal heat buildup or vapor stagnation in case of liquid electrolyte leakage. The latter can be connected to either an external outlet or a ventilation or filtration box.

APPLICATIONS

There are four types of use, depending on your needs:

• Simple battery storage: cabinet equipped with perforated shelves and a containment sump.

• Battery storage and charging: cabinet equipped with perforated shelves, a containment sump, and electrical outlet racks + PEXTBALI (max. 4 cables of 4 to 15 mm).

• Simple battery storage + advanced protection system: cabinet equipped with perforated shelves with containment sump + optional advanced protection system (either an extinguisher or a safety set that includes visual and audible alarm, control box, automatic smoke detector, extinguisher, and cable pass-through).

• Battery storage and charging + advanced protection system: cabinet equipped with perforated shelves, a containment sump, and electrical outlet racks + optional advanced protection system (either an extinguisher or a safety set that includes visual and audible alarm, control box, automatic smoke detector, extinguisher, and cable pass-through).

OUR CABINETS ARE SUITABLE FOR STORING AND RECHARGING LITHIUM-ION BATTERIES INCLUDED IN THE FOLLOWING EQUIPMENT (NON-EXHAUSTIVE LIST):

• Electric bicycles
• Chainsaws, hedge trimmers, lawn mowers...
• Drones
• Electric bicycles
• Battery-powered portable tools
• Electric scooters
• Lift trucks

TECHNICAL DATA

All contaminating liquids must be stored in tanks that have a retention capacity of at least 50% of the volume of such liquid, as well as the retention capacity of flammable or combustible liquids contained in mobile containers of less than or equal to 250 L must be at least 800 liters.

The containment sump must be of controlled tightness and must withstand the physicochemical properties of the material it contains. Its storage is governed by chemical incompatibilities and established safety standards.

In case of fire, the cabinets should not be moved except by firefighters.

APPROVED EN14470-1

TESTED EN14470-1

Model: 795+LIX4

Door color: RAL 9010 white

Number of doors: 2

Type of doors: hinged doors

Hinges: left and right

Door closure: automatic closure

Diameter of openings (mm): 100

Connection sleeve: 1

Number of compartments: 1

Shelves: 4

External dimensions HxWxD (mm): 1950 x 1137 x 620

Internal dimensions HxWxD (mm): 1620 x 1000 x 410

Shipping dimensions HxWxD (mm): 2150 x 1200 x 800

Load capacity: 100

Weight (kg): 488.00

SA Code: 94032080
