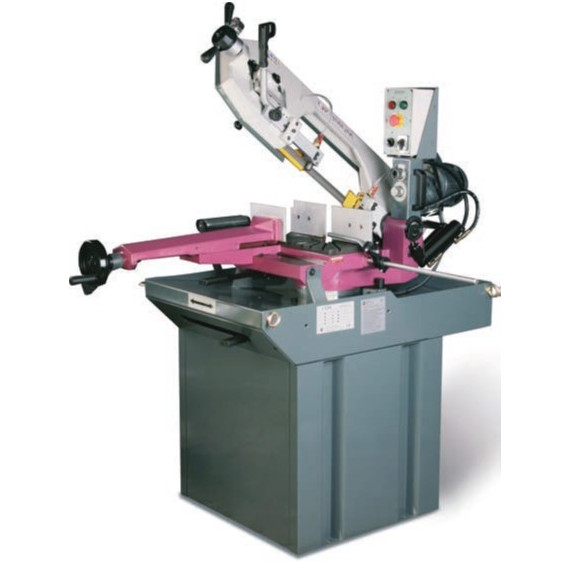

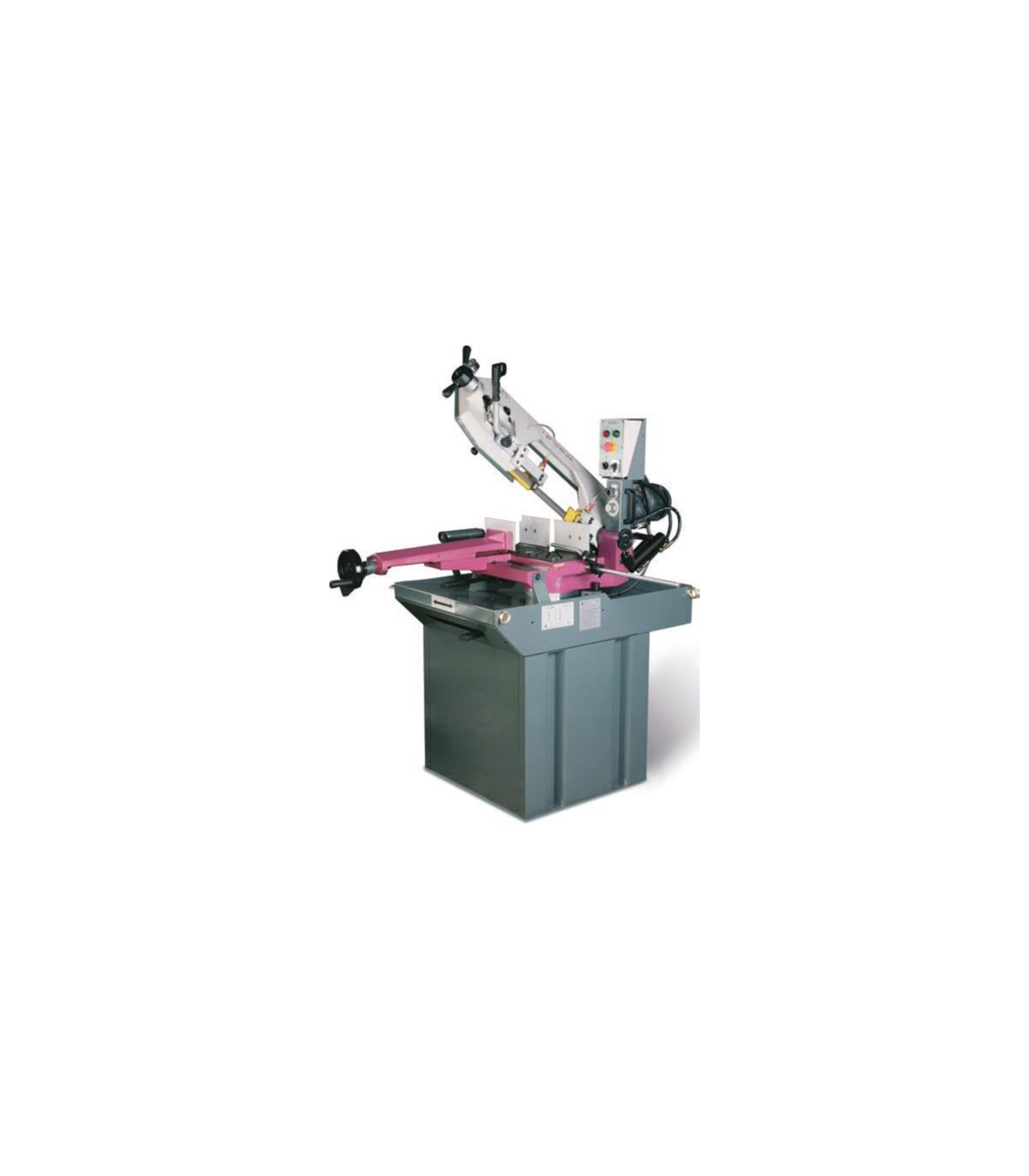

Bimetal band saw S 285 DG OPTIMUM

Brand:

Bimetal band saw S 285 DG OPTIMUM. The bimetal saw S 285 DG OPTIMUM offers precise cuts in metal, 1.5 HP, easy handling, and cooling.

Read moreShow less
€6,025.94
€6,025.94 (TAX incl.)
€4,980.12 (no TAX)
Solicitar más información

Solicitud de información de este producto

Reference:
3300285

SECURE PAYMENT WITH

Pay in 3 interest-free installments with

(not applicable to companies)
more information

SHIPMENTS

from 3,99€ + VAT. Free from €150 +VAT

EXCHANGES AND RETURNS

Free up to 14 days after purchase, excluding personalized and made-to-order products

EXCHANGES AND RETURNS

WE HELP YOU

+34 876 43 01 24
info@sekureco.eu

You may also like
Description

Bimetallic band saw S 285 DG OPTIMUM. The S 285 DG OPTIMUM bimetallic band saw is ideal for metalworking, featuring a tilting swivel arm that ensures precise cuts. With a power of 1.5 HP, it cuts up to 225 mm at 90°. Its industrial design includes a simple control panel and a cooling system. Perfect for metallurgy, carpentry, and maintenance.

FEATURES

Band saw for metalworking with a tilting saw arm for precise work. INDUSTRIAL SERIES.

Control panel
· Easy operation through the feed control valve.

TECHNICAL SPECIFICATIONS

Motor power 1.5 HP / 1.1 kW / 400 V
Cutting capacity at 90°  225 mm
Cutting capacity at 90°  245 x 150 mm
Cutting capacity at +45°  150 mm
Cutting capacity at +45°  150 x 190 mm
Cutting capacity at -45°  150 mm
Cutting capacity at -45°  140 x 150 mm
Cutting capacity at -60°  90 mm
Cutting capacity at -60°  110 x 180 mm
Blade development 2,480 x 27 x 0.9 mm
Blade speed 45 / 90 m/min.
Dimensions (l x w) 1,720 x 870 x 1,280 mm
Net weight 295 kg

COMPONENTS/PACKAGING

Bimetallic saw blade, cutting limit stop, cooling system.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The S 285 DG OPTIMUM bimetallic band saw is suitable for:

  • Wood and Carpentry
  • Metallurgy
  • Construction
  • Automotive Industry
  • Crafts and DIY
  • Repair and Maintenance

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management

Read moreShow less

SOBRE OPTIMUM

Las máquinas para trabajar metales OPTIMUM se caracterizan por altos estándares de calidad. Además de nuestras propias operaciones de fabricación, OPTIMUM confía en fabricantes que cumplen con nuestros requisitos.
