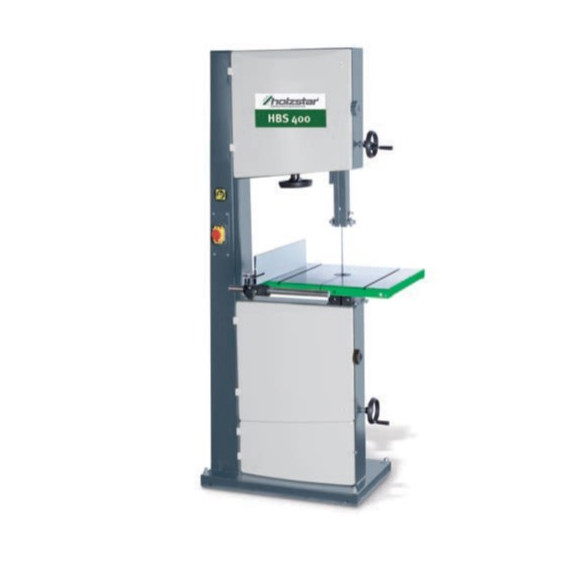

HBS 400 HOLZSTAR band saw for wood

HBS 400 HOLZSTAR Band Saw for Wood. The HBS 400 HOLZSTAR band saw for wood offers a rigid and stable construction, allowing for safe and smooth cuts in wood. Its cast iron table tilts from 0 to 45°, and it features a powerful motor. It includes a safety switch, precise guide with rollers, and quick blade change without altering the tension. With a maximum cutting capacity of 305 mm in height and 416 mm in width, it is ideal for professional work. Its compact design and easy adjustment make it a versatile tool for carpenters and DIY enthusiasts.

FEATURES

• Rigid torsion construction
• High stability with minimal space requirement
• Safe and smooth saw cuts in wood
• The heavy cast iron work table with polished surface can be tilted from 0 to 45°.
• Powerful motor
• The safety switch deactivates the machine when the door is opened, preventing accidental start-up.
• With precise band saw guide of 3 rollers at the top and bottom, professional band saw with closed base
• Quick blade change via the eccentric lever at the back of the machine without changing the tension adjustment
• The cast iron wheels ensure smooth operation
• Easy tilting of the table from 0 to 45° via a tilting mechanism
• Standard with two speeds
• Adjust the cutting width easily readable on a scale
• Suitable for band saw widths from 6 to 25 mm.
• Includes smooth-operating aluminum cutting stop with quick release on solid round rod guide

TECHNICAL SPECIFICATIONS

Cutting Ranges

Maximum cutting height 90° 305 millimeters

Maximum cutting width with stop 266 millimeters

Maximum cutting width without stop 416 millimeters

Dimensions and Weights

Approximate length 765 millimeters

Approximate width/depth 520 millimeters

Approximate height 1750 millimeters

Approximate weight. 140 kilograms

Electrical Data

Power supply voltage 230 V

Network frequency 50 Hz

Extraction Port

Diameter of extraction port 120 millimeters

Band Saw

Speed(s) 460/980 m/min

Length 3378 millimeters

Table(s)

Length 530 millimeters

Width 485 millimeters

Height 900 millimeters

VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

Band saw 16.0 x 0.5 x 3378 mm / 4 ZpZ

Aluminum cutting fence

FOR WHAT TYPE OF WORK IS IT SUITABLE

The HBS 400 HOLZSTAR band saw for wood is suitable for:

• Carpentry and cabinetry.
• Cutting boards and wooden pieces.
• Creating custom furniture.
• Modeling and design work in wood.
• Renovation and repair of wooden structures.
• DIY projects that require precise cuts.

CERTIFICATION

Stürmer Group Quality Management System certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
