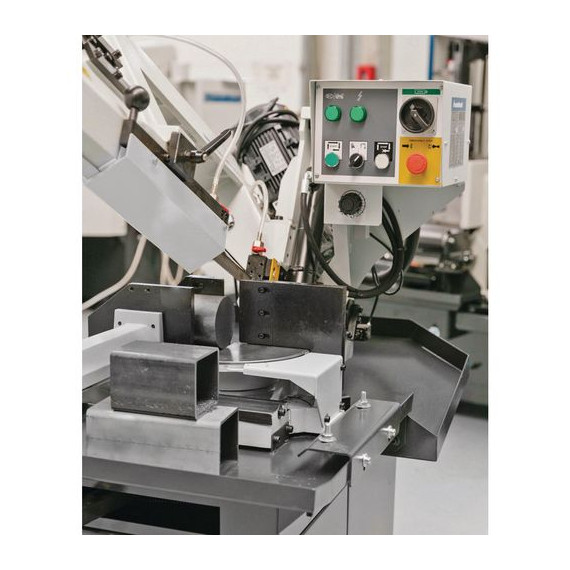

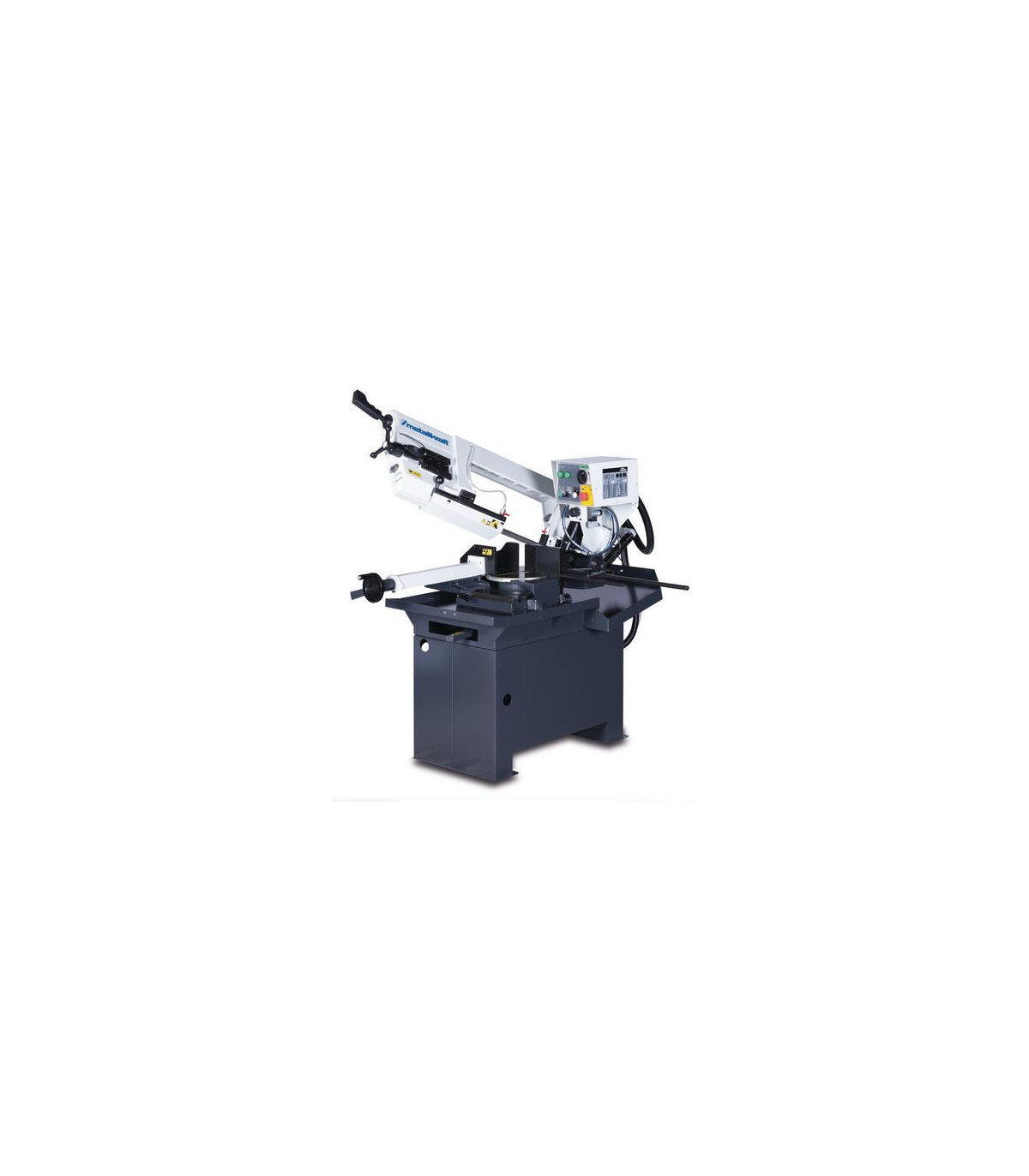

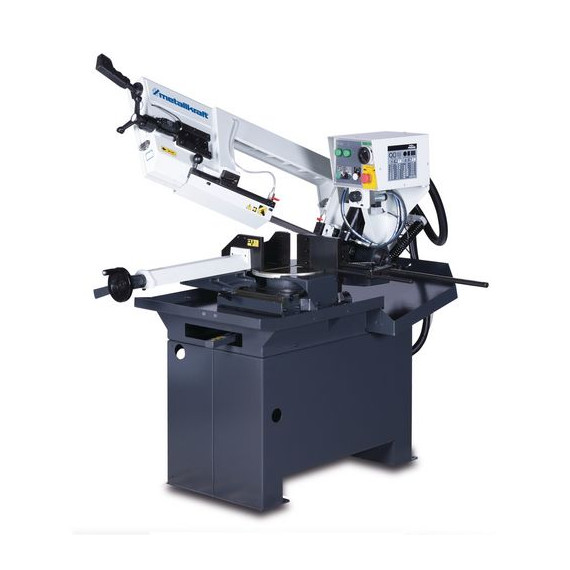

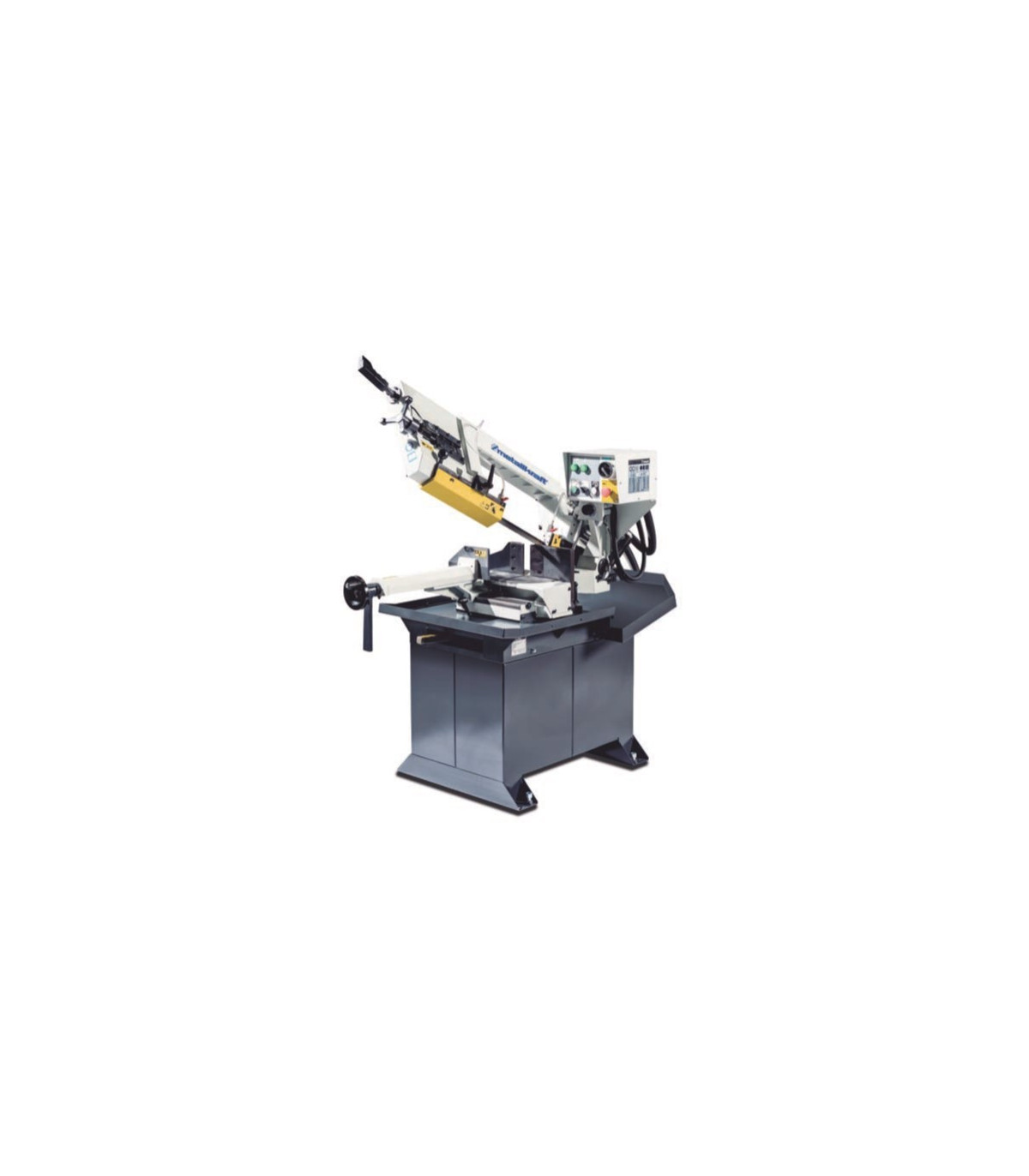

BMBS 230x280 H-DG METALLKRAFT band saw

BMBS 230x280 H-DG METALLKRAFT band saw. BMBS 230x280 H-DG METALLKRAFT band saw: ideal for cutting steel, metals, and plastic. Includes miter adjustment, robust guides, cooling system, and ergonomic handling. Precise and automatic cutting.

FEATURES

• For sawing hollow profiles and solid materials of steel, stainless steel, tool steel, non-ferrous metals, and plastic.
• Miter adjustment from the front, allowing for better handling with the attached roller conveyor
• Robust band guides with adjustable HM plates for precise cutting
• Saw blade guides with cooling system
• Control of saw blade tension electromechanically via microswitch
• With chip removal brush for optimal cleaning and maintenance of the saw blade
• When the saw arm is raised, the lowering cylinder automatically locks in the upper position; no additional locking of the cylinder is required.
• 25° inclined saw arm, which increases the lifespan of the saw blade.
• Once the cutting process is finished, the saw blade stops automatically.
• Lowering of the saw arm by gravity or manually (H-DG)
• Rotating table with pivoting cutting slot: no cuts are made on the saw table, ensuring a flat support surface and consequently greater cutting precision.
• Ergonomic handling concept
• Clamping lever for angle adjustment from the front: faster adjustment of the cutting angle
• Mounting adapter for roller conveyors included in the delivery
• Jaw with quick-release device

TECHNICAL SPECIFICATIONS

Dimensions and weights

Approximate length: 1610 millimeters

Approximate width/depth: 890 millimeters

Approximate height: 1950 millimeters

Approximate weight: 320 kilograms

Electrical data

Drive motor power: 0.9 / 1.4 kW

Connection voltage: 400 volts

Network frequency: 50 Hz

Machine data

Saw blade speed(s): 35 / 70 m/min

Speed levels: 2

Saw blade length: 2720 millimeters

Saw blade width: 27 millimeters

Saw blade thickness: 0.9 millimeters

Material feed

Material feed at table height: 787 millimeters

Cutting areas

0° round (tube): 230 millimeters

0° round (solid material): 150 millimeters

0° rectangular horizontal (hollow profile): 280 x 220 millimeters

0° beam (pipe): 280 x 120 millimeters

-45° round (tube): 190 millimeters

-45° round (solid material): 110 millimeters

-45° rectangular horizontal (hollow profile): 180 x 170 millimeters

-60° round (tube): 120 millimeters

-60° round (solid material): 80 millimeters

-60° rectangular horizontal (hollow profile): 120 x 90 millimeters

+45° round (tube): 185 millimeters

+45° round (solid material): 110 millimeters

+45° rectangular horizontal (hollow profile): 180 x 120 millimeters

COMPONENTS/PACKAGING

Unit of measure: piece

Packaging unit: 1

band saw

coolant pump

operating tool

EQUIPMENT

coolant pump: ✔

Saw feed: By dead weight

Return stroke of the saw: manual

Chip removal brush: ✔

FOR WHAT TYPE OF WORK IS IT SUITABLE

The BMBS 230x280 H-DG METALLKRAFT band saw is suitable for:

• Workshops
• Metallurgy
• Carpentry
• DIY
• Construction
