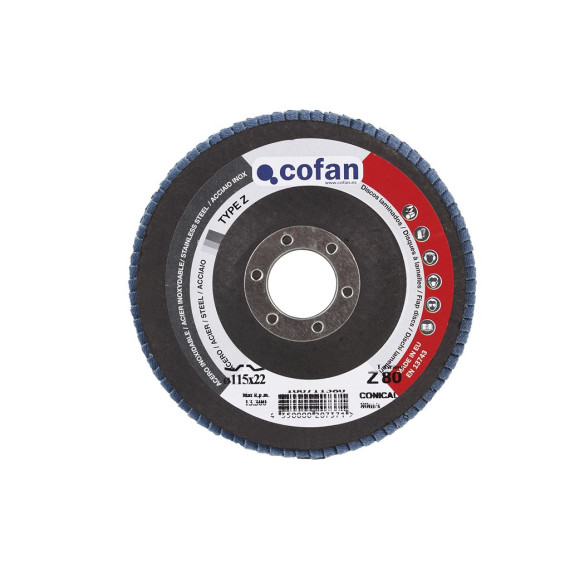

Curved 35° laminated discs with zirconium COFAN

The Curved Laminated Discs 35º with Zirconium from COFAN offer a superior solution for demanding grinding tasks on angle grinders. Made with a combination of high-quality zirconium abrasive and advanced lamination technology, these discs provide exceptional abrasive power, extended durability, and precise results across a wide range of materials.

FEATURES

• 35º curved design: Offers an ideal attack angle for aggressive and efficient grinding, minimizing bounce and operator fatigue.
• Zirconium grain: Ensures high cutting and grinding capacity, ideal for hard and tough materials such as steel, stainless steel, cast iron, etc.
• Reinforced steel structure: Provides great strength and durability, allowing for continuous and prolonged work.
• Quality certifications: Meet the strictest standards of quality and safety, ensuring reliable and responsible use.
• Available in various grits: From G-60 to G-120 to suit different grinding needs, from coarse grinding to fine polishing.
• Varied diameters: 115, 125, and 178mm to cover a wide range of applications and adapt to different angle grinders.

NORMATIVE

ISO 9001:2000

International standard for IT service management. This standard has been published by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC).

EN 12413

The EN 12413 standard, titled "Safety requirements for bonded abrasive products," establishes safety requirements for rotating bonded abrasive products such as grinding wheels, cutting discs, and mounted points. Its aim is to prevent accidents and injuries during the use of these products.

WHAT TYPE OF WORK IS IT SUITABLE FOR

For angle grinders of any power.

With just a light pressure, a very good cutting quality is achieved on construction materials.

The cutting discs are very resistant to impacts and prevent fragmentation during continuous cutting operations.

USES AND APPLICATIONS

• Grinding and leveling of weld beads on all types of metals, removal of burrs.

• Grinding of hard layers on surfaces and deep oxidations. They are designed to be used on polishing or cutting tools, both pneumatic and electric, whose maximum rotational speed is between 8,500 and 13,300 RPM (depending on size).

USAGE INSTRUCTIONS

Do not use cutting discs on tools without protective guards. The guard must cover at least half of the disc. Never exceed the maximum rotational speed of the disc. Do not tighten the disc too much when installing it on the machine, as this could cause breakage.

The disc should not be forced against the workpiece during the cutting process until it stops or the machine motor stops. Only make straight cuts, do not bend the disc. Do not rest the machine on the disc when storing it. Before installing the disc, check it for cracks.

STORAGE

This product should be stored in its original packaging, in a place where the temperature is between 15°C and 26°C and the humidity is between 35% and 50%.

It should also be kept away from the ground, windows, and external walls. Improper storage can cause a significant reduction in the quality of this product.

EXPOSURE CONTROLS AND PERSONAL PROTECTION

1. Eye protection: Use safety glasses to prevent metallic particles or disc fragments from entering the eyes during the cutting or grinding process.

2. Hand protection: Use gloves.

3. Skin protection: Avoid contact with skin from dust and metal shavings generated.

4. Respiratory protection: Use approved respirators. In this case, a dust respirator.

5. Ingestion: Not applicable.

6. Recommended ventilation: Provide adequate extraction.

PRODUCT LIFESPAN

5 years from the date of manufacture.
