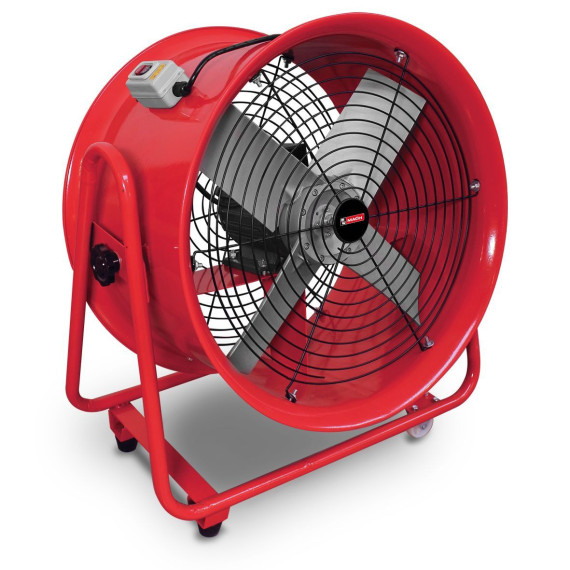

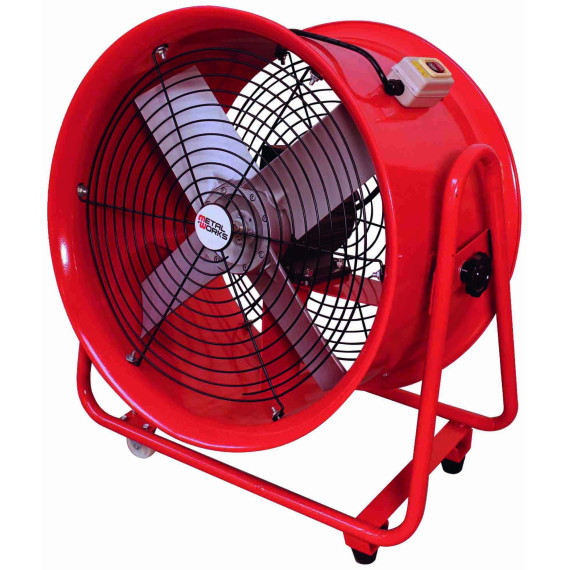

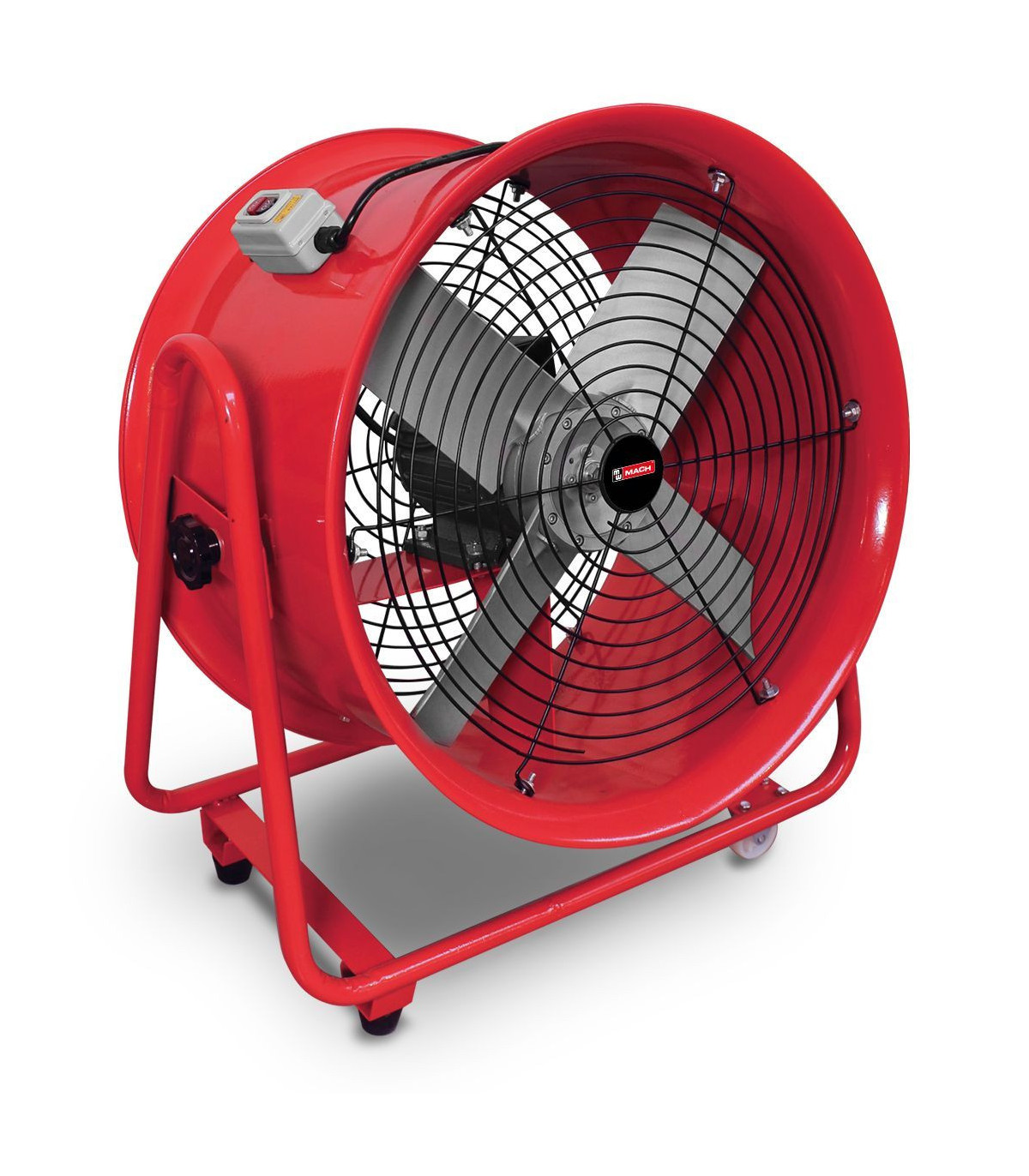

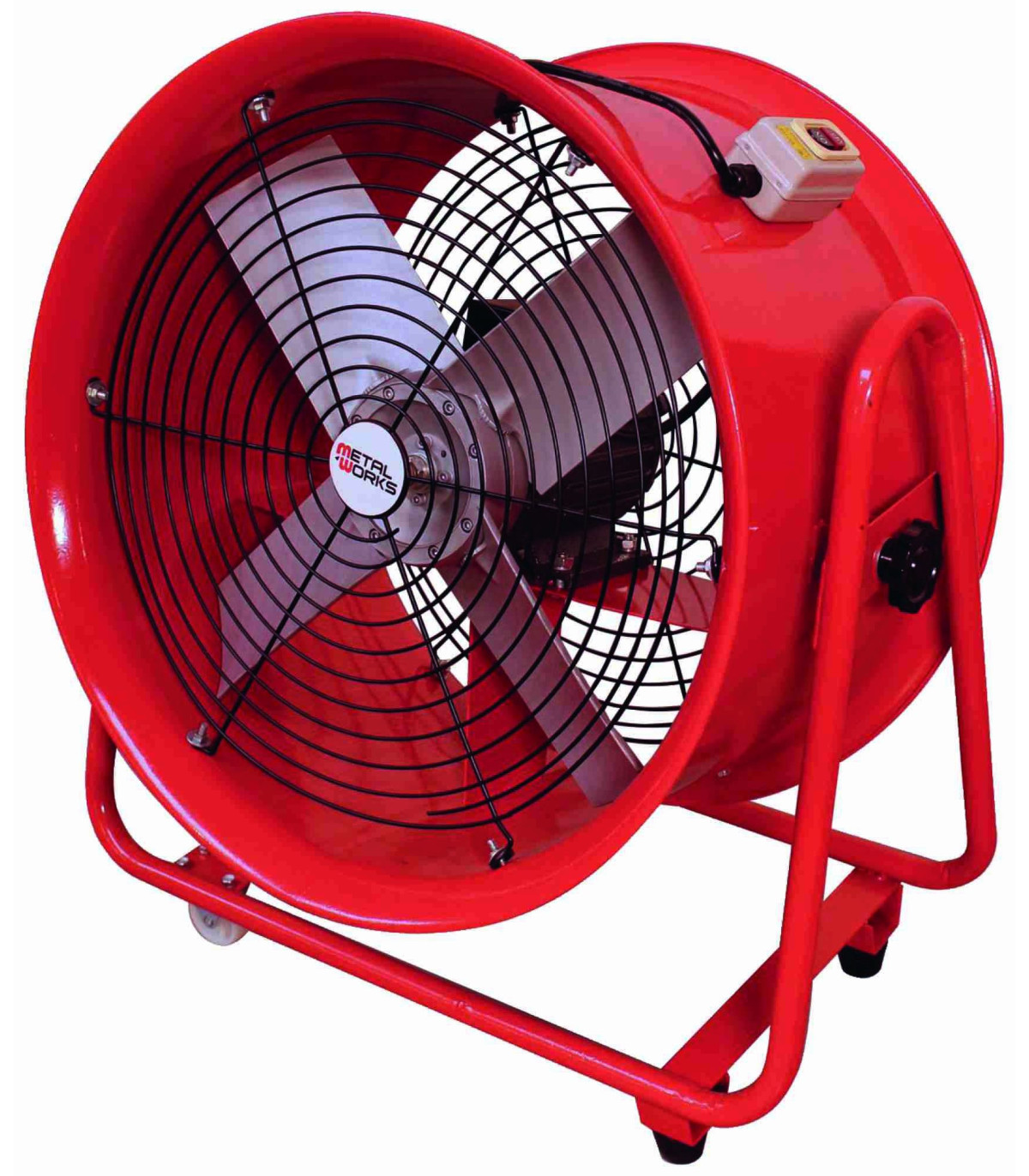

High flow extractor fan MV500SL with wheels METALWORKS

High Flow Extractor Fan MV500SL with Wheels METALWORKS. Face the toughest ventilation challenges with the MV500SL extractor. Equipped with a 1,100 W motor and wheels for easy transport, this machine is designed to move massive air flows, ideal for heavy industry, construction, and emergencies.

FEATURES

The MV500SL is synonymous with power. Its impressive motor and large diameter of 500 mm enable it to handle the most demanding tasks. Despite its size, its mobility is guaranteed thanks to a robust chassis with wheels and an ergonomic handle. Its solid construction ensures reliable performance and a long lifespan even in the most adverse conditions.

• Housing: Steel | Fan blades: Aluminum
• With 4 swivel wheels, 2 with brakes.
• Diameter 500 mm
• Motor power 1,100 W / 230 V
• Insulation class: F
• Revolutions per minute 1,400 r.p.m.
• Air flow 130 m3/min.
• Noise level: 72 dB (A)
• Dimensions (l x w x h) 480 x 580 x 755 mm
• Net weight 27 kg

SPECIFICATIONS

• Motor power: 1,100 W

• Air flow: 10,200 m³/h

• Rotation speed: 1,400 r.p.m.

• Voltage: 230 V / 50 Hz

• Net weight: 41 kg

APPLICATIONS

• Smoke control and ventilation in tunnels or large civil works.

• Industrial drying on a large scale.

• Emergency ventilation in underground spaces or large venues.

• Shipbuilding industry, shipyards, and large production plants.
