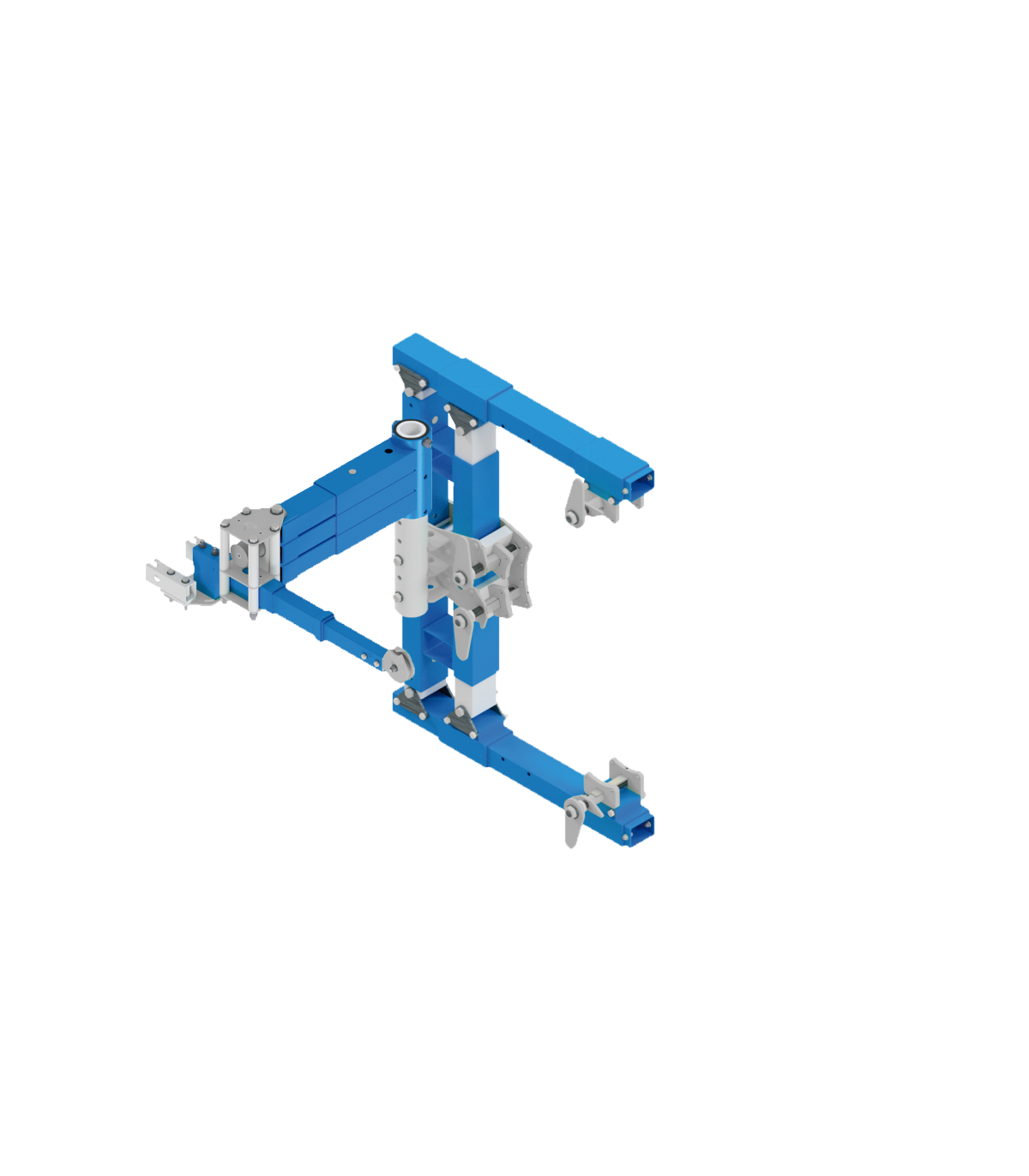

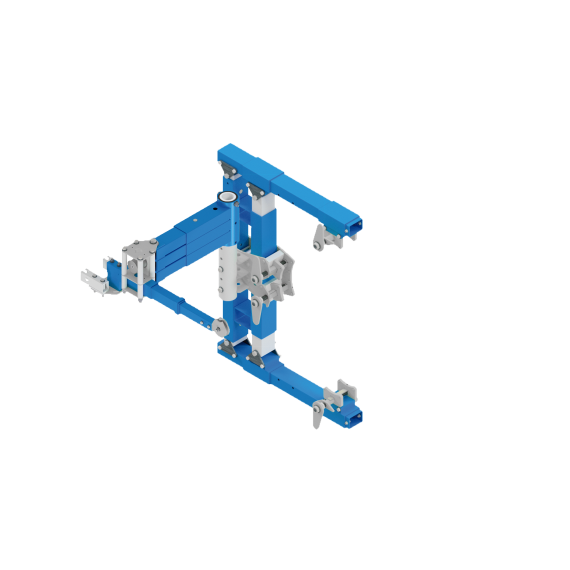

Extendable and rotating arm Side Entry

Articulated arm for lateral access to confined spaces, designed to position an anchor point and facilitate entry and rescue maneuvers from the outside. This extendable and rotating arm integrates into systems with compatible posts and bases, providing adjustable reach and tool-free handling.

FEATURES

• Articulated arm for lateral access in confined spaces
• Compatibility with different structures and support bases
• Adjustable length to adapt the reach to the work point
• Designed to keep the user anchored from the outside
• Helps reduce friction of progression or rescue systems
• Assembly and handling oriented for field use
• Compatible with winch/hoist to facilitate access and recovery

BENEFITS OF THE Extendable and Rotating Side Entry Arm

Allows working with an anchor point closer and aligned with the lateral access area, facilitating control of entry and extraction during interventions. By maintaining the anchor from the outside, it helps organize work at the access point and minimizes wear from friction of ropes or equipment, especially in rescue operations in confined spaces.

USES AND APPLICATIONS: WHAT IT IS SUITABLE FOR

Suitable for lateral access to confined spaces such as manholes, tanks, inspection chambers, pits, vaults, and areas with circular openings where controlled entry and recovery capability is needed. Commonly used in industrial maintenance, sanitation, water, energy, and installations with specific access and rescue tasks.

TECHNICAL DATA

• Applicable standard: EN 795 Type B
• Length: 1475–1695 mm
• Weight: 16.8 kg
• Strength: 10 kN
