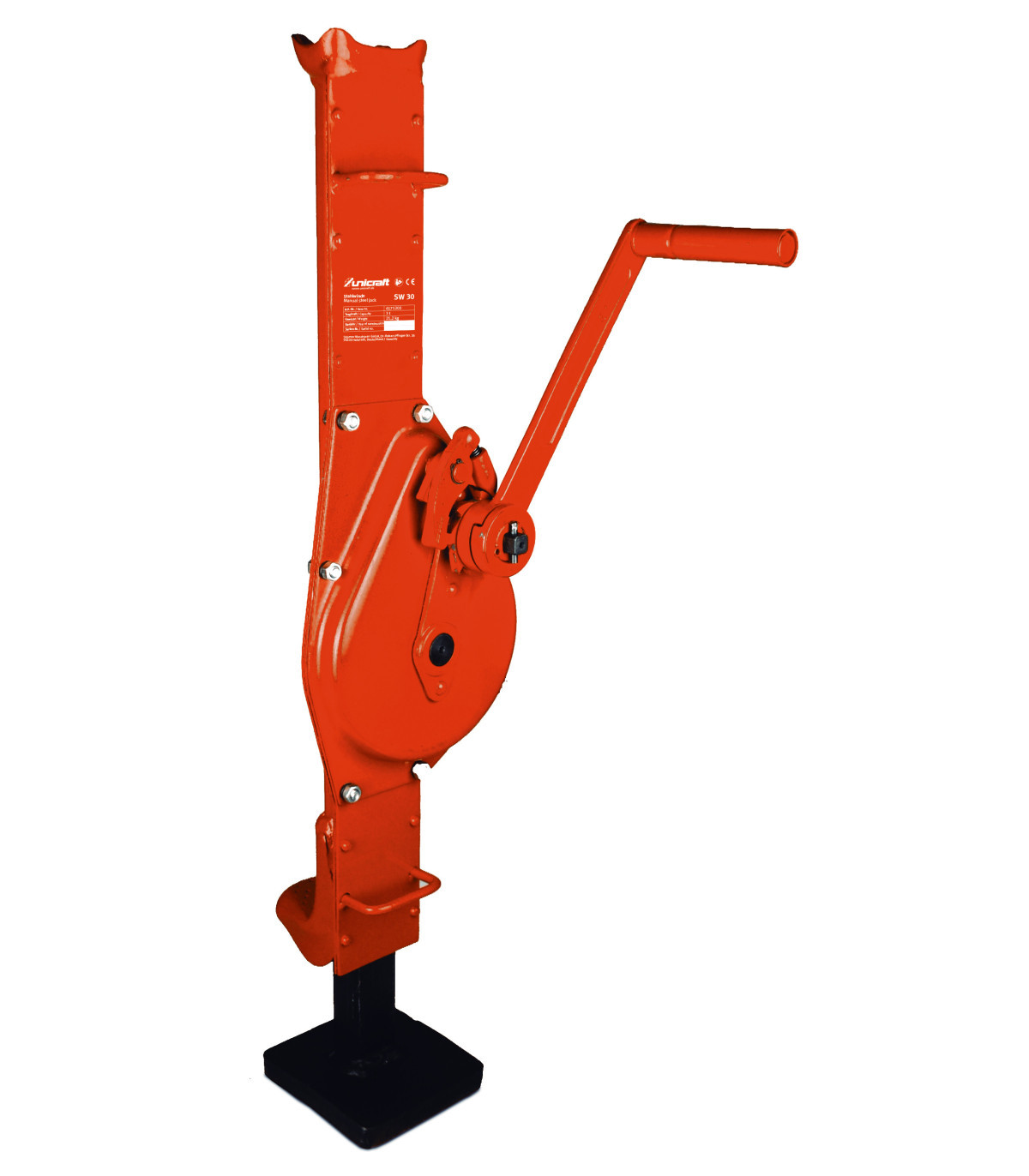

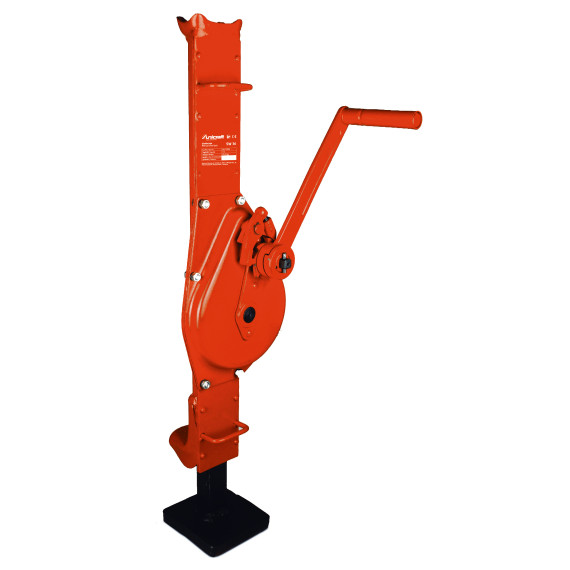

SW 100 elevator cat with a capacity of 10T DIN 7355 UNICRAFT

SW 100 lifting jack with a capacity of 10T UNICRAFT. Stable construction according to DIN 7355 with the self-sensing safety pressure roller crank. With a safety crank for lifting, holding, and lowering tasks with a maximum load capacity of 10 t.

FEATURES

Load lifting points on the head and claw

Low effort when lifting the load

Lifting support box with angled toothed rack

Stable support for high stability

Easy and safe handling with two handles, also to facilitate transport

Space-saving storage and transport thanks to the foldable crank handle

TECHNICAL DATA

Load capacity 10 t

Stroke 345 mm

VPE 1

Dimensions and weights

Approximate length 250 mm

Approximate width/depth 498 mm

Approximate height 800 mm

Approximate weight 46.8 kg

FOR WHAT TYPE OF WORK IS IT SUITABLE

Mechanical workshops: For lifting small and medium vehicles during maintenance, repair, and tire changing tasks.

Tire retreading: Used to lift vehicles in order to perform work on wheels and suspensions.

Transport: In fleets of commercial vehicles for minor repairs on the road.

Industrial maintenance: To lift machinery and equipment for inspections, repairs, and adjustments.

Production: On production lines to position parts and components at working height.

Civil works: To lift moderate loads in smaller construction projects.

Building maintenance: To carry out repair and maintenance work at height.

Agricultural workshops: To lift medium-sized agricultural machinery.

Warehouses: To move and position loads on shelves or elevated platforms.

DIN 7355

The DIN 7355 standard is a technical standard established by the German Institute for Standardization (Deutsches Institut für Normung) that specifies the design, manufacturing, and testing requirements for a wide range of lifting screws. These screws, also known as eye bolts or lifting hooks, are used in various industrial applications to lift loads safely and efficiently.
