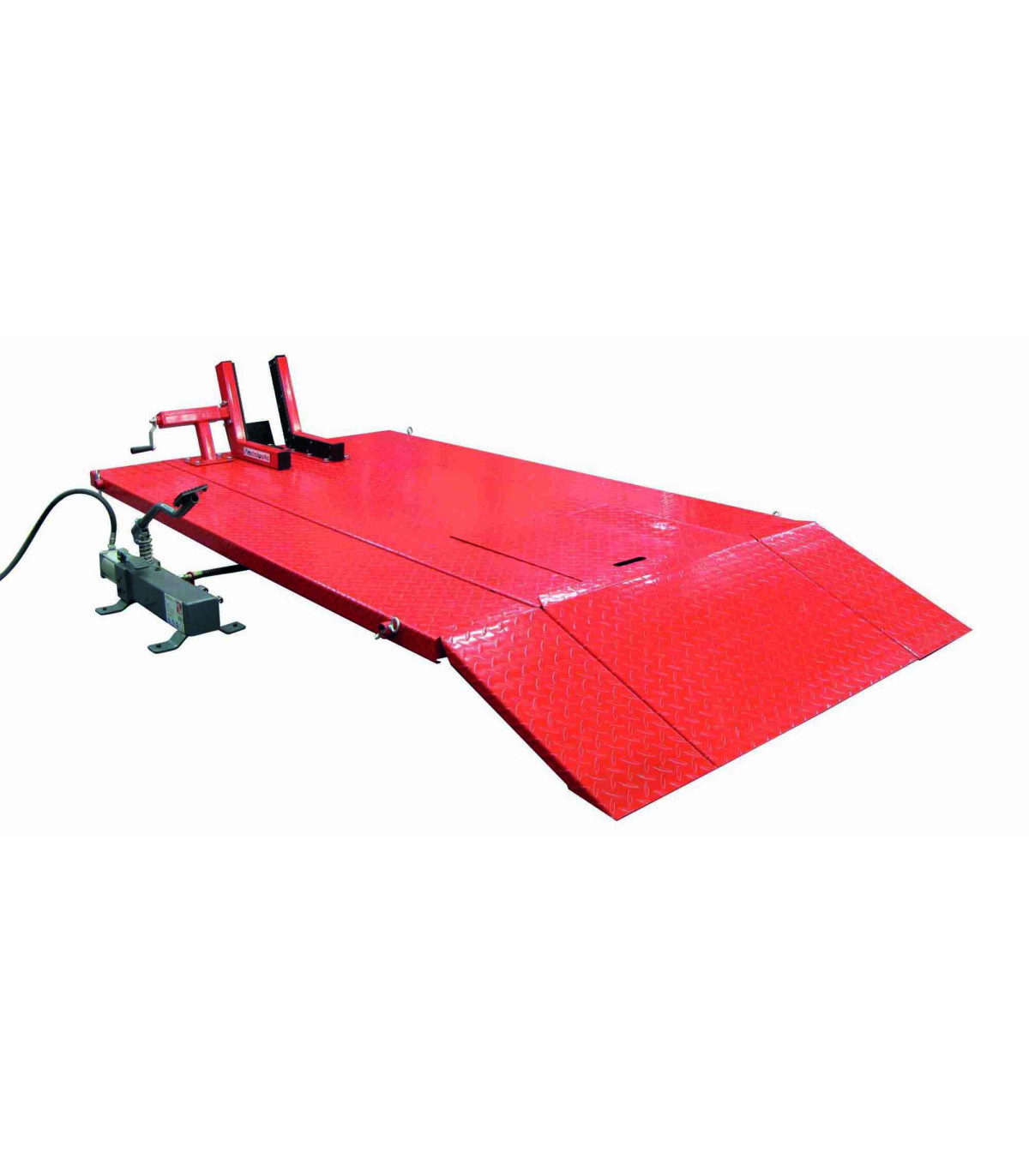

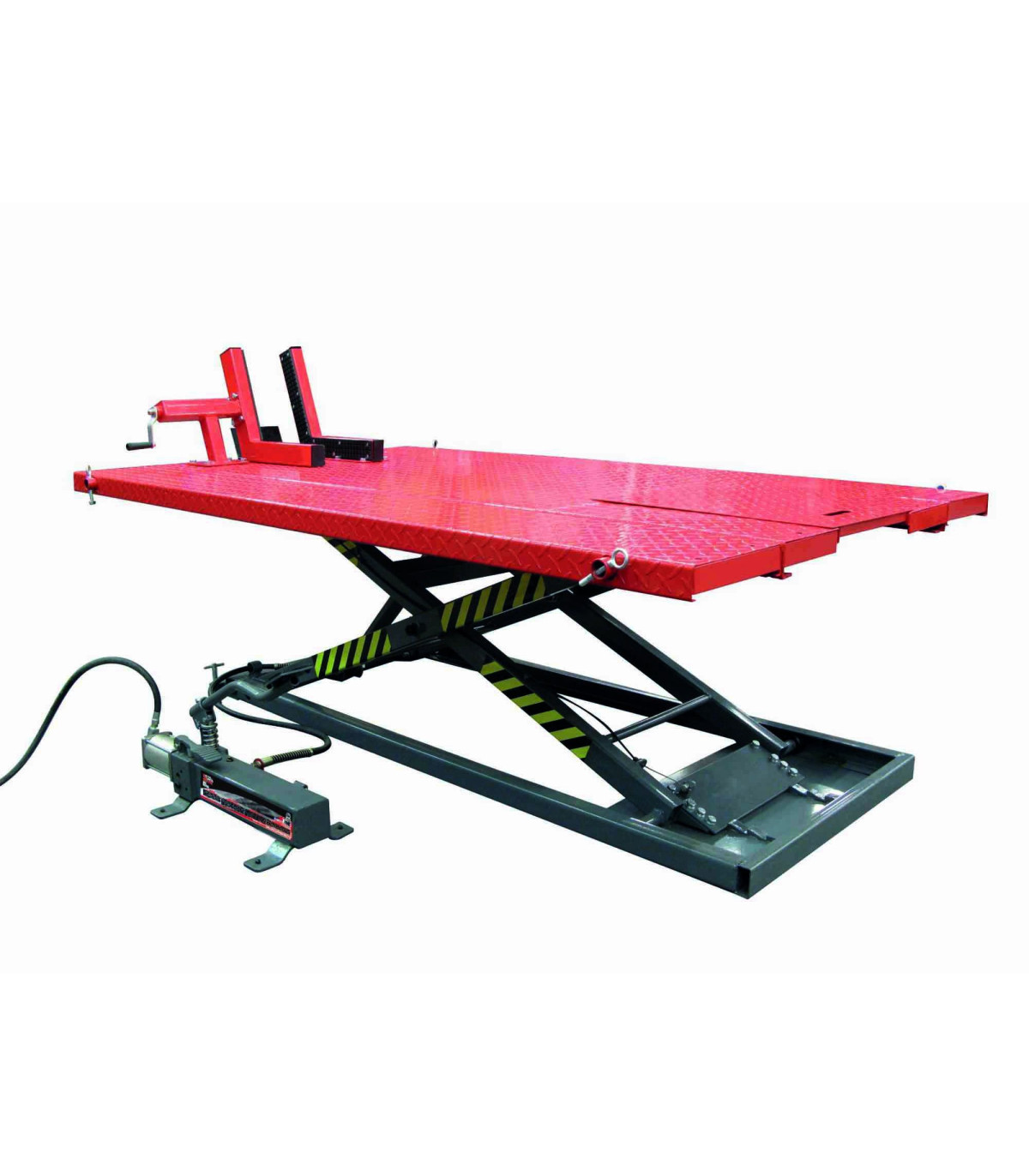

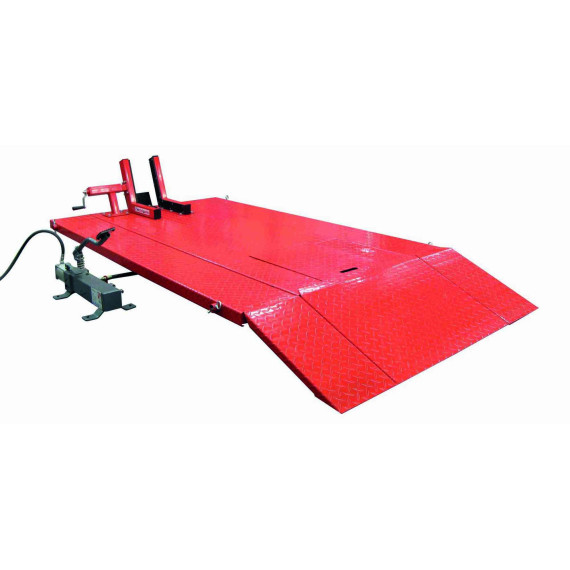

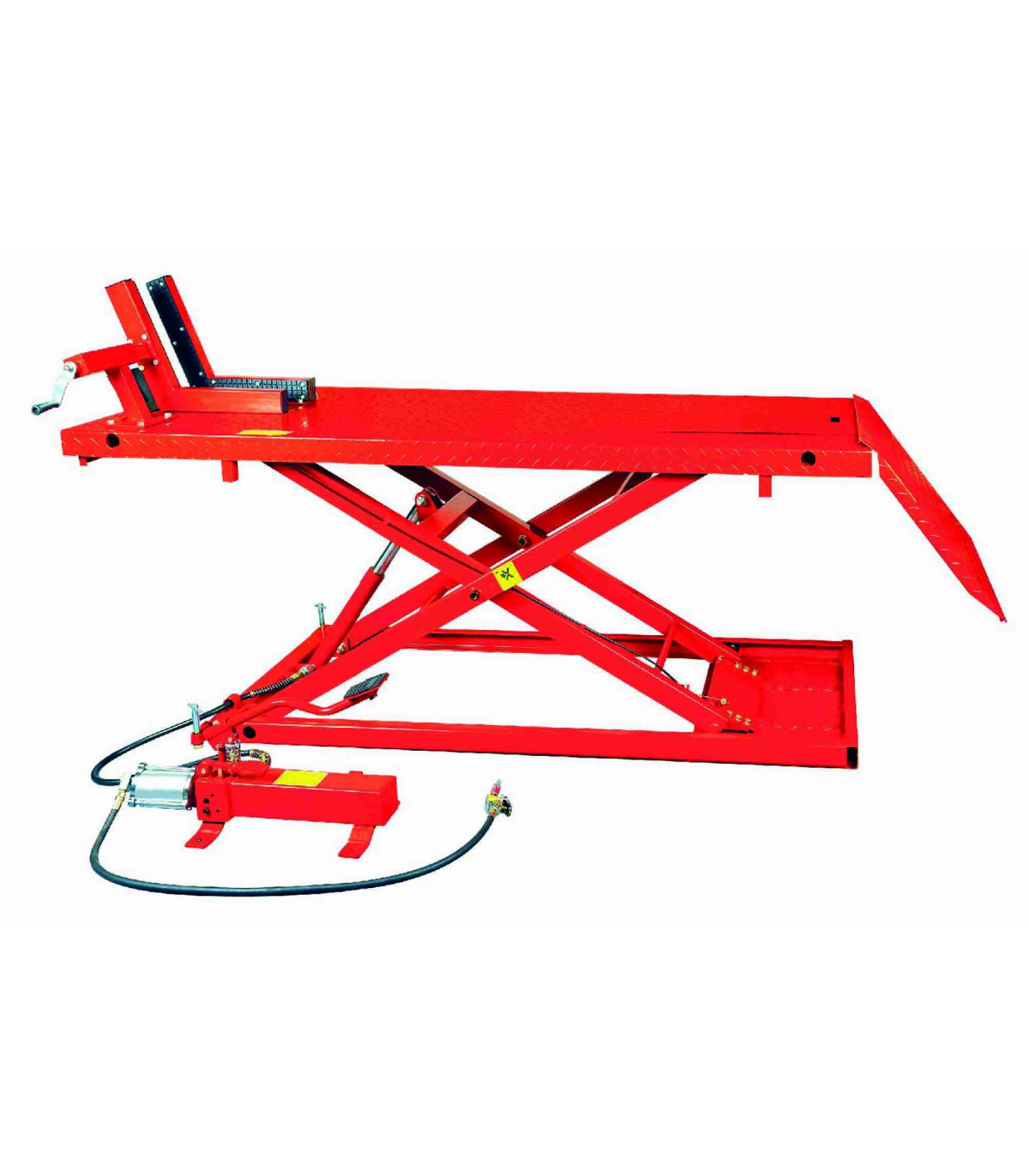

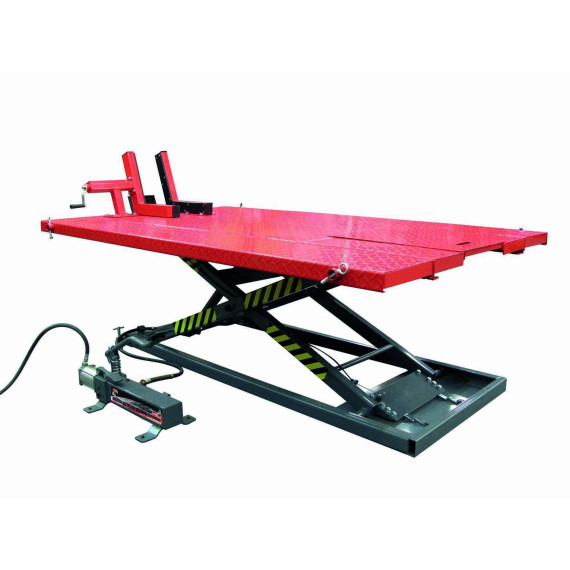

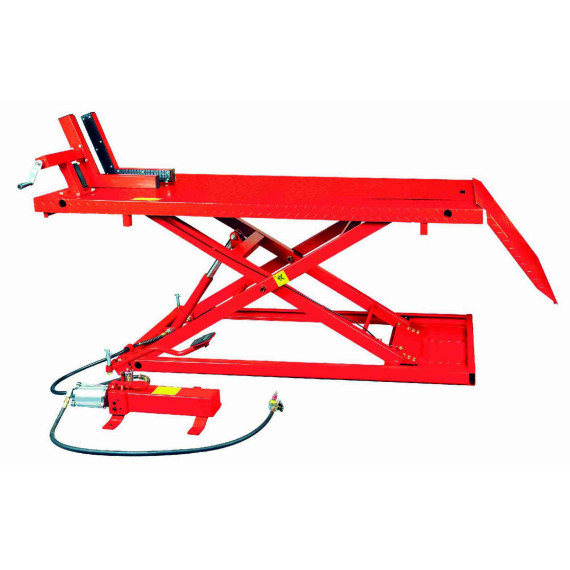

Hydropneumatic Lifting Platform for Quads and Motorcycles MHB 456 | METALWORKS

The extra wide platform for all types of vehicles. This hydraulic lift with a capacity of 455 kg features side extensions, making it perfect for comfortably working not only with motorcycles but also with quads, ATVs, and garden machinery.

Fixed with a capacity of 680 kg. Up and down safely. Operated by pedal or compressor.

FEATURES

The distinctive feature of this model is its removable side extensions, which expand the working surface up to 1,220 mm. The lifting system is hydraulic, allowing for quick operation with compressed air. It includes two access ramps, a repositionable wheel clamp, a rear hatch, and mechanical safety lock. It is the most versatile lifting solution in the workshop.

SPECIFICATIONS

• Load capacity 680 kg
  Width 1,200 mm
  Length 2,000 mm
  Min height 181.5 mm
  Max height 820 mm
  Load surface dimensions 1,995 x 1,218 mm
  Ramp dimensions 550 x 1,218 mm
  Pump dimensions 600 x 240 x 380 mm
  Air pressure 0.75-0.85 Mpa
  Air inlet fitting 1/4 inch NPT
  Net weight 174 kg

CE REGULATIONS

This product meets the essential safety and health requirements stipulated by European directives, ensuring safe and reliable operation under CE certification.

APPLICATIONS

• Workshops specialized in quads, ATVs, UTVs, and recreational vehicles.

• Maintenance of gardening machinery such as lawn tractors.

• Ideal for three-wheeled motorcycles and large bikes with side cases.

• The "all-in-one" platform for workshops that work with a wide variety of vehicles.
