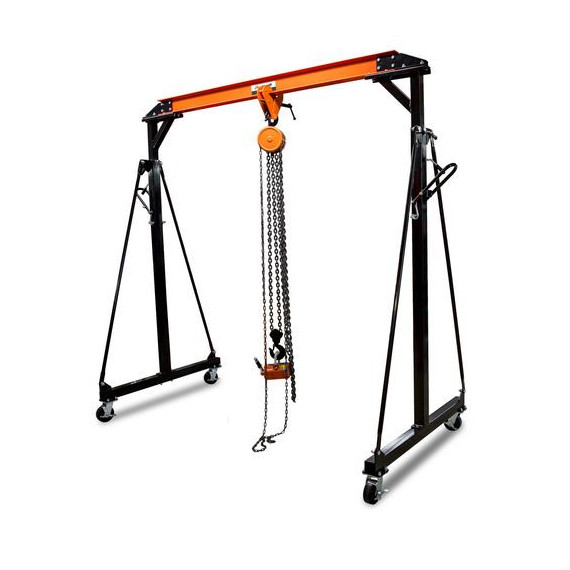

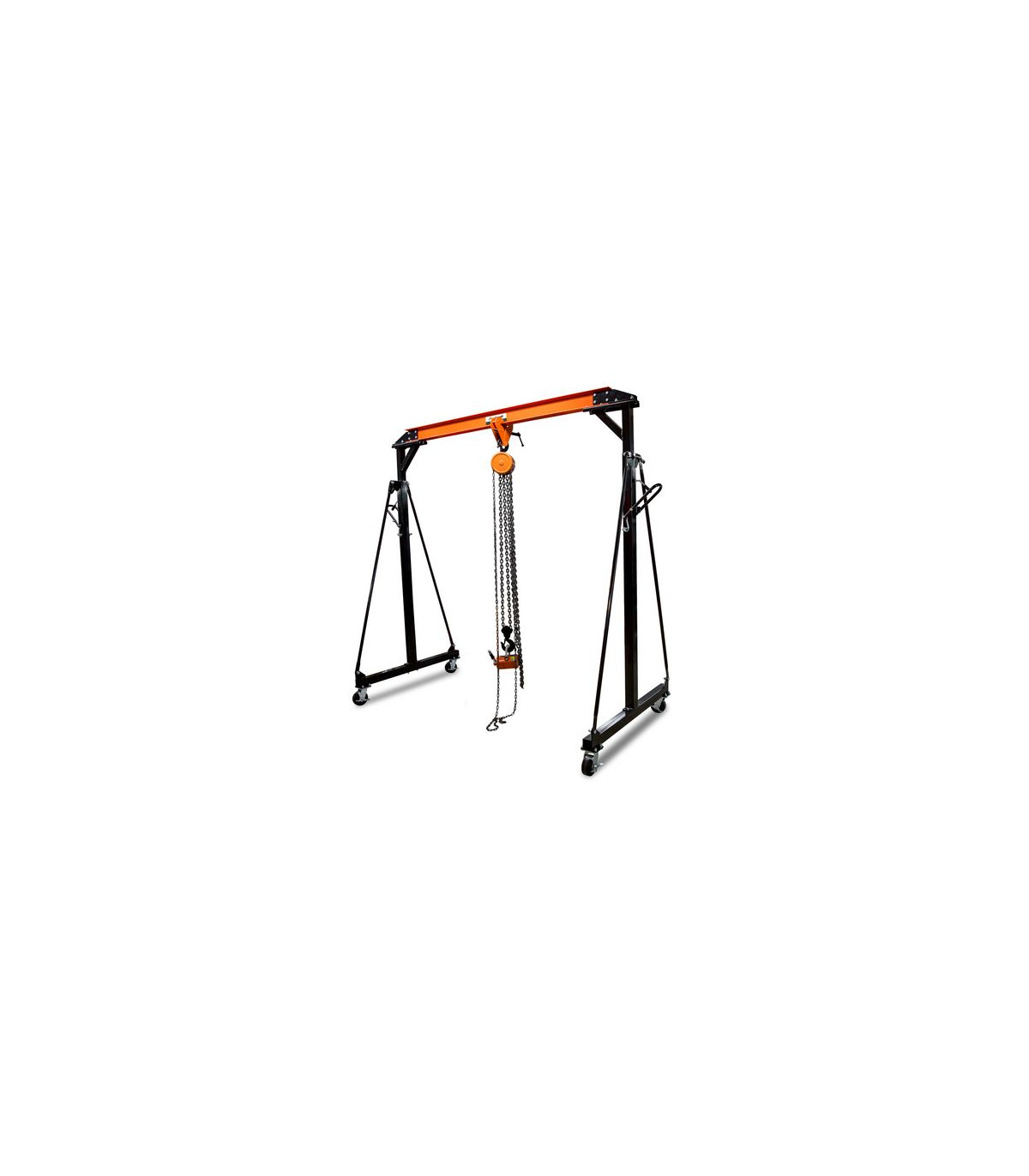

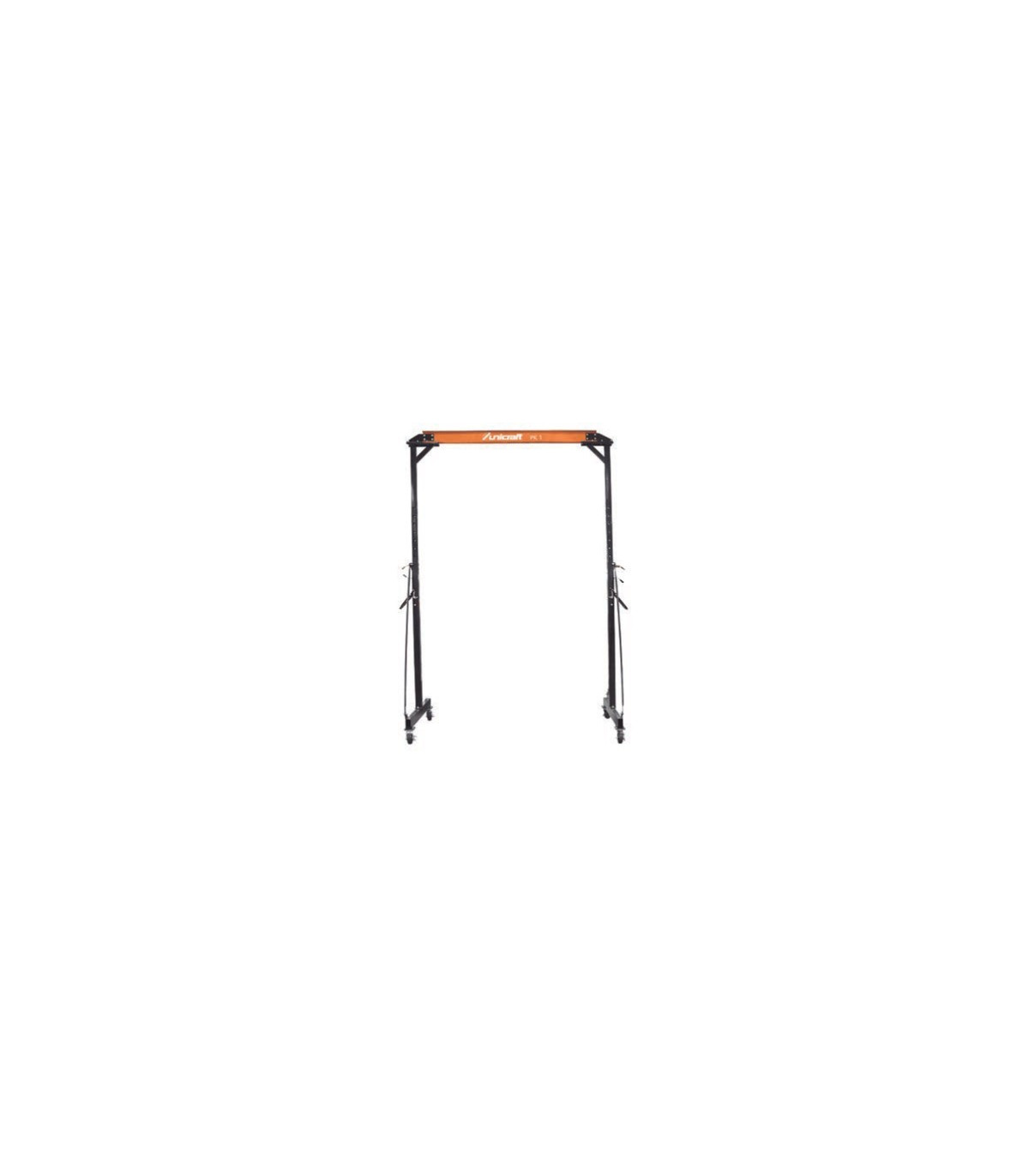

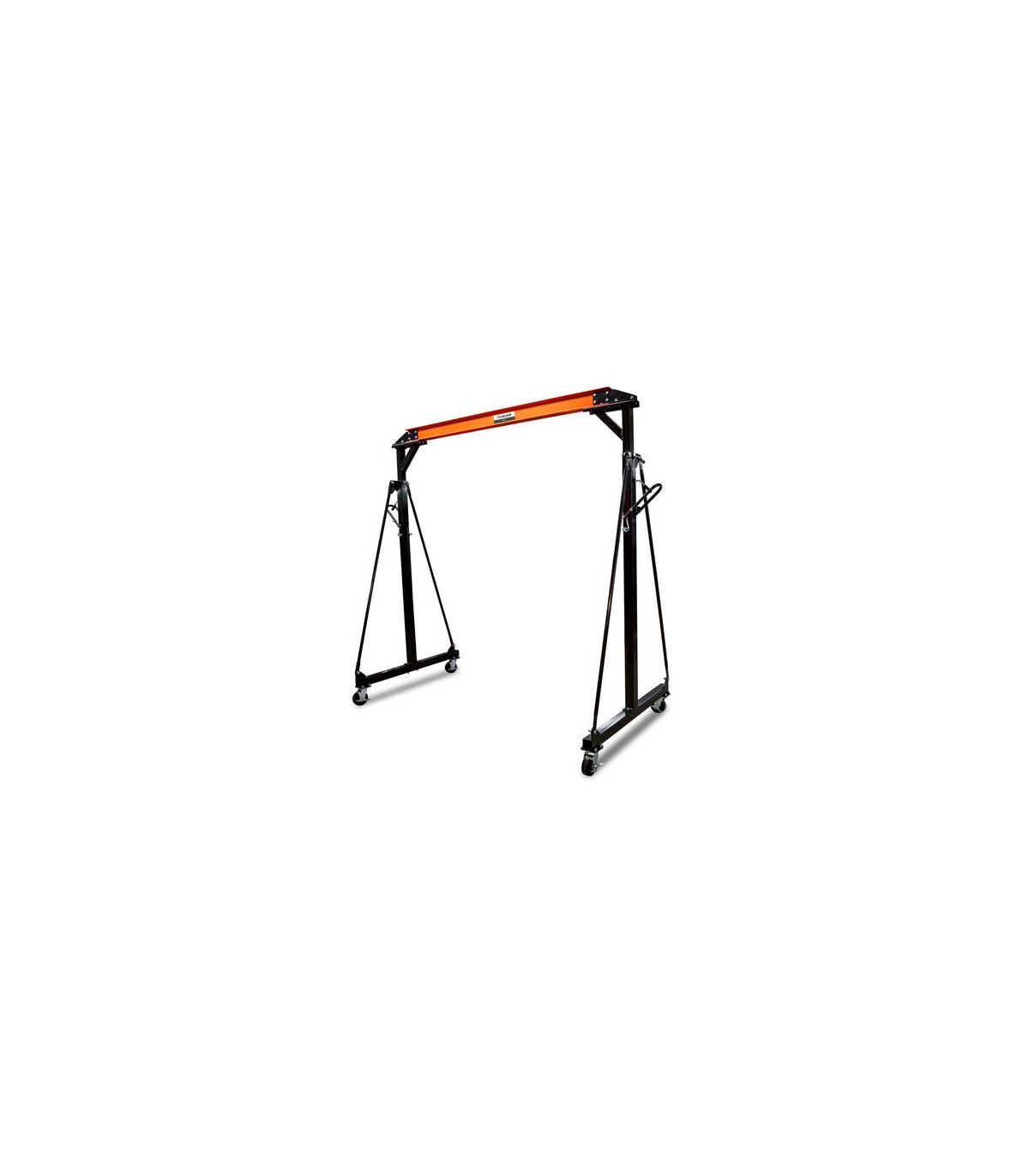

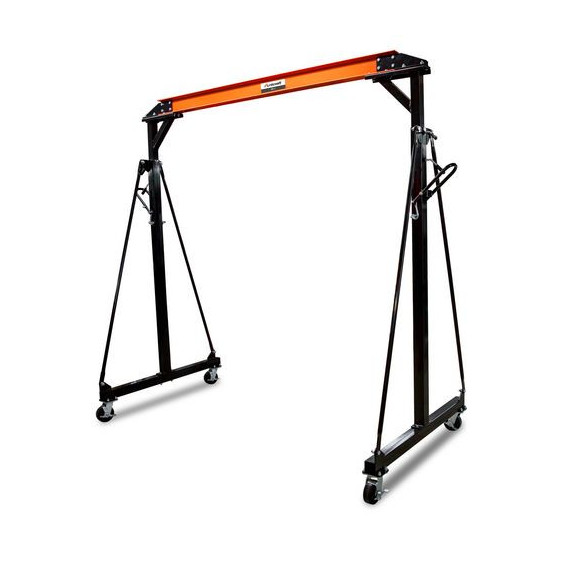

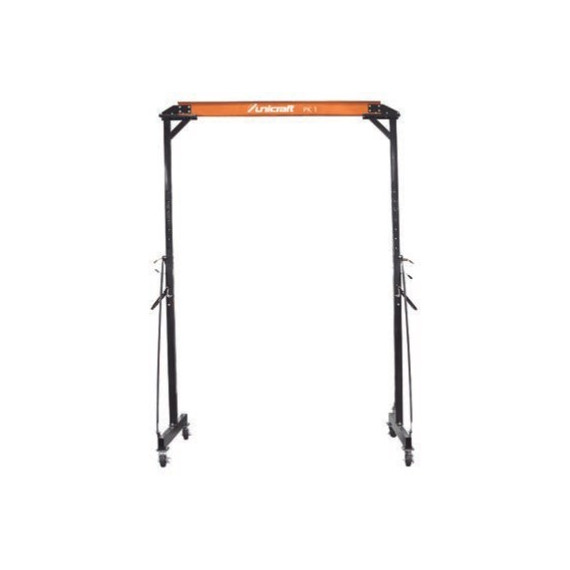

Mobile bridge with support for hoist / mobile gantry 1 T UNICRAFT (hoist not included)

Mobile bridge with support for hoist / mobile gantry 1 T UNICRAFT. Suitable for loading/unloading, assembly, repairs, or storage on flat and smooth floors.

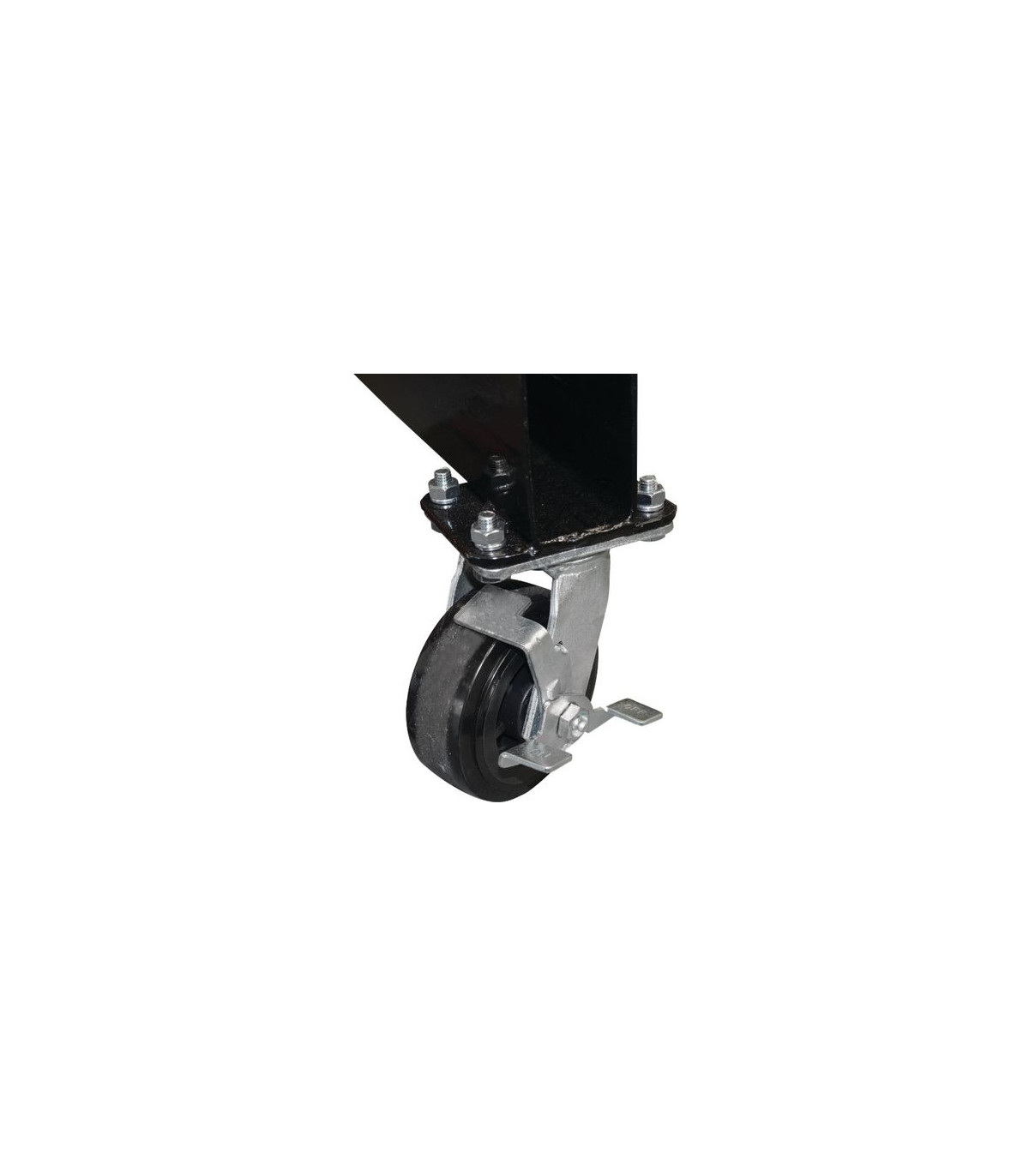

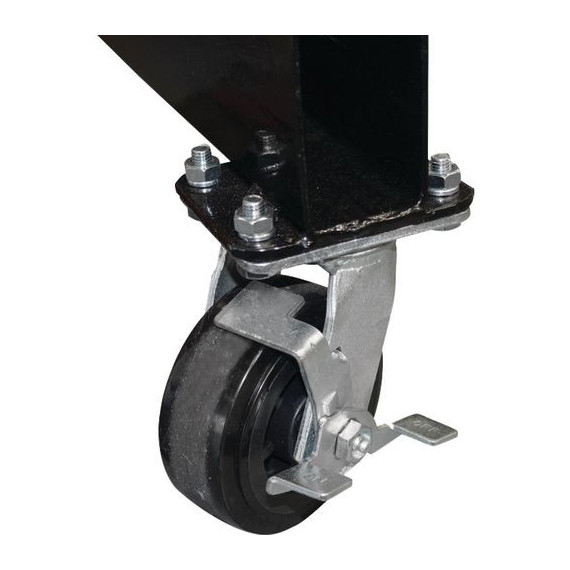

Easy to move thanks to four wheels with brakes.

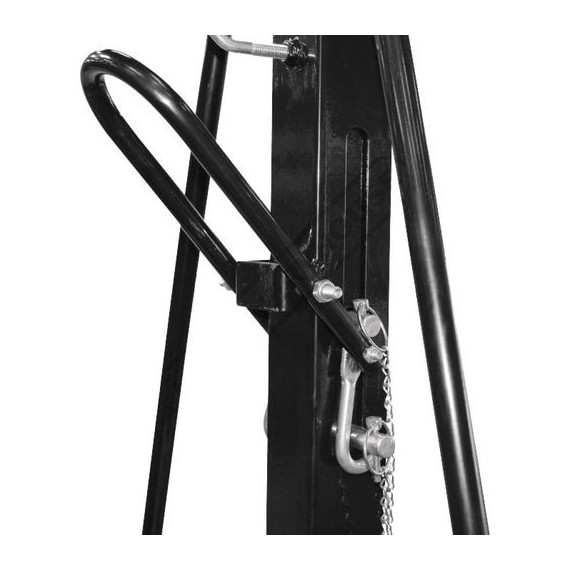

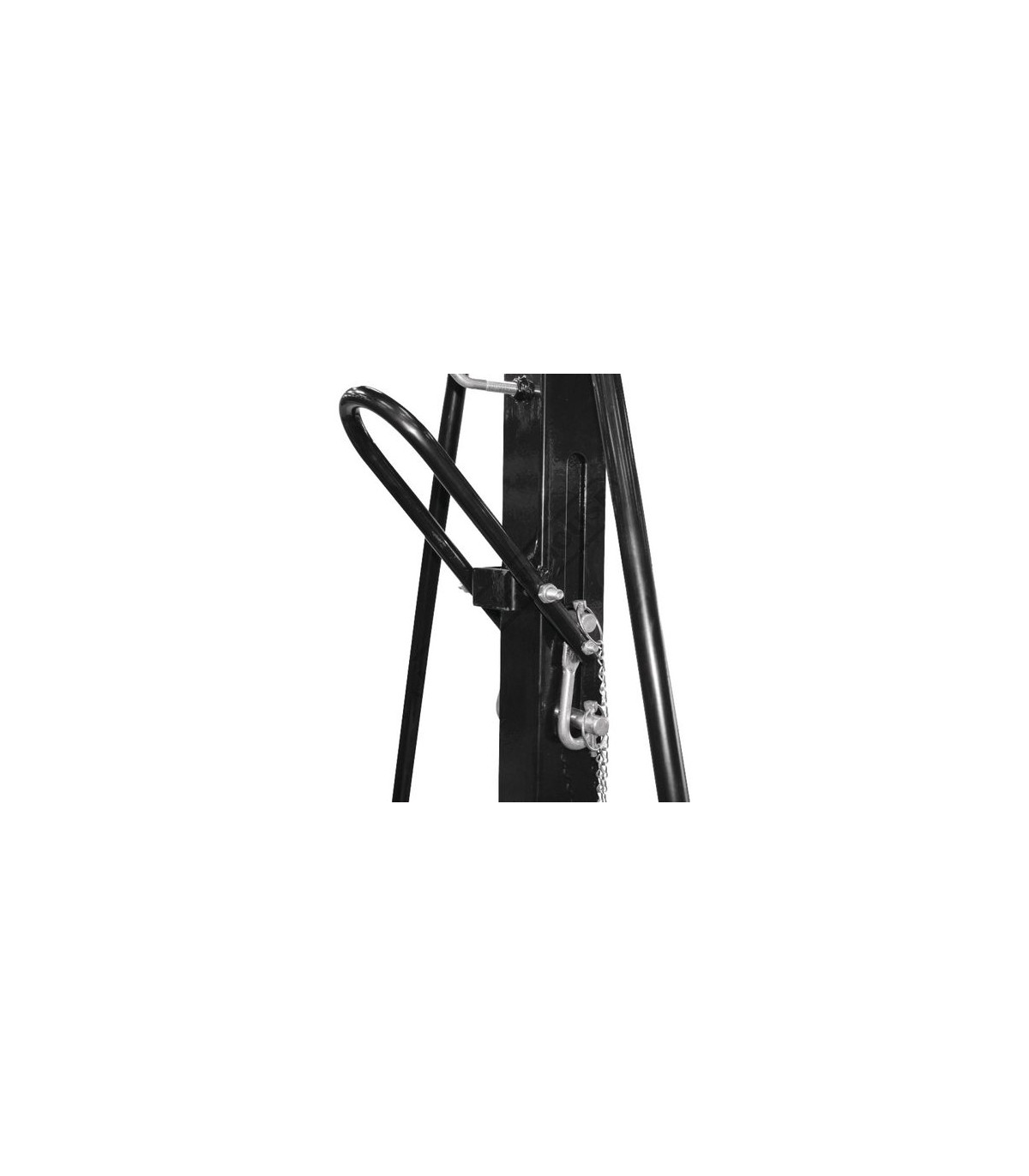

Simple height adjustment thanks to two clamping levers and two safety bolts.

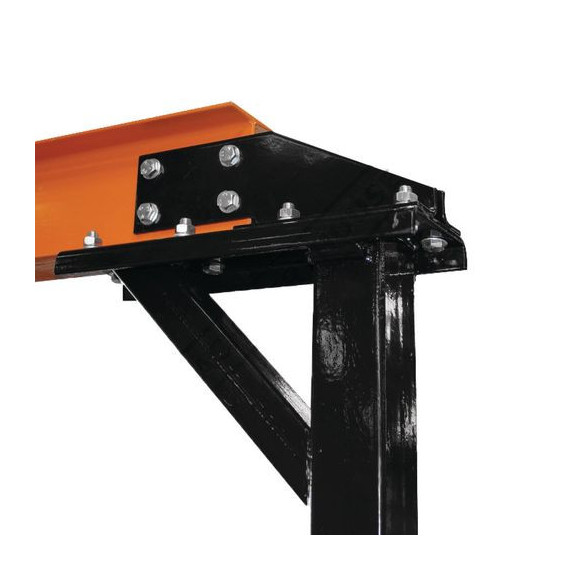

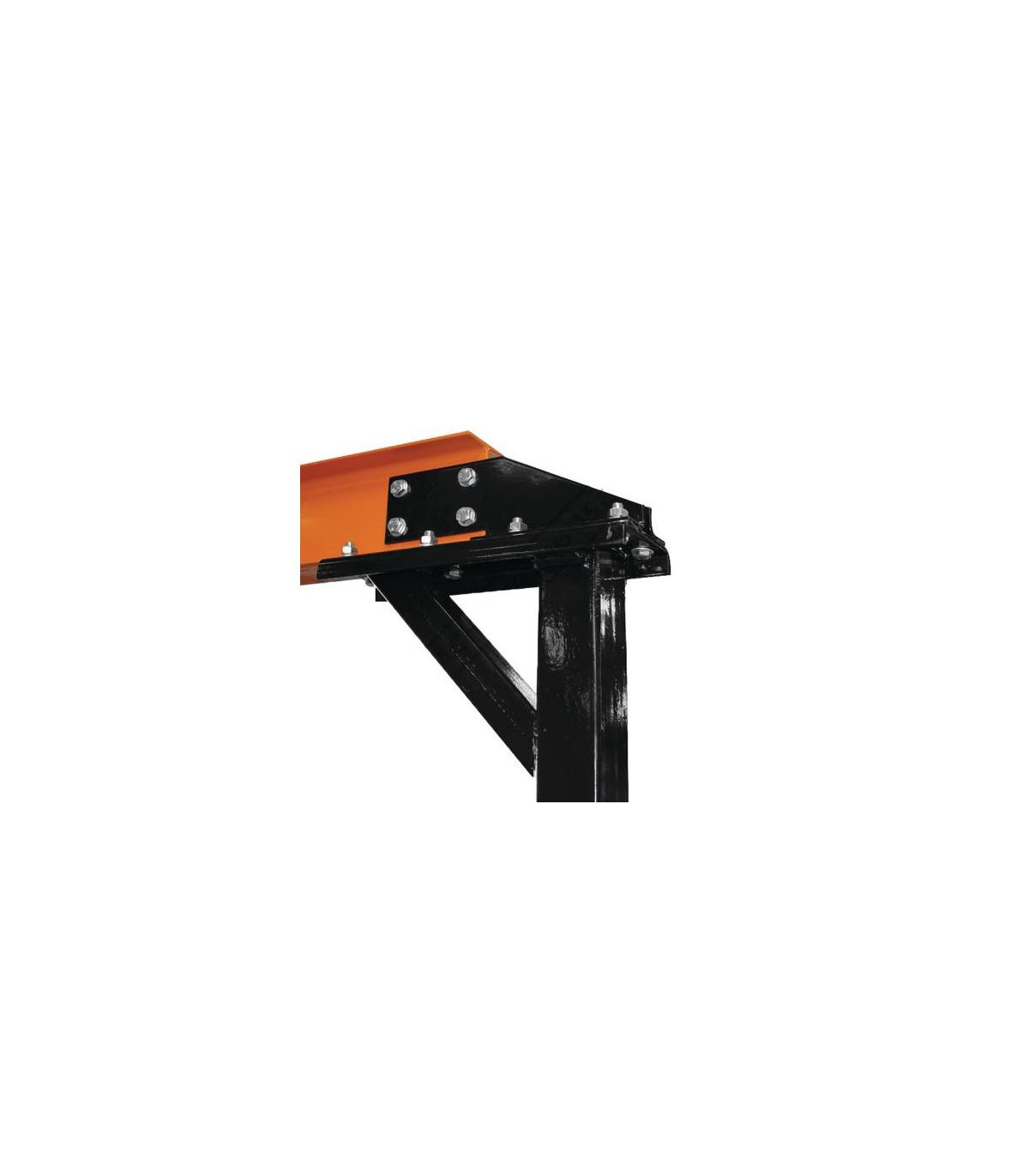

Robust and rigid design of the structure.
Very stable thanks to the two cross braces.

TECHNICAL DATA

Load capacity 1 t

Min. lifting height 2200 mm

Max. lifting height 3600 mm

Clear width 2400 mm

Dimensions of the supports 74 x 120 mm

VPE 1

Dimensions and weights

Approx. length 2500 mm

Approx. width/depth 1200 mm

Approx. height 2520 mm

Approx. weight 128 kg

FOR WHAT TYPE OF WORK IS IT SUITABLE

Mechanical workshops: To lift small and medium vehicles during maintenance, repair, and tire changing tasks.

Tire retreading: Used to lift vehicles in order to perform work on wheels and suspensions.

Transport: In fleets of commercial vehicles for minor repairs on the road.

Industrial maintenance: To lift machinery and equipment for inspections, repairs, and adjustments.

Production: In production lines to position parts and components at working height.

Civil works: To lift moderate loads in smaller construction projects.

Building maintenance: To carry out repair and maintenance work at height.

Agricultural workshops: To lift medium-sized agricultural machinery.

Warehouses: To move and position loads on shelves or elevated platforms.

DIN 7355

The DIN 7355 standard is a technical standard established by the German Institute for Standardization (Deutsches Institut für Normung) that specifies the design, manufacturing, and testing requirements for a wide range of lifting screws. These screws, also known as eye bolts or lifting hooks, are used in various industrial applications to lift loads safely and efficiently.
