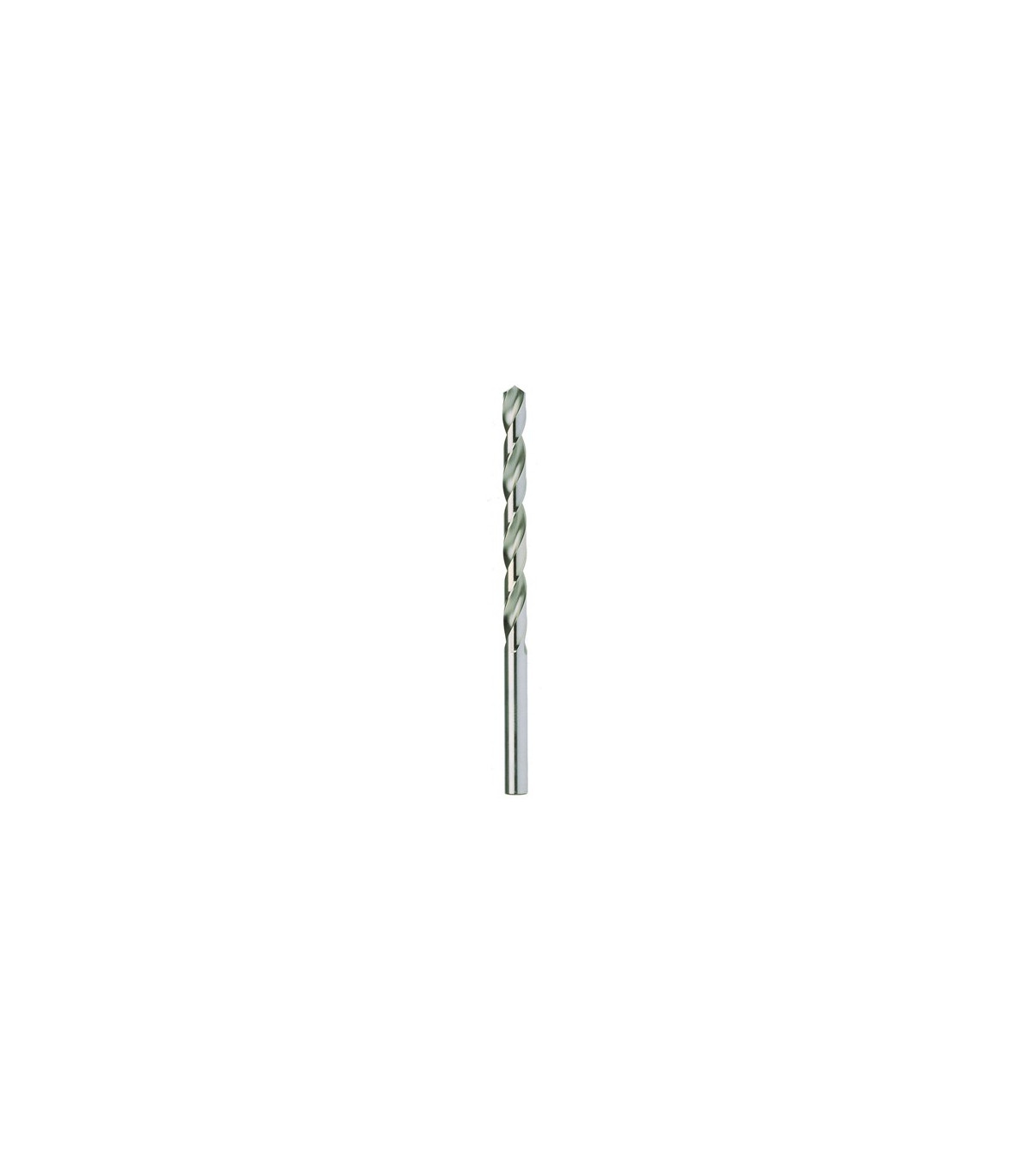

Ground drill for welding DIN 338 METALWORKS

HSS M2 DIN 338 metal drill bit. Completely polished execution. White finish. Cutting angle of 130°. Excellent drill for professionals. The cutting angle of 118° ensures a perfect cut. Ideal for drilling steel and stainless steel.

Manufactured with precision and complying with the DIN 338 standard, it is made of high-speed steel (HSS-G) which guarantees high performance and outstanding durability in drilling applications. Its cutting angle is 130°. It is perfect for drilling steel and stainless steel, has a long service life, and superior performance. The DIN 338 ground drill bit Ø 2.00 mm stands out for its completely polished execution and white finish, which not only provides an elegant appearance but also contributes to lower friction during the drilling process, improving its efficiency and accuracy.

To achieve the best results when using this drill bit, it is recommended to use cutting oil during drilling operations. Cutting oil helps reduce heat generation, resulting in a cleaner cut and greater protection for the workpiece.

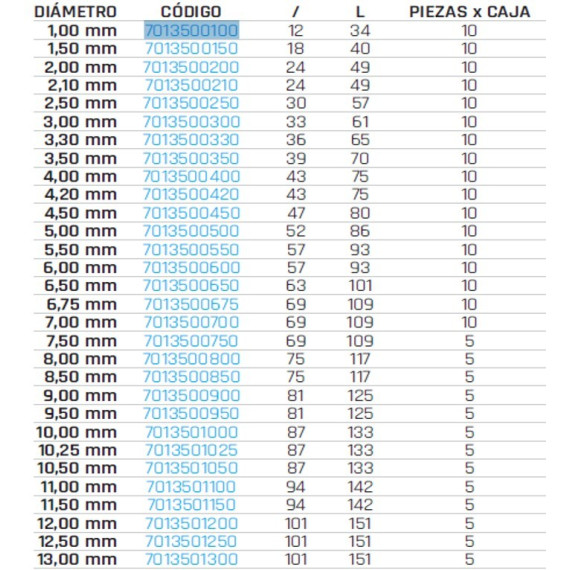

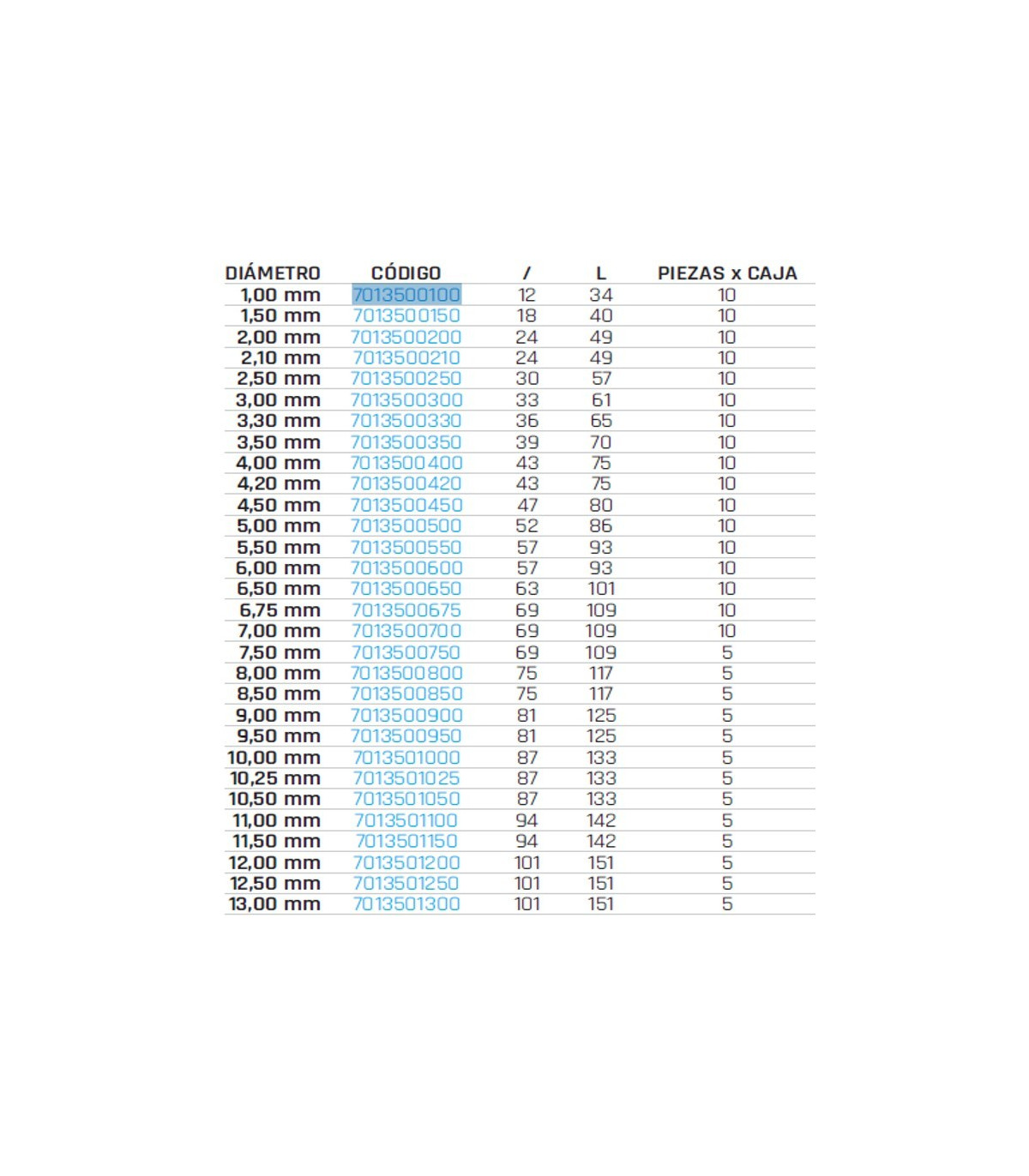

Quantity: Ø 1.00 to 7.00 mm 10 pieces per box
                   Ø 7.5 to 13.00 mm 5 pieces per box

FEATURES

HV 750 ÷ 820

SPLIT POINT

DIN 1412C

(Ø ≥ 3 mm)

R ≤ 700 N/mm²

Diameter: 2.00 mm

/: 24

L: 49

Pieces per box: 10

Note: Prices are unit prices. Supplied in boxes to the distributor, please check units.
