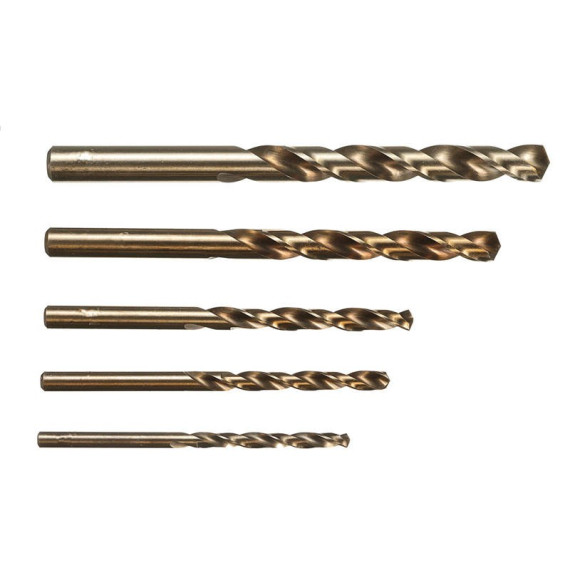

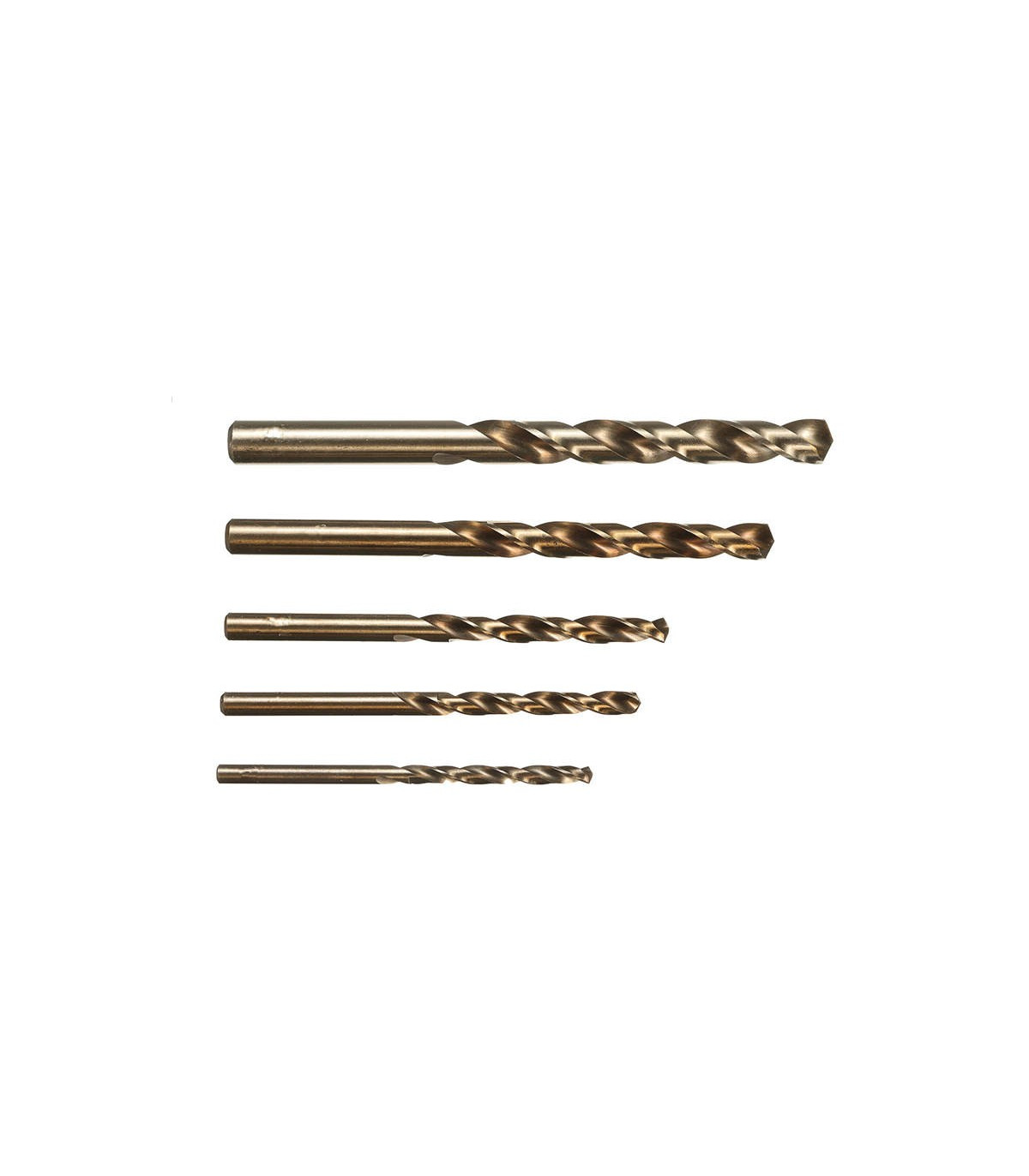

HSS-CO5% Cobalt Drill Bits DIN 388 METALWORKS

Cobalt HSS-CO5% DIN 388 METALWORKS drill bits. It is a high-quality drill for drilling stainless steels and all hard steels. High heat resistance, clean cutting, and easy to use.

Manufactured with precision and complying with the DIN 338 standard, it is made of high-speed steel (HSS-CO 5%) that guarantees high performance and outstanding durability in drilling applications. Its cutting angle is 130°. It is perfect for drilling metals, steel, and stainless steel, has a long service life, and superior performance.

Due to its wear resistance, it is recommended to use the DIN 338 Cobalt Drill Ø 1.00 mm when drilling hard metals to achieve precise results efficiently. Thanks to its high-performance design, it offers a firm grip and precise centering, protecting the workpiece and the power tool. It is recommended to use cutting oil during drilling operations. Cutting oil helps reduce heat generation, resulting in a cleaner cut and greater protection for the workpiece.

Quantity: Ø 1.00 to 7.00 mm 10 pieces per box
                   Ø 7.5 to 13.00 mm 5 pieces per box

FEATURES

HV 860 ÷ 860

AISI M35

SPLIT POINT

DIN 1412C

(Ø ≥ 3 mm)

R ≤ 1200 N/mm²

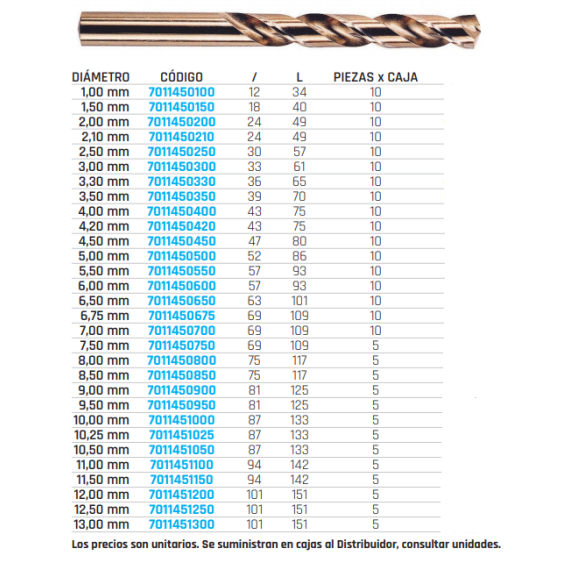

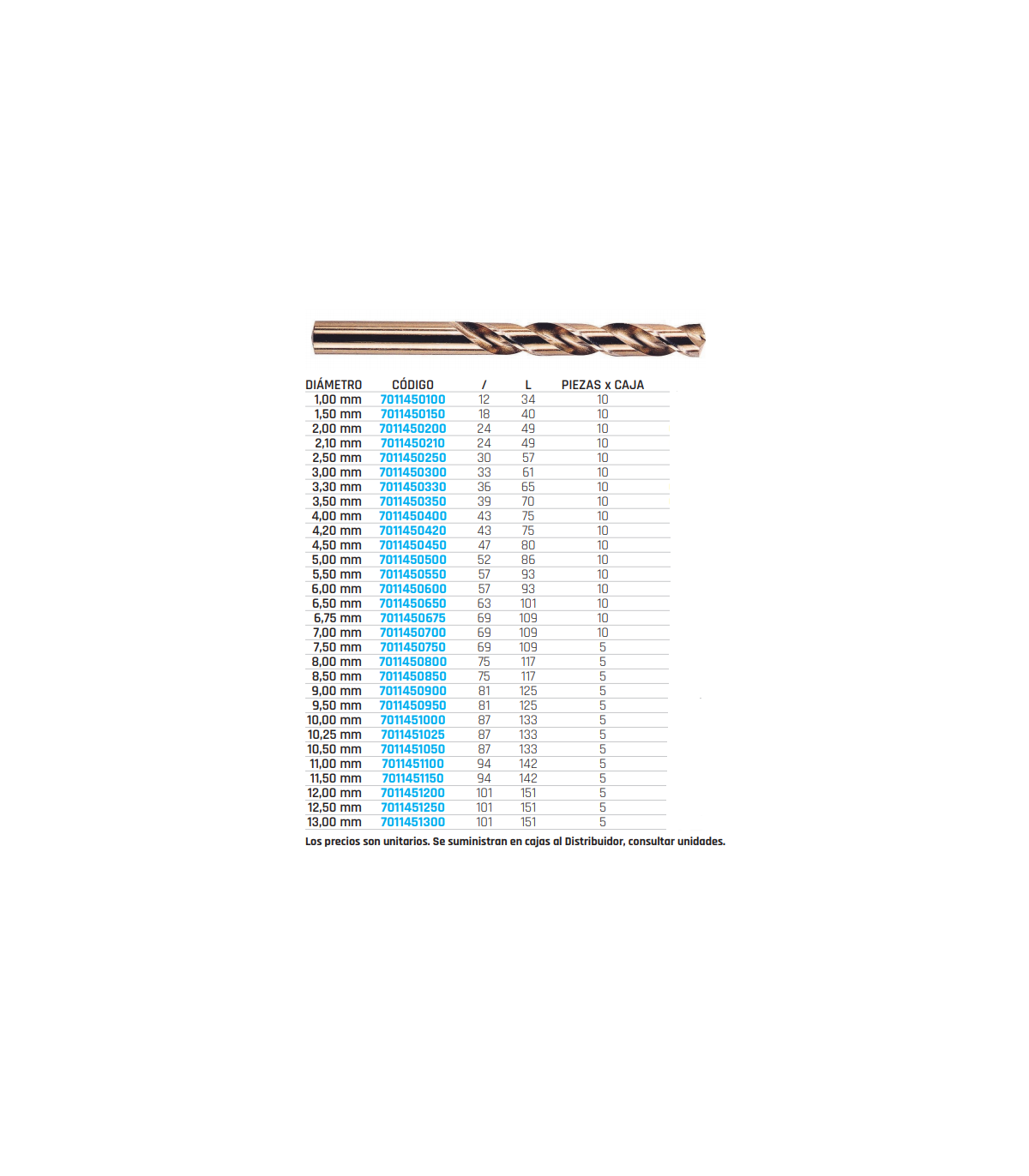

Diameter: 1.00 mm

/: 12

L: 34

Pieces per box: 10

APPLICATIONS

For drilling metals with greater precision.
