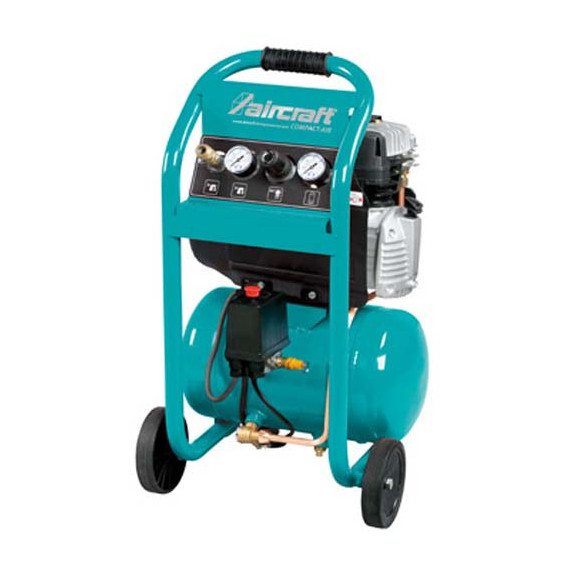

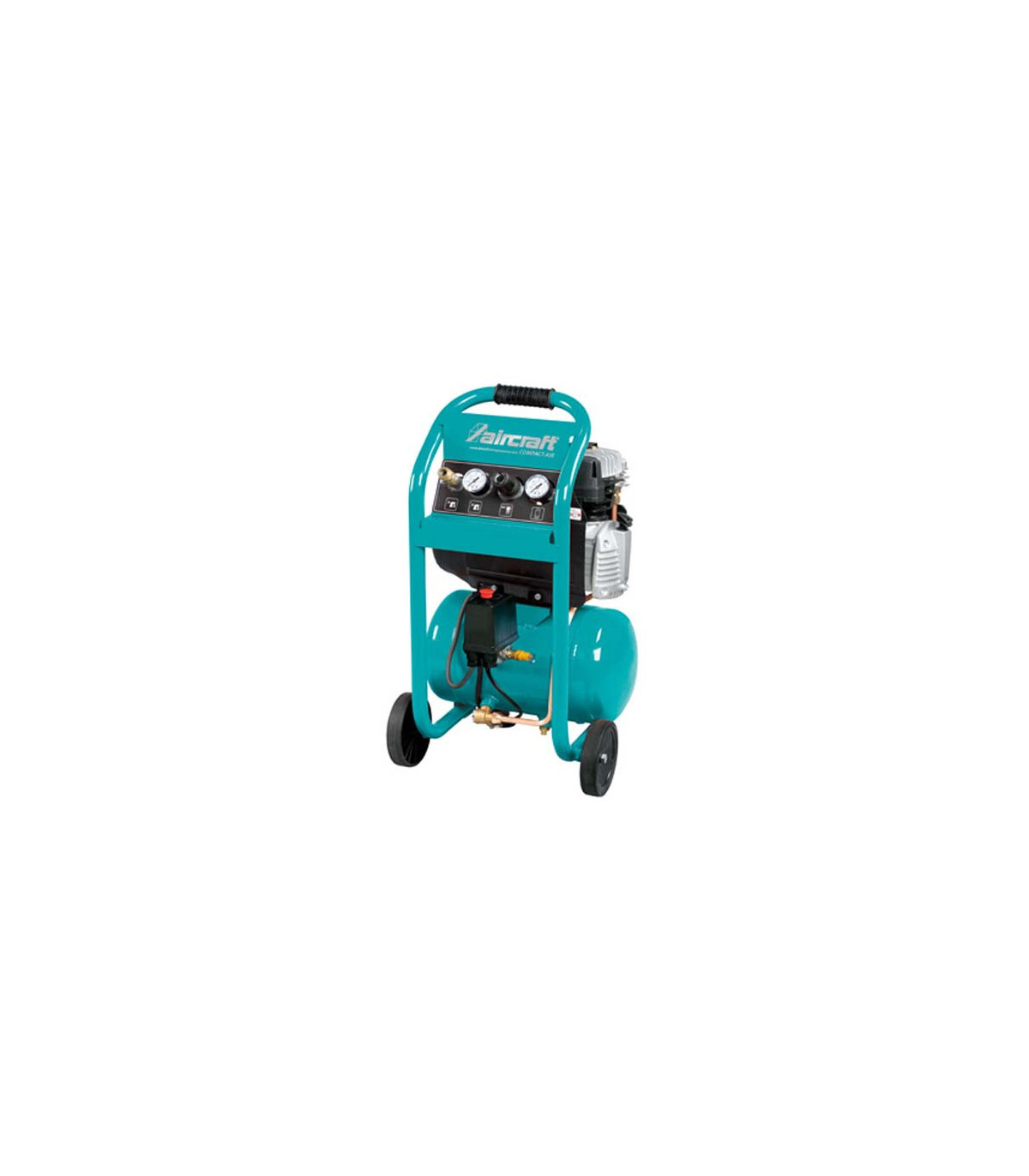

COMPACT AIR 265-10 E AIRCRAFT Compressor

The COMPACT AIR 265-10 E AIRCRAFT compressor is equipped with an advanced HOS compression system that provides exceptional performance. With an impressive air intake capacity of 250 liters per minute, this model features a compressed air tank and a maximum pressure of 10 bars, making it an ideal tool for various applications.

Its pressure vessel has a capacity of 10 liters, offering the efficiency and power needed to perform tasks both at home and in professional projects, ensuring optimal results at all times.

FEATURES

• High-quality electric motors with high torque and motor start discharge, so there are no starting issues.
• Electric motor equipped with motor protection switch.
• Fully automatic on and off operation
• With all safety devices
• Good protection of all vulnerable parts during transport.
• Complete maintenance block inside
• Powder-coated compressed air tank
• Rubber transport handle to prevent slipping during transport.
• The additional transport handle allows for comfortable two-handed carrying of the compressor.

TECHNICAL SPECIFICATIONS

Compressed air tank

Maximum pressure 10 bars

Pressure vessel capacity 10 liters

Compressor

Compressor system Service hours

Approx. suction capacity 250 l/min

Approx. filling capacity 155 l/min

Explanation of filling capacity at 6 bar working pressure

Number of cylinders 1

Number of compressor stages 1

Dimensions and weights

Approx. length 420 millimeters

Approx. width/depth 350 millimeters

Approx. height 730 millimeters

Approx. weight. 24.1 kilograms

Electrical data

Output power 1.5 kW

Power supply voltage 230 V

Network frequency 50 Hz

Noise emission

A-weighted sound power level Lw 97 dB(A)

Explanation of sound power level Lw Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG)

A-weighted sound pressure level Lp 75 dB(A)

VPE 1

COMPONENTS/PACKAGING

Unit: pce(s).

Packaging unit: 1

Pressure reducer for continuous adjustment of the desired working pressure

Automatic pressure switch

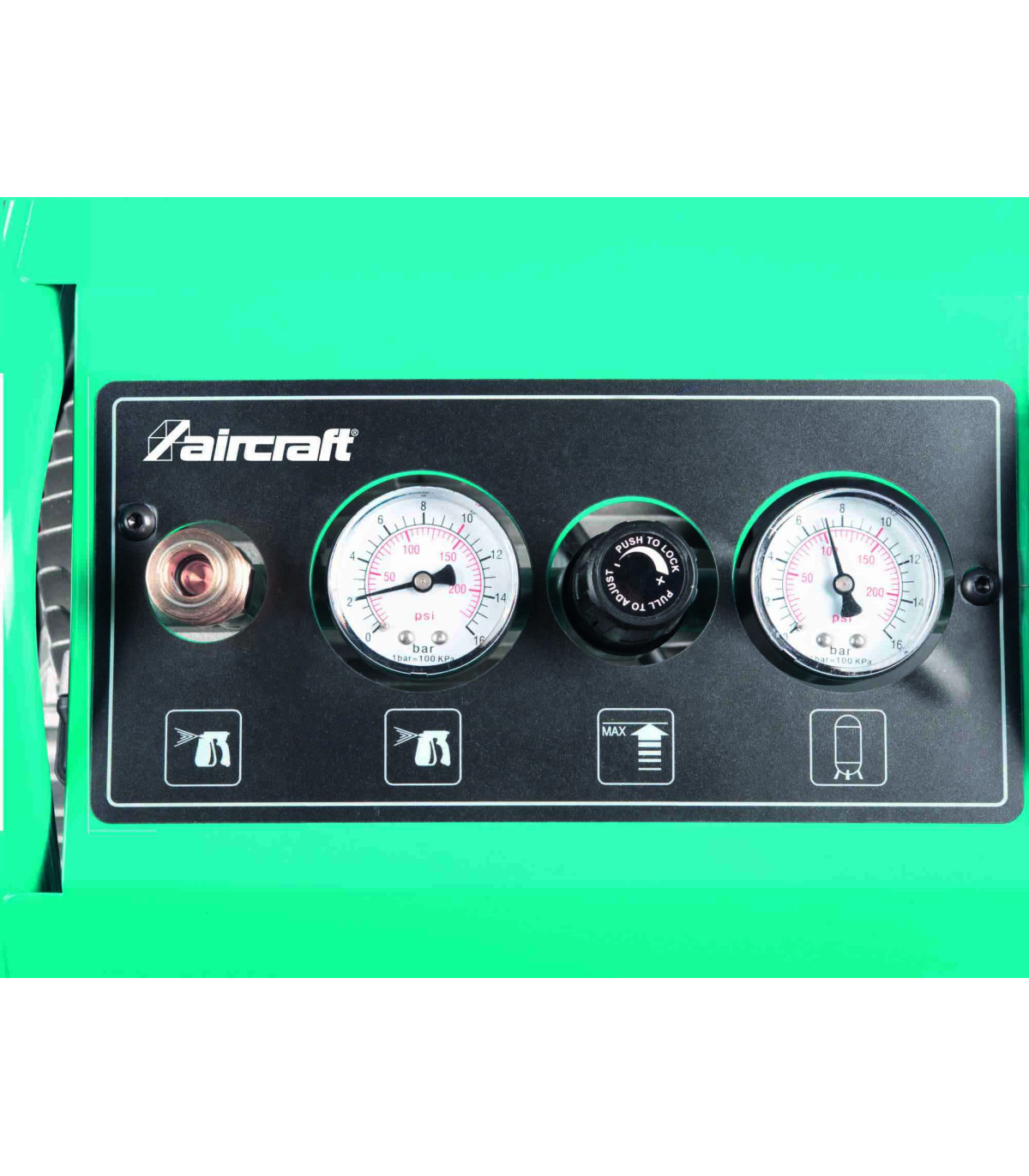

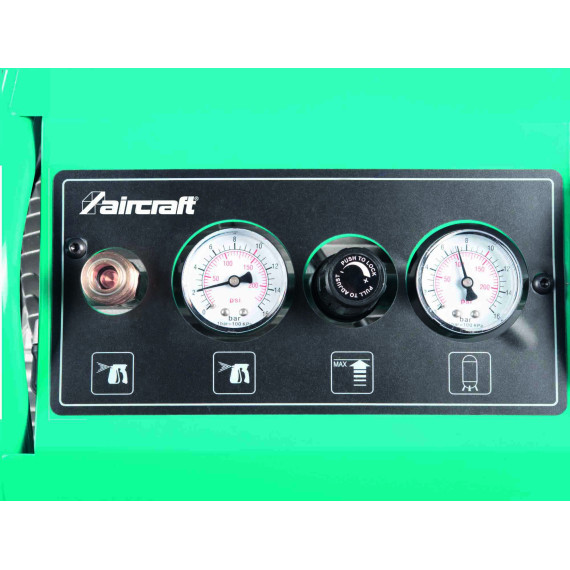

A pressure gauge to indicate tank pressure and working pressure.

Manual quick coupling

Aluminum air ducts

EQUIPMENT

Pressure regulation Pressure regulator

Automatic pressure switch ✔

Drive transmission Directly coupled

Material of compressed air line Copper

Compressed air outlet A quick coupling with one hand

Condensate drainage 3/8 "

Connection cable 1.85 meters

Connector 1/4 "

CERTIFICATION

Stürmer Group Quality Management System certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
