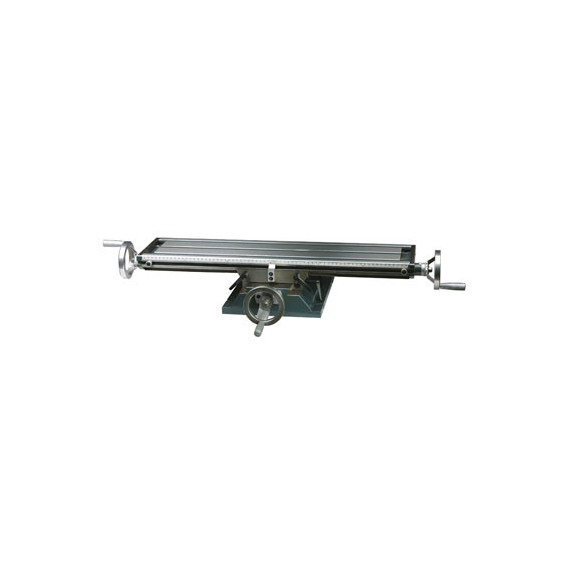

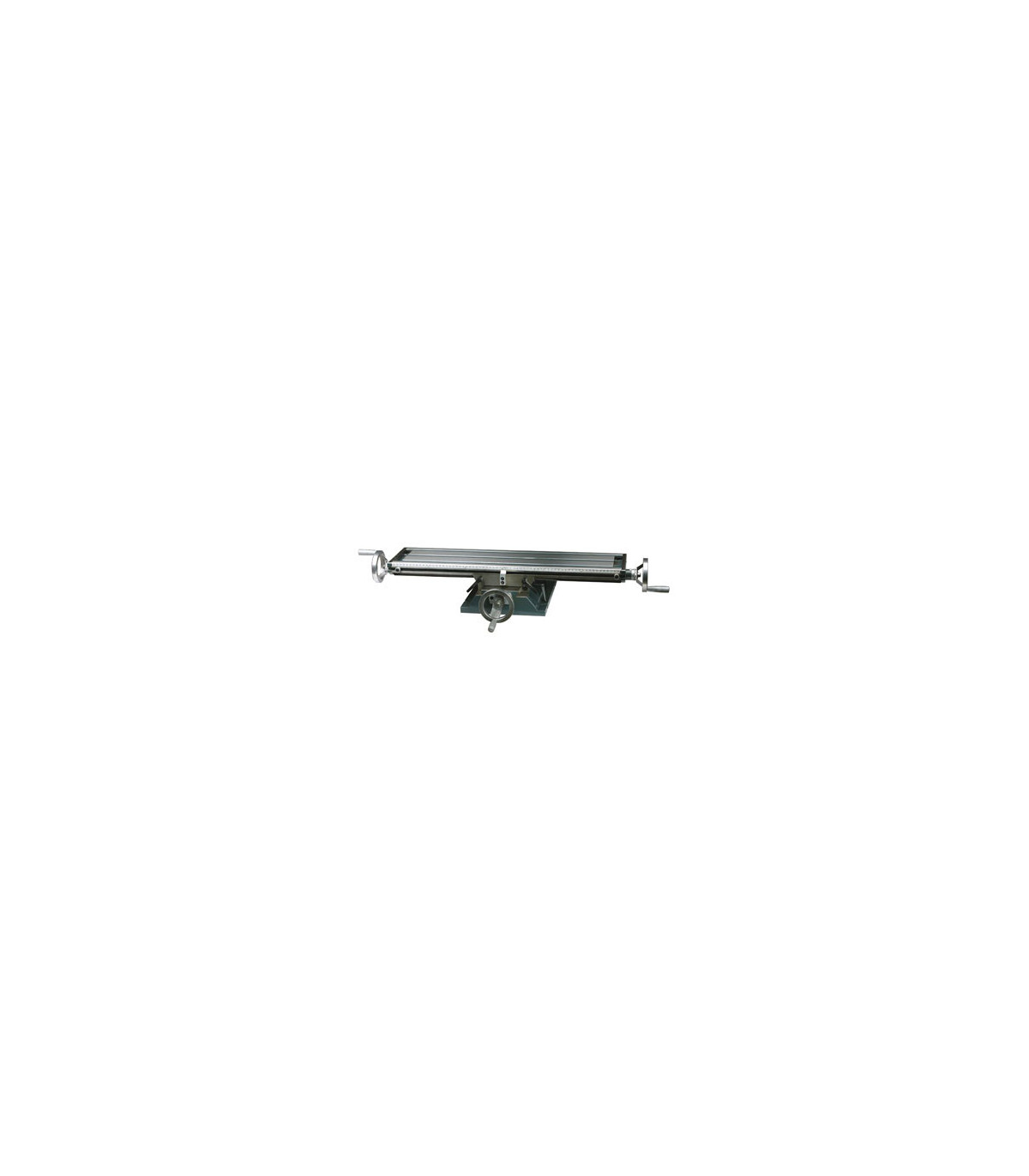

KT-210 Coordinate Table - Precision for Milling Machines and Drills | METALWORKS

KT-210 Coordinate Table - Precision for METALWORKS Milling Machines and Drills. The KT-210 coordinate table is a precision accessory for machining workshops. Ideal for column drills and milling machines, ensuring exact positioning.

Scale on the adjustable handwheel in 0.05 mm. Cooling grooves. Dove tail. Total length 1,065 mm Total width 555 mm Total height 200 mm T-slot size 14 mm Table length 730 mm Table width 210 mm Maximum load 80 kg Pedestal width 280 mm.

FEATURES

The KT-210 coordinate table is designed to provide bidirectional movement control (X and Y) with maximum precision. Its robust construction and fine feed screws allow for millimeter positioning of parts, which is essential for the quality of milling, drilling, and slotting work. It is an indispensable tool for improving efficiency and precision in any professional workshop.

SPECIFICATIONS

• Type: Coordinate table

• Material: Cast iron

• Movement: X and Y axes

• Dimensions: Total length 1,065 mm Total width 555 mm Total height 200 mm T-slot size 14 mm Table length 730 mm Table width 210 mm

• Clamping slots: T-slots for secure fastening

• Compatibility: Column drills and bench milling machines

• Pedestal length 362 mm
• X axis travel 480 mm
• Y axis travel 210 mm
• Net weight 84 kg.

APPLICATIONS

• Machining workshops: Creation of slots, precise drilling, and contours.

• Tooling and hardware manufacturing: For parts requiring high accuracy.

• Industrial machinery repair: Adjustment of components and drilling.

• Education and training: For learning milling techniques.

• Metallurgy: For series work and unique pieces.
