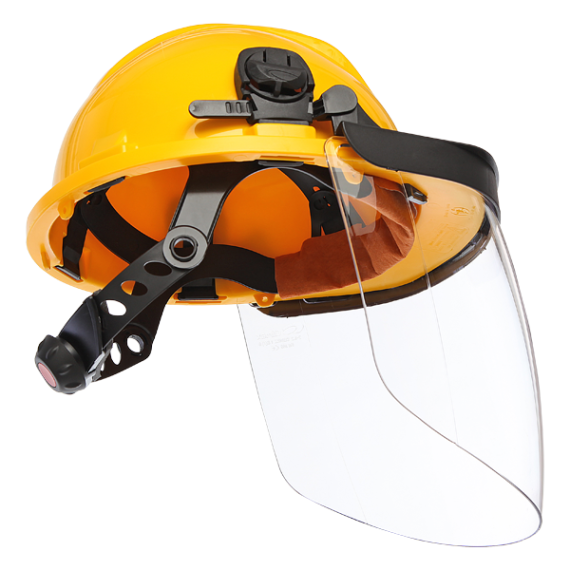

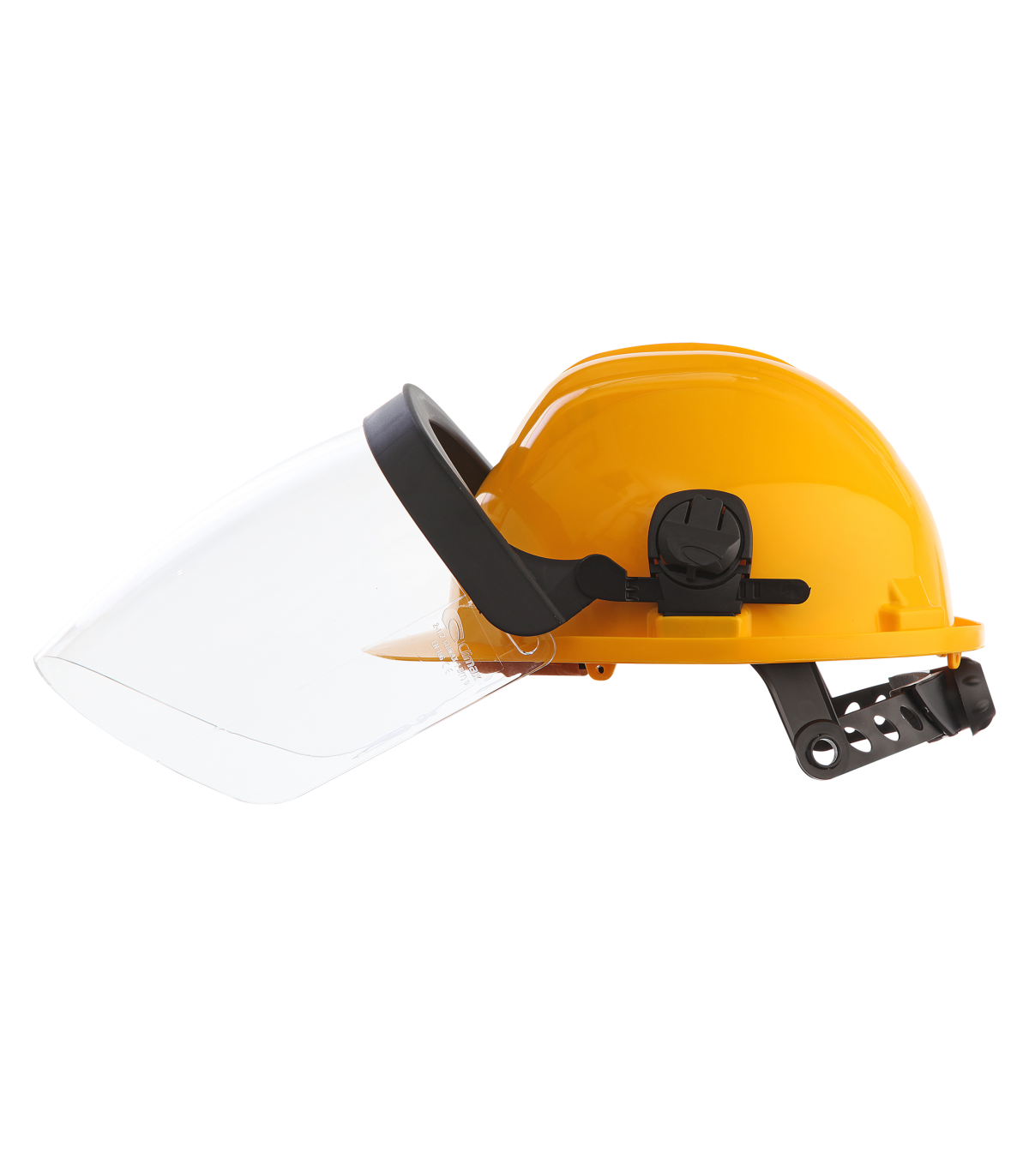

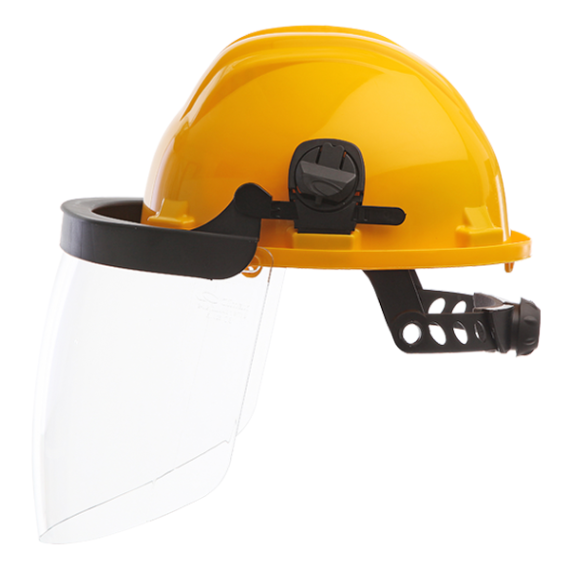

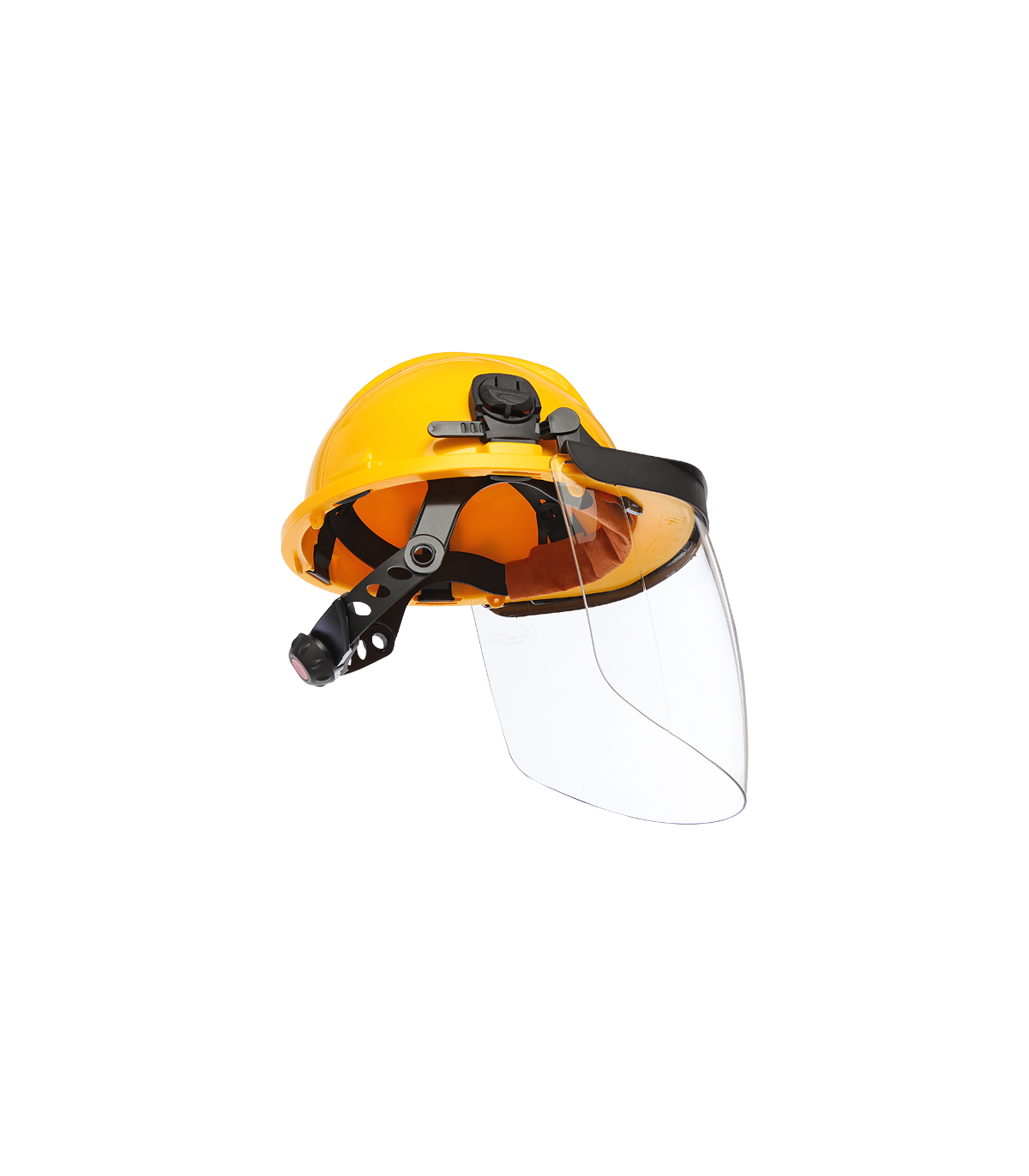

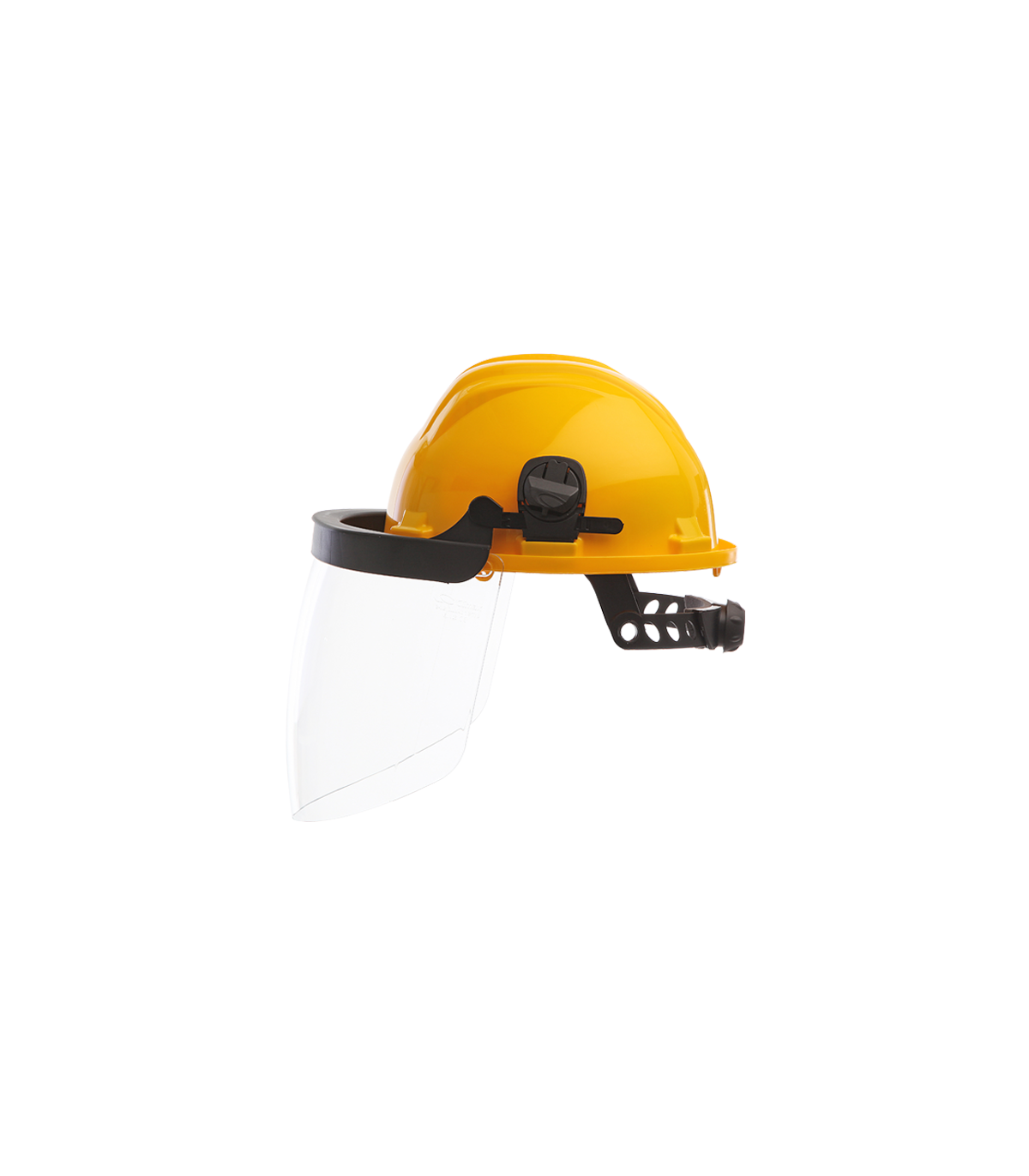

Face screen reference 436 DV CLIMAX

The 436-DV face screen is designed to provide effective protection against electric arcs, with a design that minimises limitation of the field of vision and adapts comfortably to different facial features. Its polycarbonate visor with anti-fog treatment and electrical insulation properties enables safe use. The assembly is completed with the 5-RG helmet in high-density polyethylene, electrically insulating and suitable for work on installations up to 1,000 V AC or 1,500 V DC, plus an adjustable chin strap with wheel adjustment and padding for greater comfort.

CHARACTERISTICS

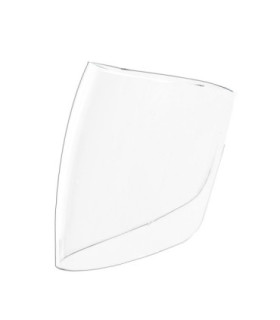

• Transparent visor with protection against impacts, electric arc and molten metal splashes. Anti-fog treatment.
• 5-RG helmet manufactured in high-density polyethylene, with 6 attachment points.
• Interior chin strap with anti-sweat band and adjustment via ergonomic wheel.
• Electrically insulating, approved for low-voltage installations.
• Extended side vision angle, compatible with different facial features.

TECHNICAL DATA

• Weight: 730 G
• Manufacture: españa
• Optical class: 1
• Electrical certification of helmet: Class 0 (up to 1000 V AC / 1500 V DC)
• Material: Injection-moulded polycarbonate
• Visor dimensions: 200 x 390 mm
• Visor colour: Colourless or amber
• Electric arc class: Class 1

REGULATIONS

Regulation (EU): 2016/425

Standards: EN 166:2001 EN 170:2002 EN 397:2012, EN 50365, GS-ET-29:2019-06 rev.1

Notified body: 0161
