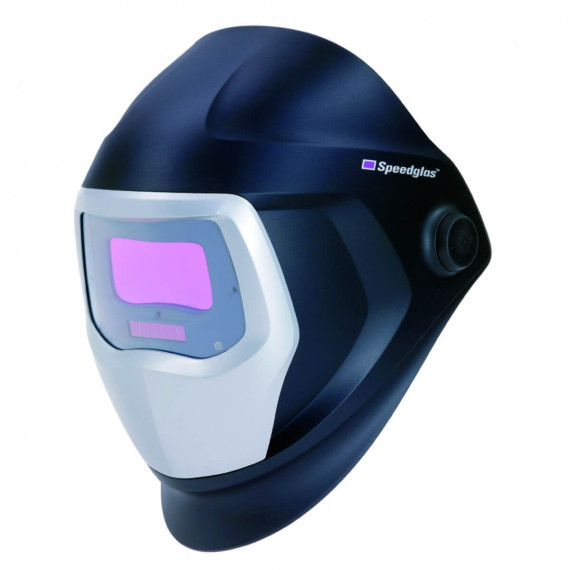

Screen 9100 from 3m. 5.8/9-13 with side windows 3M SPEEDGLAS

3M 9100 screen. 5.8/9-13 with side windows 3M SPEEDGLAS. Viewing area: 45 x 93 mm. Light shade 3 and seven dark shades: 5, 8, 9-13. Shades can be locked. Side windows that significantly increase the welder's field of vision.

The 3M™ Speedglas™ 9100 series welding screens protect workers from radiation, heat, and sparks while providing a precise view of their work.

Get an auto-darkening welding screen with optional side windows and seven variable dark shades (5, 8, and 9 to 13) for most types of arc welding, with the 3M™ Speedglas™ 9100 series welding screen. The 3M™ Speedglas™ 9100 series welding filter continues our tradition of excellent optical quality, with a uniform shade and minimal distortion across the viewing area. With optional side screen windows (shade 5 filters) that expand your field of vision. Cover filters included. A delay function allows you to set the transition time from dark to light, and it is possible to fix any shade, for example, light shade 3, when grinding. It has a transition time (from light to dark) of 0.1 ms, and the arc detection sensitivity can be adjusted for unbeatable transition reliability. The comfortable spot welding mode also helps minimize eye strain during prolonged spot welding tasks. The Speedglas 9100 headband is very comfortable with a smooth dial for precise adjustment. The screen is compatible with most safety glasses or 3M™ disposable or reusable welding particle masks.

FEATURES

Available auto-darkening lenses in seven variable dark shades (5, 8, and 9 to 13) for most types of arc welding

Available in multiple models with various viewing area sizes

Available with or without side windows

Compatible with many 3M™ protective glasses or 3M™ disposable or reusable welding particle masks

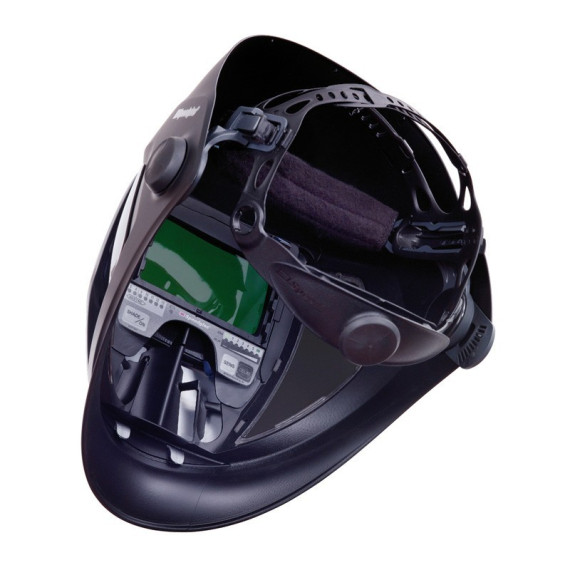

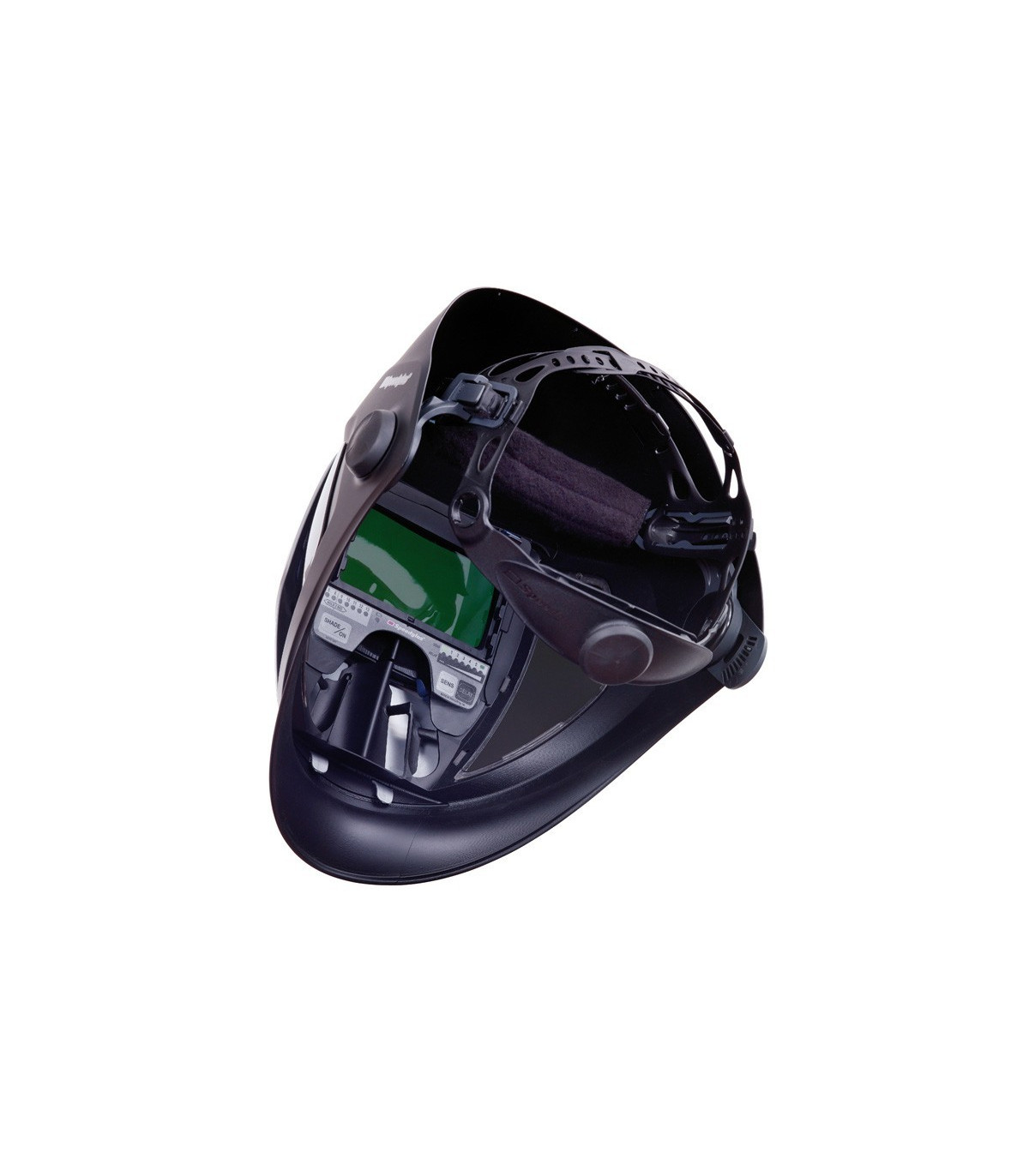

Ergonomic head suspension design

Compatible with the 3M™ Speedglas™ 9100 series welding filter

TECHNICAL DATA

Alternative Welding Filters 3M™ Speedglas™

50 00 01 Passive filter kit 9100 (90x110 mm), shade 11.

50 00 05 Auto-darkening filter 9100V (45x93 mm), variable shade 5, 8, 9–13.

50 00 15 Auto-darkening filter 9100X (54x107 mm), variable shade 5, 8, 9–13.

50 00 25 Auto-darkening filter 9100XX (73x107 mm), variable shade 5, 8, 9–13.

50 00 26 Auto-darkening filter 9100XXi (73x107 mm), variable shade 5, 8, 9–13.

Please confirm with Sekureco.eu approximate delivery date.

APPLICATIONS

Grinding

Welding

Metal processing
