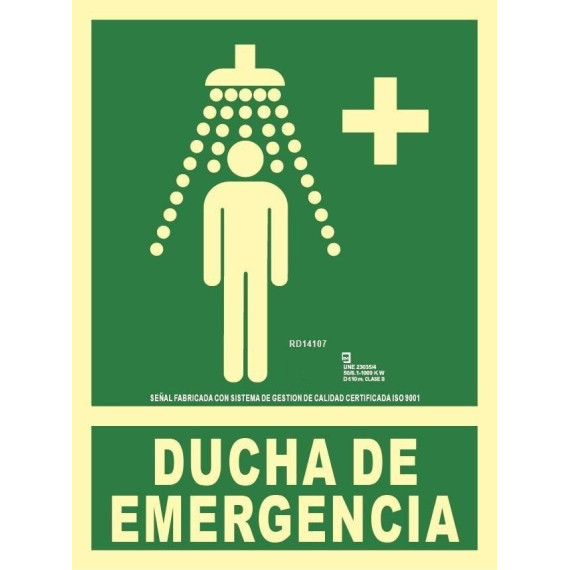

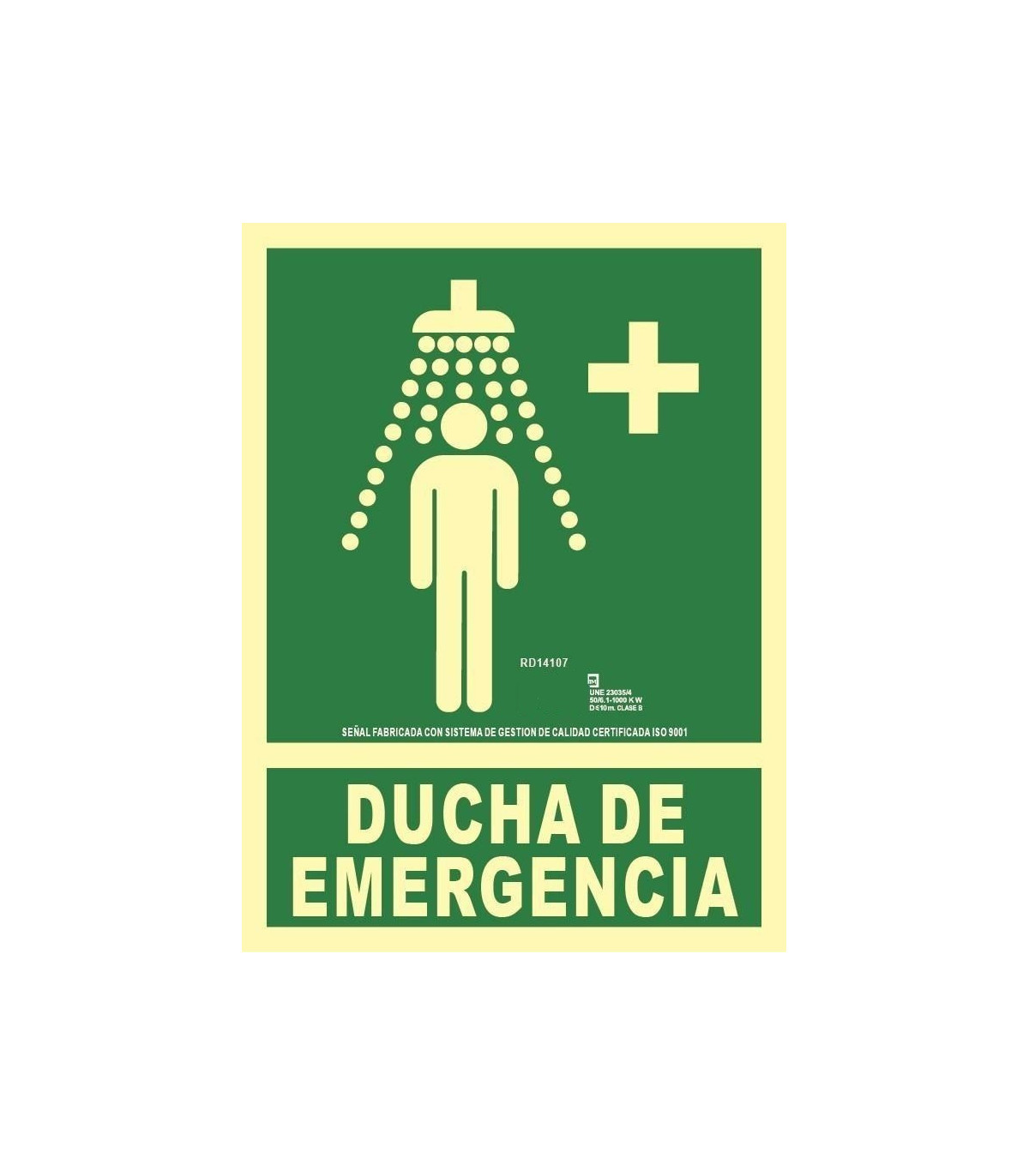

Emergency Shower Signal in aluminum Class A 210 x 300 mm SEKURECO

Emergency Shower Signal in aluminum Class A 224X300 SEKURECO. It is a resistant emergency and evacuation sign that is easy to install. The sign is made with a photoluminescent pigment layer, (after absorbing light, the product emits it in the dark, so it does not need any electrical source and can be charged an indefinite number of times).

The sign is used to identify the locations of emergency showers. Suitable for industries.

FEATURES

• White PVC 1mm
• White lacquered aluminum 0.6mm thick
• Stability with Ta < 55°
• Negligible water absorption (0.04, - 0.01)%
• No significant lead or phosphorus content (less than 0.01%)
• Non-toxic

BENEFITS

• High adhesion and resistance ink

TECHNICAL DATA

• UNE23033/1:2019 (Extinction)
• UNE23033/2:2019 (Installations)
• UNE 23034/1998 (Evacuation)
• UNE 23035-1/2003
• UNE 23035-4/2003
• UNE 53127/2002
• UNE EN ISO 7010: 2012
• RD314//2006 (CTE)
• RIPCI2017 (Extinction)

FOR WHAT TYPE OF WORK IS IT APPROPRIATE

They must be installed in areas directly affected by sunlight or within the influence zone of luminaires. A sign installed in a poorly lit area will not perform well.

BENEFITS

• High adhesion and resistance ink

TECHNICAL DATA

• UNE23033/1:2019 (Extinction)
• UNE23033/2:2019 (Installations)
• UNE 23034/1998 (Evacuation)
• UNE 23035-1/2003
• UNE 23035-4/2003
• UNE 53127/2002
• UNE EN ISO 7010: 2012
• RD314//2006 (CTE)
• RIPCI2017 (Extinction)

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Manufacturer's name or brand
• Manufacturing date
• Denomination (class A or class B as appropriate)

According to RIPCI 513:

• Manufacturer's name or brand

MINIMUM LUMINESCENCE VALUES AFTER SALT CHAMBER

CLASS A:

CLASS B:

FEATURES

PVC SUPPORT MATERIALS

According to UNE 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B
• White lacquered aluminum 0.6mm thick.
• Stability with Tª < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• No significant lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to standards:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Made from pigments.
• Unlimited luminescent charging and discharging cycles

COLOR

Shades according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adhesion and resistance ink.
• Allows great flexibility in the final product.
• Non-flammable. Non-toxic

FINAL THICKNESS

Class A

• PVC 1.2 m/m (±10%).
• ALUMINUM 0.8 m/m (±10%).

Class B

• PVC 0.8 m/m (±10%).
• ALUMINUM 0.7 m/m (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to UNE 23033/1

COLOR PERCENTAGES

• According to UNE 23033-1

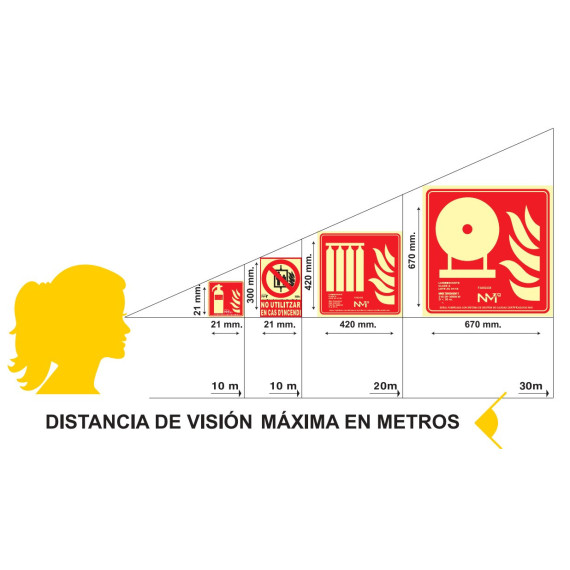

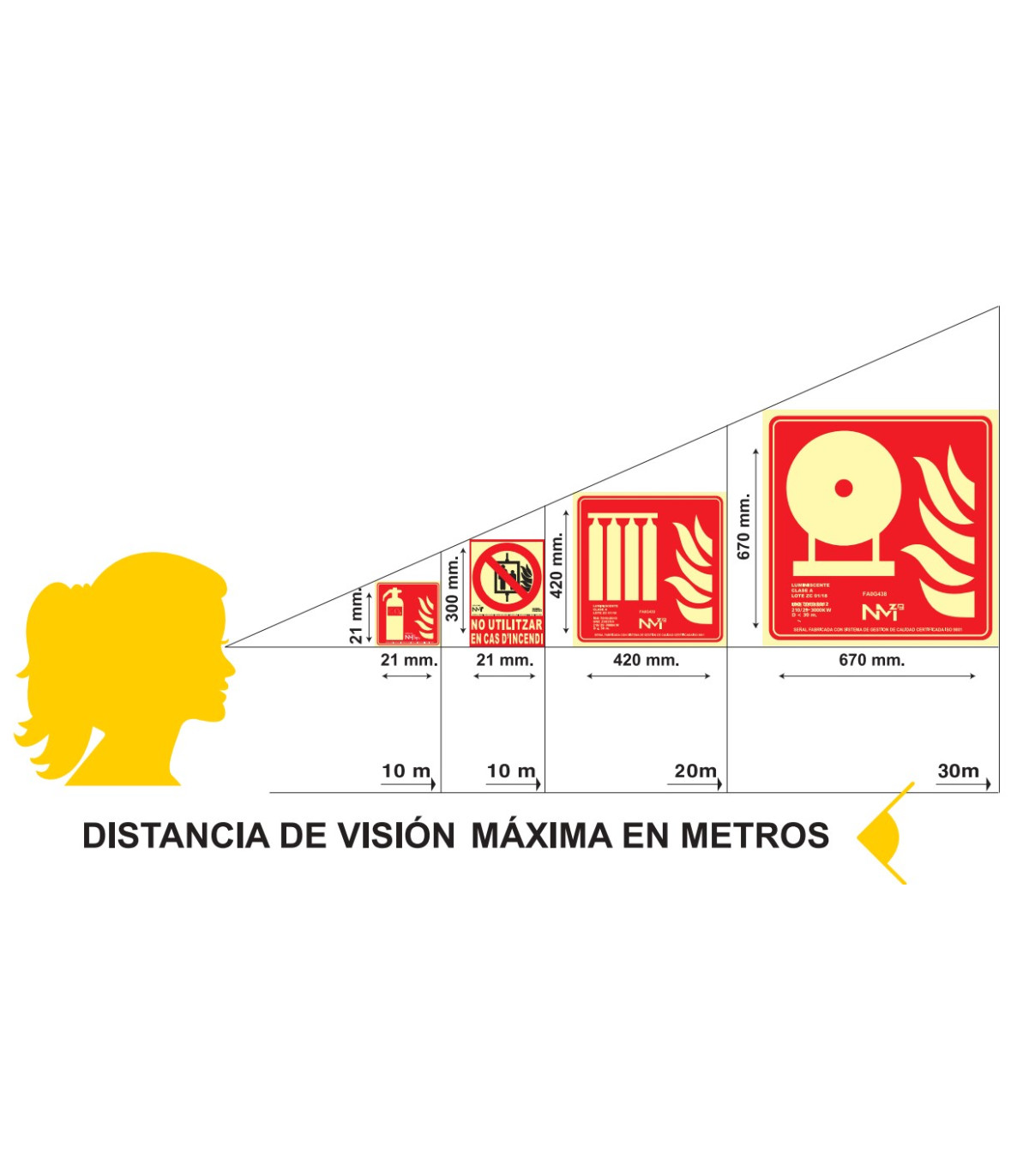

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

To calculate the necessary dimensions of a sign, the following formula will be applied, up to a maximum distance of 50 m:

S≥ L2 /2000

“S” represents the surface area of the sign in square meters, and “L” is the distance in meters from which the sign can be perceived.

MEASURES

Aluminum Class A

• FA14907..............224X300

REGULATIONS

- UNE 23033/1:2019 (Extinction)

- UNE 23033/2:2019 (Installations)

- UNE 23034/1998 (Evacuation)

- UNE 23035-1/2003

- UNE 23035-4/2003

- UNE 53127/2002

- UNE EN ISO 7010 : 2012

- RD 314/2006 (CTE)

- RIPCI 2017 (Extinction)

STORAGE, CLEANING, AND CONSERVATION

The working temperature should not exceed 45º C. Higher temperatures may deform the support material.

The optimal storage temperature should be between 15º C and 25º C; with a humidity of 10/50%.

Cleaning methods; avoid using abrasive products. It is recommended to clean them with water and neutral detergents.
