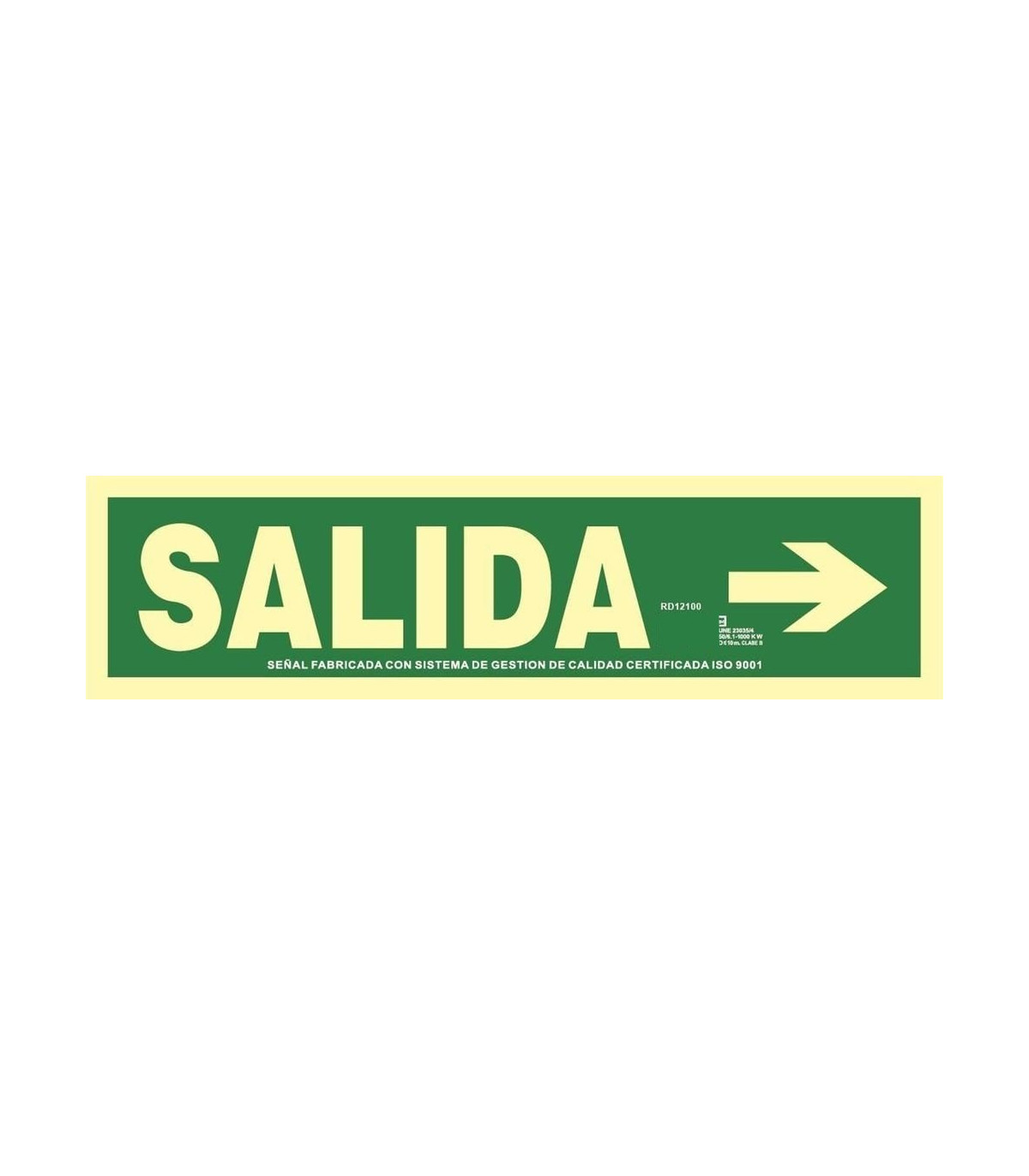

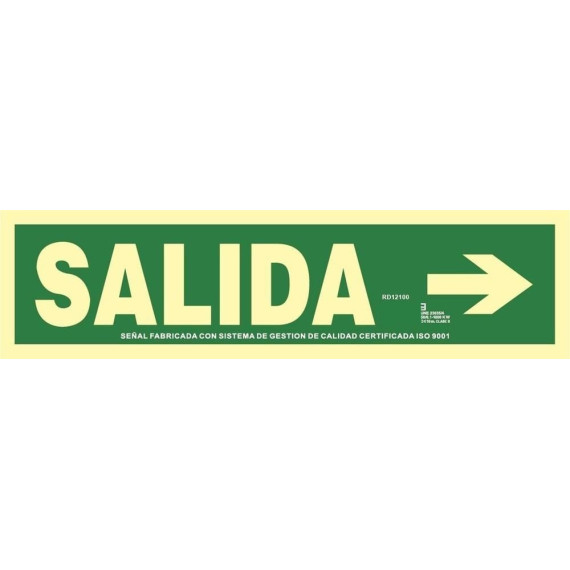

Evacuation sign Exit with right arrow in Aluminum Class A 105 x 402 mm SEKURECO

Evacuation signal Exit with right arrow in Aluminum Class A SEKURECO. It is a durable emergency and evacuation sign that is easy to install. The sign is made with a photoluminescent pigment layer, (after absorbing light, the product emits it in the dark, so it does not require any electrical source and can be charged an indefinite number of times).

The sign is used to indicate doors, walls, and areas designated for emergency exits in buildings and enclosed spaces in the direction of the arrow. Suitable for industries.

An evacuation sign with the word "EXIT" serves to indicate the location of emergency exits in a building. These signs are essential for guiding people towards the exits in case of an emergency situation, such as a fire, earthquake, or other dangerous situations.

The evacuation sign with the word "EXIT" is generally designed with large, clear letters and is often placed in strategic locations, such as near exit doors or in hallways and corridors. This allows people to quickly identify the direction they should go to safely exit the building.

Additionally, these signs may also include arrows or directional indicators to indicate the exact route to the nearest exit. This helps people make quick and efficient decisions during an evacuation, especially in situations of panic or confusion.

In summary, evacuation signs with the word "EXIT" are fundamental for the safety of individuals in case of an emergency. They provide a clear and visible guide to the location of exits and help people evacuate quickly and safely from the building.

FEATURES

• 1mm White PVC
• 0.6mm thick white lacquered aluminum
• Stability with Ta < 55°
• Negligible water absorption (0.04, - 0.01)%
• No significant lead or phosphorus content (less than 0.01%)
• Non-toxic

BENEFITS

• High adhesion and resistance ink

TECHNICAL DATA

• UNE23033/1:2019 (Extinction)
• UNE23033/2:2019 (Installations)
• UNE 23034/1998 (Evacuation)
• UNE 23035-1/2003
• UNE 23035-4/2003
• UNE 53127/2002
• UNE EN ISO 7010: 2012
• RD314//2006 (CTE)
• RIPCI2017 (Extinction)

FOR WHAT TYPE OF WORK IS IT APPROPRIATE

They must be installed in areas directly affected by sunlight or within the influence zone of luminaires. A sign installed in a poorly lit area will not perform well.

BENEFITS

• High adhesion and resistance ink

TECHNICAL DATA

• UNE23033/1:2019 (Extinction)
• UNE23033/2:2019 (Installations)
• UNE 23034/1998 (Evacuation)
• UNE 23035-1/2003
• UNE 23035-4/2003
• UNE 53127/2002
• UNE EN ISO 7010: 2012
• RD314//2006 (CTE)
• RIPCI2017 (Extinction)

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Manufacturer's name or brand
• Manufacturing date
• Denomination (class A or class B as applicable)

According to RIPCI 513:

• Manufacturer's name or brand

MINIMUM LUMINESCENCE VALUES AFTER SALT CHAMBER

CLASS A:

CLASS B:

FEATURES

PVC SUPPORT MATERIALS

According to UNE 53127:

• 1mm white PVC for class A and 0.7mm transparent PVC for class B
• 0.6mm thick white lacquered aluminum.
• Stability with Tª < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• No significant lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to standards:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Made from pigments.
• Unlimited charge and discharge photoluminescent cycles

COLOR

Shades according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adhesion and resistance ink.
• Allows for great flexibility in the final product.
• Non-flammable. Non-toxic

FINAL THICKNESS

Class A

• PVC 1.2 m/m (±10%).
• ALUMINUM 0.8 m/m (±10%).

Class B

• PVC 0.8 m/m (±10%).
• ALUMINUM 0.7 m/m (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to UNE 23033/1

COLOR PERCENTAGES

• According to UNE 23033-1

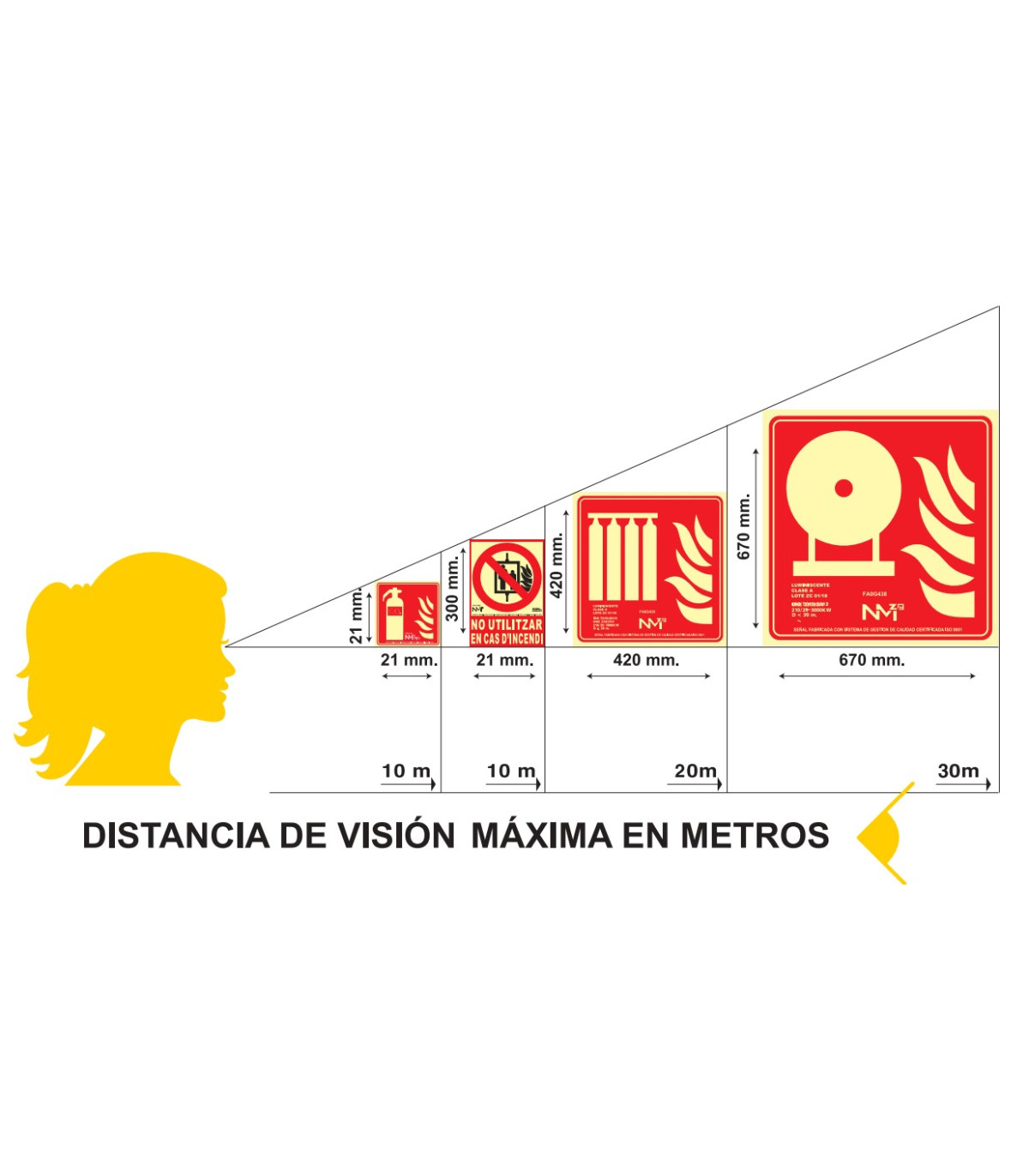

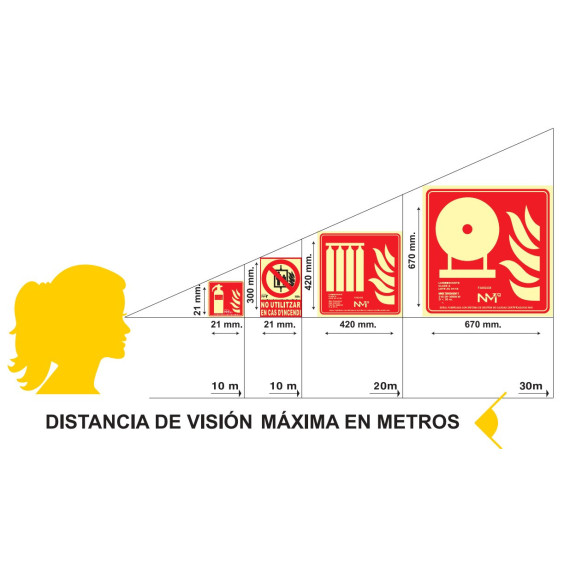

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

To calculate the necessary dimensions of a sign, the following formula will be applied, up to a maximum distance of 50 m:

S≥ L2 /2000

“S” represents the surface area of the sign in square meters, and “L” the distance in meters from which the sign can be perceived.

MEASURES

Aluminum Class A

• FA12900..............105X402

REGULATIONS

- UNE 23033/1:2019 (Extinction)

- UNE 23033/2:2019 (Installations)

- UNE 23034/1998 (Evacuation)

- UNE 23035-1/2003

- UNE 23035-4/2003

- UNE 53127/2002

- UNE EN ISO 7010: 2012

- RD 314/2006 (CTE)

- RIPCI 2017 (Extinction)

STORAGE, CLEANING, AND CONSERVATION

The working temperature should not exceed 45º C. Higher temperatures may deform the support material.

The optimal storage temperature should be between 15º C and 25º C; with a humidity of 10/50%.

Cleaning methods; avoid using abrasive products. It is recommended to clean them with water and neutral detergents.
