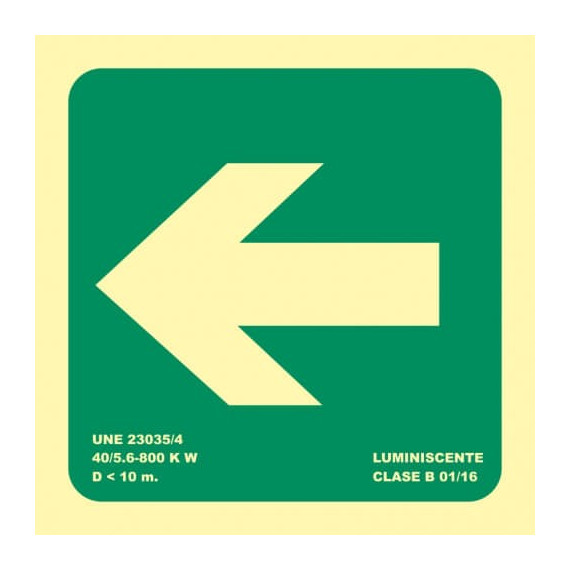

Evacuation sign left arrow luminescent SEKURECO

Evacuation signal of the bidirectional pictogram, Luminous, made on a PVC sheet of 0.7mm and 1 mm, with a layer of photoluminescent pigment, (after absorbing light, the product emits it in the dark, so it does not require any electrical source and the product can be charged an indefinite number of times).

The sign is used to mark evacuation or emergency exit areas in the direction of the arrow.

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Manufacturer's name or brand
• Manufacturing date
• Denomination (class A or class B as applicable)

According to RIPCI 513:

• Manufacturer's name or brand

MINIMUM LUMINESCENCE VALUES AFTER SALINE CAMERA

CLASS A:

CLASS B:

CHARACTERISTICS

SUPPORT MATERIAL PVC

According to UNE 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B
• White lacquered aluminum with a thickness of 0.6mm.
• Stability with Tª < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• No appreciable lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to standards:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Composed of pigments.
• Unlimited photo-luminescent charge and discharge cycles

COLOR

Shades according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adhesion and resistance ink.
• Allows for great flexibility in the final product.
• Non-flammable. Non-toxic

FINAL THICKNESS

Class A

• PVC 1.2 m/m (±10%).
• ALUMINUM 0.8 m/m (±10%).

Class B

• PVC 0.8 m/m (±10%).
• ALUMINUM 0.7 m/m (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to UNE 23033/1

COLOR PERCENTAGES

• According to UNE 23033-1

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

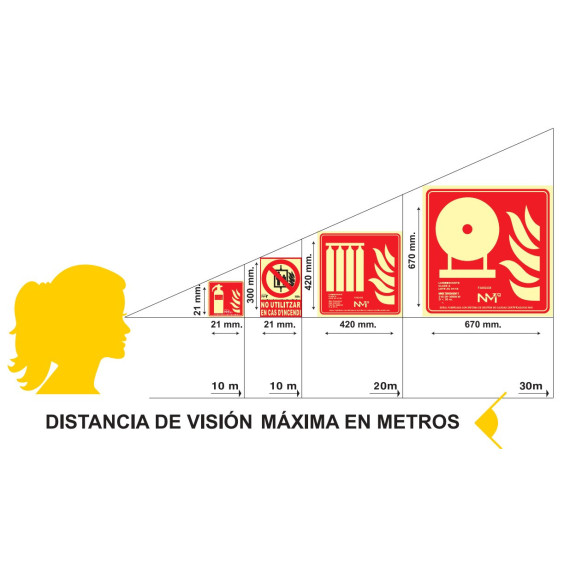

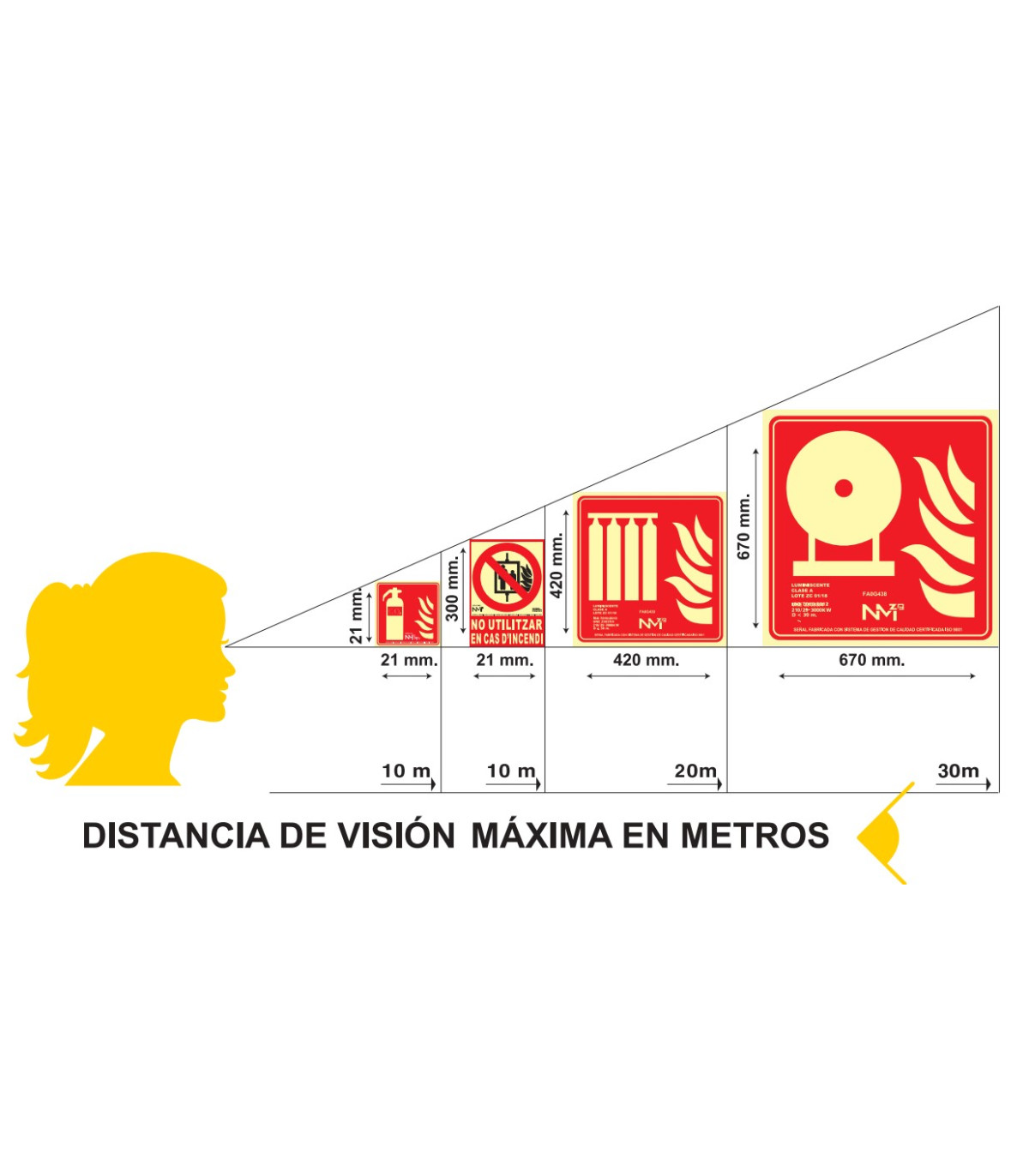

To calculate the necessary dimensions of a sign, the following formula will be applied, up to a maximum distance of 50 m:

S≥ L2 /2000

“S” represents the surface area of the sign in square meters, and “L” the distance in meters from which the sign can be perceived.

MEASURES

CLASS B (PVC 0.7 mm)

• B12107..............105X105
• B13100...............160X160

CLASS A (PVC 1 mm)

• A12400.................105X105
• A13400.................160X160
• FA1A400.................420X420
• FA1F400.................630X630

NORMS

- UNE 23033/1:2019 (Extinction)

- UNE 23033/2:2019 (Installations)

- UNE 23034/1998 (Evacuation)

- UNE 23035-1/2003

- UNE 23035-4/2003

- UNE 53127/2002

- UNE EN ISO 7010 : 2012

- RD 314/2006 (CTE)

- RIPCI 2017 (Extinction)

STORAGE, CLEANING AND CONSERVATION

The working temperature should not exceed 45º C. Higher temperatures may deform the support material.

The optimal storage temperature should be between 15º C and 25º C; and with a humidity of 10/50%.

Cleaning methods; avoid applying abrasive products. It is recommended to clean them with water and neutral detergents.
