Evacuation Signal Exit Door (pictogram only) Down Arrow luminescent photo SEKURECO

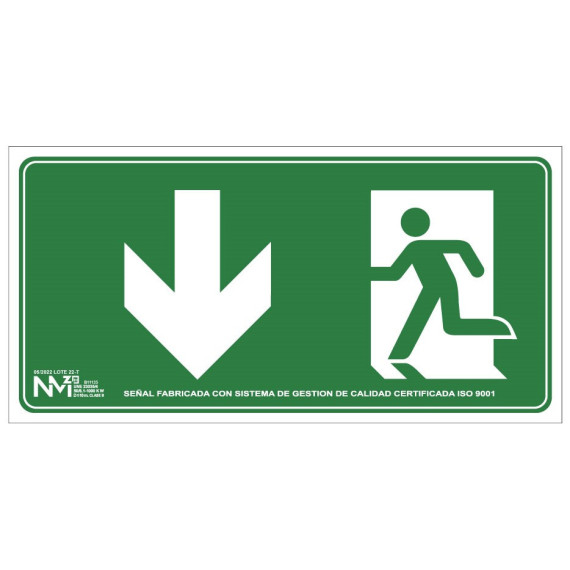

Evacuation signal Exit Door (pictogram only) Down Arrow luminous photo SEKURECO. Emergency and evacuation signal for Exit door with down arrow (Pictogram only), made on a PVC sheet of 0.7mm and 1mm with a photoluminescent pigment layer, (after absorbing light, the product emits it in the dark, so it does not need any electrical source and the product can be charged an indefinite number of times).

The sign is positioned above doors and spaces indicated for exit. Recommended for industries.

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Name or brand of the manufacturer
• Manufacturing date
• Denomination (class A or class B as applicable)

According to RIPCI 513:

• Name or brand of the manufacturer

MINIMUM LUMINESCENCE VALUES AFTER SALT SPRAY TEST

CLASS A:

CLASS B:

FEATURES

SUPPORT MATERIALS PVC

According to UNE 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B
• White lacquered aluminum 0.6mm thick.
• Stability with Tª < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• No appreciable lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to standards:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Made of pigments.
• Unlimited photo-luminescent charge and discharge cycles

COLOR

Shades according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adhesion and resistance ink.
• Allows great flexibility in the final product.
• Non-flammable. Non-toxic

FINAL THICKNESS

Class A

• PVC 1.2 m/m (±10%).
• ALUMINUM 0.8 m/m (±10%).

Class B

• PVC 0.8 m/m (±10%).
• ALUMINUM 0.7 m/m (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to UNE 23033/1

COLOR PERCENTAGES

• According to UNE 23033-1

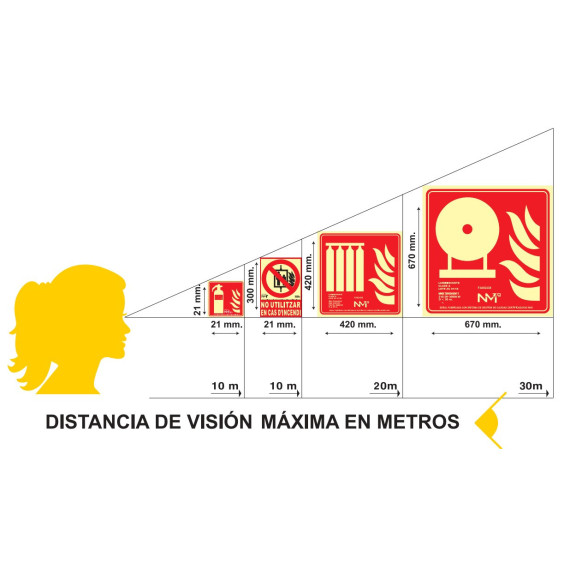

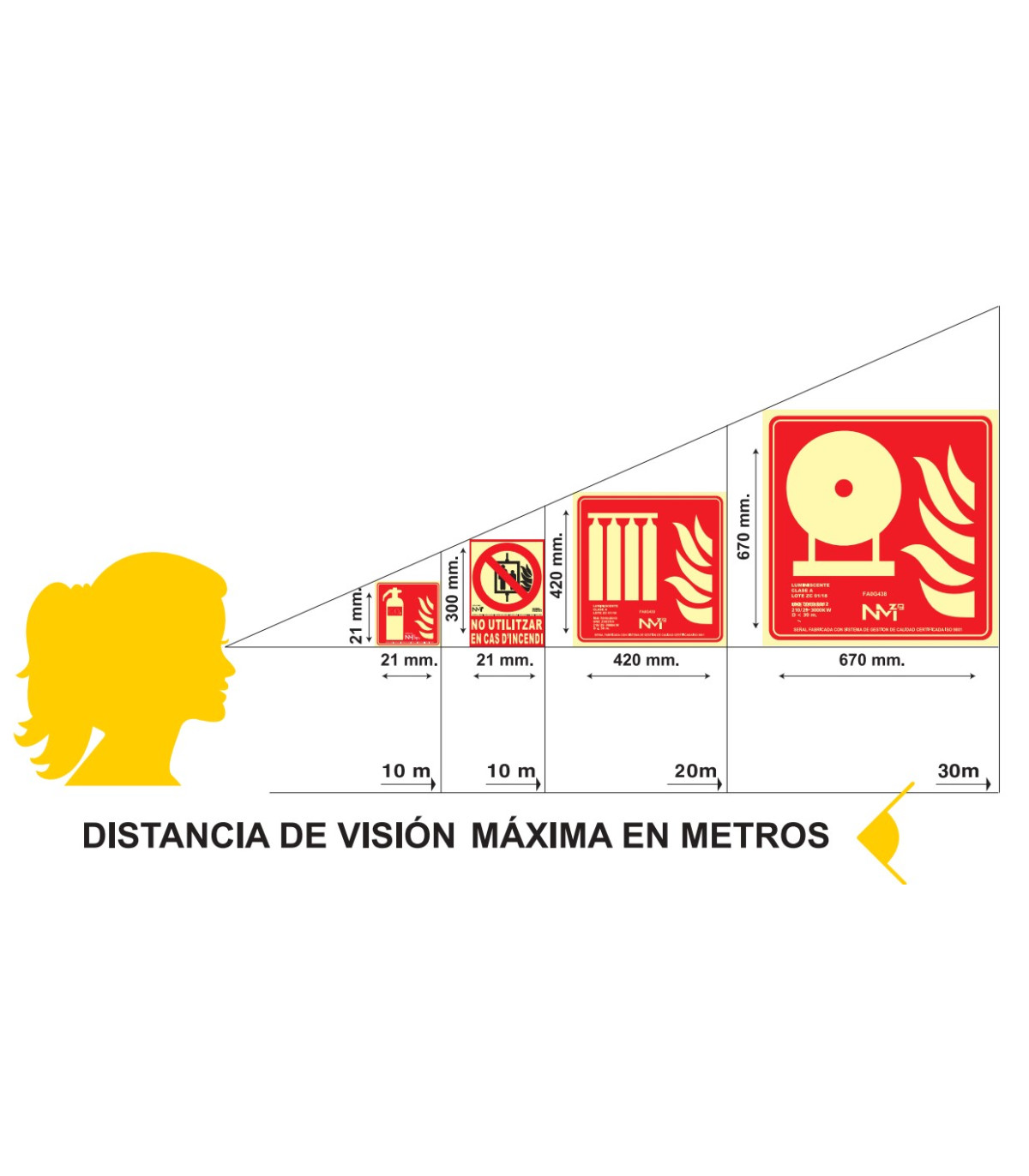

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

To calculate the necessary dimensions of a sign, the following formula will be applied, up to a maximum distance of 50 m:

S≥ L2 /2000

“S” represents the surface area of the sign in square meters, and “L” the distance in meters from which the sign can be perceived.

MEASURES

CLASS B (PVC 0.7 mm)

• RD11135..............320x160 mm

CLASS A (PVC 1 mm)

• A11435.................320x160 mm

NORMS

- UNE 23033/1:2019 (Extinction)

- UNE 23033/2:2019 (Installations)

- UNE 23034/1998 (Evacuation)

- UNE 23035-1/2003

- UNE 23035-4/2003

- UNE 53127/2002

- UNE EN ISO 7010 : 2012

- RD 314/2006 (CTE)

- RIPCI 2017 (Extinction)

STORAGE, CLEANING AND MAINTENANCE

The working temperature should not exceed 45º C. Higher temperatures may deform the support material.

The optimal storage temperature will be between 15º C and 25º C; and with a humidity of 10/50%.

Cleaning methods; avoid applying abrasive products. It is recommended to clean them with water and neutral detergents.
