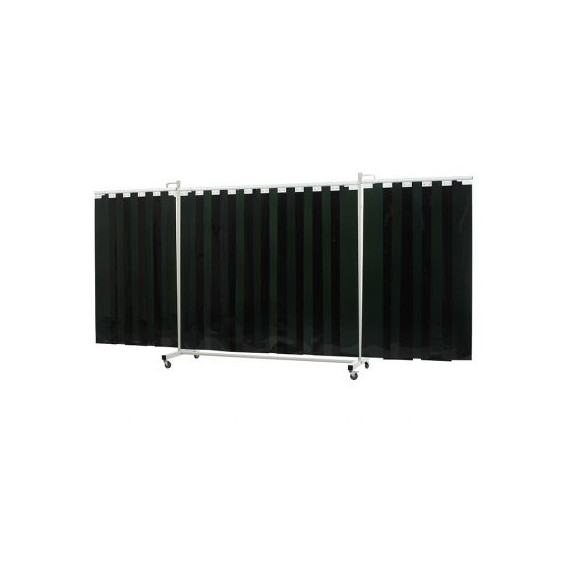

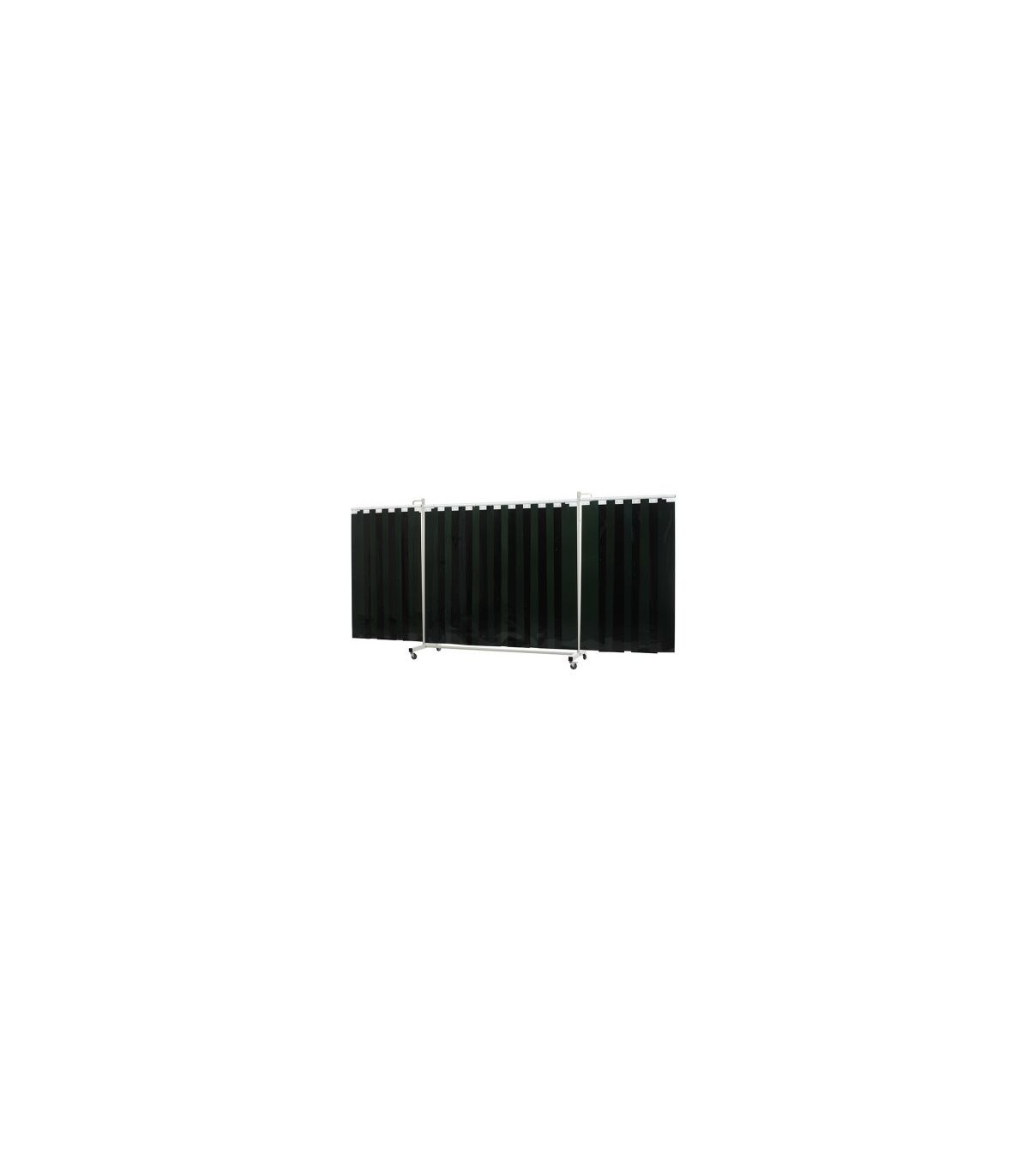

CEPRO welding screen with wheels and sturdy sheets

The CEPRO Robusto welding screens are of very high quality, as they are solidly built and can be used even in the most demanding working conditions.

The CEPRO Robusto welding screen with wheels and sheets is designed for indoor use. Manufactured under the safety standards of the European norm ISO EN 25980.

FEATURES

• The CEPRO Robusto XL triptych welding screen 435 cm with strips stands out for the following technical characteristics:
• Height 210 cm
• Width of the central section 215 cm
• 2 rotating arms each 110 cm
• Standard 4 swivel wheels Ø 75 mm
• 2 swivel wheels with brake and 2 without brake
• Powder-coated finish RAL 7035
• Round tube of 35 x 2.5 mm
• Rectangular tube of 50 x 30 x 2 mm
• Strips height 180 cm
• Strips of 500 x 1 mm
• Overlap of strips between 5 to 10 cm (the first eyelet overlaps with the last of the previous strip for overlapping)
• Hook/ring for suspension in steel or plastic in the shape of "C" or "O". This screen does not come with clips as shown in the photograph.
• Strips approved in ISO EN 25980

TECHNICAL DATA

The CEPRO Robusto welding screen is supplied as a mounting kit in a sturdy cardboard box.

The nuts and bolts used to connect the frame should be checked regularly.

You should regularly check the CEPRO Robusto welding screen for tears and/or other damage. Replace damaged curtains or strips if necessary.

APPLICATIONS

• Welding screen for the separation of enclosed spaces
• Workshops and repair spaces
• Welding rooms
• Suitable for intense radiation
