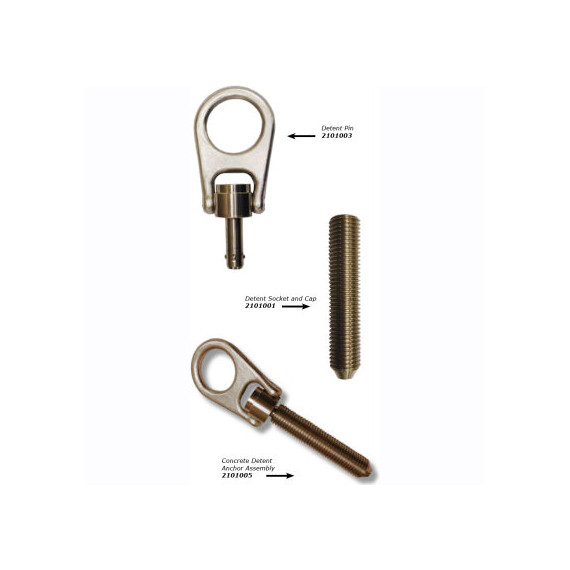

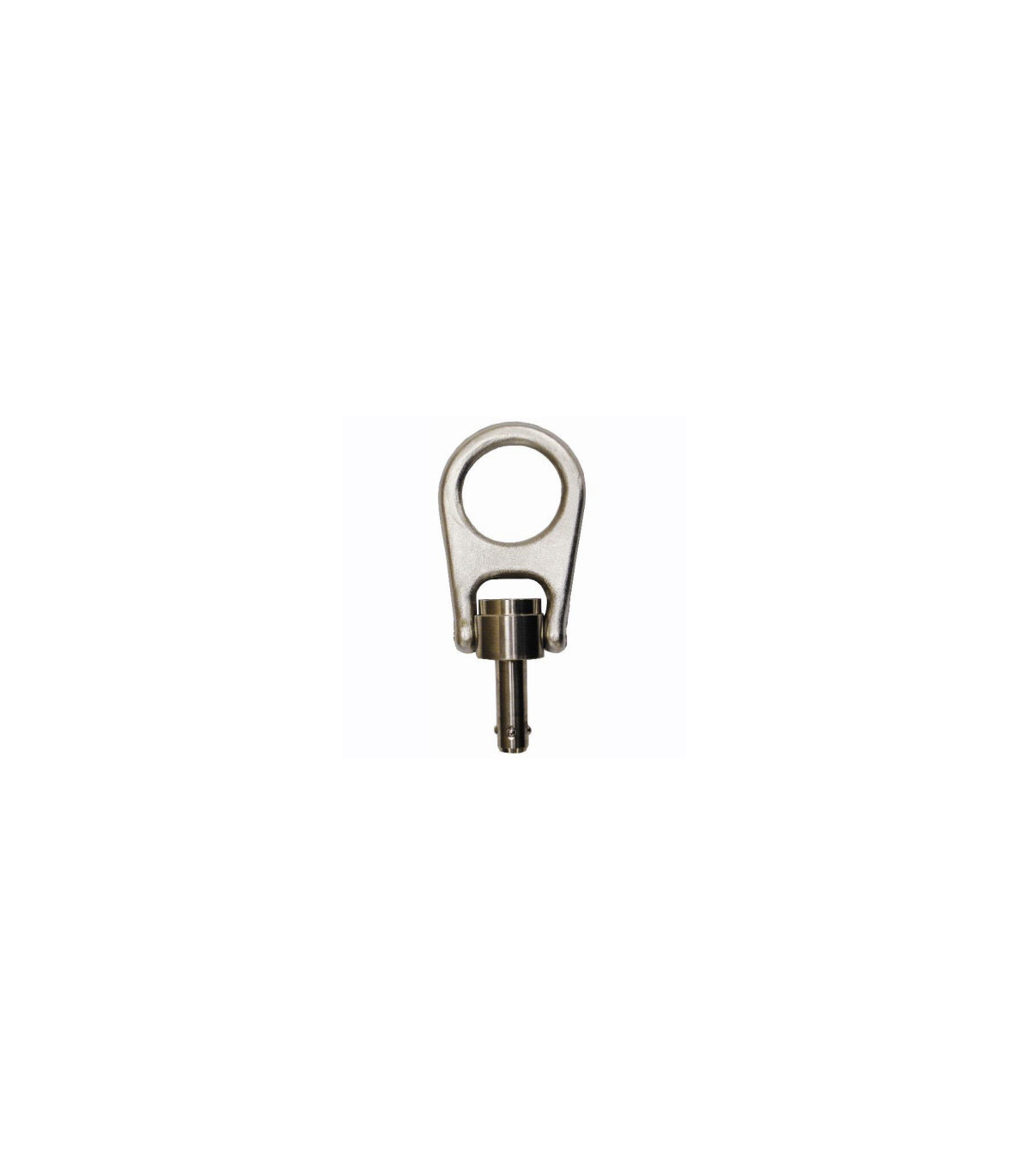

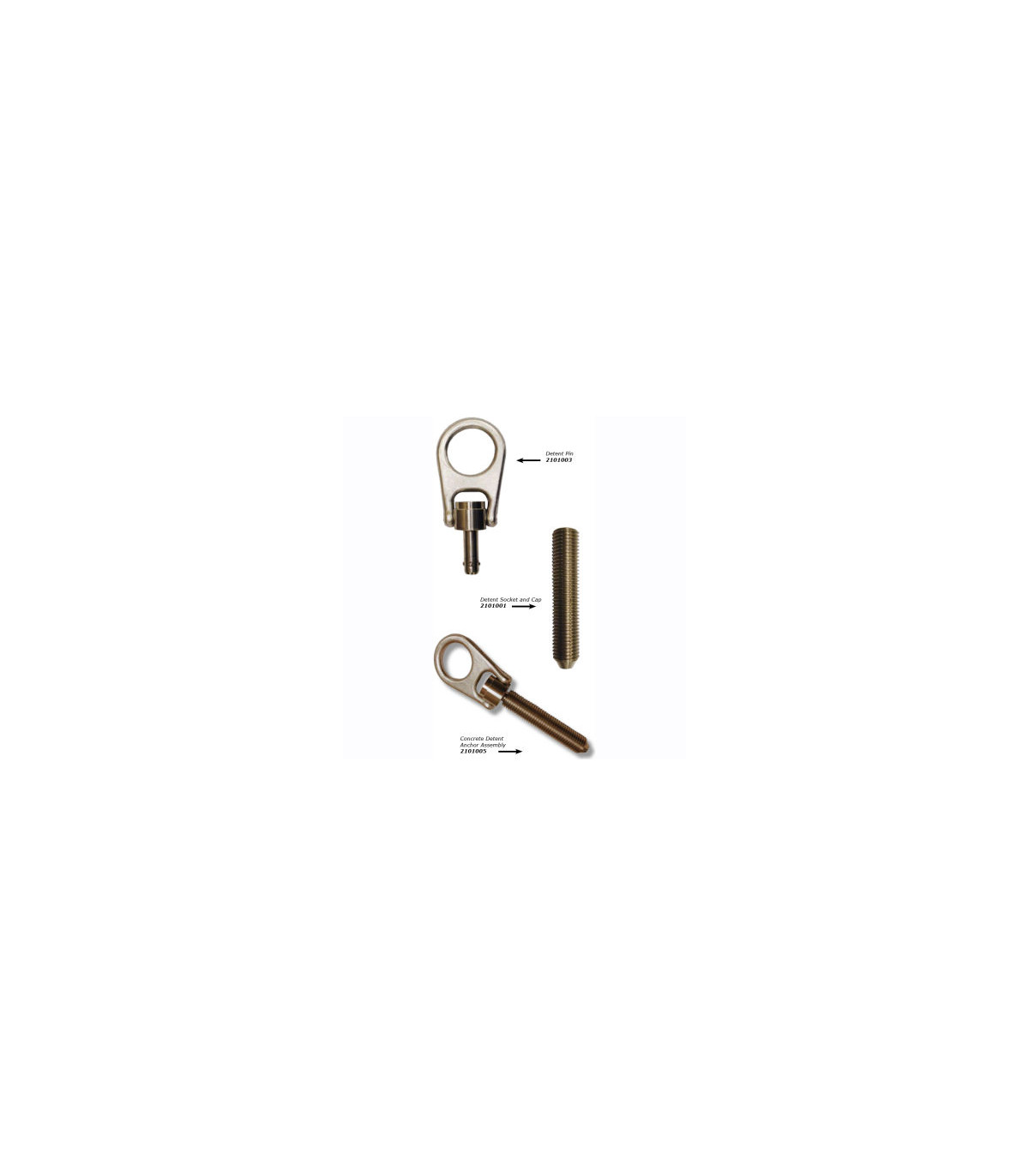

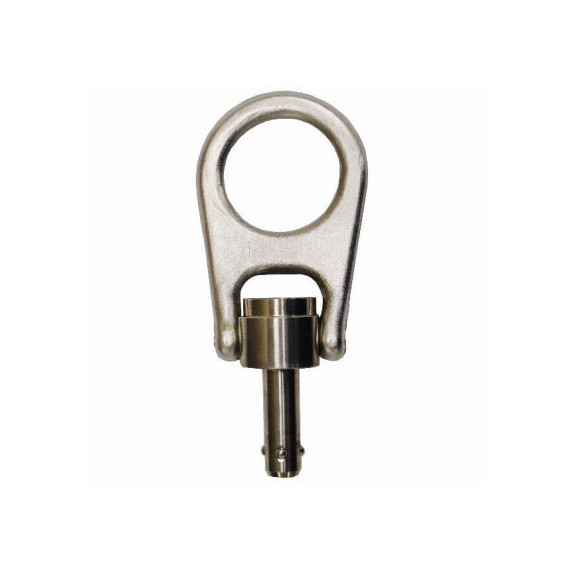

Wall anchor pin unit made of stainless steel 22 kN 3M DBI-SALA 2101003

Retention pin 2101003. Using pre-installed concrete sockets, the wall retention anchor allows the user to connect and disconnect from an anchor point simply by pressing a button.

Confirm in advance with Sekureco.eu approximate supply date.

FEATURES

• Allows the user to work in different locations where a socket is pre-installed, with a single retention pin.
• Lightweight and portable, enabling the user to move easily from one work site to another.
• The user can keep it connected to the lanyard at all times.
• The socket can be installed in concrete and can be used in wall, floor, and ceiling applications.
• Cover cap available to allow the socket to blend with the decor, ensuring that aesthetics are not compromised.
• Allows lanyard connection to enable the worker to connect, whether in fall protection or fall arrest.
• Anchor point standards of 22 kN.
• Complies with EN795 Class A and Class B standards.

BENEFITS

• Ease of use.
• The wall retention anchor allows for quick connection to a Class A anchor point simply by inserting the anchor pin into pre-installed sockets, embedded in concrete.
• The simple one-handed operation allows the user to attach quickly and securely before working at height.
• A push-button retention button allows the pin to connect in the socket.
• Simply releasing the button locks the pin in place, allowing the user to work safely.
• To release, press the button once more and remove from the socket.

APPLICATIONS

• The wall retention anchor can be used for many different applications. Window cleaning or regular inspection and maintenance areas are ideal scenarios for using a removable anchor point.
• The pre-installed socket comes complete with a cover to ensure that the recess is not visible during non-operation.
• The ability to install on walls or floors allows the socket to be located in the most convenient place for the user.
• Sockets can be installed in various locations with the user bringing the pin to each work site, thus reducing the need to compromise interior design by installing unsightly anchor points in each location.

TECHNICAL DATA

• Weight:
  retention anchor: 0.25 kg
  Socket: 0.16 kg
• Material: stainless steel 316
• Standards: OSHA, ANSI, CE - EN795 Class A, Class B
• Rated capacity: 1 user - 141 kg
• Minimum breaking strength: 22 kN
