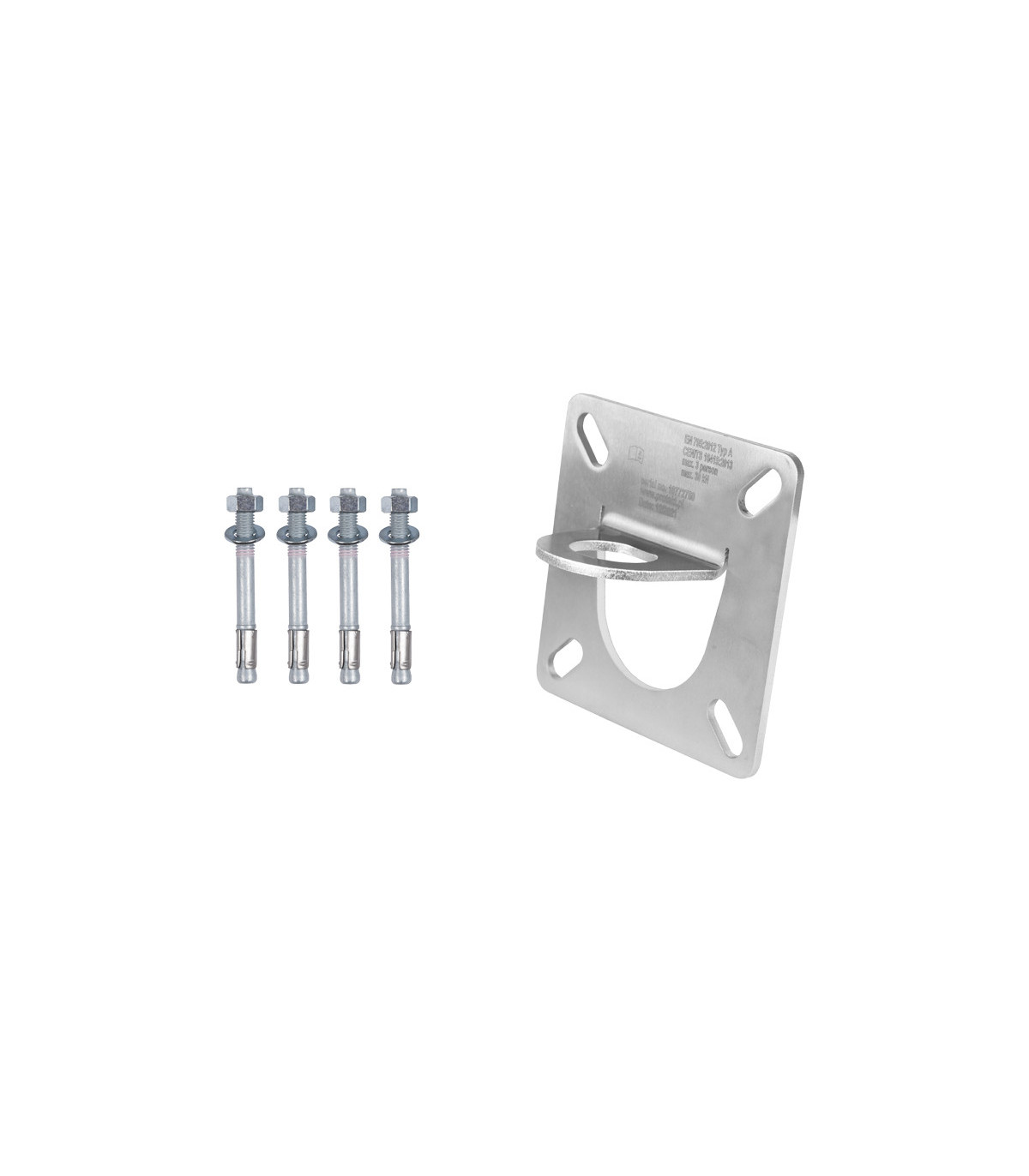

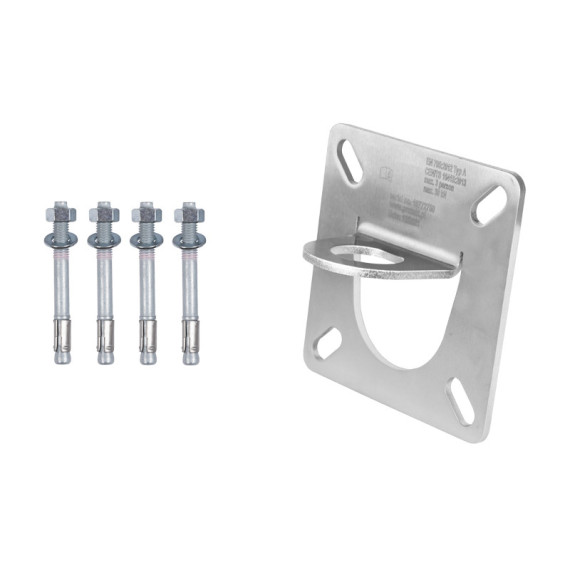

Anchor set Steel plate 3 Pax for concrete with Safetop screws

Features

• Set of permanent anchor type A.
• Composed by steel plate of 150 x 150 mm.
• 4 Hilti stainless steel anchors for concrete.
• It is designed for 3 users working simultaneously.
• Designed for fixing concrete structures and steel structures.
• Static resistance of 30 kN.
• It can be installed together with horizontal temporary security systems
• Universal for concrete and steel structures.
• Screws included.
• Size: 150x150 mm
• Static resistance: 30 kN
• Diameter holes: 40 mm
• Diameter Ring: 41 mm
• Spacing Mines: 98 mm

Normative / Standars

• EN795 Type A (anchoring devices)

Materials

Steel Pletin and Stainless Steel Anchors

For what kind of work is it appropriate

This type of type A structural anchors should be permanently fixed to a structure: vertical, horizontal and inclined surfaces, such as walls, columns, lintels, etc.

Anchoring devices are not considered fall protection equipment, so they should be used in conjunction with an anti-covered equipment.

Use with energy absorber according to Standard EN355.
