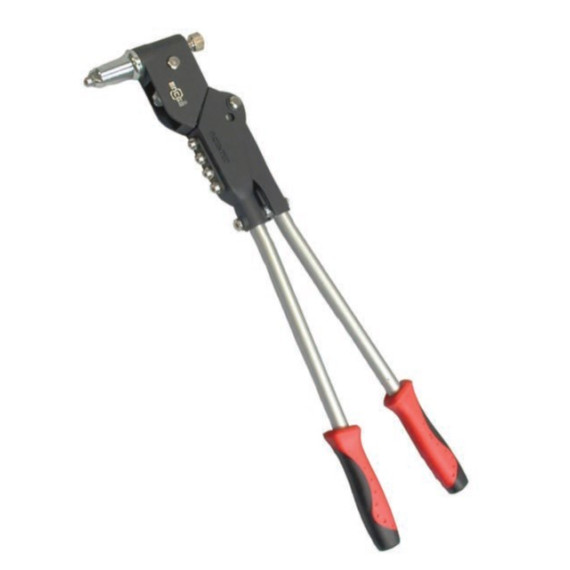

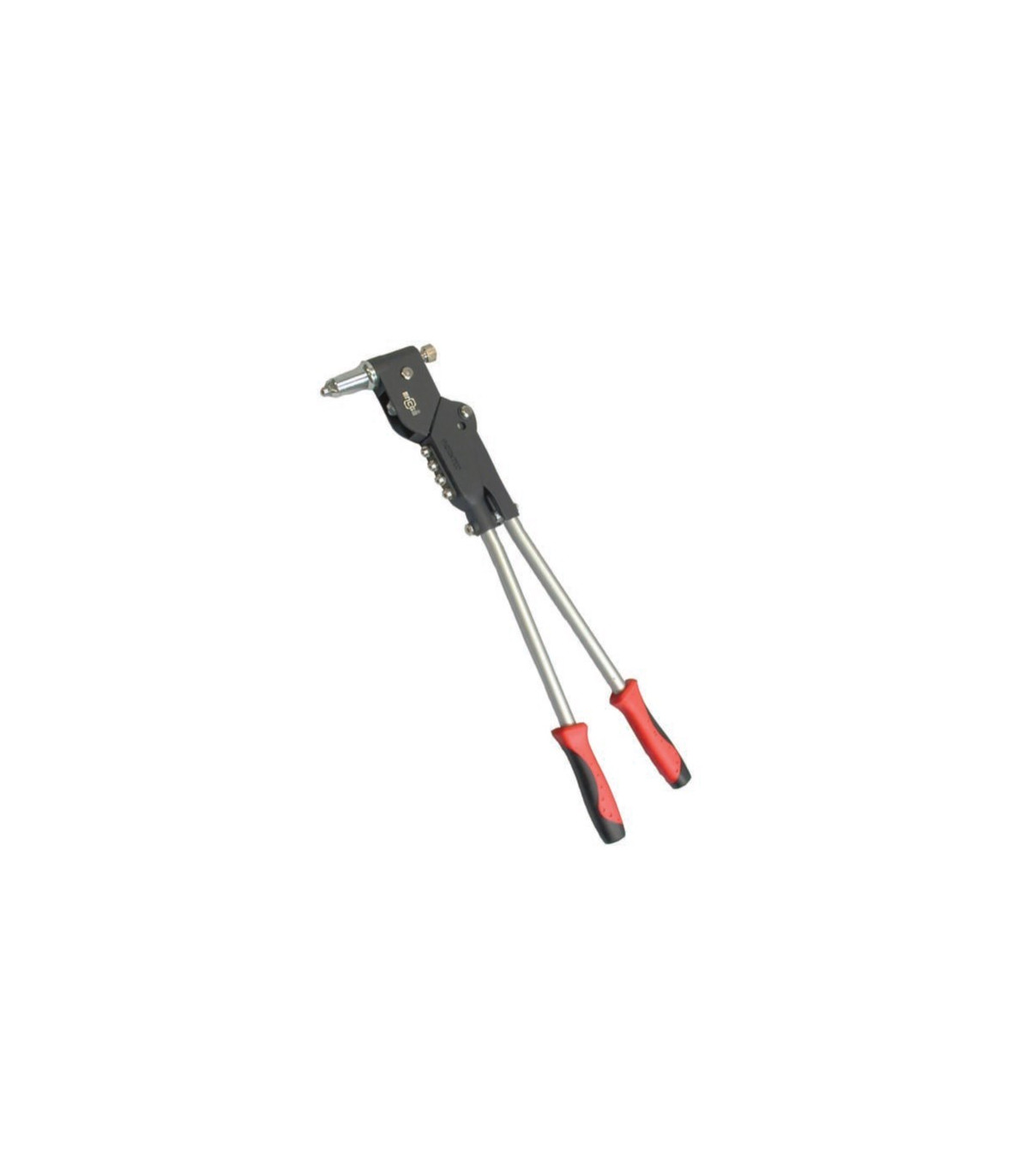

Extra-long Riveter Folding Lever RITC970 METALWORKS

Lever Riveter for Structural Rivets RITC970 | METALWORKS. The compact and powerful solution for high-strength rivets. This lever riveter features a foldable design and is specially designed for installing structural rivets up to 6.4 mm, providing maximum reliability joints.

Combined 3 in 1. For conventional rivets from 3.2 to 6.4 mm, hollow rivets M4, M5, and M6, M8 and M10, nut rivets M4, M5, M6, and M8. With a 360° rotating head. Extra long execution. To access difficult places. The extra-long arms provide more power for riveting, patented design. 3 IN 1. 360° ROTATING.

FEATURES

A high-performance tool that combines power with an intelligent design.

• Compact Foldable Design: The levers fold, reducing their length for much more convenient storage and transport, ideal for carrying in the toolbox.

• Power for Structural Rivets: Its lever mechanism is designed to generate the high pulling force needed to install structural rivets (such as Magna-Lok®, Monobolt®), in addition to standard rivets.

• Robust Construction: High-density aluminum body and treated steel levers for exceptional durability in the toughest working conditions.

• Reinforced Nozzle Kit: Includes 5 high-strength nozzles for the most common diameters, including 6.4 mm (1/4").

SPECIFICATIONS

Hollow rivets 3.2 - 4.0 - 4.8 - 6.4 mm

Rivet nuts M4 - M5 - M6 - M8 - M10

Bolts M4 - M5 - M6 - M8

Length 565 mm

Width 200 mm

APPLICATIONS

• Assembly of metal structures that require high-strength tensile and shear joints.

• Repair of chassis and bodies of industrial vehicles, trailers, and buses.

• Railway, naval, and construction industries.

• High vibration applications where a standard rivet could fail.
