Pliers set with 6 jaws and clamp VES1907 | METALWORKS

6-jaw pliers set and VES1907 | METALWORKS Ratchet Cable Cutter for Thick Cables. Cuts large diameter copper and aluminum cables effortlessly. These cable cutters use a ratchet mechanism that multiplies force, allowing for a clean and progressive cut on cables up to 240 mm².

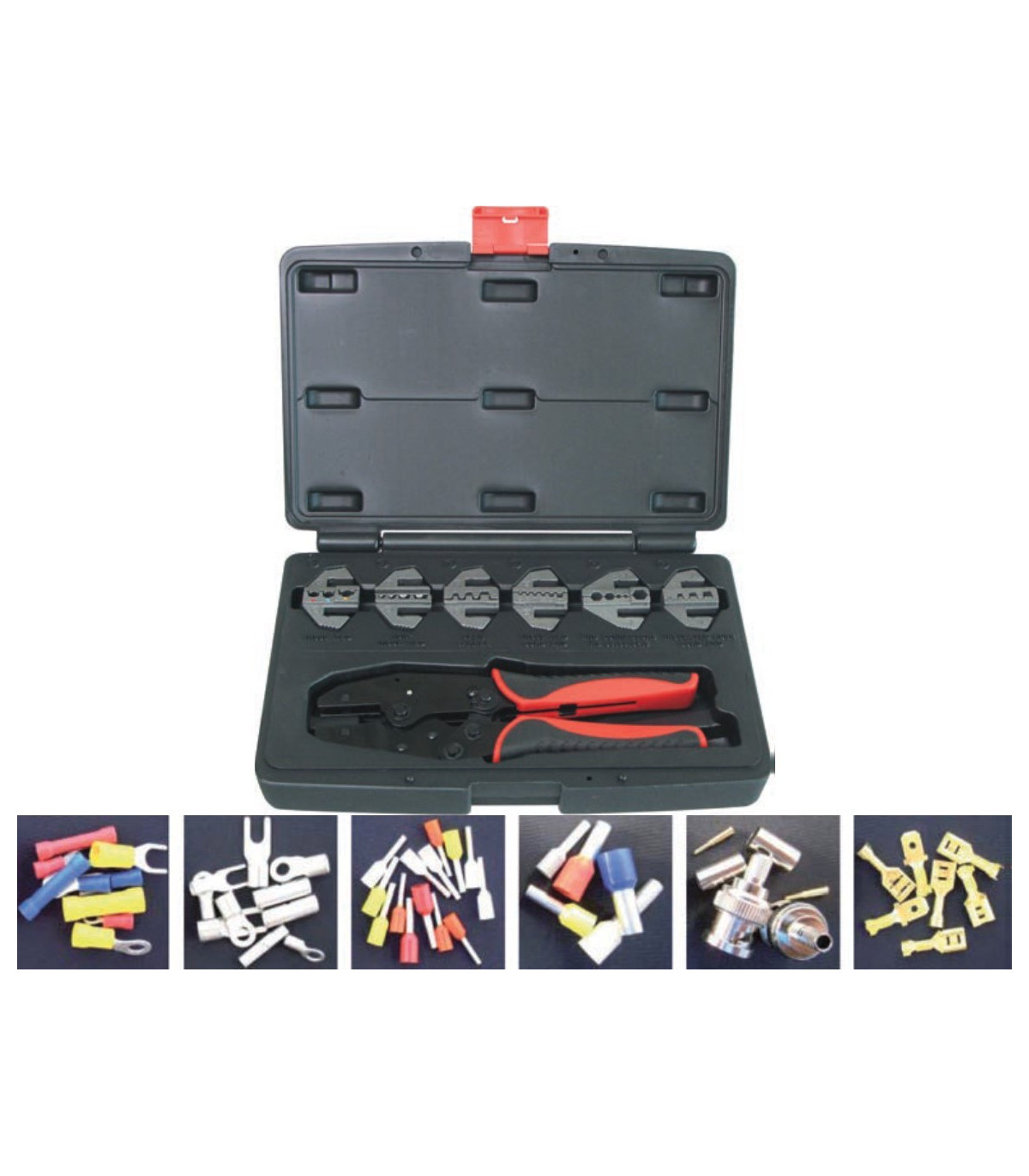

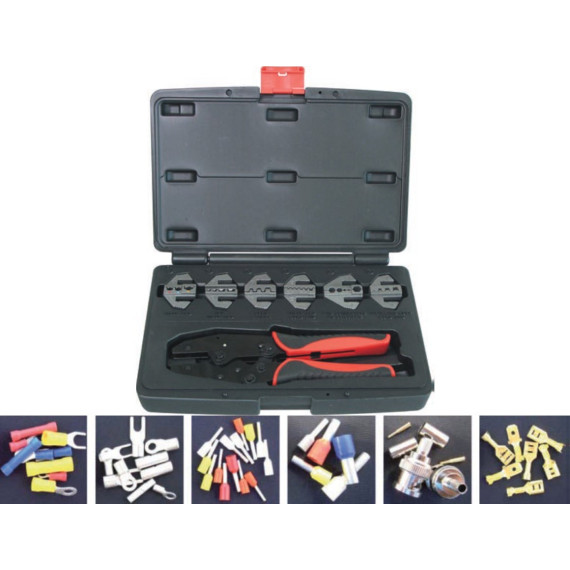

Includes a crimping tool with a quick-fix tip supplied with 6 different sets of jaws. Steel crimping tool with high-quality jaws. Hardened HRC 38-45. The handles are coated with 2-component materials PP+TPR for a pleasant and strong grip. 6 IN 1.

FEATURES

The professional solution for power cable cutting.

• Ratchet Mechanism: The ratchet system allows cutting in multiple steps. With each pump action of the handles, the blade advances, multiplying the operator's force and allowing very thick cables to be cut with one hand.

• Special Steel Blades: The cutting blades are made of special tool steel, tempered and precisely sharpened. Their curved design hugs the cable, preventing fraying and ensuring a clean and perpendicular cut.

• Quick Release System: Incorporates a lever that allows the blades to be opened at any point in the cutting process if it is necessary to reposition the tool.

• Ergonomic Handles: The telescopic or ergonomic handles (depending on the version) are designed for a secure grip and optimal leverage.

SPECIFICATIONS

Capacity for insulated terminals AWG 22-18 - 16-14 - 12-10
Capacity for non-insulated terminals (1) AWG 20-18 - 16-14 - 12-10 - 8
Capacity for non-insulated terminals (2) AWG 20-18 - 16-14 - 12-10
Capacity for small pins ENERAWG 22-20-18-16-14-12
Capacity for large pins ADENER AWG 10-8-6
Capacity for coaxial pins (BNC) 6.48-5.41-2.50-1.72-0.823 mm
Length of the pliers 220 mm
Net weight 1.30 kg

APPLICATIONS

• Cutting service, distribution, and power cables in electrical installations.

• Essential for industrial electricians, installers, and personnel from electric companies.

• Work in large electrical panels, transformation centers, and meter rooms.

• Facilitates work in trenches and hard-to-reach places.
