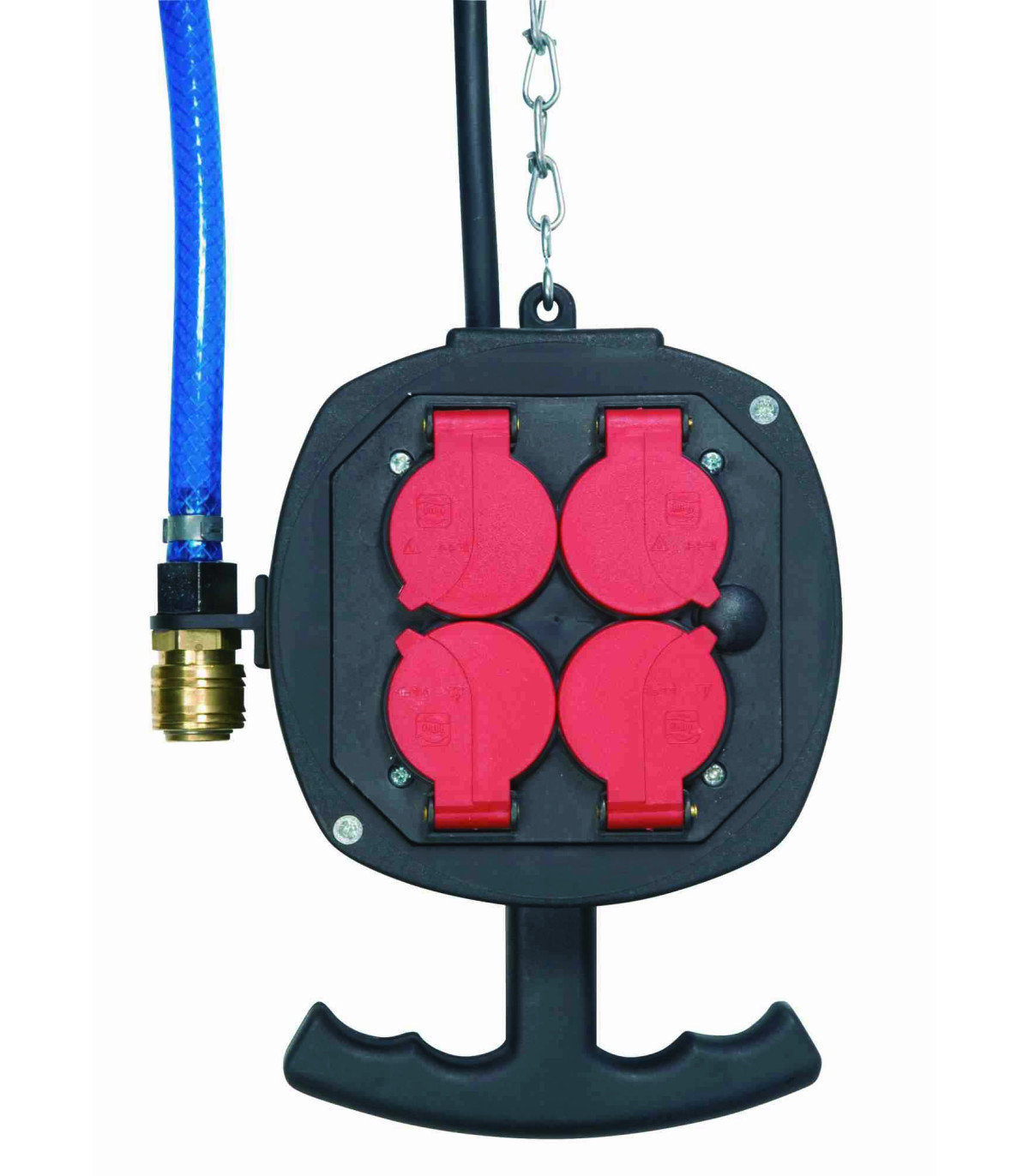

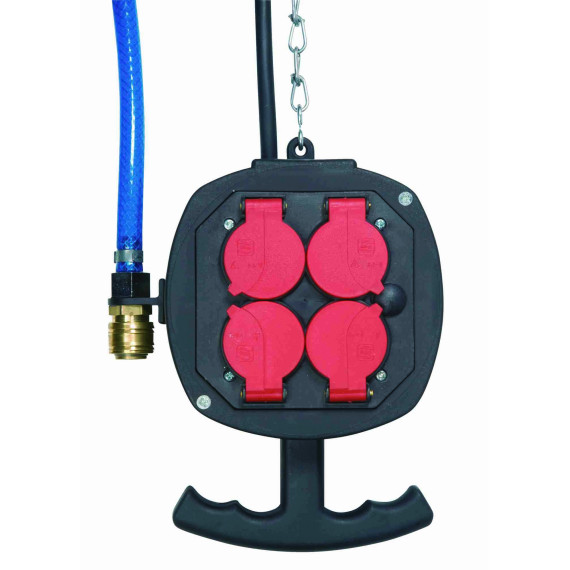

Energy Module A-EA 1 for compressed air AIRCRAFT

Power Module A-EA 1 for compressed air AIRCRAFT. Connection box for compressed air and electricity. Suitable for mobile use, on the ground, or for hanging. Waterproof, IP44. With handle and hook. 3 m brass chain. 3 m neoprene rubber H07RNF cable. 3 m air hose 9 mm.

FEATURES

• Dust and splash resistant according to IP 44 (approved for carpentry companies)
• Special plastic housing with handle, which can also be used as a hook for tools.
• Distributor based on the desired working height

TECHNICAL SPECIFICATIONS

Device socket(s) 4 x grounded sockets with IP44 cover

Inner diameter of the compressed air hose 3 millimeters

Outer diameter of the compressed air hose 9 millimeters

Length of the connection hose 3 meters

VPE 1

Dimensions and weights

Approximate length. 240 millimeters

Approximate width/depth. 190 millimeters

Approximate height. 90 millimeters

Approximate weight. 2 kilograms

Electrical data

Supply voltage 230 V

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

4 x grounded sockets with IP44 cover

Power supply 3 m H07RN-F 3/5G1.5 black

Compressed air supply line of 3 m (9 x 3 mm)

1 x quick coupling made of brass with one hand

3 m galvanized steel link chain

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Power Module A-EA 1 for compressed air AIRCRAFT is suitable for:

• Installations
• Workshops
• Construction
