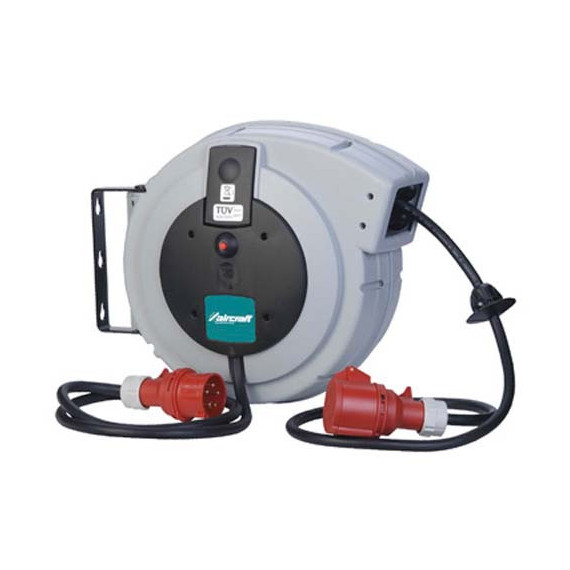

Electric cable reels with a length of 10 m KAR PRO 10-5 AIRCRAFT

Electric cable reels with a length of 10 m KAR PRO 10-5 AIRCRAFT. Impact-resistant plastic housing. The locking device can be turned off. With strong special steel return springs. Particularly smooth and complete retraction of the electric cable. Model with ground connection and plug box.

FEATURES

• For orders in all workshops
• Stable swivel suspension on wall or ceiling.
• With just a pull on the cable, it can be locked or automatically rewound as desired.
• Standard with thermal overload protection.

Particularities of the KAR PRO series

• Impact-resistant plastic housing.
• The locking device can be deactivated
• With strong return springs made of special steel
• Especially smooth and complete retraction of the electric cable.

TECHNICAL SPECIFICATIONS

Cable quality H05VV-F

Number of cables 5

Cable cross-section 1.5 mm²

Cable length 10 meters

Plug 5 x 16 A Euronorma

Sockets 5 x 16 A Euronorma

VPE 1

Dimensions and weights

Approximate length 360 millimeters

Approximate width/depth 260 millimeters

Approximate height 330 millimeters

Approximate weight 5.3 kilos

Electrical data

Unwound nominal load cable 3.0 kW

Wound nominal load cable 1.0 kW

Protection class IP24

Power supply voltage 400 volts

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The electric cable reels with a length of 10 m KAR PRO 10-5 AIRCRAFT are suitable for:

• Workshops
• Installations
