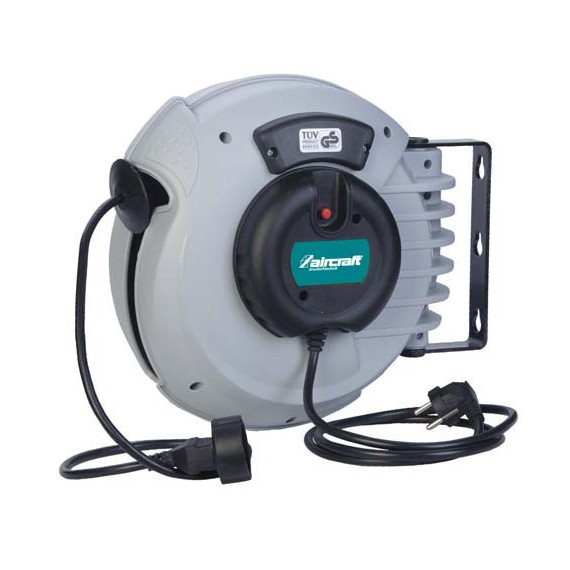

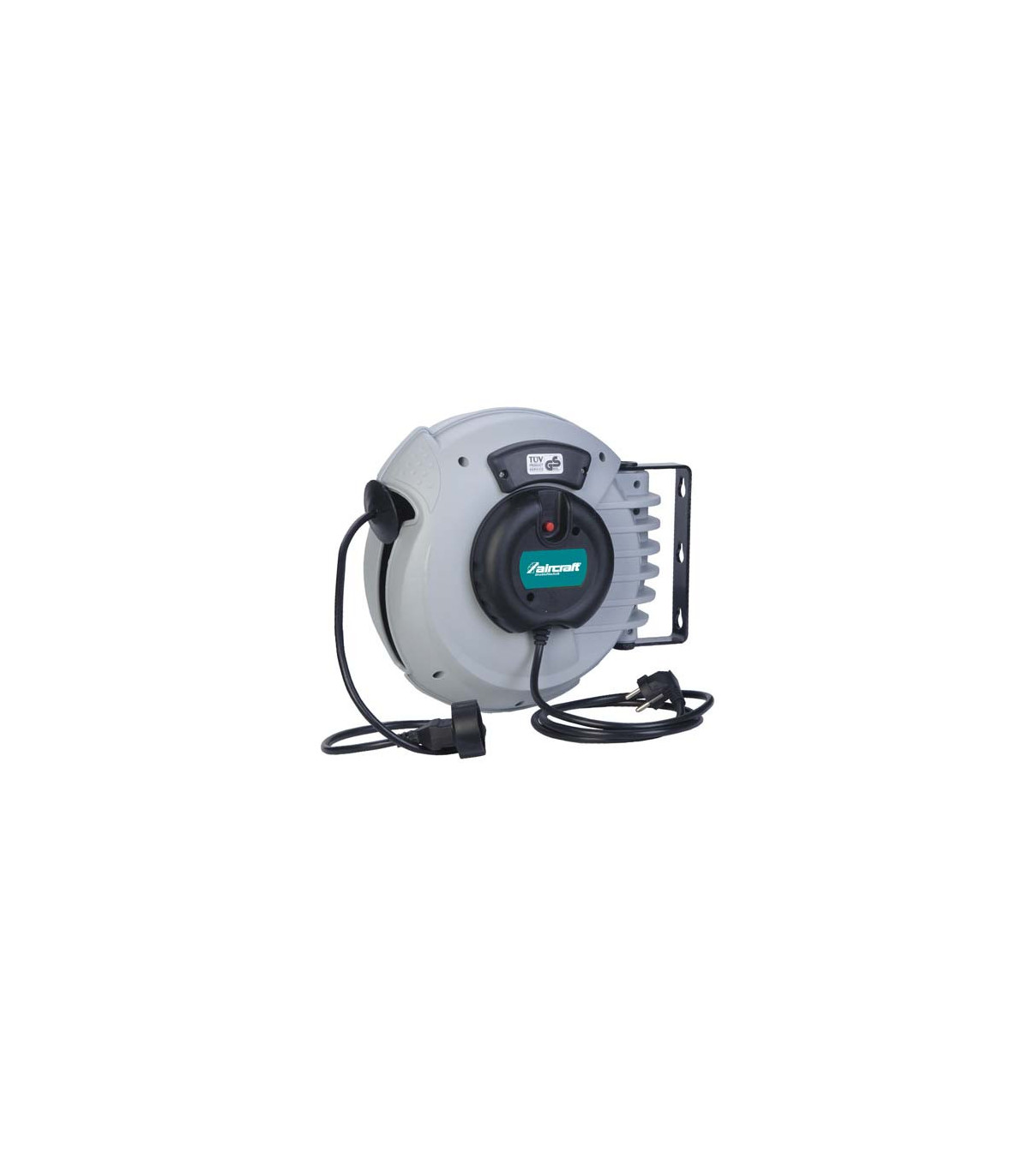

KAR PRO 18 electric enrolladores impact-resistant AIRCRAFT

KAR PRO 18 impact-resistant electric reels AIRCRAFT. Impact-resistant plastic housing. The locking device can be turned off. With strong special steel return springs. Particularly uniform and complete retraction of the electrical cable. Model with ground connection and plug box.

FEATURES

• For order in all workshops
• Rotates via stable suspension on the wall or ceiling.
• The cable can be locked in place simply by pulling it or automatically retracted as needed.
• With thermal overload protection as standard
• Impact-resistant plastic housing.
• The locking device can be deactivated
• With strong return springs made of special steel
• Especially uniform and complete retraction of the electrical cable.

TECHNICAL SPECIFICATIONS

Cable quality H05VV-F

Number of cables 3

Cable cross-section 1.5 mm²

Cable length 18 meters

Plug Schuko

Sockets Schuko

Mounting height < 4 m

VPE 1

Dimensions and weights

Approximate length 360 millimeters

Approximate width/depth 200 millimeters

Approximate height 330 millimeters

Approximate weight 4.8 kilos

Electrical data

Nominal load cable unwound 2.0 kW

Nominal load cable wound 0.8 kW

Protection class IP24

Supply voltage 230 V

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The KAR PRO 18 impact-resistant electric reels AIRCRAFT are suitable for:

• Workshops
• Construction sites

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
