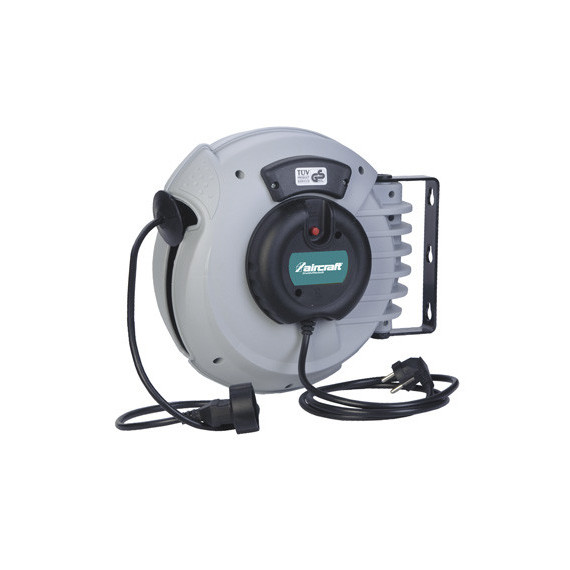

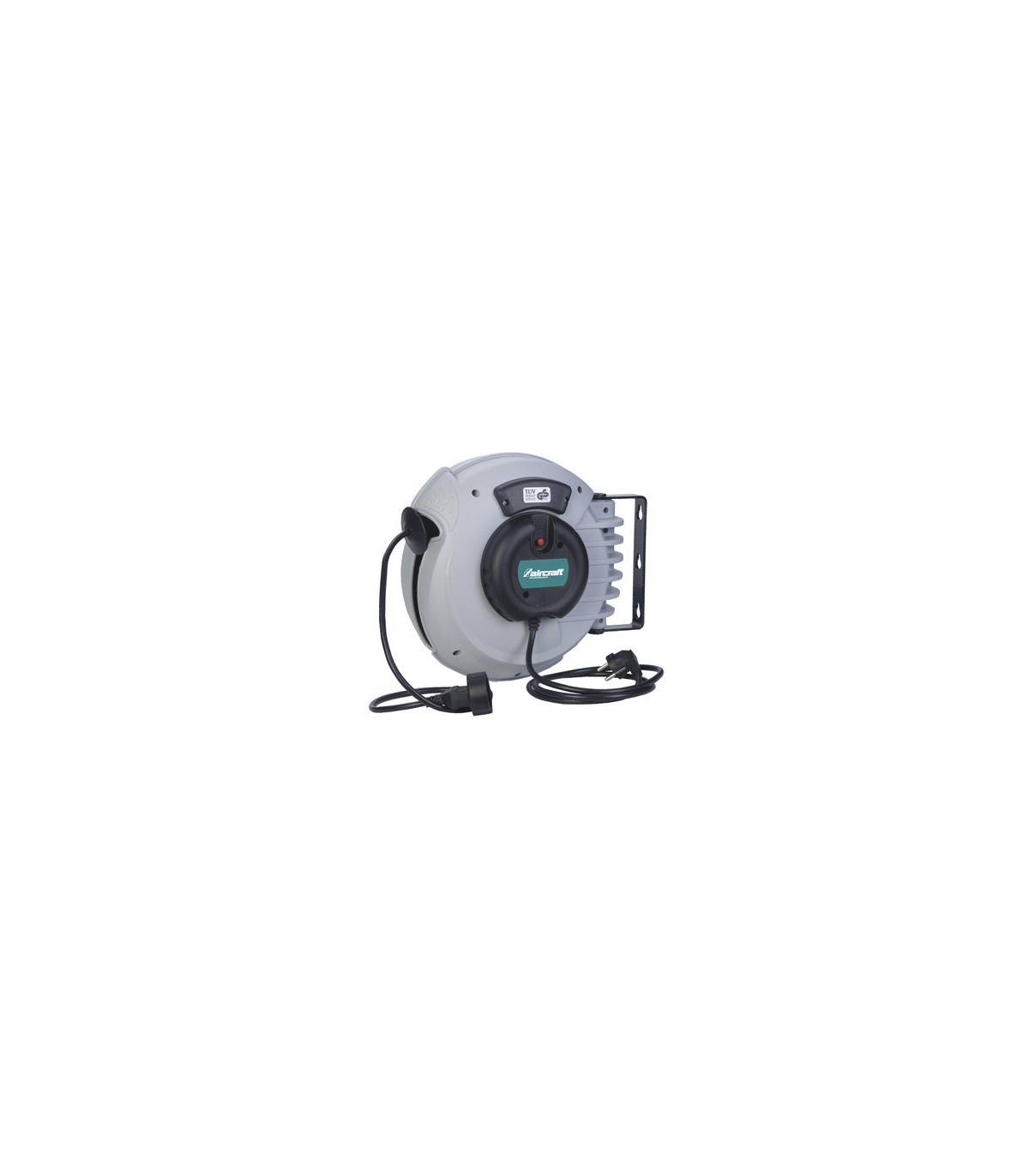

Electric enrolladores cable length 25m KAR PRO 25 AIRCRAFT

Electric cable reels with a cable length of 25m KAR PRO 25 AIRCRAFT. Impact-resistant plastic housing. The locking device can be turned off. With strong special steel return springs. Particularly smooth and complete retraction of the electric cable. Model with ground connection and plug box.

FEATURES

• For order in all workshops
• Rotates via stable suspension on the wall or ceiling.
• The cable can be locked in place simply by pulling it or automatically retracted as needed.
• With built-in thermal overload protection
• Impact-resistant plastic housing.
• The locking device can be deactivated
• With strong return springs made of special steel
• Particularly smooth and complete retraction of the electric cable.

TECHNICAL SPECIFICATIONS

Cable quality H05VV-F

Number of cables 3

Cable cross-section 1.5 mm²

Cable length 25 meters

Plug Schuko

Sockets Schuko

Mounting height < 4 m

VPE 1

Dimensions and weights

Approximate length 420 millimeters

Approximate width/depth 200 millimeters

Approximate height 390 millimeters

Approximate weight 8.3 kilos

Electrical data

Nominal load cable unwound 2.0 kW

Nominal load cable wound 0.8 kW

Protection class IP24

Power supply voltage 230 V

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IT IS SUITABLE

The electric cable reels with a cable length of 25m KAR PRO 25 AIRCRAFT are suitable for:

• Installations
• Workshops
