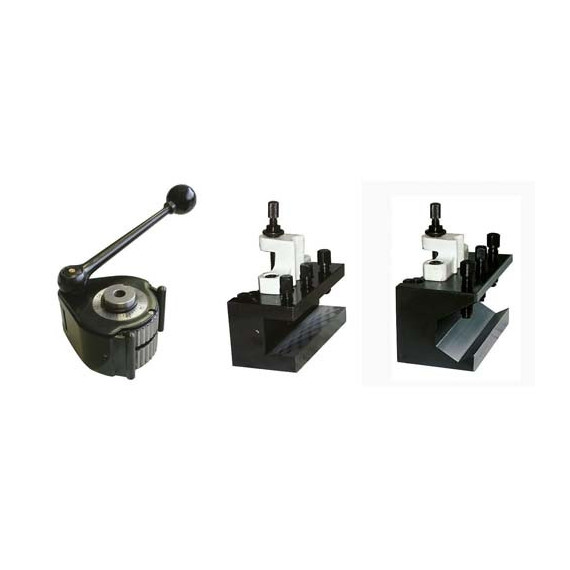

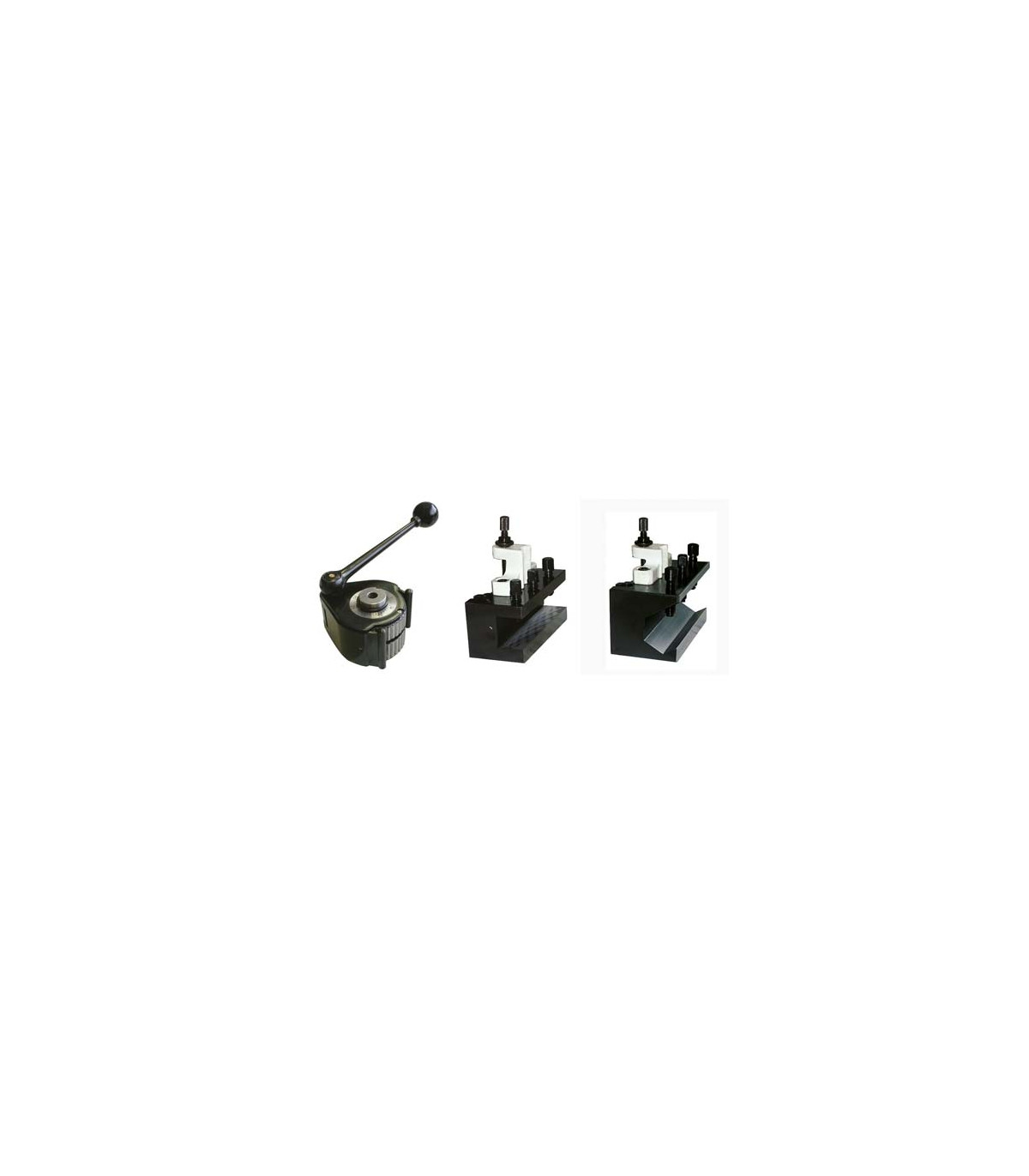

Quick change tool holder kit SWH AA OPTIMUM

Quick change tool holder kit SWH AA OPTIMUM. The SWH AA OPTIMUM tool holder kit offers 40 angular positions, height adjustment, and precise clamping. Ideal for machining and education.

FEATURES

• Angle scale on the steel support head
• 40 different angular positions
• Height adjustment via knurled screw
• Steel support head and steel holder with ground profile teeth
• Repeatable and backlash-free clamping of the interchangeable holder
• For self-assembly
• Includes: 1 AA tool holder head, 3 type D 12 x 50 tool holders for square blades, 1 type H 12 x 50 tool holder for round blades.
• Mounting not included FOR YOUR 1503V / 2004V

TECHNICAL SPECIFICATIONS

• Turning Ø 120 - 220 mm
• Max. lathe motor power 1 kW
• Width of square tool holder A 12 mm
• Max. round tool Ø B 12 mm
• Hole diameter (standard) C 13 mm
• Total width / height D 37 mm
• Total width square/round tool holder E 18 / 26 mm

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• 1 AA steel support head
• 3 steel holders 13 x 50 type D for square chisels
• 1 steel holder 13 x 50 type H for round chisel

FOR WHAT TYPE OF WORK IS IT SUITABLE

The SWH AA OPTIMUM quick change tool holder kit is suitable for:

• Machining parts
• Prototyping
• DIY
• Education
• Craft industry
