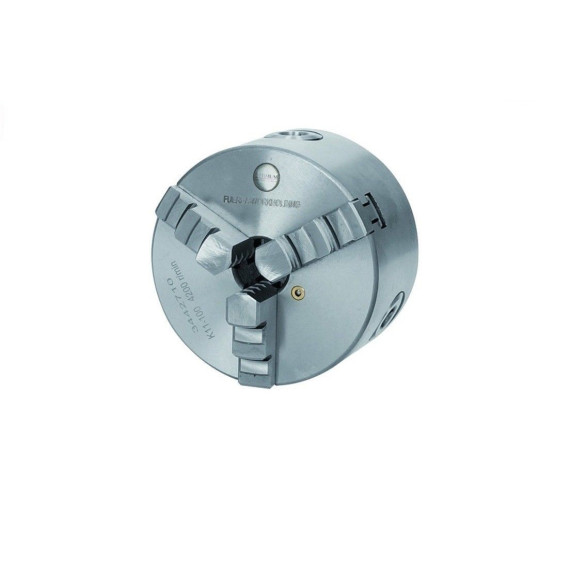

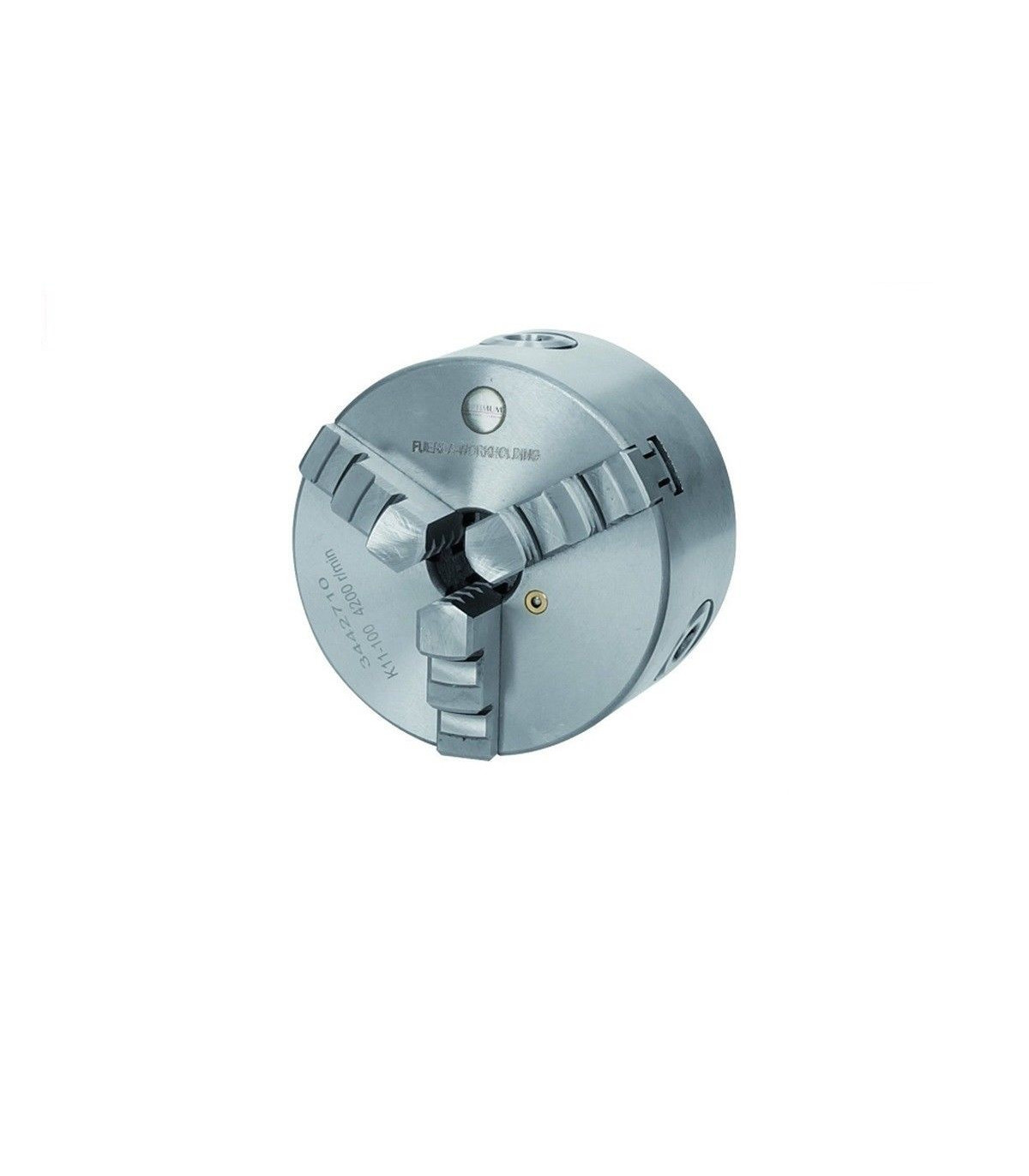

High precision 3-jaw chuck OPTIMUM

OPTIMUM high-precision 3-jaw chuck. The OPTIMUM high-precision 3-jaw chuck, with a diameter of 95 mm, is ideal for turning and milling. Made of cast iron, it offers maximum concentricity and a speed of 3200 min⁻¹.

FEATURES

• Cast iron chuck
• With cylindrical central mounting according to DIN 6350
• Includes chuck key
• Maximum concentricity equal to or better than DIN 6386
• Feeding flange required

TECHNICAL SPECIFICATIONS

• Chuck diameter 95 millimeters
• Bolt circle 108 millimeters
• Through hole 32 millimeters
• Height with jaws 76 millimeters
• Height without jaws 56 millimeters
• Chuck depth 4 millimeters
• Speed 3200 min¯¹
• VPE 1

Dimensions and weights

• Diameter 125 millimeters

WHAT TYPE OF WORK IS IT SUITABLE FOR

The OPTIMUM high-precision 3-jaw chuck is suitable for:

• Mechanics
• Metallurgy
• Turning
• Milling
• Part manufacturing
• Prototyping
• DIY
• Manufacturing industry

CERTIFICATION

- DIN 6386: The DIN 6386 standard refers to "Fastening elements: hexagon head screws with full thread." This standard establishes the technical specifications, dimensions, and characteristics of hexagon head screws that have threads along their entire length. It is commonly used in mechanical and construction applications, ensuring compatibility and proper performance in bolted joints.

- DIN 6350: The DIN 6350 standard refers to "Steel connectors for transmission chains." This standard specifies the dimensions and characteristics of the connectors used in chains, which are essential for the proper functioning of transmission systems in machinery. It includes details about the design, materials, and tolerances that these connectors must meet to ensure their durability and efficiency in industrial applications.
