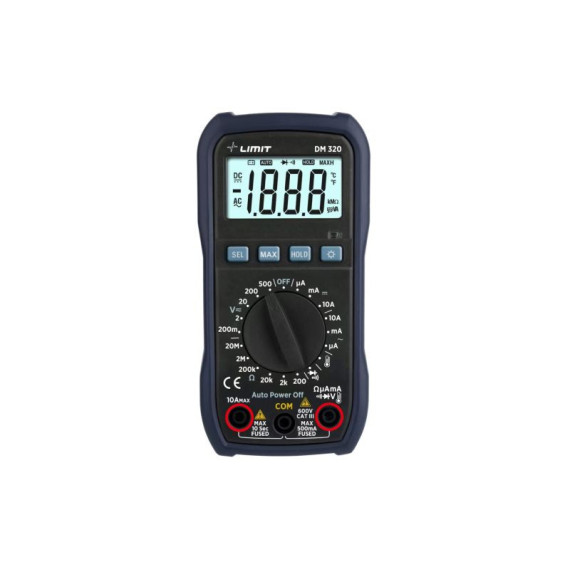

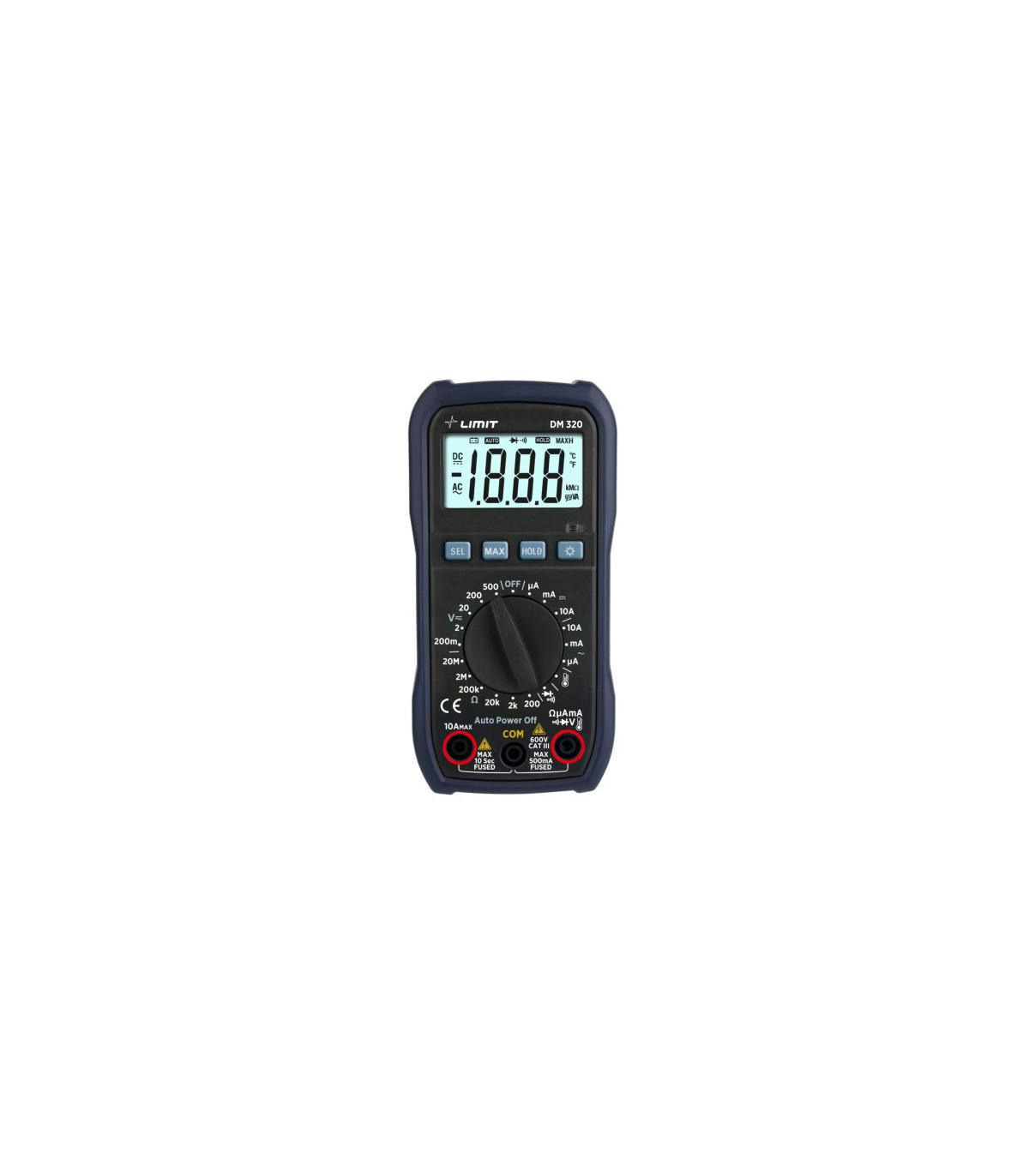

Digital Multimeter DM 320 Limit

The Limit digital multimeter DM 320 by Limit, code 289600009, is a measuring instrument that is highly versatile and reliable, becoming the best ally of electronics and electrical professionals when performing different measurements throughout their working day.

Among its functions it includes:

• Backlit LCD display with 18.5 mm digits
• Can measure AC/DC voltage/current, resistance, continuity, temperature °C / °F
• Diode test
• Data hold
• Maximum measurement
• Battery capacity indicator and automatic shut-off due to inactivity.

The Limit digital multimeter DM 320 features an ergonomic design, making it easy for the operator to grip and operate the buttons and the selector that controls the different functions. The digital display shows measurement values with large-sized digits, making them easy to read and reducing the likelihood of errors. If you are looking for a practical multimeter that guarantees accuracy in your measurements, with Safety Class III 600 V insulation, then this is your choice.

Supplied with: Rubber cover and foldable bench stand.

SPECIFICATIONS

• Battery: 1 x 9 V (6F22)
• AC Current (ACA): 200 µA - 10 A
• AC Current (ACA) resolution: 0.1 µA - 10 mA
• DC Current (DCA): 200 µA - 10 A
• DC Current resolution: 0.1 µA - 10 mA
• Dimensions: 147 x 74 x 46 mm
• Net weight: 200 g
• Resistance: 200 Ω - 20 MΩ
• Resistance resolution: 0.1 Ω - 10 kΩ
• Temperature: -20 °C - +750 °C
• Temperature resolution: 1 °C
• AC Voltage: 200 mV - 500 V
• AC Voltage resolution: 0.1 mV - 100 mV
• DC Voltage: 200 mV - 500 V
• DC Voltage resolution: 0.1 mV - 1 V
