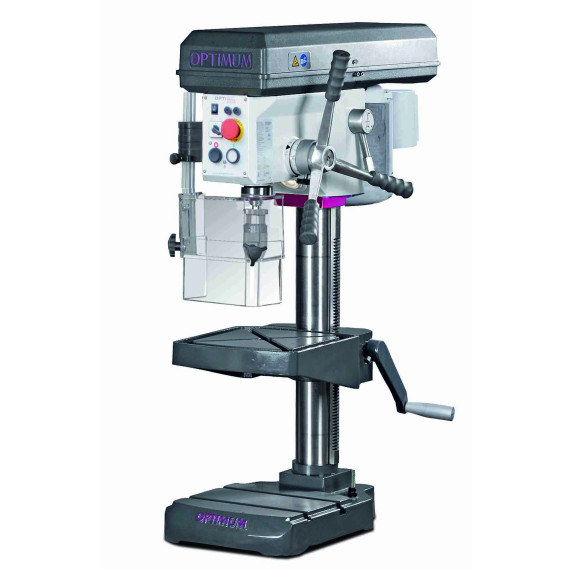

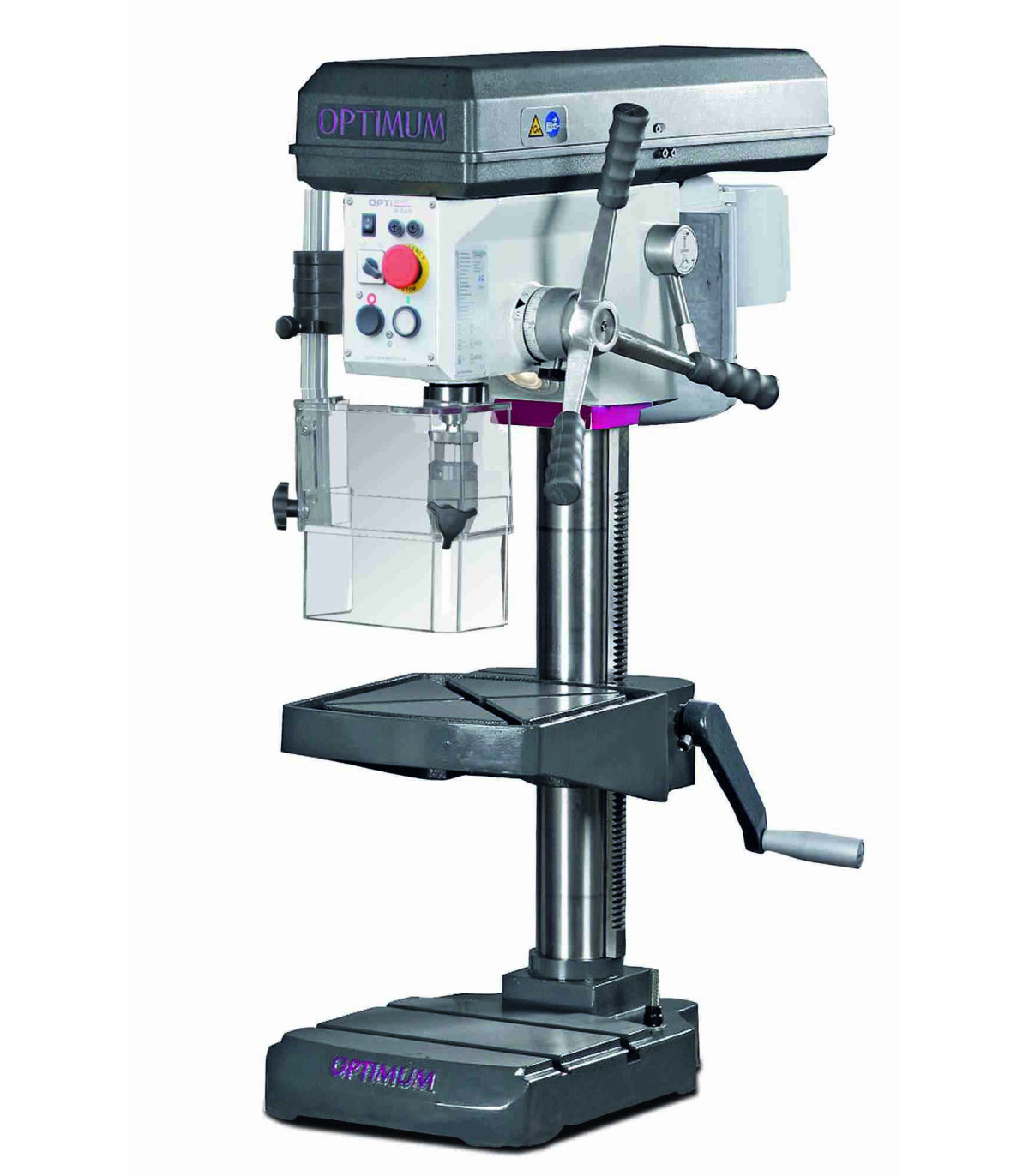

Opti 230V B24H Column Drill OPTIMUM

FEATURES

• Smooth and powerful industrial electric motor.
• Independent emergency stop impact switch
• Stable cast column
• Drilling depth measurement scale
• Precision machined drilling table with diagonal T-slots and circumferential cooling water channel
• 360° rotating drilling table

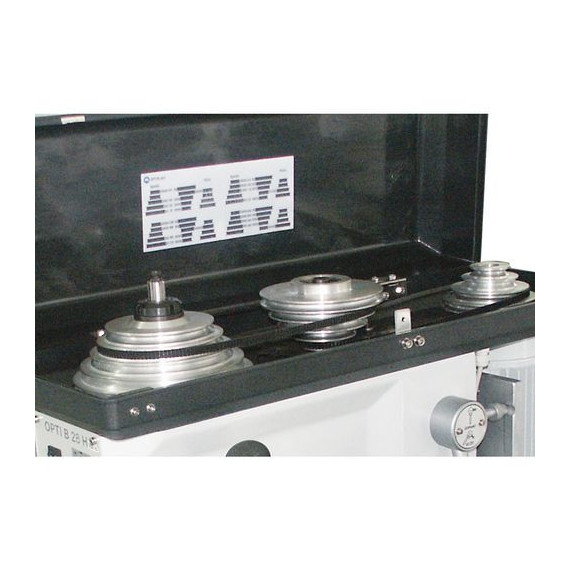

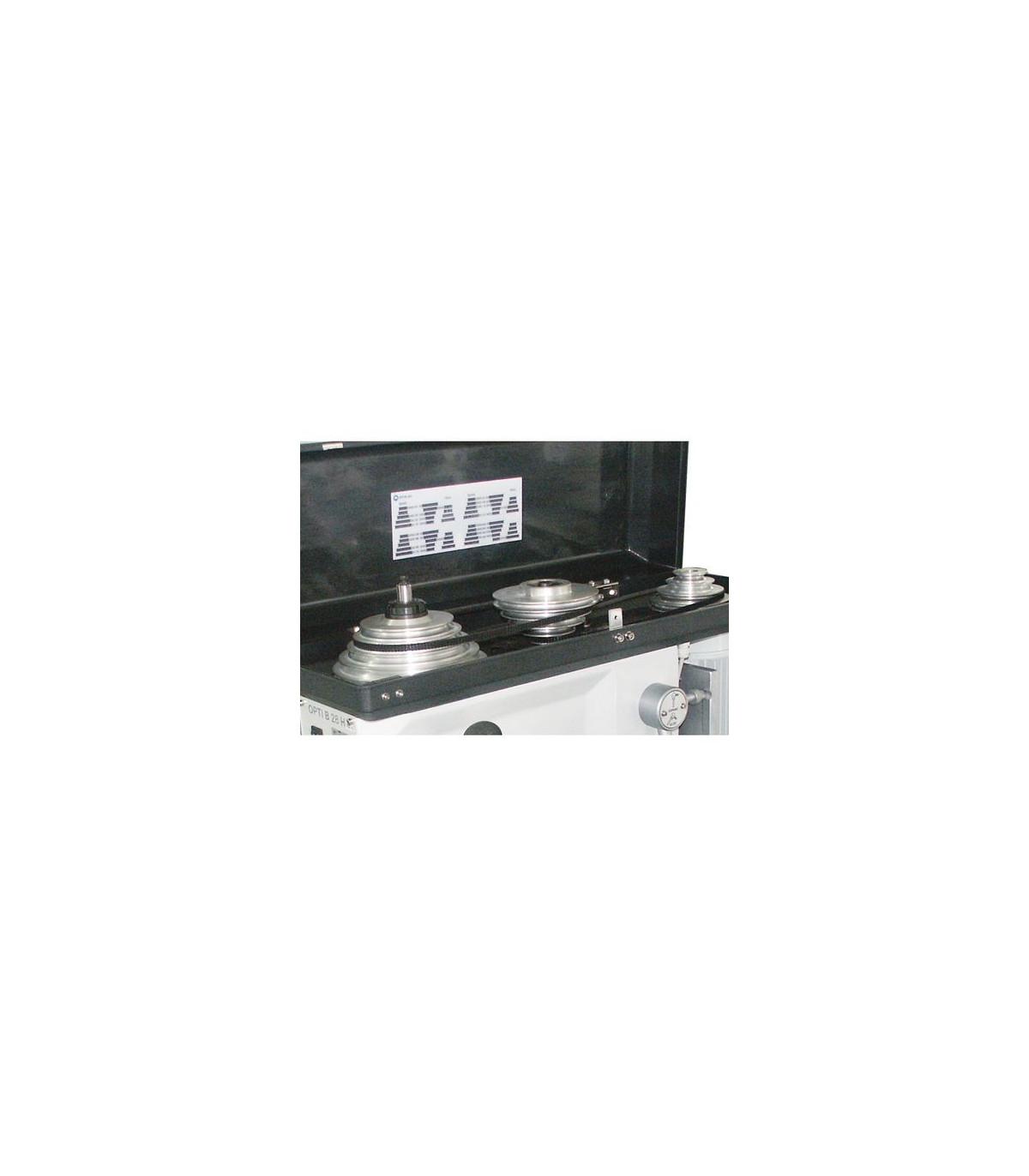

• Trapezoidal belt cover with safety switch
• Quick clamping device for trapezoidal belt
• Ergonomic and long aluminum die-cast handle, cast in one piece (B 16H / B 24H with soft grip handles)
• Large and solid base plate with strong grooves and ribs on the back.
• When rotating the drilling table, the base plate can be used as a working surface for especially tall pieces.
• Guaranteed concentricity measured better than 0.015 mm on the drill axis
• Drill spindle with precision ball bearings
• High-quality OPTIMUM quick clamping chuck included in standard supply
• Large, height-adjustable protective screen with safety switch

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Column diameter 80 millimeters
• Approximate length 665 millimeters
• Approximate width/depth 434 millimeters
• Approximate height 998 millimeters
• Approximate weight. 92 kilograms

Drilling performance

• High-performance steel for drilling (S235JR) 24 millimeters
• High-performance steel for continuous drilling (S235JR) 20 millimeters

Drilling table

• Working space length 280 millimeters
• Working space width 300 millimeters
• Type of T-slot diagonal
• T-slot size 14 millimeters
• Rotation 360°
• Maximum distance between spindle and drilling table 515 millimeters

Electrical data

• Power supply voltage 230 V
• Network frequency 50 Hz

Machine base

• Maximum distance from spindle to machine base 590 millimeters
• Working area length 280 millimeters
• Working area width 260 millimeters
• T-slot size of the machine base 14 millimeters
• Number of T-slots on the machine base 2
• T-slot spacing on the machine base 120 millimeters

Motor(s)

• Spindle motor drive output 0.85 kW
• Number of spindle motor gears 1 Steps
• Speed range
• Speed range 350 – 4000 min¯¹
• Number of gears 7 steps

Spindle

• Stroke 85 millimeters
• Spindle chuck MK 2
• Reach 165 millimeters
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Keyless chuck (1 - 16 mm)
• Morse taper MK2 / B16
• T-nuts

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Opti 230V B24H OPTIMUM column drill is suitable for:

• Metallurgical industry
• Machinery manufacturing
• Machining workshops
• Metal drilling
• Production of custom parts
• Industrial maintenance
• Advanced DIY projects
