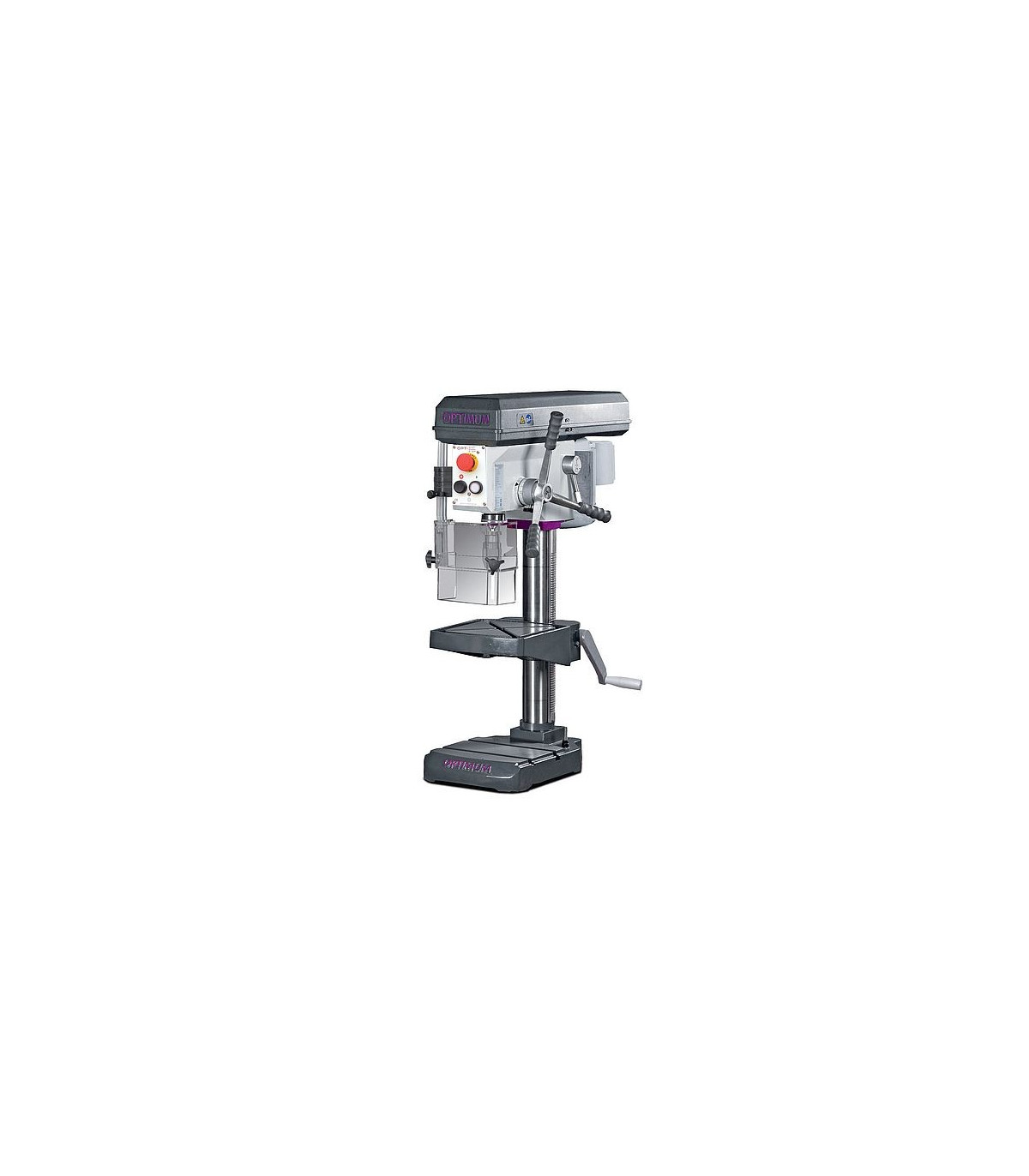

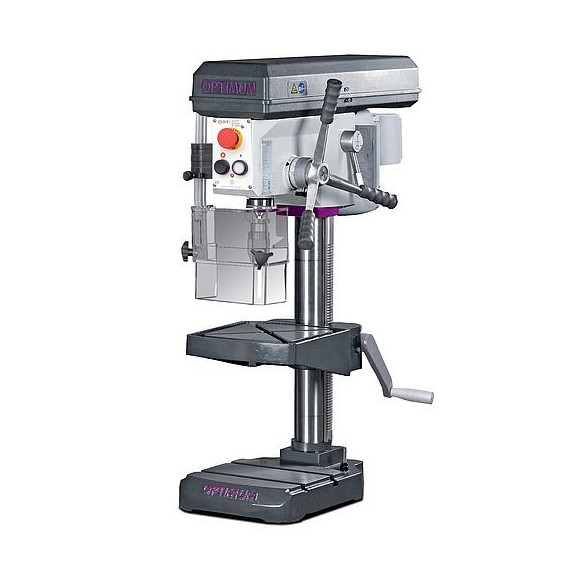

Opti 400V B16H OPTIMUM Bench Drill

Opti 400V B16H OPTIMUM Bench Drill. The Opti 400V B16H OPTIMUM bench drill stands out for its powerful and smooth electric motor, emergency stop switch, and precision-machined drilling table with T-slots. It offers superior precision, with concentricity better than 0.015 mm and a 360° rotating table. Its design includes a secure trapezoidal belt cover and an ergonomic lever, as well as a robust base plate that facilitates work with tall pieces.

FEATURES

• Smooth and powerful industrial electric motor.
• Independent emergency stop impact switch
• Stable cast column
• Drilling depth measurement scale
• Precision-machined drilling table with diagonal T-slots and circumferential cooling water channel
• 360° rotating drilling table
• Trapezoidal belt cover with safety switch
• Quick clamping device for trapezoidal belt
• Ergonomic and long aluminum die-cast handle, cast in one piece (B 16H / B 24H with soft grip handles)
• Large and solid base plate with strong slots and ribs on the back.
• When rotating the drilling table, the base plate can be used as a working surface for especially tall pieces.
• Guaranteed concentricity measured better than 0.015 mm on the drill axis
• Drill spindle with precision ball bearings
• High-quality OPTIMUM quick-clamping chuck included in the standard supply
• Large height-adjustable protective screen with safety switch

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Column diameter 60 millimeters
• Approx. length 549 millimeters
• Approx. width/depth 300 millimeters
• Approx. height 848 millimeters
• Approx. weight 54 kilograms
• Drilling performance
• High-performance steel for drilling (S235JR) 13 millimeters
• High-performance steel for continuous drilling (S235JR) 11 millimeters

Drilling table

• Working space length 230 millimeters
• Working space width 245 millimeters
• Type of T-slot diagonal
• T-slot size 12 millimeters
• Rotation 360°
• Maximum distance between spindle and drilling table 370 millimeters

Electrical data

• Power supply voltage 400 volts
• Network frequency 50 Hz

Machine base

• Maximum distance from spindle to machine base 495 millimeters
• Working area length 200 millimeters
• Working area width 240 millimeters
• T-slot size of the machine base 12 millimeters
• Number of T-slots on the machine base 2
• Spacing of T-slots on the machine base 80 millimeters

Motor(s)

• Spindle motor drive output 0.55 kW
• Number of spindle motor gears 1 step
• Speed range
• Speed range 450 – 3500 min¯¹
• Number of gears 5 steps

Spindle

• Stroke 65 millimeters
• Spindle chuck MK 2
• Reach 130 millimeters
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Keyless chuck (1 - 13 mm)
• Morse taper MK2 / B16
• T-nuts

WHAT TYPE OF WORK IS IT SUITABLE FOR

The Opti 400V B16H OPTIMUM bench drill is suitable for:

• Metallurgical industry
• Machinery manufacturing
• Machining workshops
• Metal drilling
• Production of custom parts
• Industrial maintenance
• Advanced DIY projects
