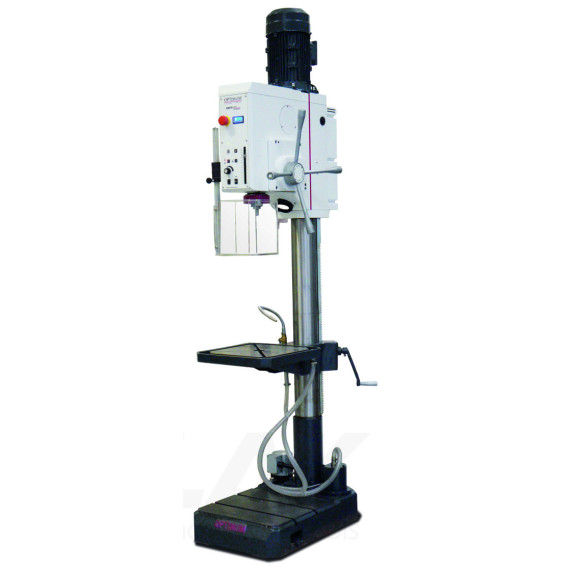

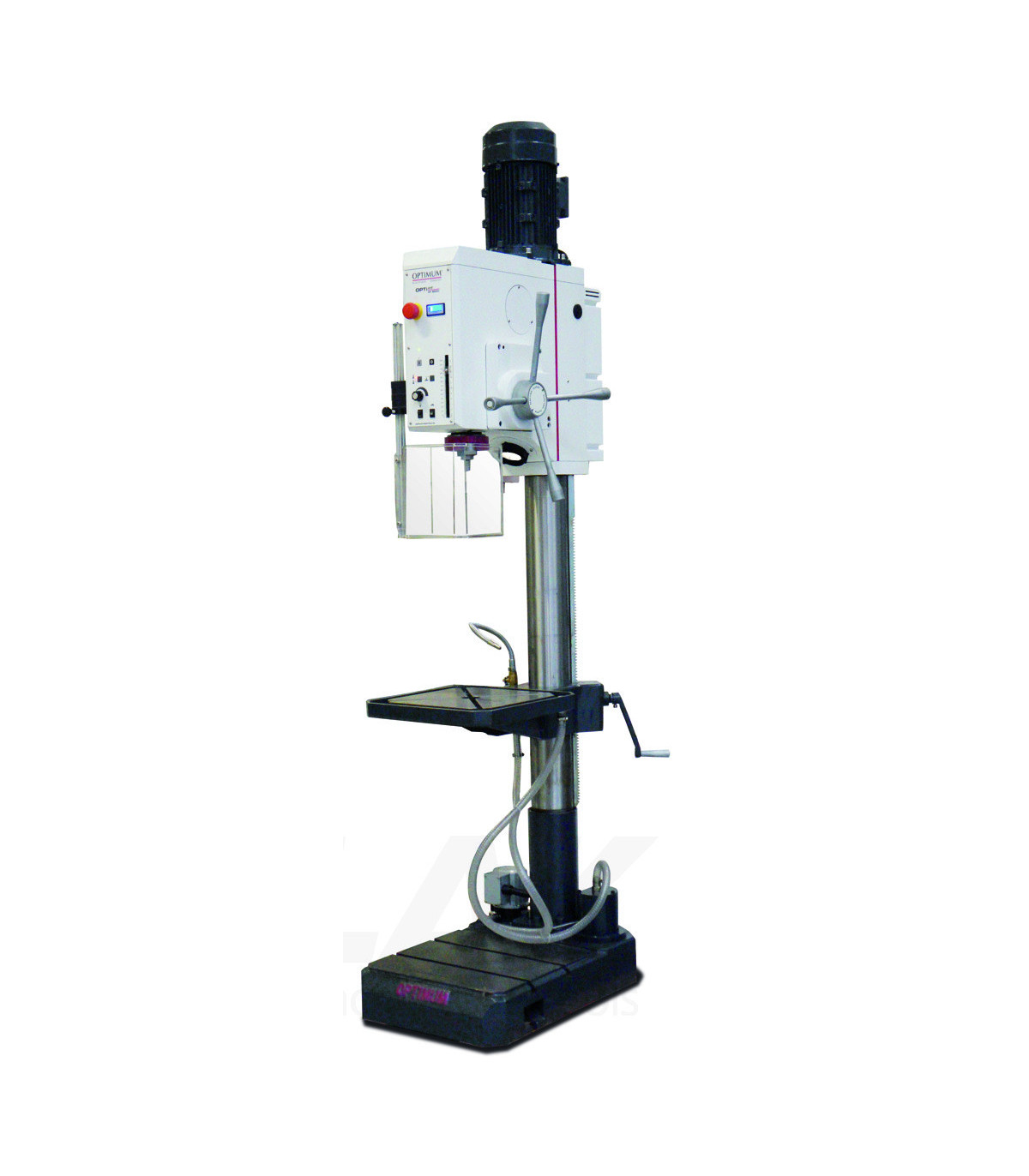

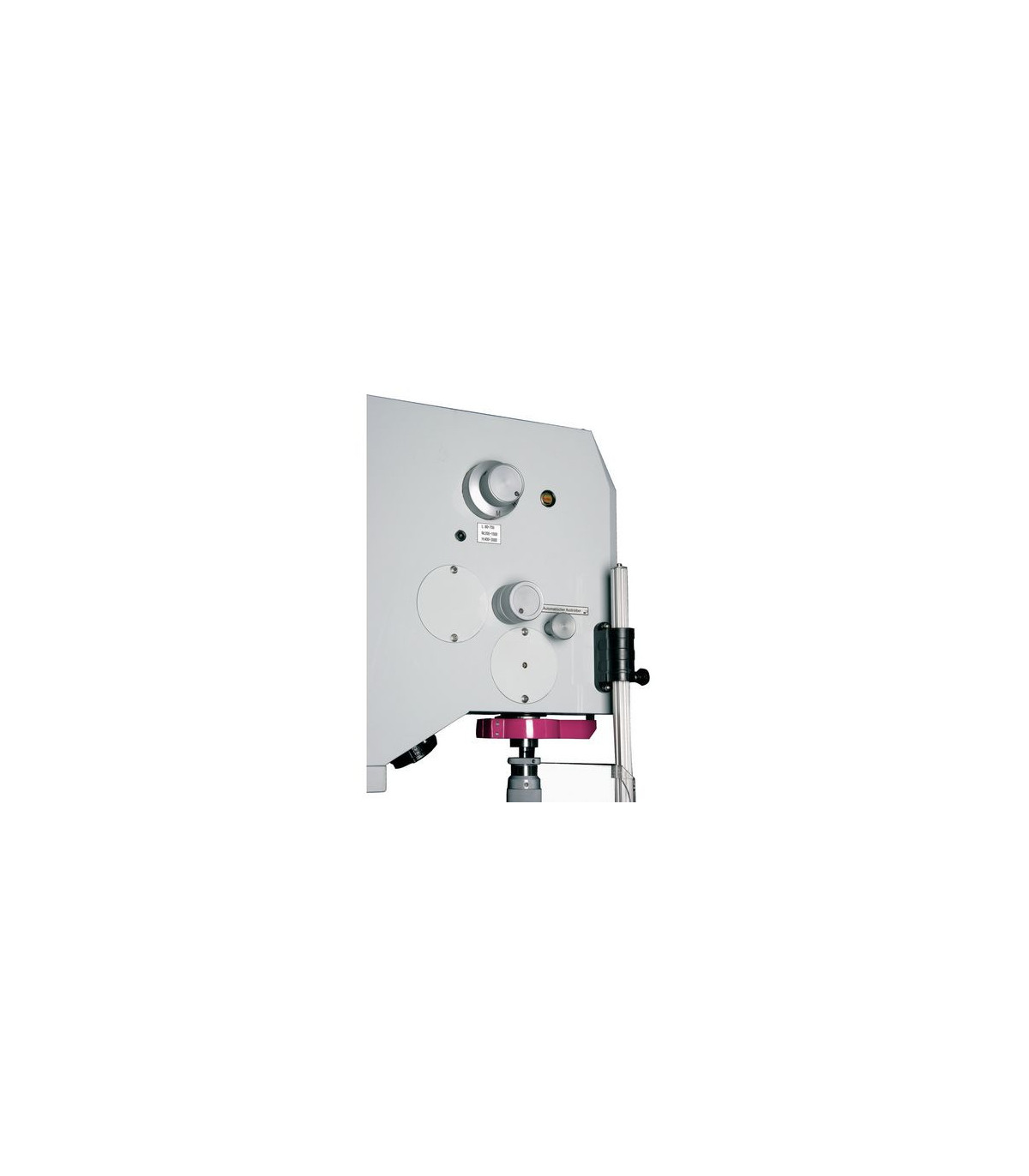

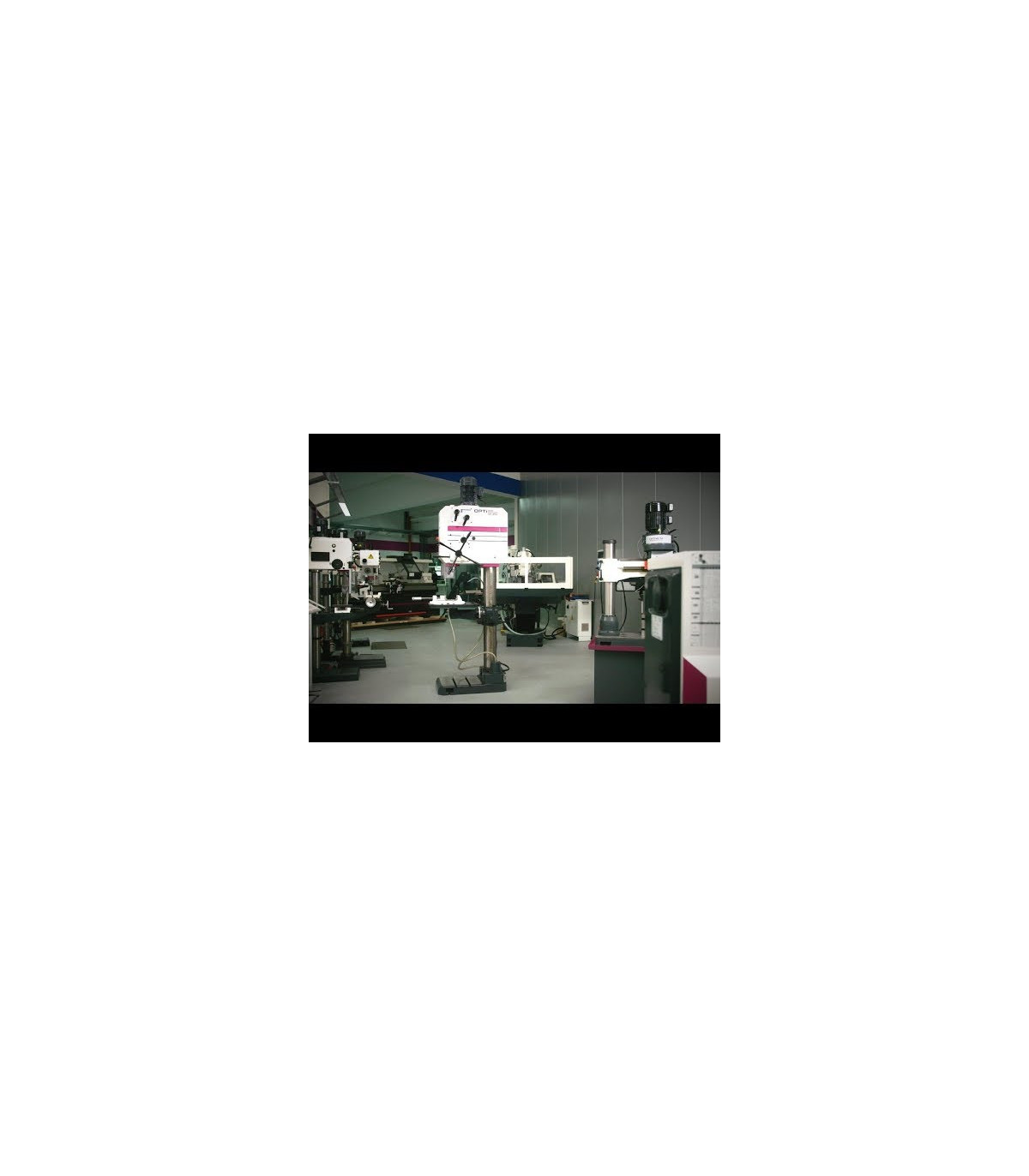

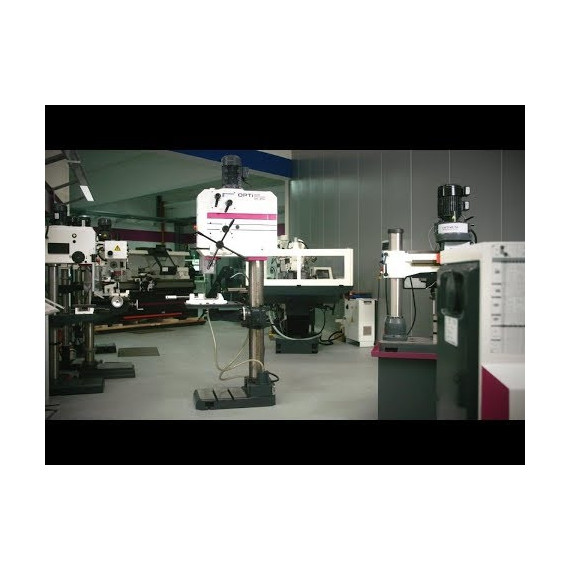

Column drill with speed variator DH 32 GSV OPTIMUM

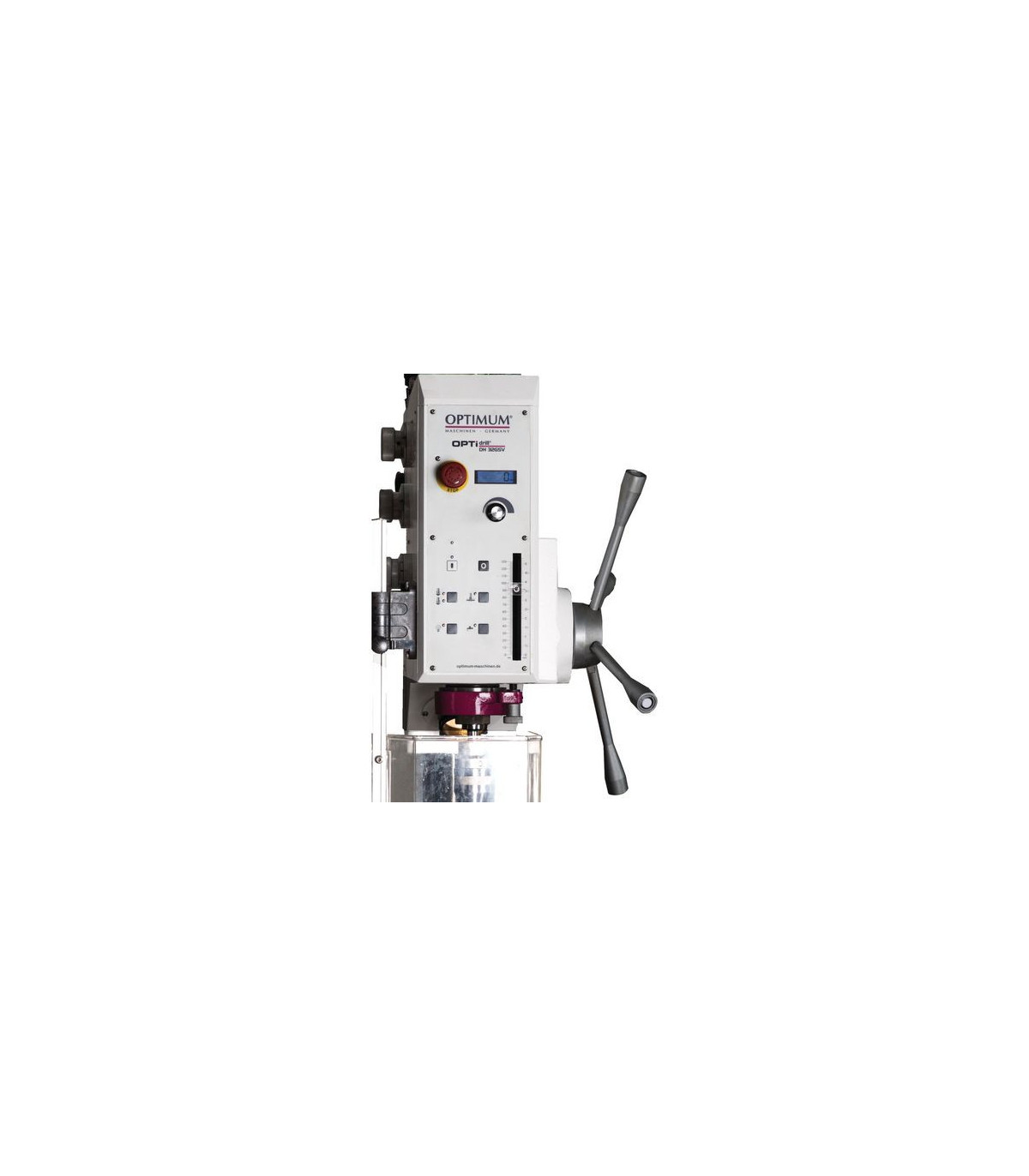

Column drill with speed variator DH 32 GSV OPTIMUM. The DH 32 GSV OPTIMUM column drill stands out for its frequency converter and easy-to-use membrane keypad. It offers a wide range of speeds, smooth operation, and high concentricity. Its solid cast construction and machined table ensure precision, while the digital display and integrated light enhance operability. Additionally, it features an adjustable depth stop and an ejector for easy tool changes, providing safety and comfort to the user.

FEATURES

• Frequency converter

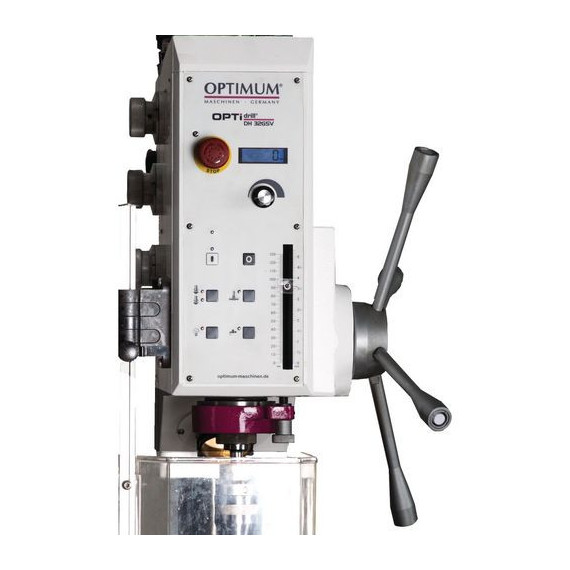

• Easy-to-use membrane keypad
• Digital speed display
• Touch function
• Smooth operation thanks to the ground multi-tooth screwdriver
• High concentricity thanks to the tempered and ground main spindle
• Low-maintenance gearbox with grease lubrication
• Gearbox with PA6 gears
• Wide speed range
• Easy-to-use membrane keypad
• Solid and heavy cast construction
• Large height-adjustable protective screen with safety switch for maximum user protection.
• Adjustable drilling depth stop with millimeter scale
• Forward/reverse operation
• Integrated machine light in the drilling head

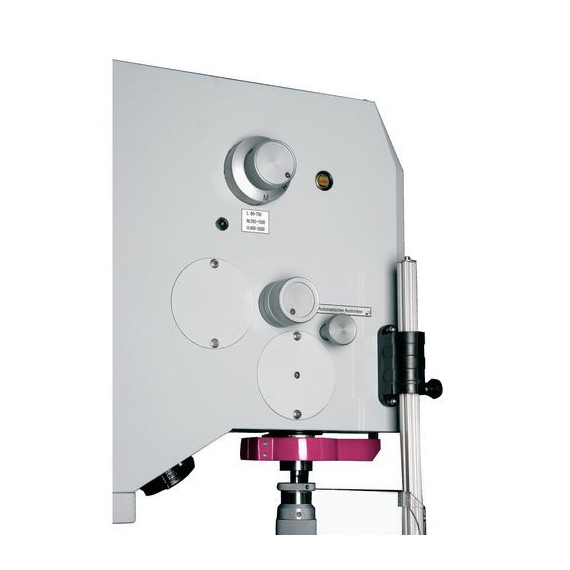

• Integrated ejector for easy tool changes
• Precision machined drilling table with diagonal T-slots and surrounding cooling water channel
• Thick-walled cast iron column for high power absorption and stability
• Massive base plate, large dimensions, and strong ribs on the back.
• Optional foot switch available to switch between right-left rotation and thread cutting.

OPTIdrill DH 32GSV

• Automatic quill feed
• Cooling device and chip filter according to the Machinery Directive

TECHNICAL SPECIFICATIONS

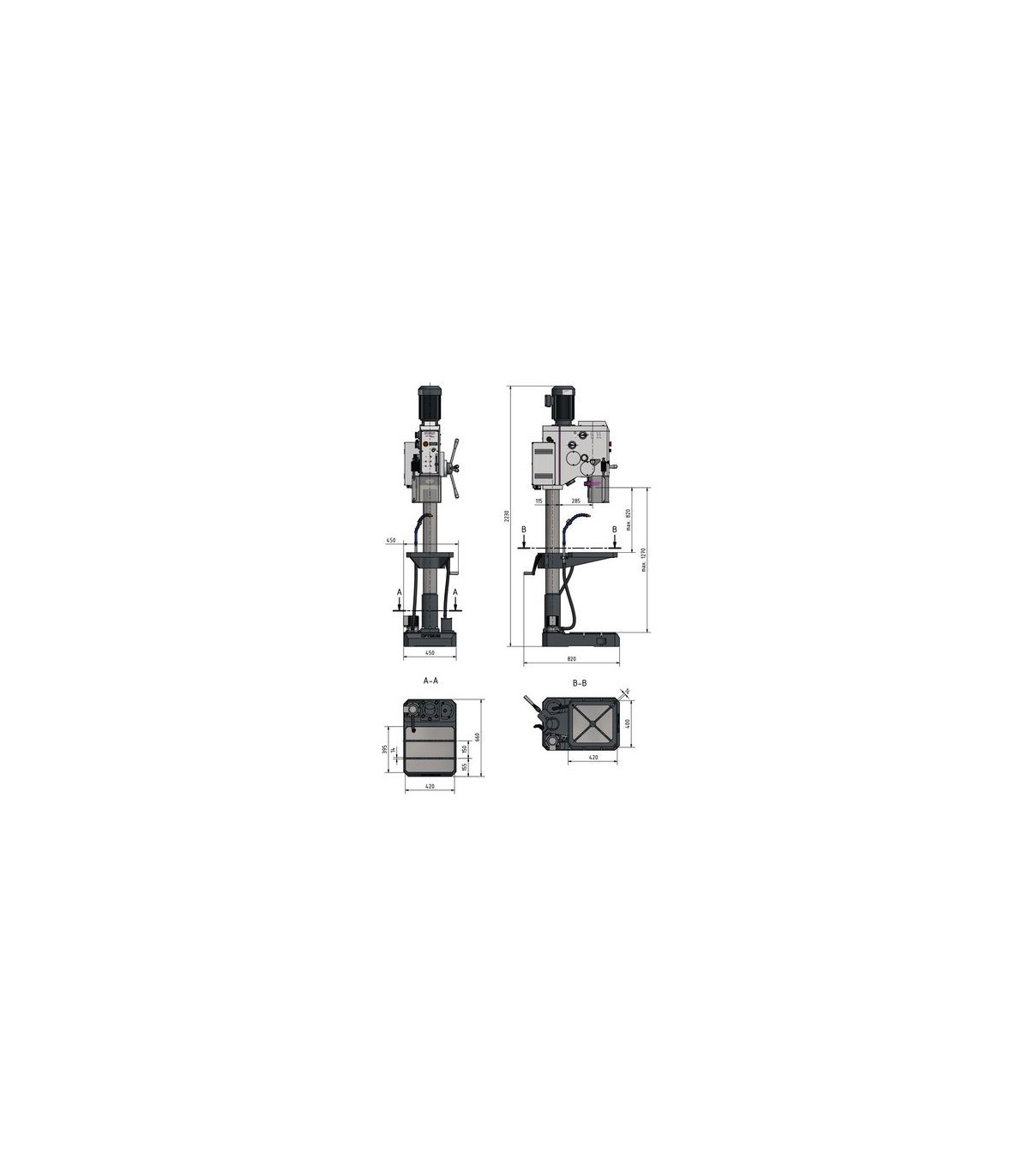

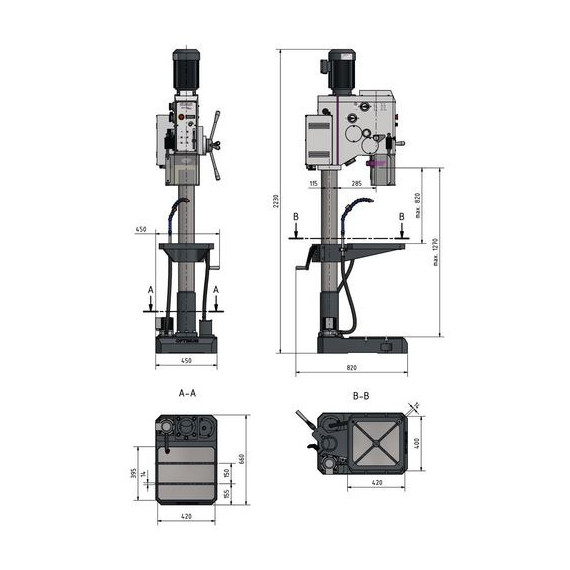

Dimensions and weights

• Column diameter 115 millimeters
• Approx. length 820 millimeters
• Approx. width/depth 450 millimeters
• Approx. height 2230 millimeters
• Approx. weight 324 kilograms

Drilling performance

• High-performance steel for drilling (S235JR) 30 millimeters
• High-performance steel for continuous drilling (S235JR) 26 millimeters
• Steel for threading (S235JR) M 16 x 2 mm

Drilling table

• Working space length 400 millimeters
• Working space width 420 millimeters
• T-slot type diagonal
• T-slot size 14 millimeters
• Number of T-slots 2
• Rotation 360°
• Load capacity 120 kilograms
• Maximum distance between spindle and drilling table 820 millimeters

Electrical data

• Supply voltage 400 volts
• Network frequency 50 Hz

Machine base

• Maximum distance from spindle to machine base 1270 millimeters
• Length of working area 420 millimeters
• Width of working area 395 millimeters
• T-slot size of machine base 14 millimeters
• Number of T-slots on machine base 2
• T-slot spacing on machine base 150 millimeters

Motor(s)

• Spindle motor drive output 2.2 kW
• Coolant pump drive motor output 40 watts

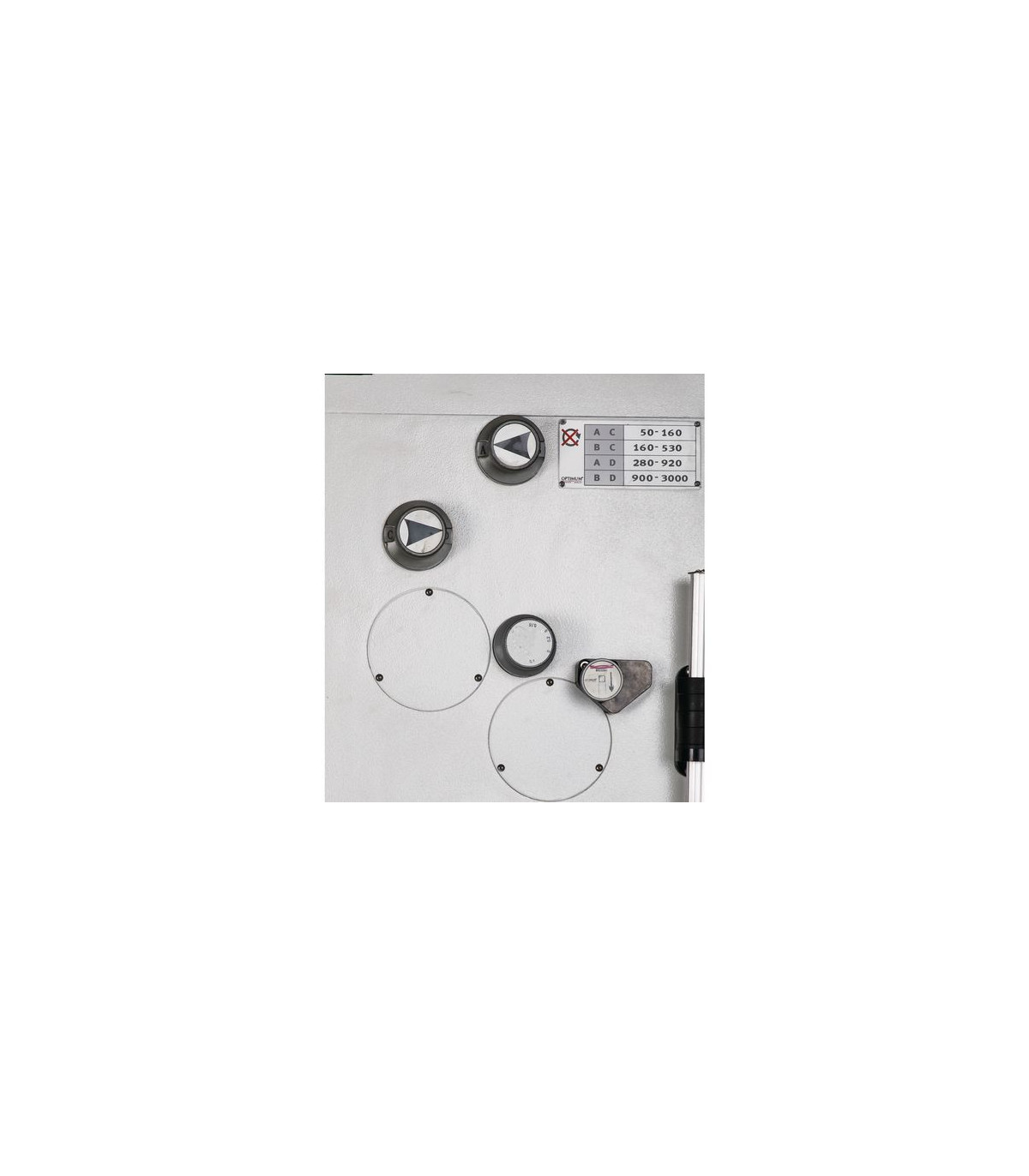

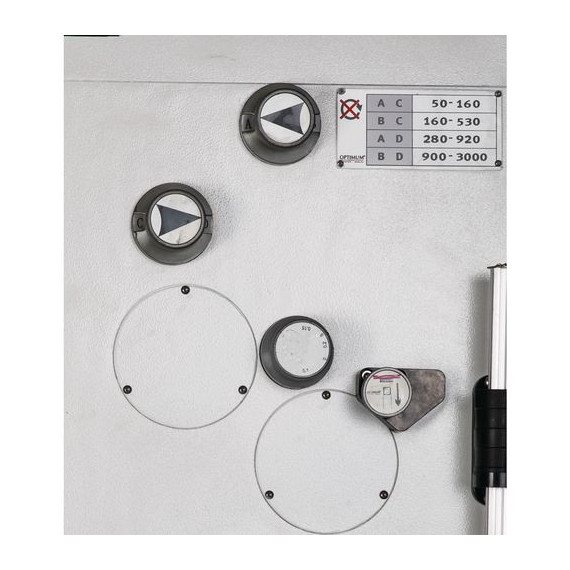

Speed range

• Speed range 40 – 3000 min¯¹
• Number of gears 4 steps
• Speed control electronically adjustable

Spindle

• Quill stroke 125 millimeters
• Spindle chuck MT 4
• Reach 285 millimeters
• Quill feed speed 0.05 / 0.1 mm/rev

Standards and certifications

• Standard DIN EN 55011
• EMC class C2
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

Adapter MK4-B16

FOR WHAT TYPE OF WORK IT IS SUITABLE

The column drill with speed variator DH 32 GSV OPTIMUM is suitable for:

• Metallurgy
• Machining workshops
• Wood industry
• Prototype manufacturing
• Craftsmanship
• Repair

CERTIFICATION

- DIN EN 55011: The DIN EN 55011 standard refers to the specifications for electromagnetic compatibility (EMC) of industrial, scientific, and medical equipment. It ensures that equipment does not interfere with other electronic devices and is resistant to external interference, thus protecting both the equipment and users.
