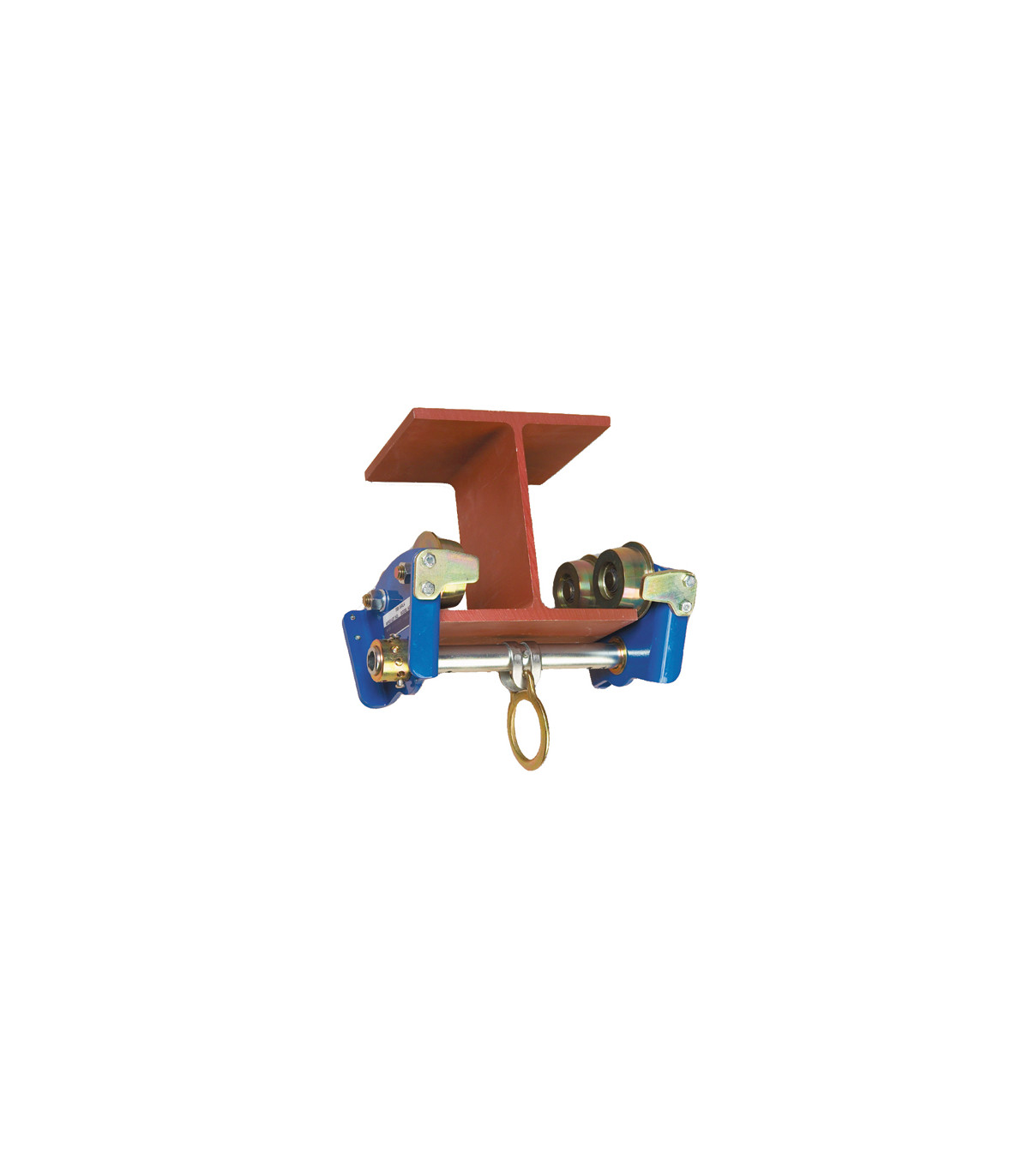

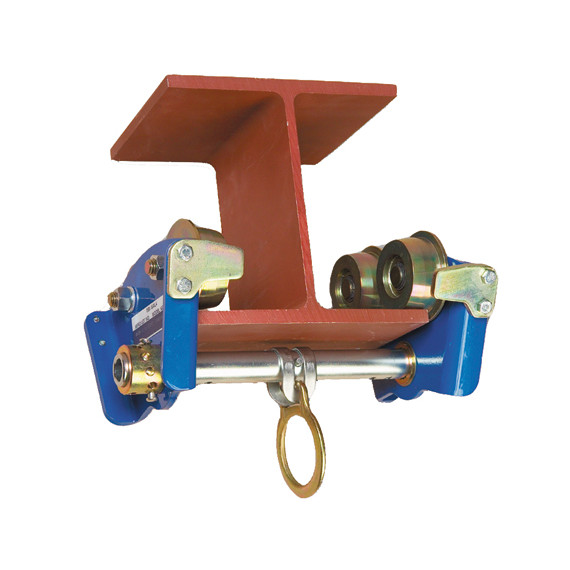

Adjustable car anchor for IPN in I beam 3M DBI-SALA

Adjustable car anchor for IPN on I beam 3M DBI-SALA. Beams size 7.6 - 20.3 cm and steel thickness of 1.7 cm.

Net weight: 6.8 Kg

Read moreShow less
€1,043.63
€1,043.63 (TAX incl.)
€862.50 (no TAX)

Order it before 23:59 and receive it between 03/09/2026 and 04/09/2026 with Agencia de transporte

Reference:
2103148 - 7100309980

SECURE PAYMENT WITH

Pay in 3 interest-free installments with

(not applicable to companies)
more information

SHIPMENTS

from 3,99€ + VAT. Free from €150 +VAT

EXCHANGES AND RETURNS

Free up to 14 days after purchase, excluding personalized and made-to-order products

EXCHANGES AND RETURNS

WE HELP YOU

+34 876 43 01 24
info@sekureco.eu

You may also like
Description

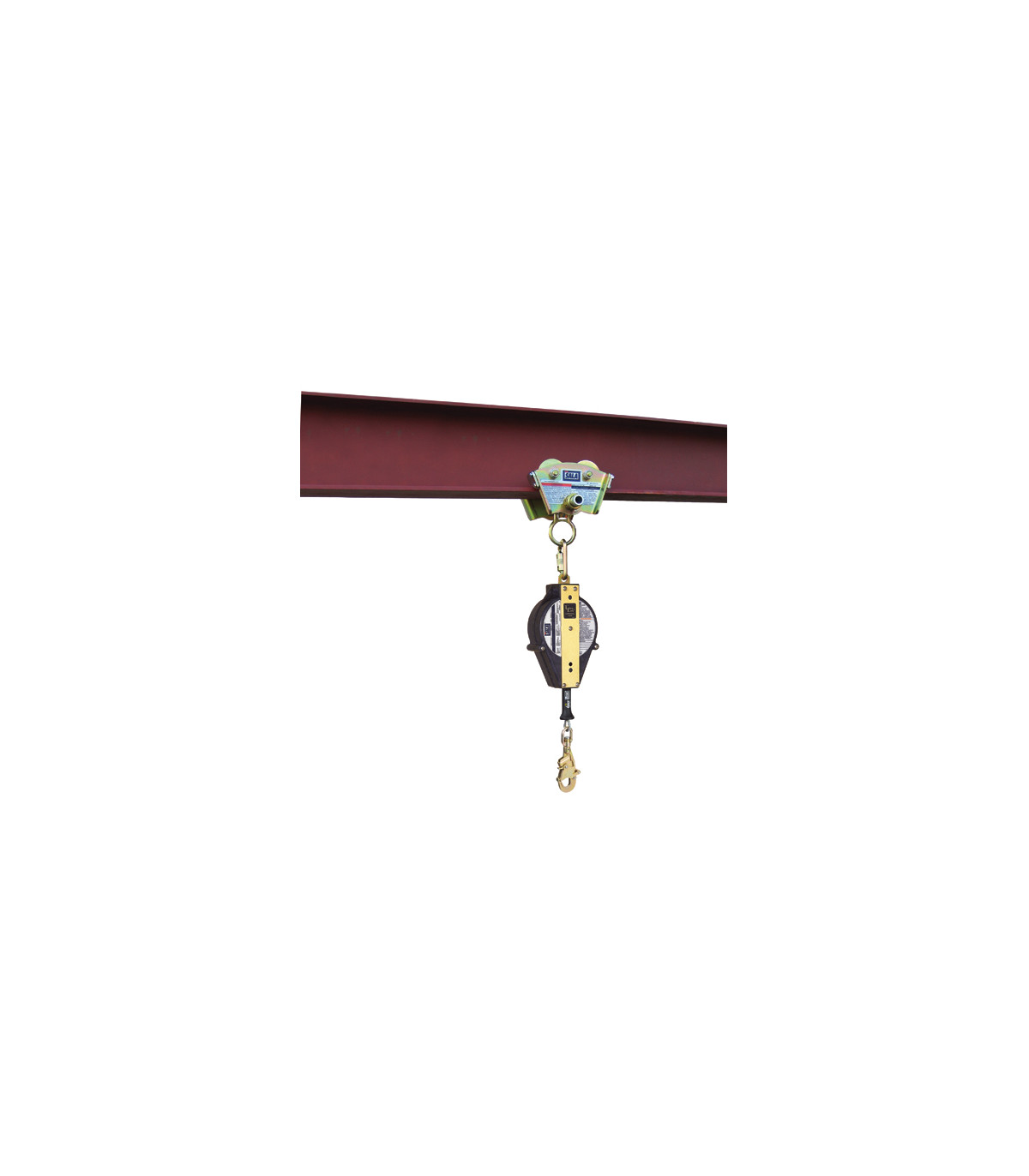

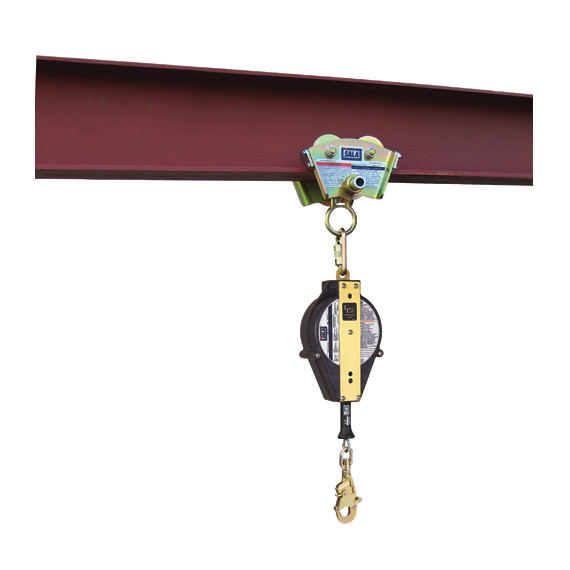

Adjustable trolley anchor for IPN on I beam 3M DBI-SALA. The trolley is used with retractable fall protection systems on horizontal beams and has been designed to offer ease of use and superior performance.

Please confirm with Sekureco.eu the approximate delivery date.

FEATURES

  • Suitable for fall arrest equipment.
  • Beam flange from 76 mm to 203 mm wide.
  • Can be attached to the mid-span of the beam.
  • Large fixed attachment eye, 56 mm internal diameter.
  • Marked with batch reference for easier quality assurance traceability.
  • This beam trolley is CE marked and complies with EN795 Class B standards.

BENEFITS

  • Suitable for all fall arrest equipment.
  • Beam flange from 76 mm to 203 mm wide.
  • Can be attached to the middle of the beam.
  • Large fixed attachment eye, 56 mm internal diameter.
  • Marked with batch reference for easier quality assurance traceability.
  • This beam trolley is CE marked and complies with EN795 Class B standards.

APPLICATIONS

  • To reduce hazards associated with working at height that, if not avoided, can lead to serious injury or death.
  • A very suitable mobile anchor point for all fall arrest items.
  • Particularly suitable for larger self-retracting lifelines.

TECHNICAL DATA

TROLLEY FRAME MATERIAL

Powder-coated steel

LOAD BAR

Steel alloy

ACCESSORY EYE

Forged steel, galvanized with yellow passivation (internal diameter 56 mm)

HEIGHT

215 mm

WIDTH

295 mm

LENGTH

225 mm

FLAT BEAM OR CONICAL FLANGE WIDTH

Minimum - 76 mm Maximum - 203 mm Maximum 17 mm thickness

MAXIMUM RADIUS THE TROLLEY CAN FOLLOW

1.2 m

NUMBER OF USERS PER DEVICE

1

NET WEIGHT

6.8 kg

CE MARK

EN795 class B

TENSILE STRENGTH

22.2 kN

RATING

Quality control batch number

REGULATIONS

This beam trolley is CE marked and complies with EN795 Class B standards.
