Adjustable aluminum anchor point for metal beam SAFETOP

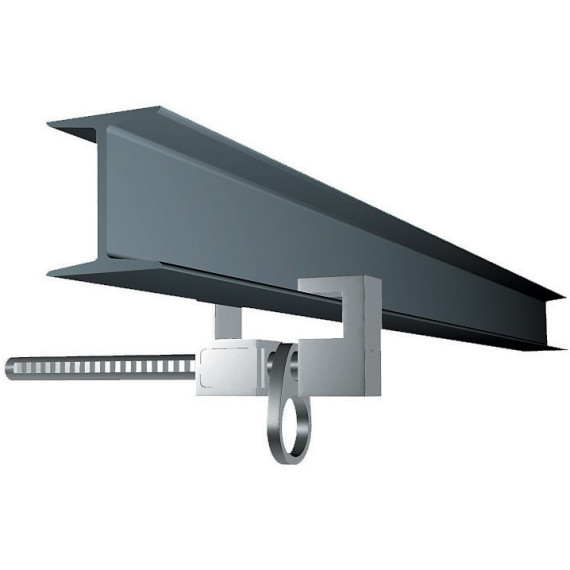

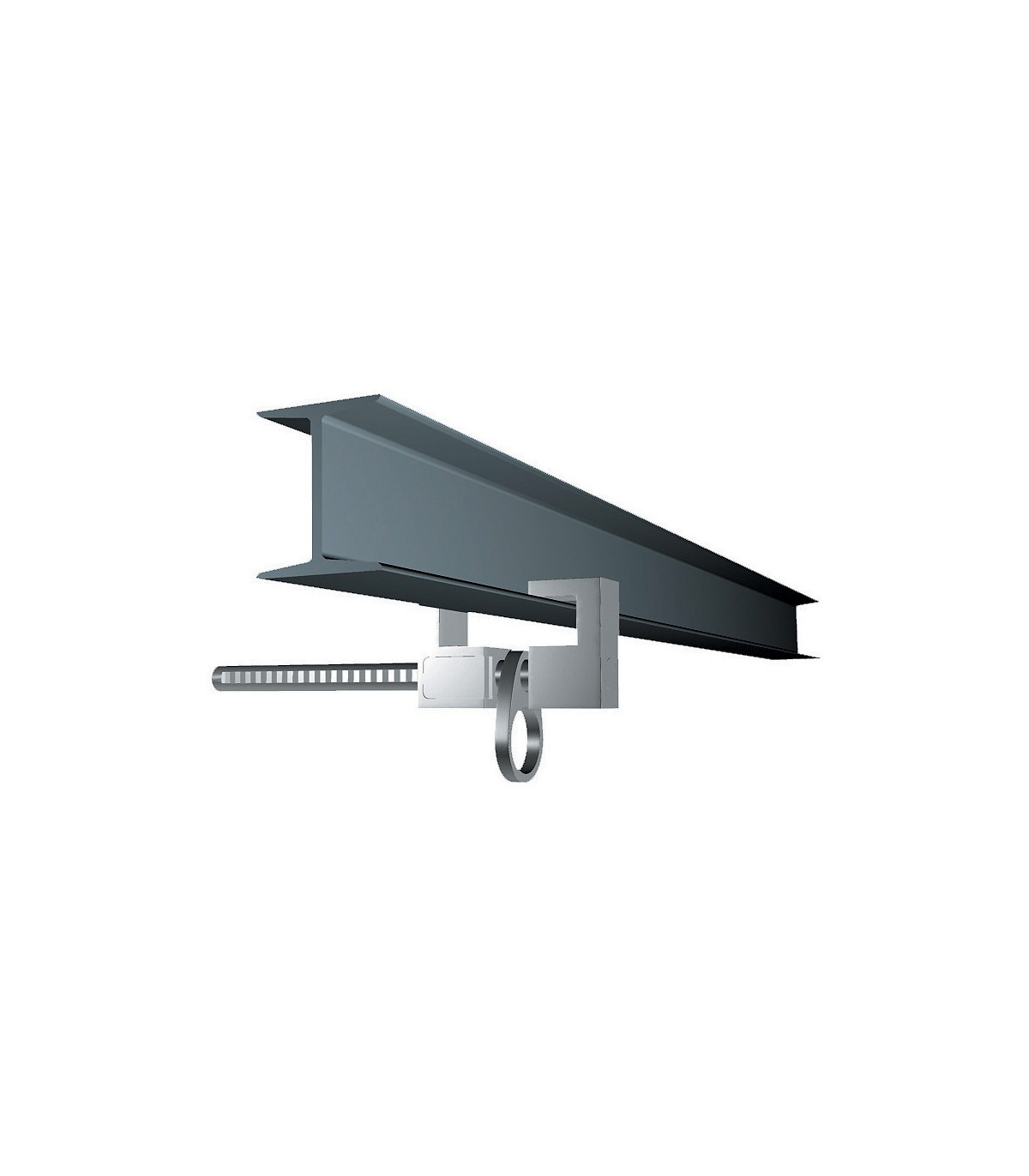

Adjustable aluminum anchor point for SAFETOP metal beam. The adjustable aluminum anchor point for SAFETOP metal beam is a category III anchorage device, designed to fit aluminum beams with a strength of 10 kN. Its cylindrical structure features 23 teeth that allow for adjusting the distance between the claws, which varies between 95 and 400 mm.

This device includes two claws, one fixed and one movable, which facilitate installation and adjustment. On the face of the movable claw, there is a latch that allows for easy adjustment of the distance between the claws. Additionally, a cylindrical piece acts as an anchoring element for the worker, ensuring safety and versatility in work at height.

FEATURES

• EPI category III.
• Anchorage device to adapt to aluminum beams.
• Strength: 10 kN.
• Composed of a cylindrical structure with 23 teeth that provide distances between the two claws ranging from 95 to 400 mm.
• Two claws, one movable and one fixed at one end of the cylinder.
• On one face of the movable claw, there is a latch
• that, when pressed, allows for changing the distance between claws.
• A cylindrical piece that acts as an anchoring element for the worker.

APPLICATIONS

The adjustable aluminum anchor point for SAFETOP metal beam is suitable for:

Aluminum beams

TECHNICAL DATA

• Diameter of the central circle of the anchoring piece: 5 cm.
• Length of the cylindrical piece: 44.5 cm.
• Total height of the claws: 3.5 cm.
• Central opening of the claws:
• 3.5 cm high
• 3.5 cm deep
• 4.5 cm wide
• Weight: approx. 1.5 kg
• Strength: 10 kN
• Material: aluminum

STANDARDS

- EN 795 Class B: The EN 795 Class B standard establishes safety requirements for anchorage systems used in work at height, ensuring their strength and reliability to protect workers.

REVIEWS AND LIFETIME

Reviews: the equipment must be reviewed every 12 months by an authorized person or by the manufacturer. Inspections must be recorded in the review sheet attached to the PPE along with the instruction manual.

See the instruction manual to identify the maximum lifetime of the equipment.
