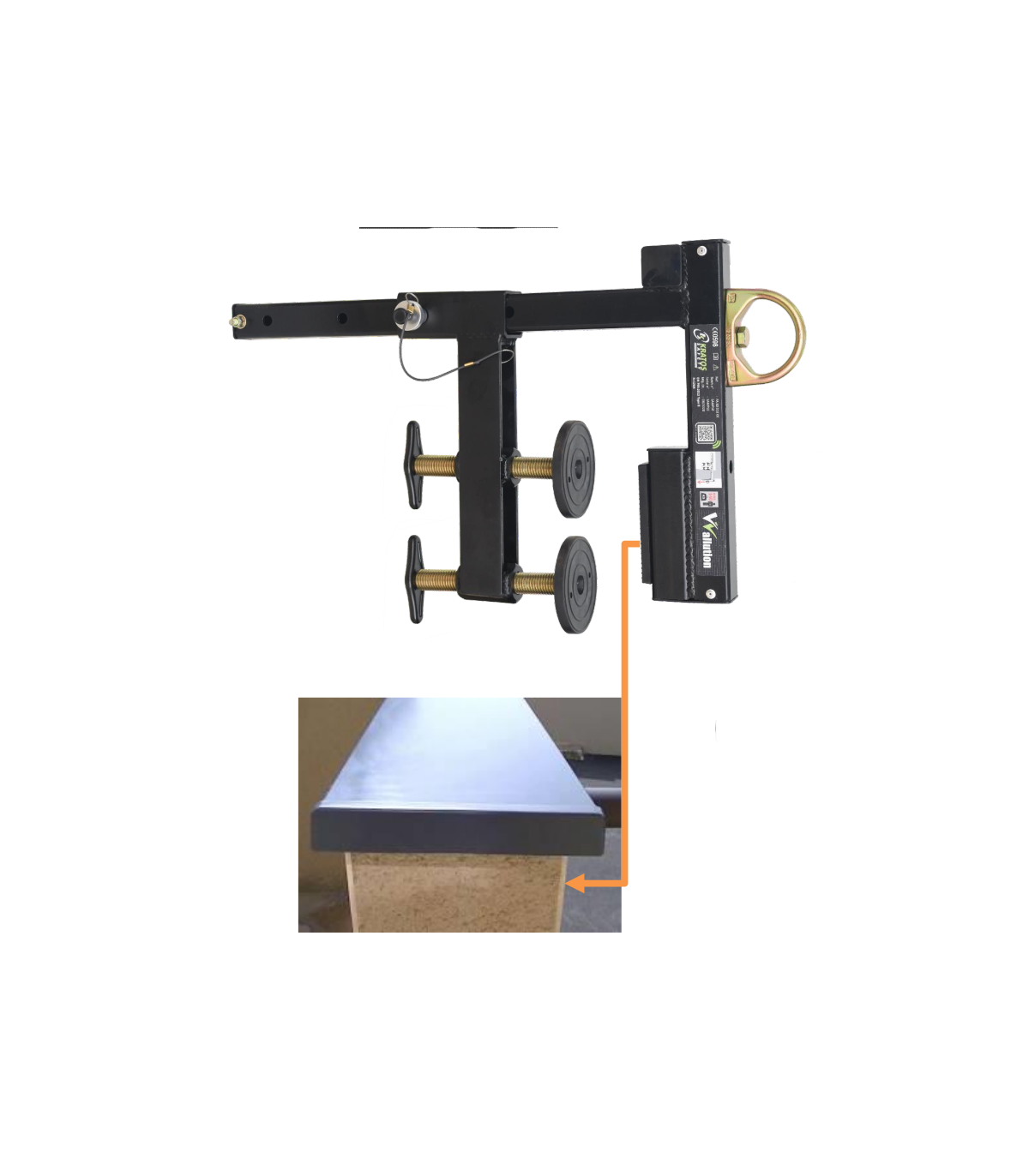

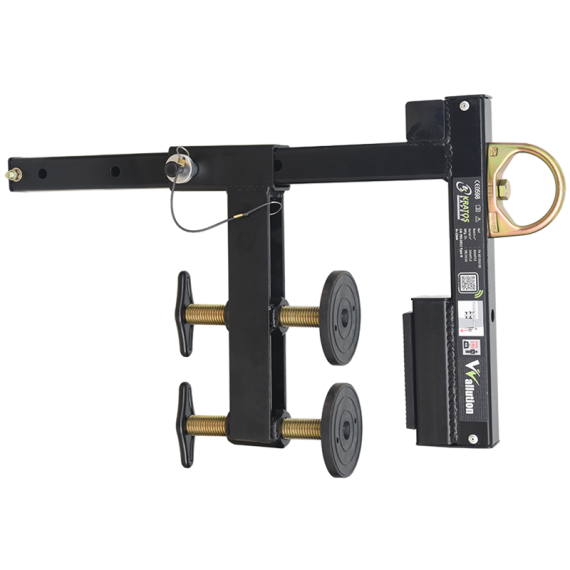

Anchor point for parapets with a breaking strength of 23 kN WALLUTION KRATOS SAFETY

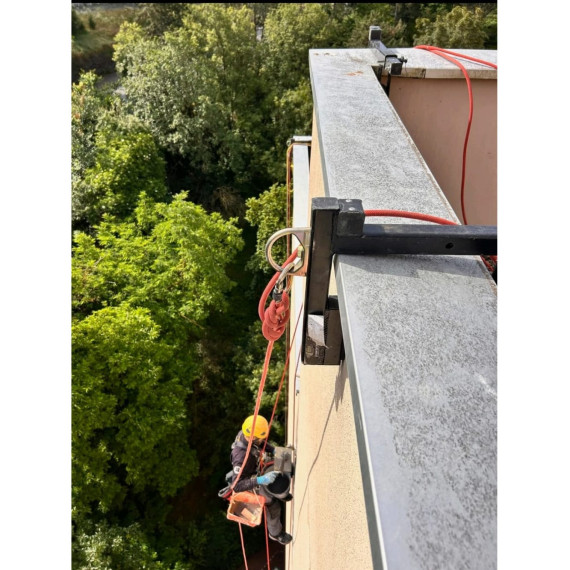

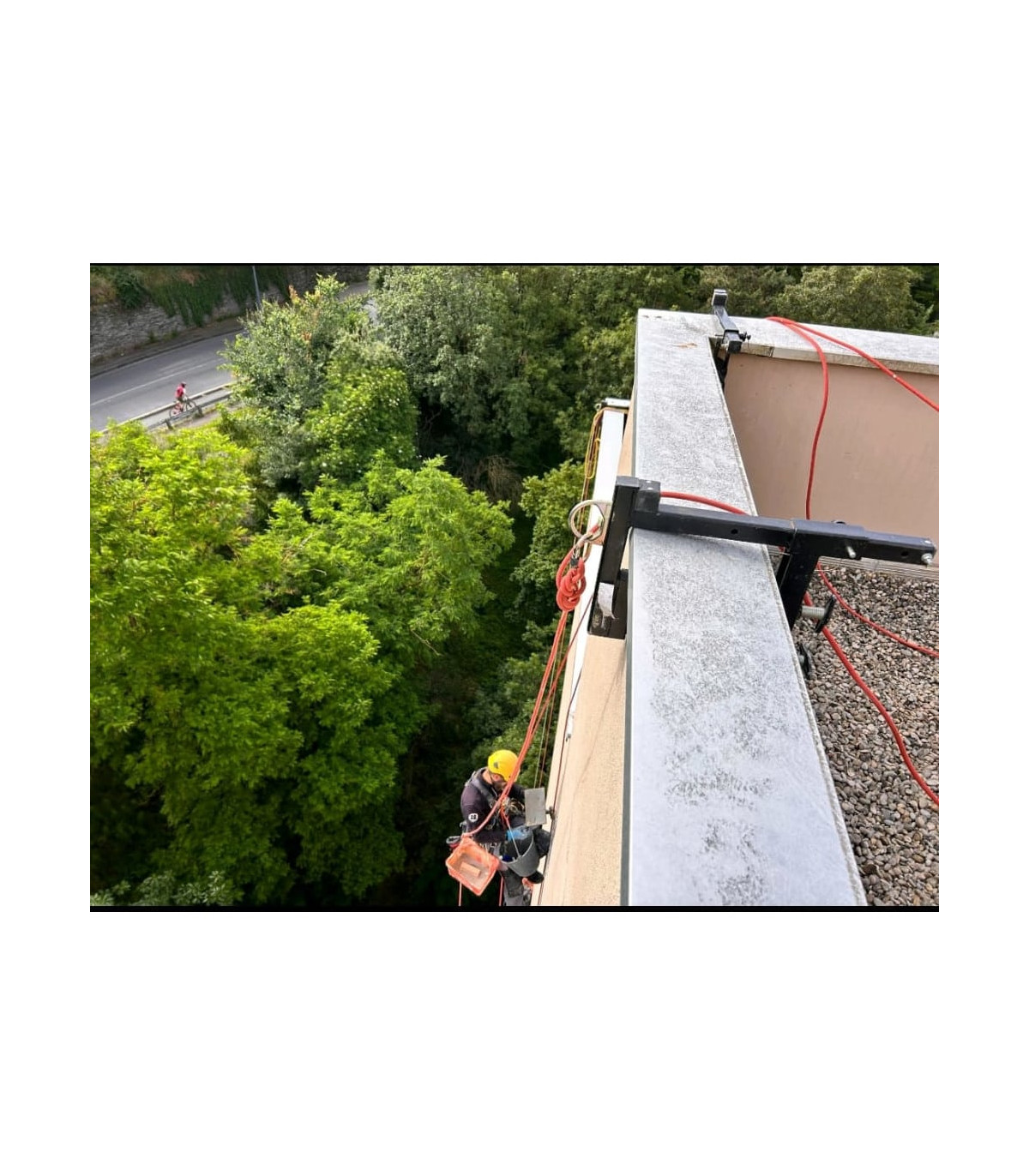

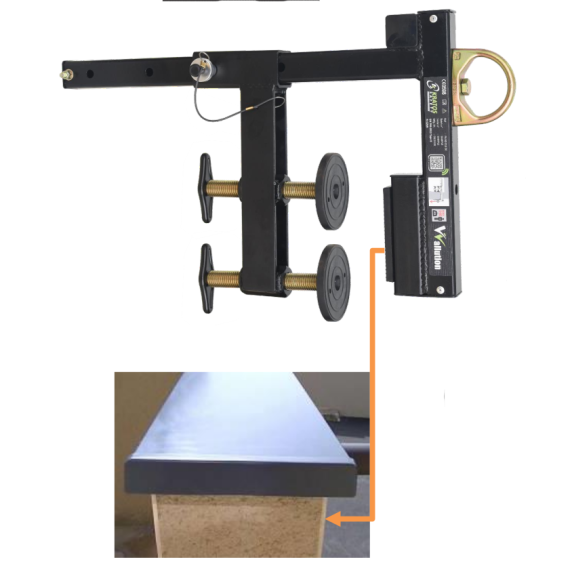

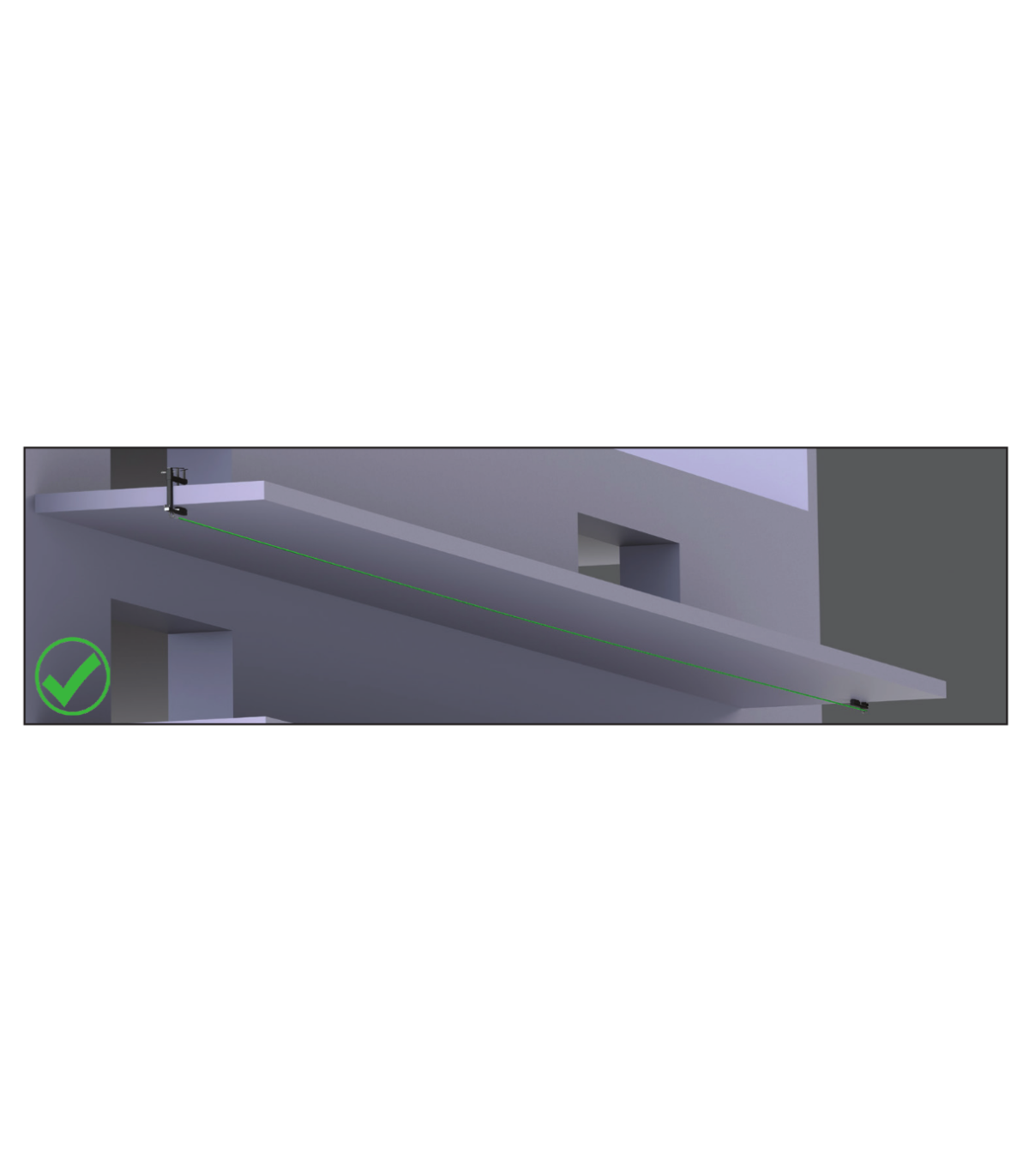

Temporary and transportable anchor point, intended to be used in places where a low wall constitutes an adequate anchoring structure. It is also suitable for low parapets with a coping. With its simple and robust design, its non-penetrating installation does not damage the anchoring structure. No specific tools are required for its installation.

FEATURES

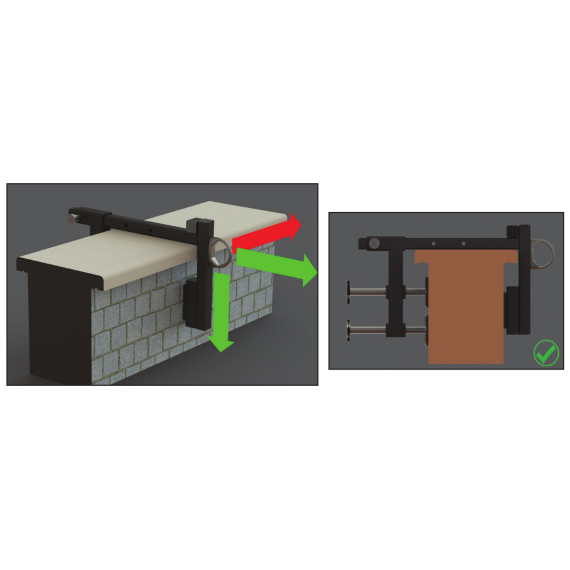

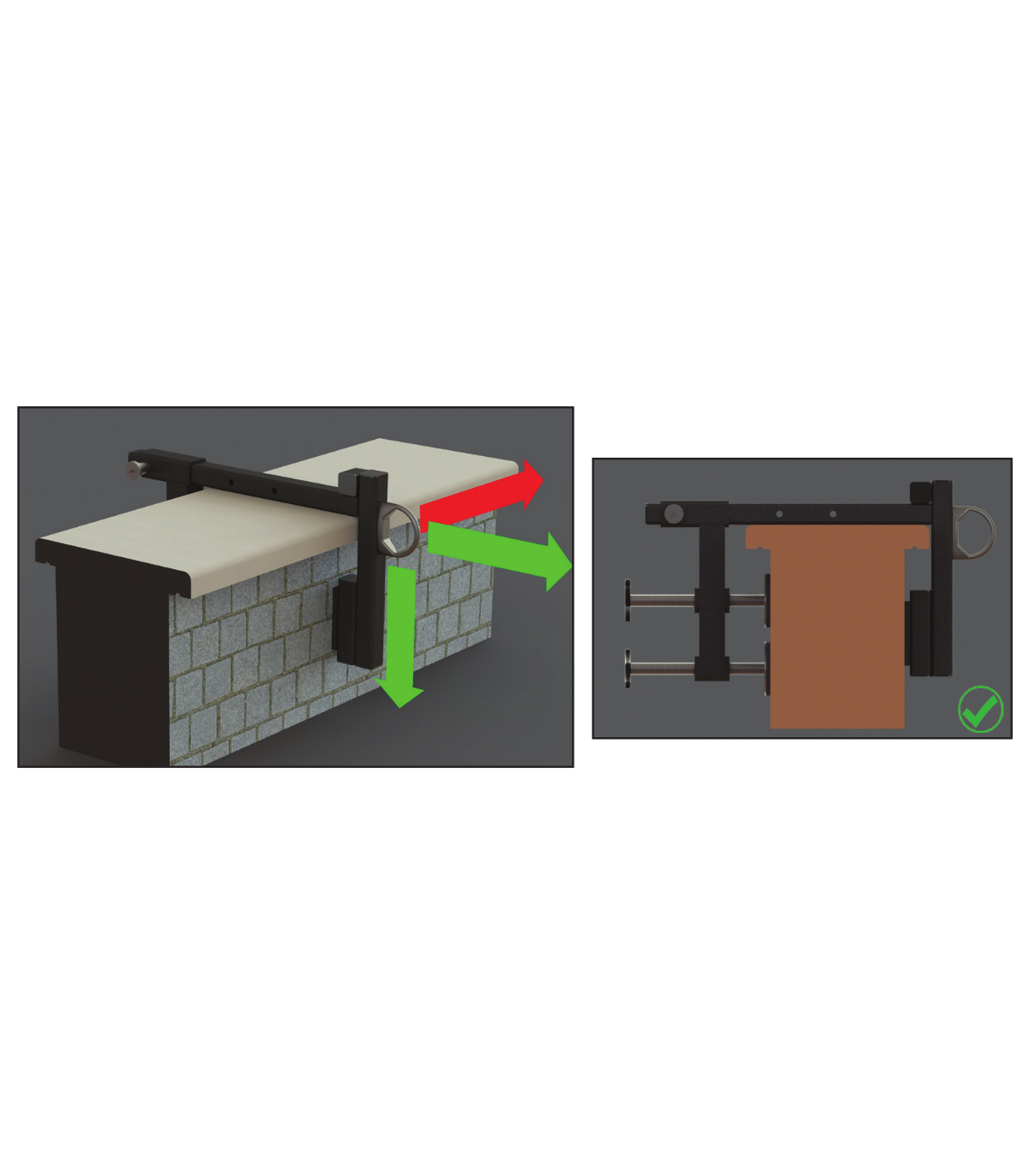

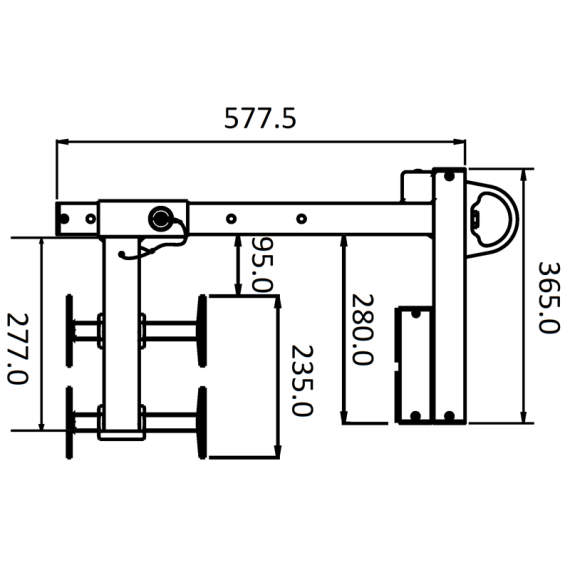

• Can be installed on parapets with dimensions from 60 to 320 mm.
• Materials: Galvanized steel
• Weight: 9.6 kg
• Breaking strength > 23 kN
• Compliance: EN795:2012 Type B
• Static strength > 12 kN.

APPLICATIONS

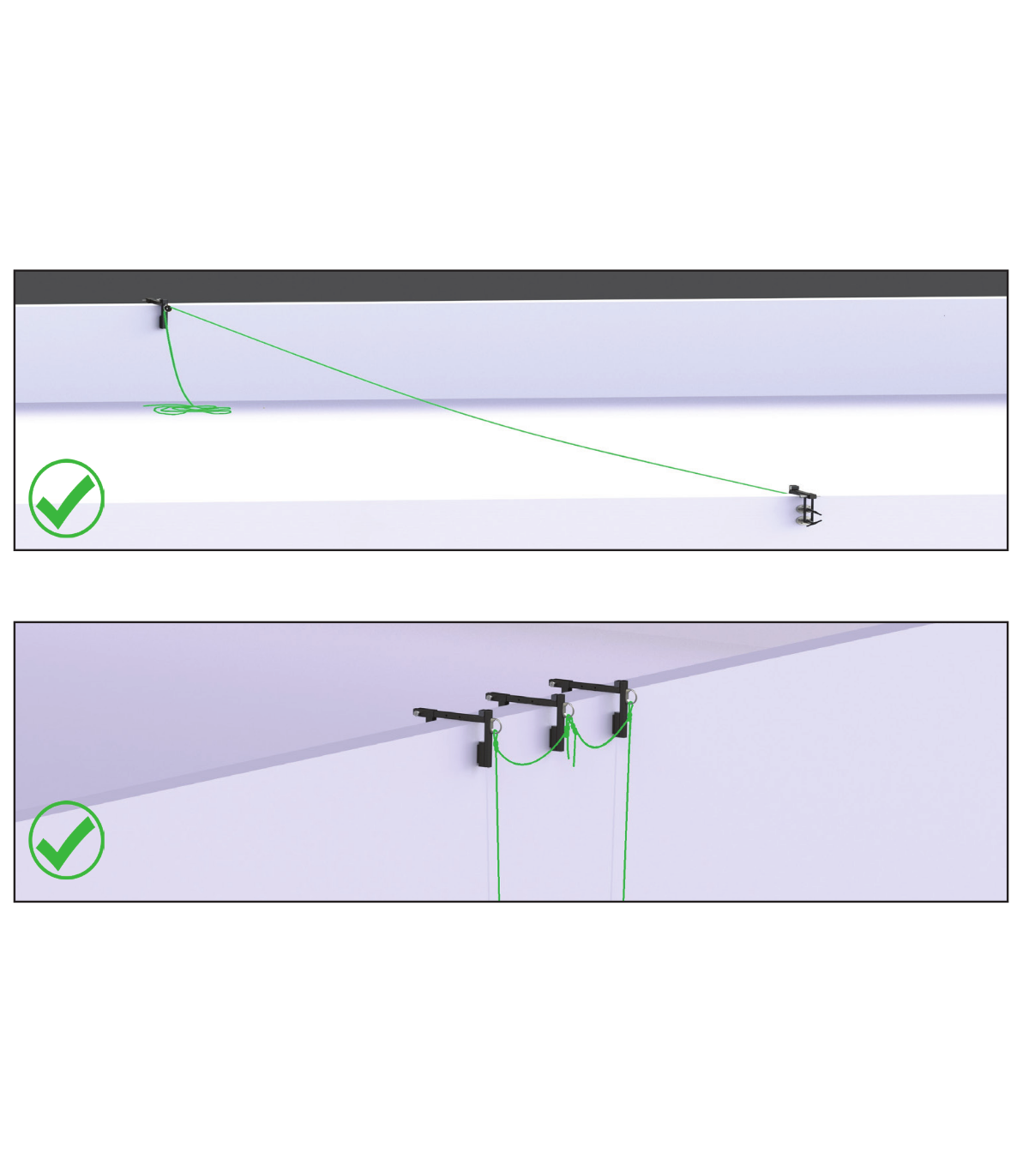

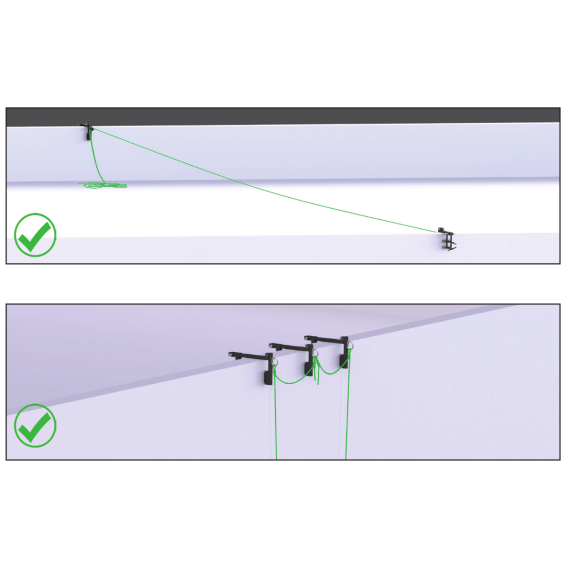

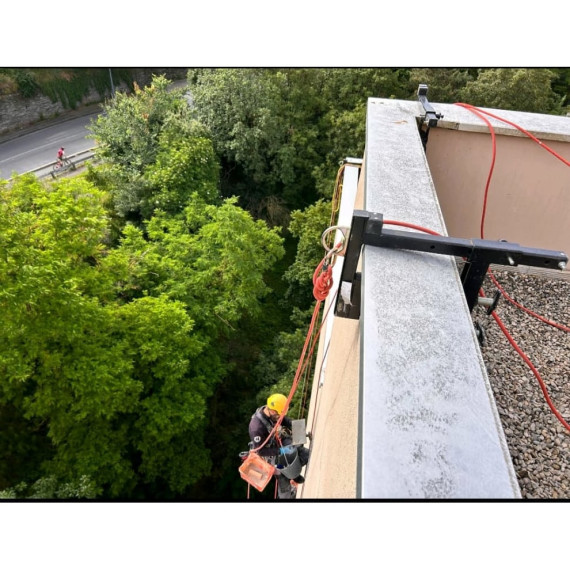

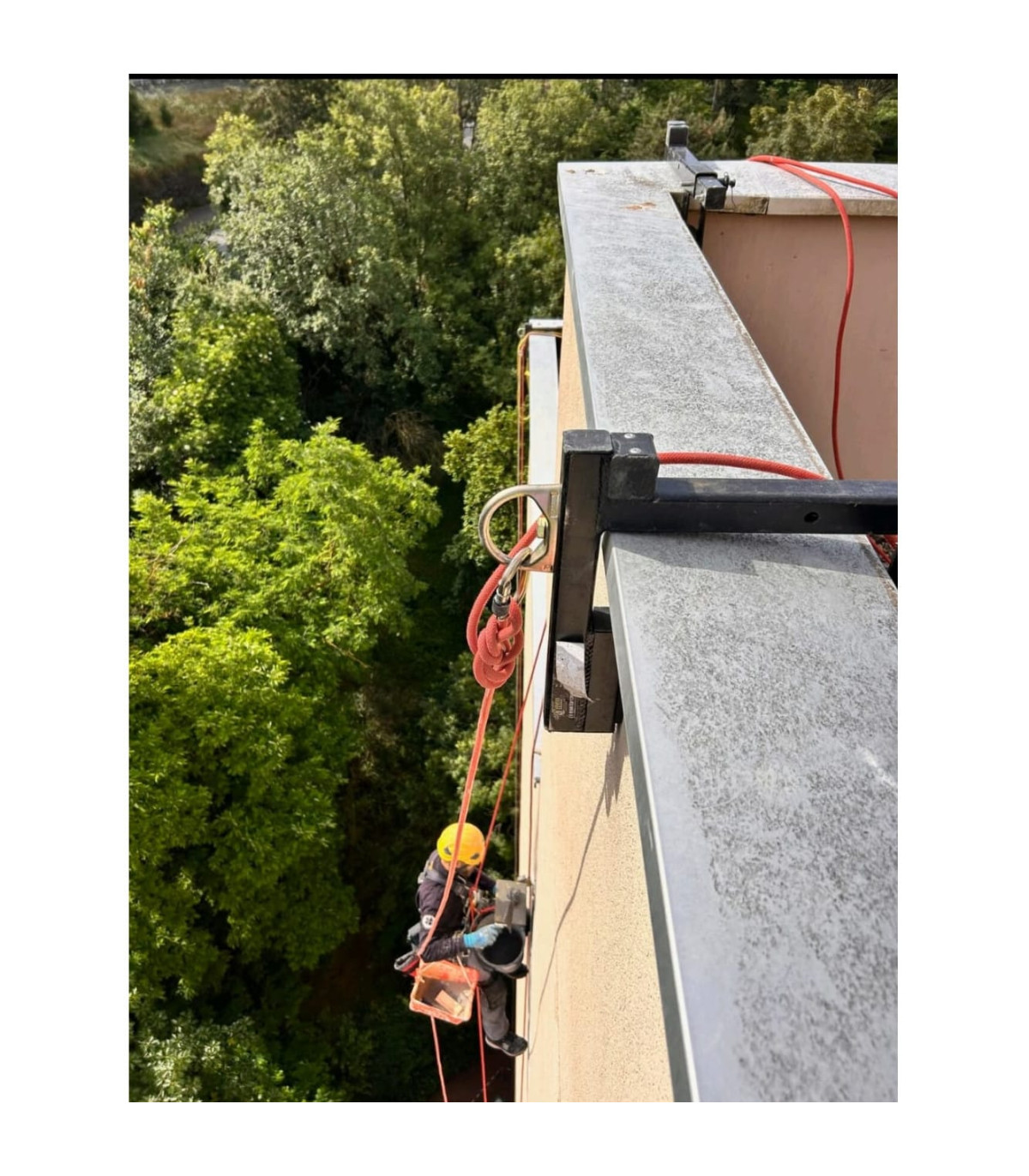

Temporary and transportable anchor point, intended to be used in places where a low wall constitutes an adequate anchoring structure.

TECHNICAL DATA

• HS: 73239098

VIDEO

NORMS

- EN 795:2012 Type B: refers to anchoring systems for fall protection in work at height. Specifically, Type B focuses on anchoring devices that are installed on structures and can be used by one or more workers to secure their harness and prevent falls.

USE

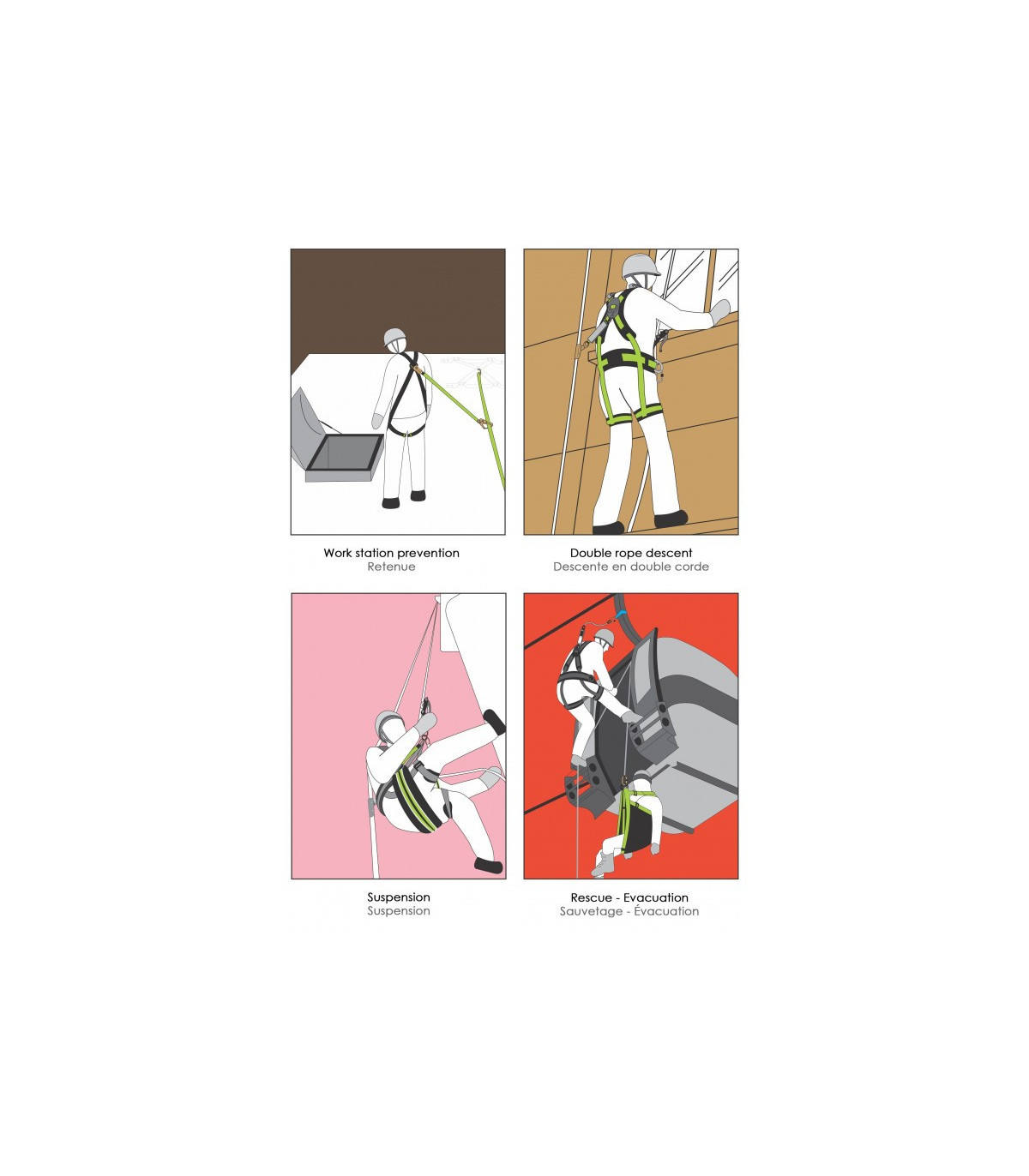

There is no good fall protection system without a good anchor point. Whatever the type of intervention that needs to be carried out, whether temporary or regular, it is essential to choose the anchor point well and ensure that the receiving structure (building, metal structure, post) is strong enough.

HOW TO CHOOSE

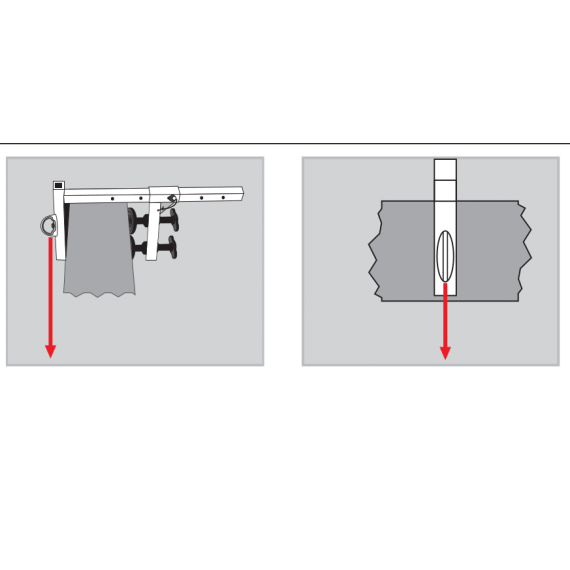

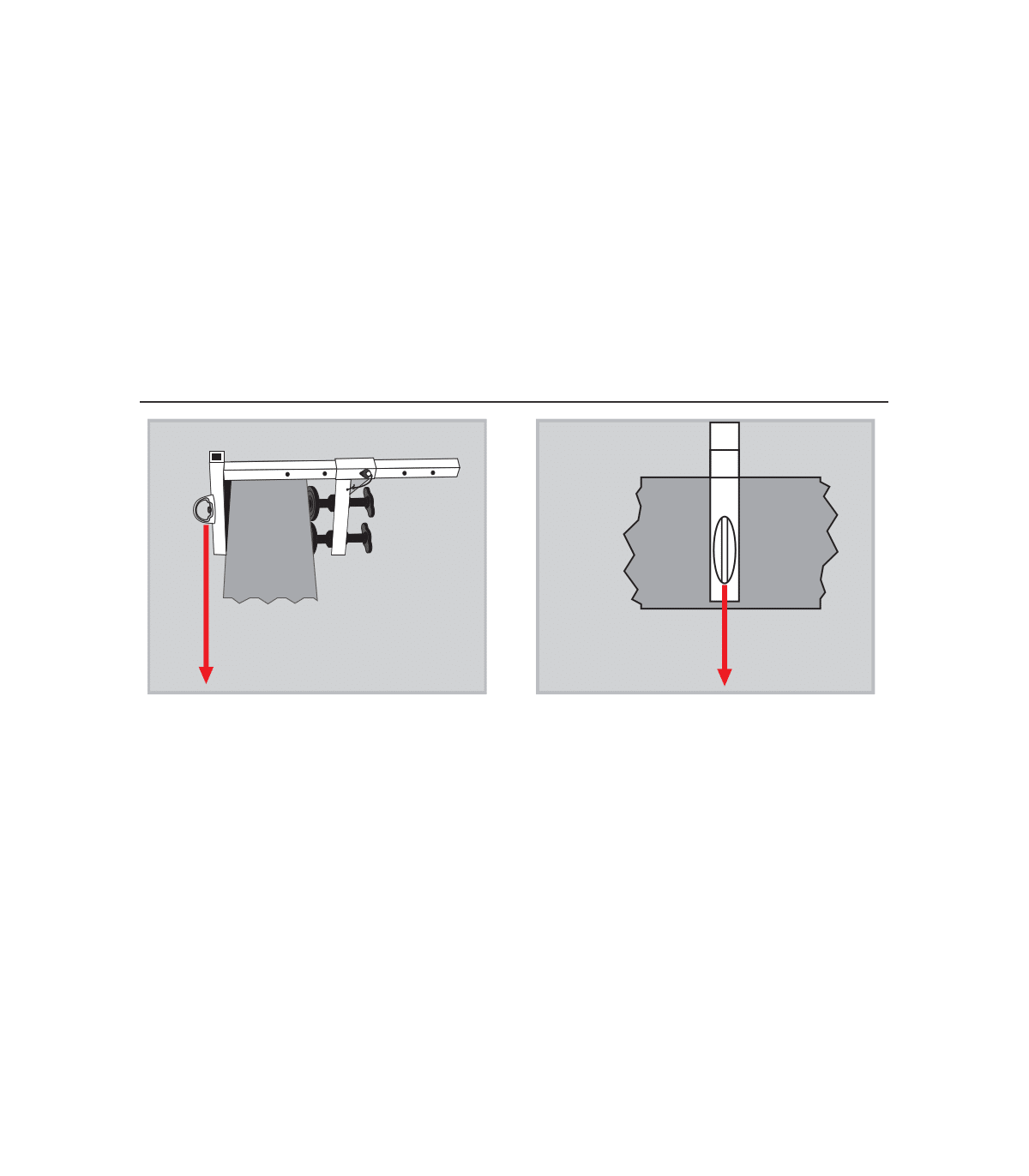

The anchor point is undoubtedly the most delicate element of a fall protection system that must be chosen to ensure optimal safety. When choosing the anchor point, it is necessary first to determine where to install the anchor point. For this, it is important to consider the following aspects: static strength of the anchor point: > 10 kN installation height: high enough in relation to the first potential obstacle in case of a fall (see fall factor diagram) situation: vertically above the workstation to avoid risks associated with the pendulum effect (see pendulum effect diagram)
