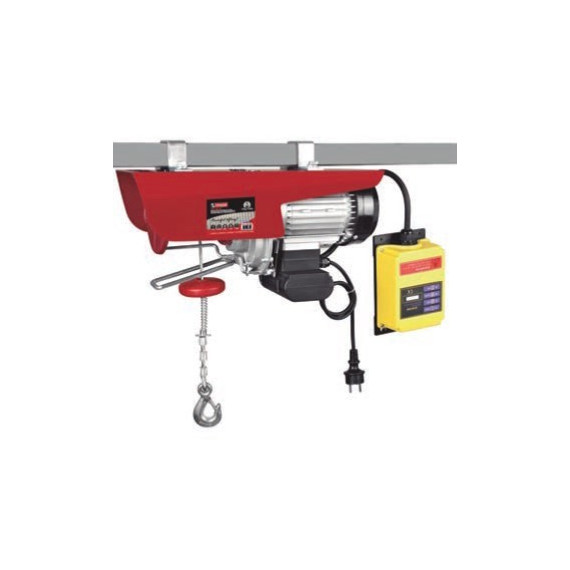

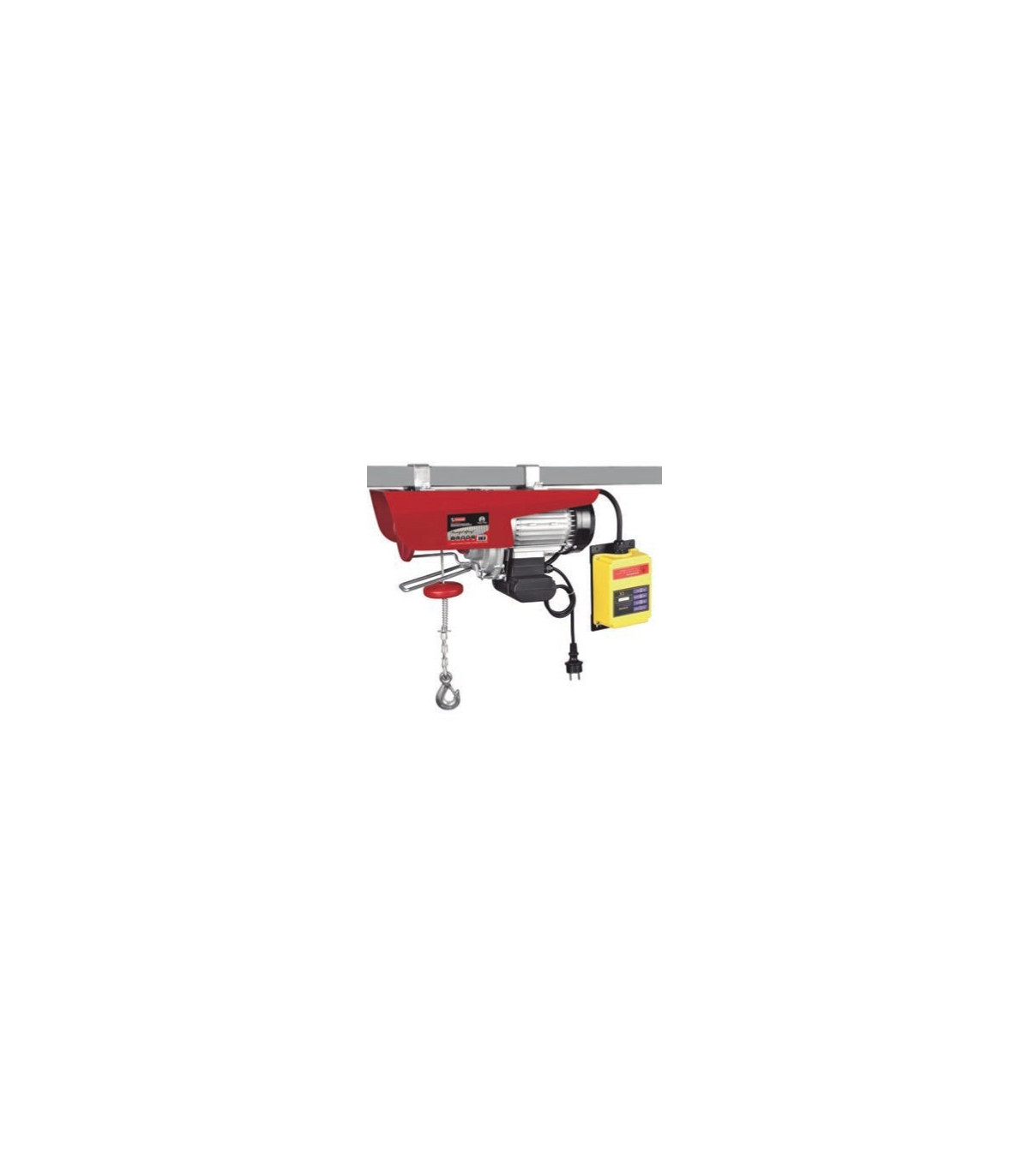

Electric wire hoist SH500-999-R - METALWORKS

Features: radio frequency remote control, maximum distance 100 m, IP54 protection and CE certification, working time 20% (2 minutes of work for every 10). Maximum load SH300/600R, 300 kg with single cable, 600 kg with reeving. Model SH500/999R, 500 kg with single cable, 999 kg with reeving. Lifting speed with single cable 8 m/min, lifting speed with reeving 4 m/min. Lifting height 18 m single cable and 9 m with reeving. Remote control included.

With a lifting capacity of up to 999 kg, the SH500-999-R electric hoist is a high-performance lifting tool for industrial environments. Equipped with a remote control and an advanced safety system, this equipment combines power, control, and reliability for the most demanding load handling tasks.

FEATURES

• High-power motor designed for extremely heavy loads.

• Remote control for safe and flexible operation.

• Integrated emergency stop safety system.

• Hooks with safety latch for a firm and reliable grip.

SPECIFICATIONS

• Capacity 500 / 999 kg
  Voltage 230 V
  Power 1,600 W
  Lifting speed 8 / 4 m/min.
  Lifting height 18 / 9 m
  Cable diameter 6 mm
  Remote control distance 100 m max.
  Net weight 33 kg

APPLICATIONS

• Large warehouses: Loading and unloading of pallets and heavy machinery.

• Factories: Movement of bulky equipment on production lines.

• Large-scale construction: Lifting of structural elements and heavy materials.

• Shipyards and ports: Loading of heavy equipment in work areas.
